Samsung AW070AA Manuel utilisateur

OWNER’S

INSTRUCTIONS

AW070AA

AW080AB

AW080AC

AW100AA

AW120AA

AW1400A

AW1800A

AW2410C

WINDOW-TYPE

ROOM AIR CONDITIONER

( Cool )

DB98-04271A(1)

The following safety precautions must be taken when using your air conditioner.

Safety Precautions

1 The unit must be plugged into an independent circuit.

The air conditioner must be installed in accordance with national wiring regulations and

safety regulations wherever applicable.

2 Some installation locations may require installation of a short circuit breaker or grounding.

4 MAKE sure that the unit is correctly ventilated at all times :

do NOT place clothing or other materials over it.

5 NEVER spill any kind of liquid into the unit. Should this happen, unplug the unit and contact

an authorized service center.

6 Do NOT insert anything between the air outlet blades because the inner fan may be damaged

and could cause injury. Keep children away from the unit.

7 Do NOT place any obstacles in front of the unit.

8 Users of this product are cautioned not to attempt repairs.

Instead, they are requested to directly contact a designated service center or the outlet

at which the product was purchased.

9 Do not use an extension cord with this product.

10 The appliance is not intended for use by young children without supervision ;

young children should be supervised to ensure that they do not play with the appliance.

11 Never store or ship the air conditioner upside down or sideways to avoid damage to the

compressor.

3 If the supply cord is damaged, it must be replaced by a special cord or assembly available

from the manufacturer or its service agent.

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-2

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Description of Each Component .................................................................... 4

■Getting Started ............................................................................................... 5

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 6

■Ventilating Your Room .................................................................................... 7

■Switching the Air Conditioner Off .................................................................... 8

■Selecting Energy Saving Mode ...................................................................... 8

■Adjusting the Air Flow Direction Horizontally .................................................. 9

■Adjusting the Air Flow Direction Vertically ...................................................... 9

◆RECOMMENDATIONS FOR USE

■Power Failure ................................................................................................. 10

■Temperature and Humidity Ranges ................................................................ 10

■Cleaning Your Air Conditioner ........................................................................ 11

■Solving Common Problems ............................................................................ 13

■Technical Specifications ................................................................................. 13

E-3

Air filter

(The air filter is

located in inside.)

Air inlet (Inside)

Air outlet

Thermostat control

Operating mode

selection dial

Operating mode

selection dial

Thermostat control

Energy Saver switch

Swing switch

Outer air flow blades

(up/down orientation)

Air inlet (Outside)

Ventilation lever

Power plug (The type of

power plug may

differ, depending on the

local power supply.)

Inner air flow blades

(right/left orientation)

AW070AA/AW080AB/

AW080AC/AW100AA/

AW120AA/AW1400A/

AW1800A

AW2410C

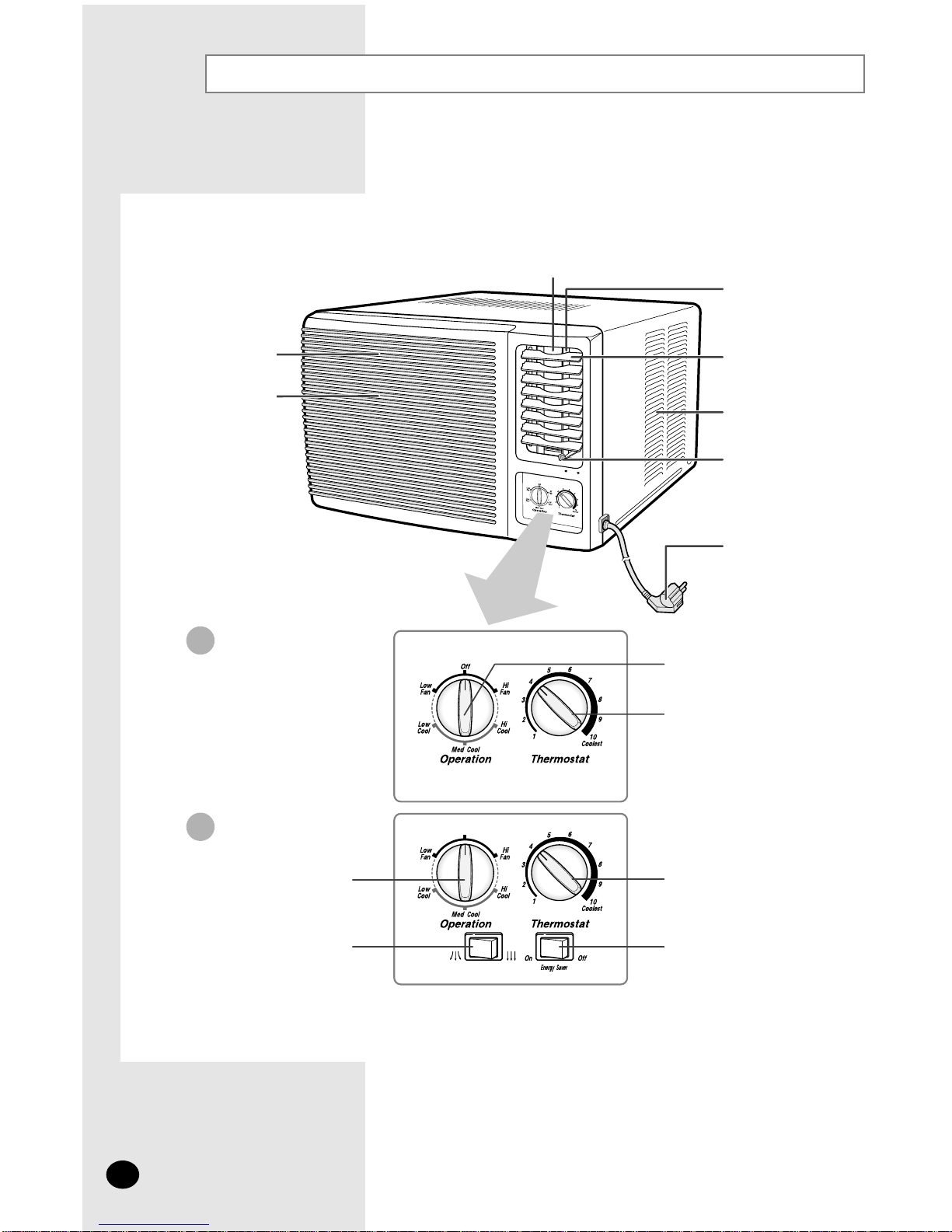

Description of Each Component

E-4

❄The design and shape are subject to

change, depending on the model.

Getting Started

You have just purchased a Samsung window-type room air conditioner which should be

installed following your Owner’s Instructions.

Your Owner's Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit's

features.

The illustrations in the step-by-step procedures use four different symbols:

E-5

PRESS PUSH IMPORTANT NOTE

☛

➢

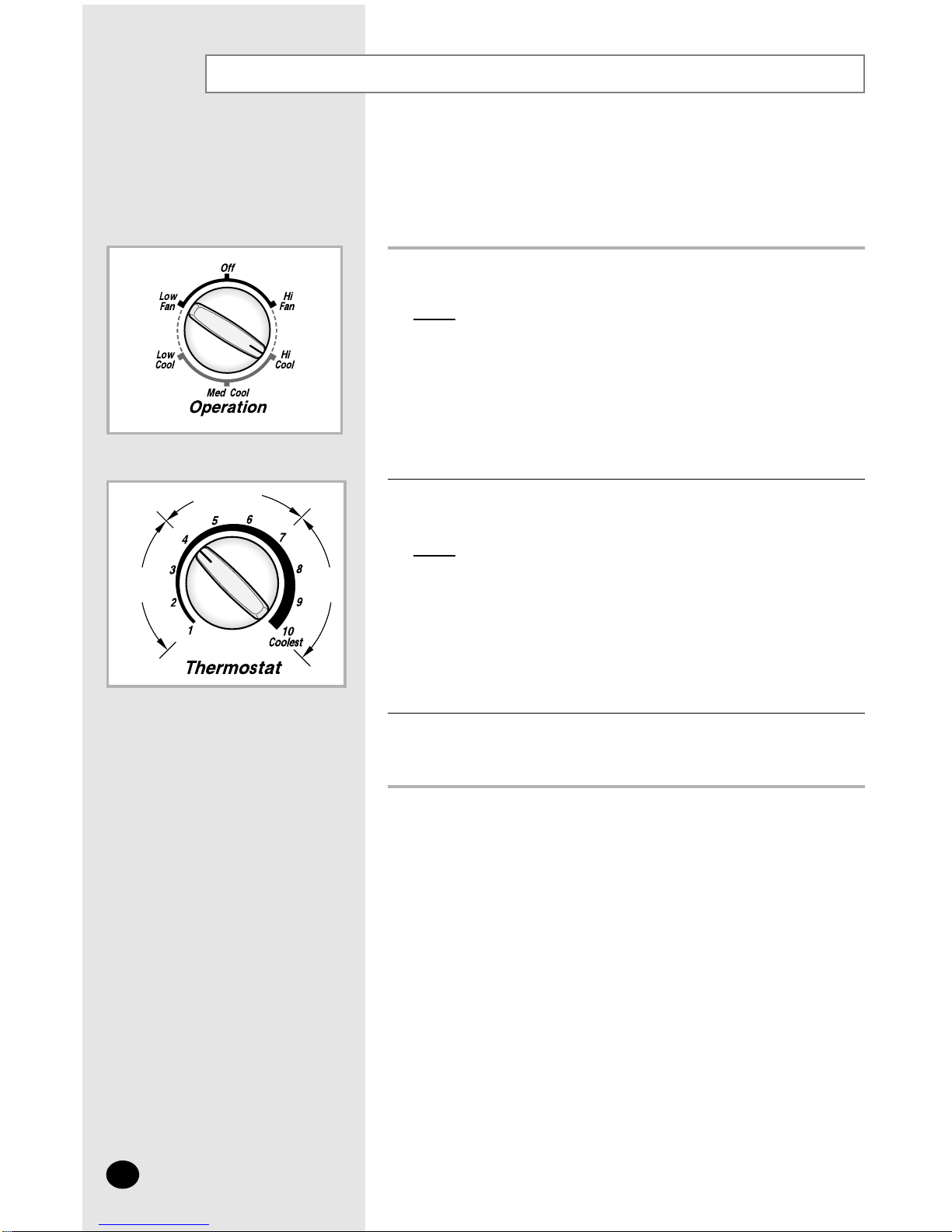

Cooling Your Room

To control the direction of the air flow, refer to page 9.3

Turn the operating mode selection dial and set it to “ HI COOL ” ,

“ MED COOL ” or “ LOW COOL ”.

Result: ◆ The air conditioner starts up in cool mode.

➢

◆You can change modes at any time.

Turn the THERMOSTAT control to the desired position.

You must select the COOL mode if you wish to adjust the:

◆ Cooling temperature

◆ Fan speed when Cooling

Possible temperatures: Can be set between 64°F and 84°F.

Result: The air conditioner starts cooling if the room temperature is

higher than the selected temperature.

E-6

81˚F ~ 73˚F

73˚F

~ 64˚F

84˚F

~ 81˚F

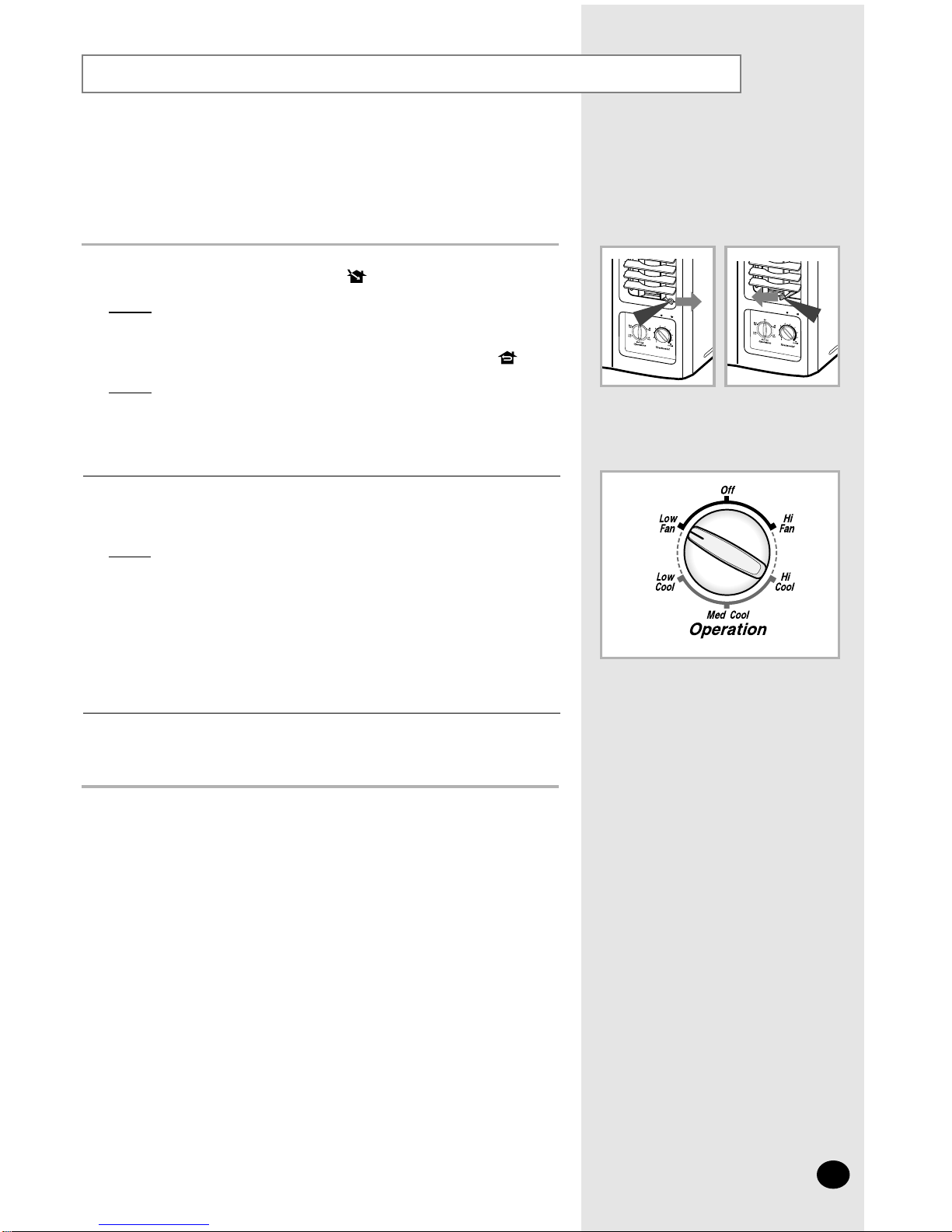

Ventilating Your Room

If the air in your room is stale, you can ventilate the room using the

Fan feature.

Turn the operating mode selection dial and set it to “HI FAN” or “LOW FAN”

position.

Result: ◆ The air conditioner starts up in fan mode.

➢

◆ HI FAN : The fan turns rapidly.

◆ LOW FAN : The fan turns slowly.

◆ You can change modes at any time.

To control the direction of the air flow, refer to page 9.

If you wish to discharge stale air, push the ventilation lever on the front

of the unit to the right and open position ( ).

Result:

The air inside the room circulates and stale air is discharged

outside.

Otherwise, push the ventilation lever to the left and closed position ( ).

Result:

The air simply circulates inside the room.

E-7

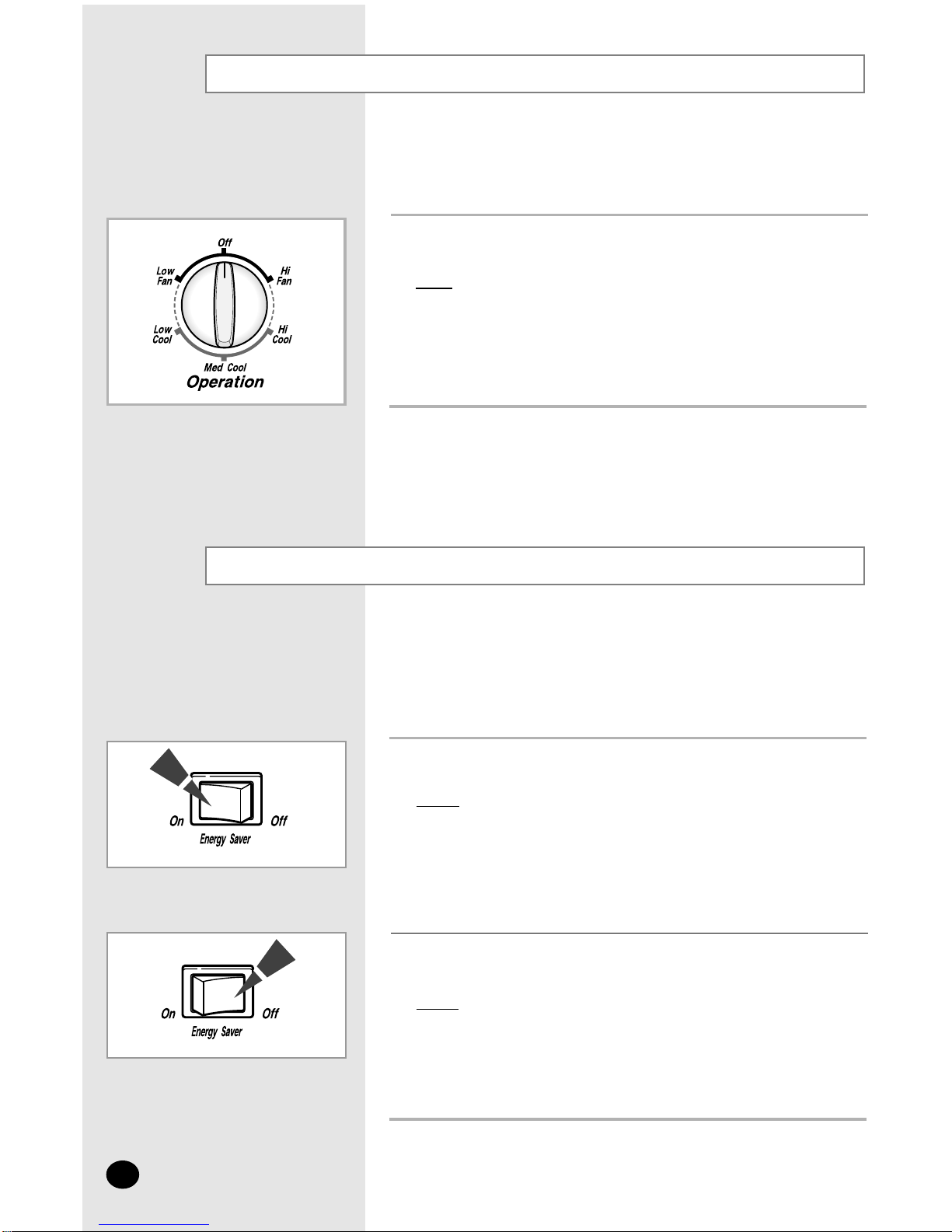

Switching the Air Conditioner Off

To switch the unit off, simply set the operating mode selection dial to the

OFF position.

Result: The air conditioner stops operating.

You can switch the air conditioner off whenever you want.

If you wish to save energy when using the air conditioner,

select the energy saving mode by using the Energy Saver switch.

This feature is normally used when the room is unoccupied.

To turn off the energy saving feature, set the Energy Saver switch to the

OFF position.

Result:

The fan runs at all times, while the compressor cycles on and off.

To select the energy saving mode, set the Energy Saver switch to the ON

position.

Result:

The fan and compressor cycle on and off simultaneously.

This results in wider variations of room temperature and humidity.

If you want to run the air conditioner in Fan mode, do not turn the

Energy Saver switch on. The Fan mode will not operate when the

Energy Saver switch is in the ON position.

➢

Selecting Energy Saving Mode (AW2410C)

E-8

To stop the blades moving left and right, set the Swing switch to the

position.

Set the Swing switch to the position.

Result:

The inner blades swing automatically left and right.

To stop the blades in a specific position and orient the air flow in the

corresponding direction, simply set the switch to the position when

the blades are in the desired position.

➢

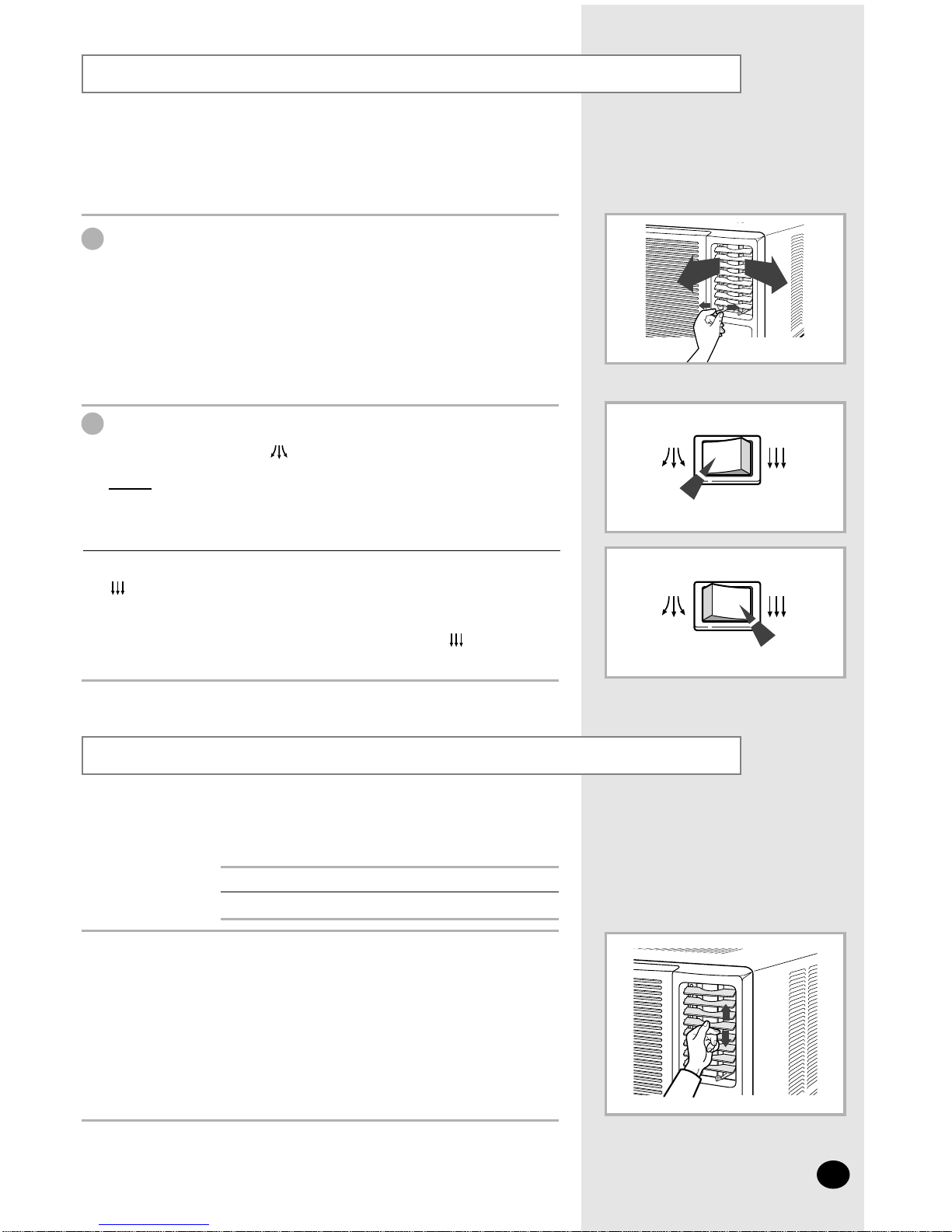

Adjusting the Air Flow Direction Horizontally

Adjusting the Air Flow Direction Vertically

The inner air flow blades on the rigth side of the unit can be adjusted to direct the air

flow to the left, right or straight, thus increasing the efficiency of the air conditioner.

The side by side air direction louvers are controlled by a lever.

They regulate air discharge to the left, right or straight.

The outer air flow blades can be adjusted to control the vertical air

flow direction.

RECOMMENDATION When...

Cooling

Adjust the blades to face...

Upwards.

AW2410C

AW070AA/AW080AB/AW080AC/AW100AA/

AW120AA/AW1400A/AW1800A

Adjust the air flow blades to the desired position, by pushing them

upwards or downwards.

◆

If you orient the air flow blades downwards and the unit operates

in Cool mode for long periods of time, dew may:

Form on the surface of the blades

Drip from the blades

➢

E-9

Power Failure

Temperature and Humidity Ranges

If the air conditioner is used at... Then...

Higher temperature The automatic protection feature may be triggered

and the air conditioner stopped.

Lower temperature A water leakage or some other malfunction may happen

if the heat exchanger freezes.

Higher humidity levels Water may condense on and drip from the surface of the unit

if it is used for long periods.

The following table indicates the temperature and humidity ranges

within which the air conditioner can be used.

Mode Indoor

Temperature Outdoor

Temperature Indoor Humidity

Cooling 70°F to 90°F approx. 70°F to 110°F approx. 80% or less

If a power failure occurs, the air conditioner is switched off.

When the power comes back on, the air conditioner starts up again

automatically.

E-10
