Samsung AZ09A0KE Manuel utilisateur

ENGLISH

ESPAÑOL

FRANÇAIS

PORTUGUÊS

ITALIANO

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’UTILISATIO

MANUAL DE INSTRUÇÕES

ISTRUZIONI PER L’USO

AZ09A1KE

WH09ZA

WH09ZA1A

Window-type Room Air Conditioner ( Cool and Heat )

Acondicionador de aire doméstico sistema de tipo ventana ( Refrigeración y Calefacción )

Climatiseur de type Fenêtre ( Refroidissement et Chauffage )

O ar Condicionado de Window-Type ( Refrigeração e Aquecimento )

Condizionatore d’aria per ambienti da finestra ( Raffreddamento e Riscaldamento )

E S F P I

DB68-00941B(2)

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1 The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

◆ A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

2 Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

4Do NOT insert anything between the air outlet blades, as the inner fan may be damaged

and you may be hurt. Particularly, keep children away from the unit.

5ALWAYS ensure that the power cable is in good condition.

Make sure that it is not walked on or damaged by items placed on or against it.

If the power cord is damaged in any way, it must be replaced by an approved

power cord available from the manufacturer or its service agent.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

◆ An approved service center

◆ The outlet at which the air conditioner was purchased

7Do NOT place any obstacles in front of the unit.

3NEVER spill liquids of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

8The appliance is not intended for use by young children or infirm person without

supervision; young children should be supervised to ensure that they do not play with

the appliance.

The manufacturer do not take the responsibility of the accident happened

because the air conditioner is not fixed firmly or installed securely, during

installing or using the product. In case you have difficulty in installation,

you must ask for an installation specialist help. The accident will be hap-

pened in case of installing improperly.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-2

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Air Conditionin Unit - Main Parts and Control Panel .................................... 4

■Gettin Started ............................................................................................... 5

◆OPERATING YOUR AIR CONDITIONER

■Coolin Your Room ........................................................................................ 6

■Heatin Your Room ........................................................................................ 7

■Airin Your Room ........................................................................................... 8

■Switchin the Air Conditioner Off .................................................................... 8

■Adjustin the Air Flow Direction Horizontally .................................................. 9

■Adjustin the Air Flow Direction Vertically ...................................................... 9

◆RECOMMENDATIONS FOR USE

■Operatin Recommendations ......................................................................... 10

■Temperature and Humidity Ran es ................................................................ 11

■Cleanin Your Air Conditioner ........................................................................ 11

■Solvin Common Problems ............................................................................ 12

■Technical Specifications ................................................................................. 13

◆METHOD OFINSTALLATION ................................................................................. 14

E-3

ENGLISH

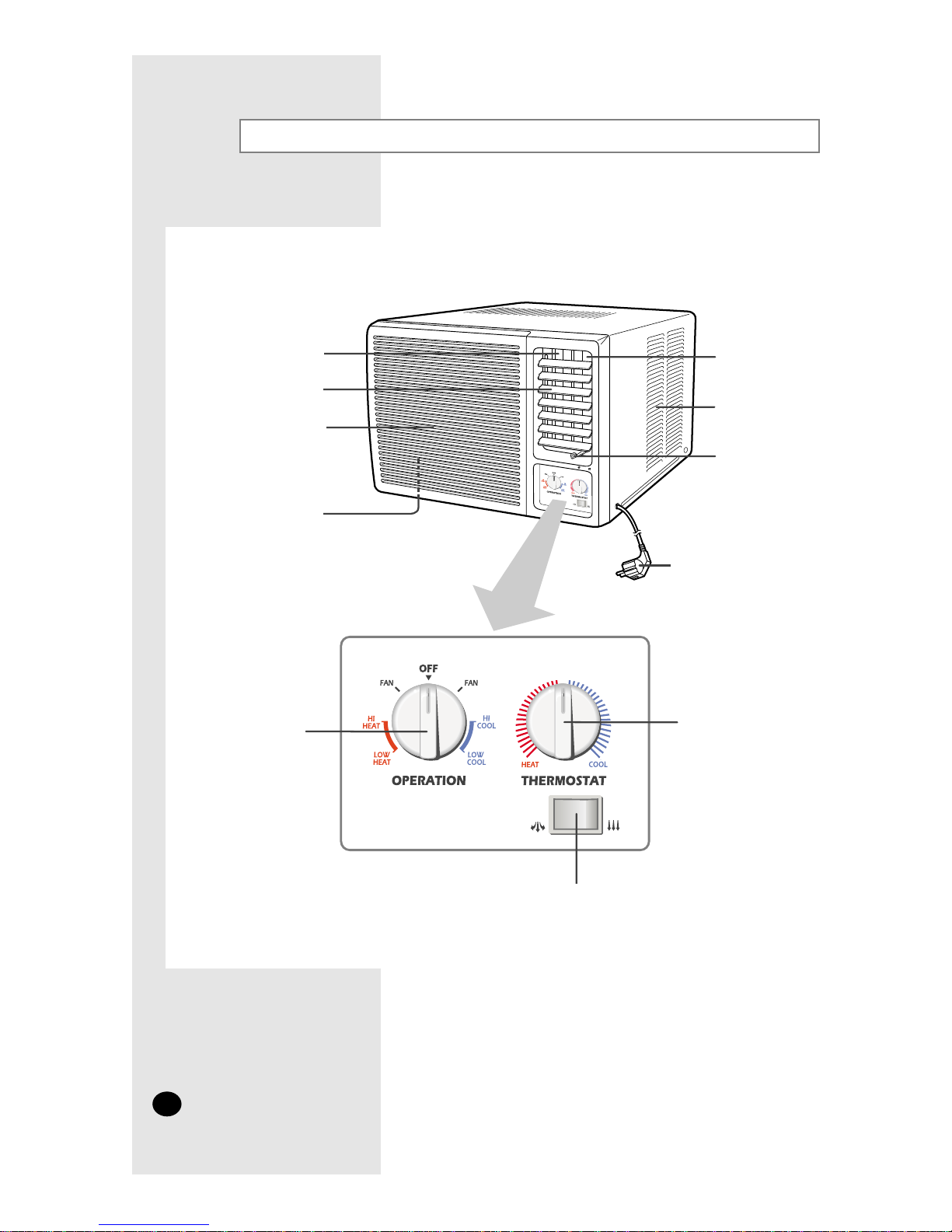

Air Conditioning Unit - Main Parts and Control Panel

Outer air flow blades

(up/down orientation)

Air inlet (Inside)

Air filter

(The air filter is located in inside )

Ventilation lever

Power plu

(The type of power plu may

differ, dependin on the local

power supply.)

Air Outlet

Air inlet (Outside)

Temperature

control dial

Operatin mode

selection dial

Air flow blade swin switch

Inner air flow blades

(ri ht/left orientation)

❄The desi n and shape are subject to

chan e accordin to the model.

E-4

Getting Started

You have just purchased a window-type room air conditioner and it has been installed

by your installation specialist.

Your Owner’s Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s features.

The booklet is organised as follows.

◆The illustration on page 4 shows the air conditioning unit;

it indicates the location and purpose of the main parts and controls on the unit.

◆ In the main part of the document, you will find a series of step-by-step

procedures for each function available.

The illustrations in the step-by-step procedures use four different symbols:

PRESS PUSH IMPORTANT NOTE

☛

➢

E-5

ENGLISH

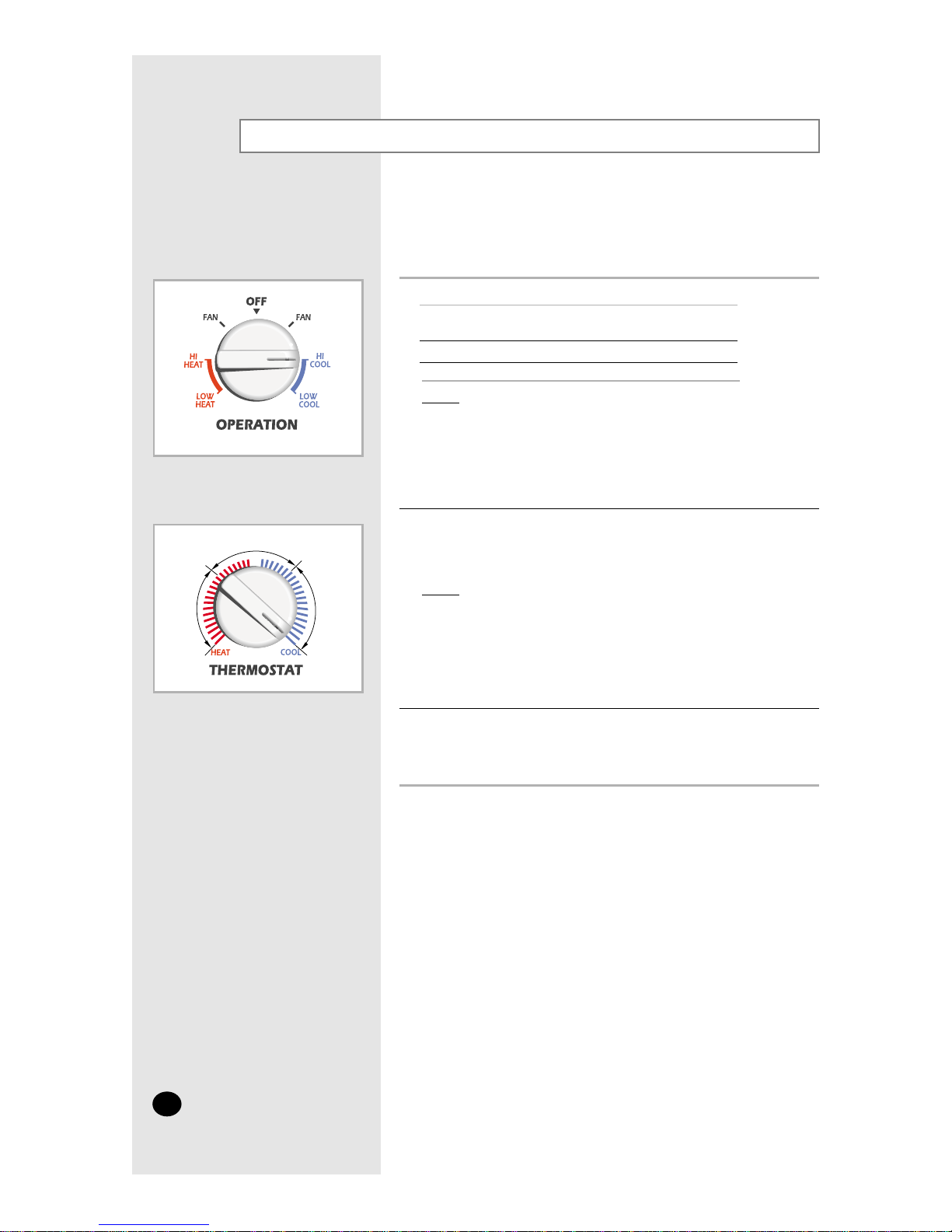

Select the operatin mode and fan speed.

To cool your room with a... Set the operating mode

selection dial to...

Hi h fan speed HI COOL

Low fan speed LOW COOL

Result: ◆

The air conditioner starts up in Cool mode.

◆

The fan starts up at the speed selected.

You can chan e modes at any time.

Cooling Your oom

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the fan speed.

To control the direction of the air flow, refer to pa e 9.

To adjust the temperature, turn the temperature control dial towards

the ri ht and the blue position.

Possible temperatures: Between 18°C and 25°C inclusive.

Result: The air conditioner starts coolin if the room temperature

is hi her than the selected temperature.

29˚C

~ 27˚C

27˚C ~ 23˚C

23˚C

~ 18˚C

➢

E-6

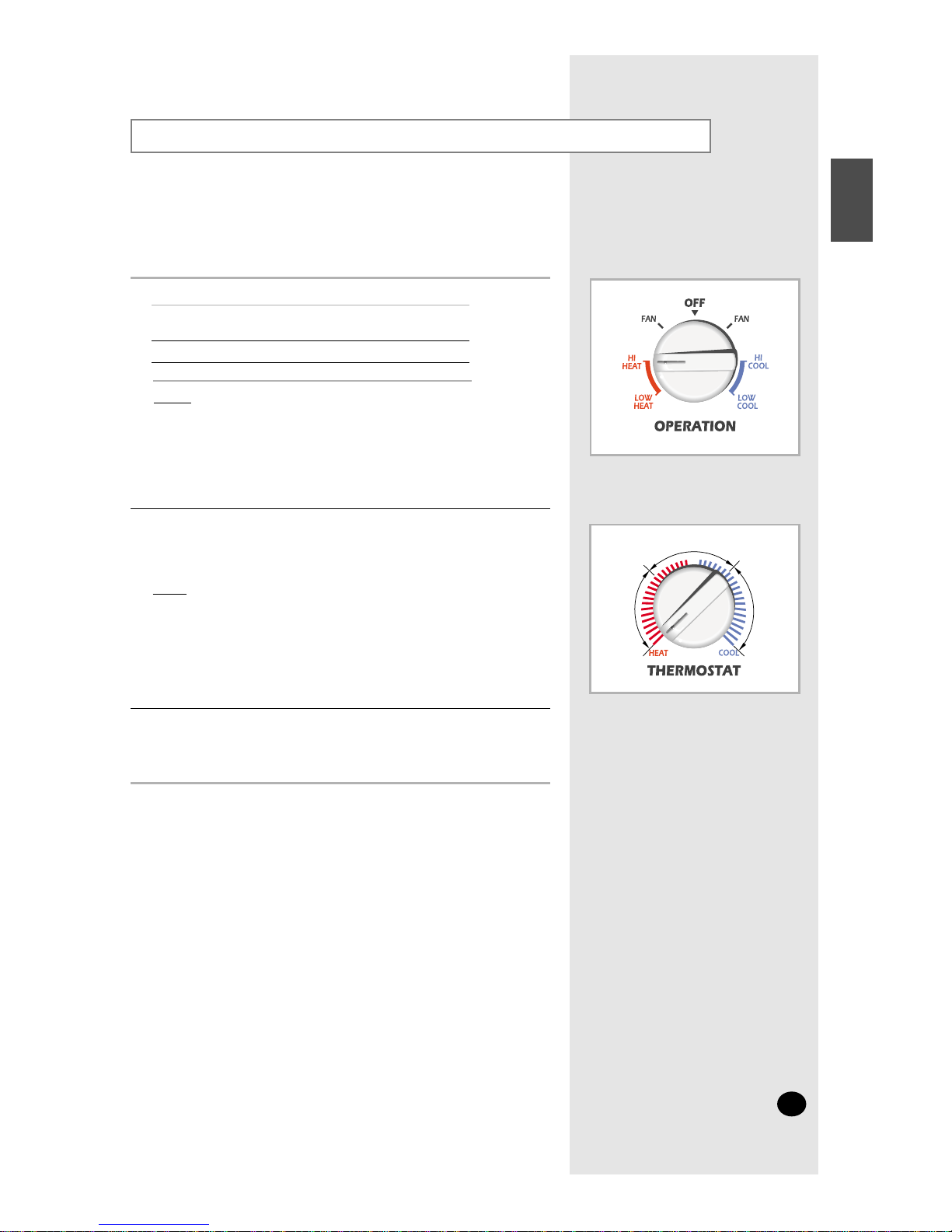

Select the operatin mode and fan speed.

To heat your room with a... Set the operating mode

selection dial to...

Hi h fan speed HI HEAT

Low fan speed LOW HEAT

Result: ◆

The air conditioner starts up in Heat mode.

◆

The fan starts up at the speed selected.

You can chan e modes at any time.

You must select the Heat mode if you wish to heat your room

to a specific temperature. You can also select the fan speed.

To adjust the temperature, turn the temperature control dial towards

the left and the red position.

Possible temperatures: Between 25°C and 29°C inclusive.

Result: The air conditioner starts heatin if the room temperature

is lower than the selected temperature.

To control the direction of the air flow, refer to pa e 9.

Heating Your oom

29˚C

~ 27˚C

27˚C ~ 23˚C

23˚C

~ 18˚C

➢

E-7

ENGLISH

To switch the unit off, simply set the operatin mode selection dial

to the OFF position.

Result: The air conditioner stops operatin .

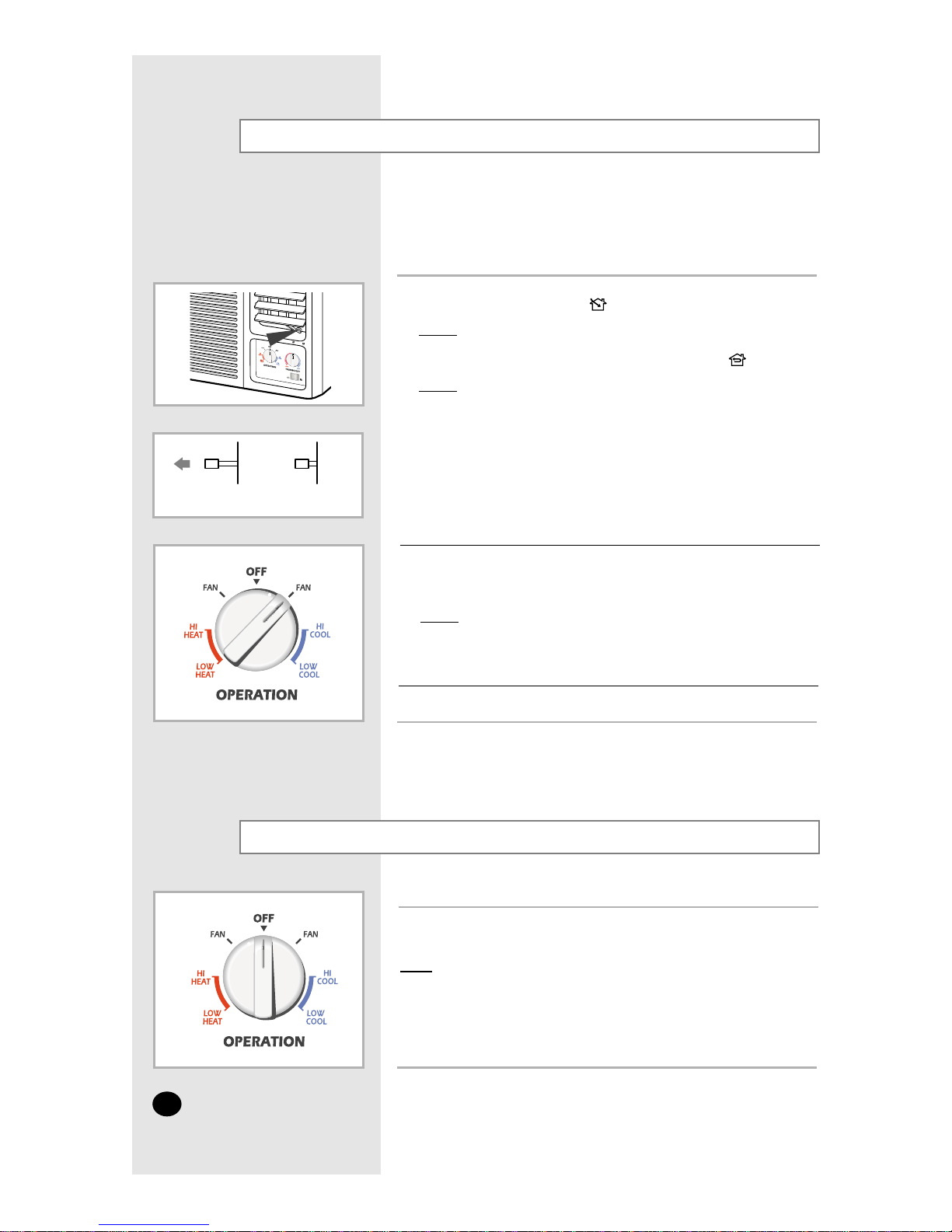

Airing Your oom

Switching the Air Conditioner Off

If the atmosphere in your room is stale, you can air it using

the Fan feature and if necessary, evacuate the stale air outside.

You can switch the air conditioner off whenever you want.

Set the operatin mode selection dial to the FAN position.

Both fan settin s (left and ri ht) have the same function.

Result:

The air conditioner starts up in Fan mode.

To control the direction of the air flow, refer to pa e 9.

➢

If you wish to evacuate stale air outside, pull the ventilation lever on the front

of the unit and the open position ( ).

Result:

The air inside the room circulates and stale air is evacuated outside.

Otherwise, push the ventilation lever and the closed position ( ).

Result:

The air simply circulates inside the room.

Open

Position Closed

Position

E-8

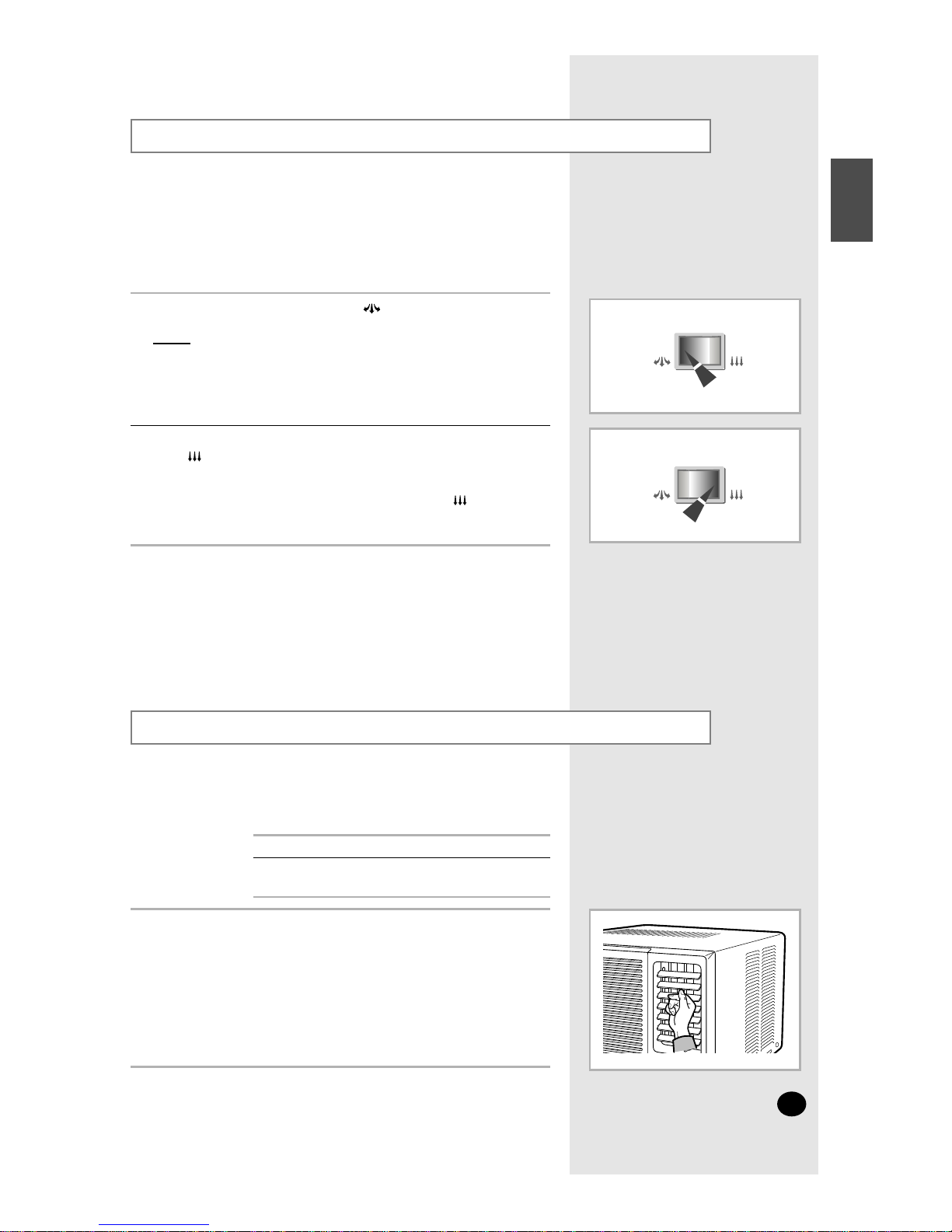

Adjusting the Air Flow Direction Horizontally

Adjusting the Air Flow Direction Vertically

Depending on the position of the unit in your room, you can adjust the

orientation of the inner air flow blades on the right-hand side of the

unit, thus increasing the efficiency of the air conditioner.

To stop the blades movin left and ri ht, set the air flow blade swin switch

to the position.

To stop the blades in a specific position and orient the air flow in the

correspondin direction, simply set the switch to the position

when the blades are in the required position.

Set the air flow blade swin switch to the position .

Result:

The inner blades swin automatically left and ri ht.

The blades may stop swin in momentarily when the Deice function

is activated (see pa e 10 for further details on this function).

They will start swin in a ain automatically as soon as the Deice

function stops.

Again depending on the position of the unit in your room, you can

adjust the orientation of the outer air flow blades on the right-hand

side of the unit.

RECOMMENDATION When...

Coolin

Heatin

Adjust the blades to face...

Upwards.

Downwards.

Adjust the air flow blades to the required position, by pushin them

upwards or downwards.

If you orient the air flow blades downwards and the unit operates

in Cool mode for a lon period of time, dew may:

◆

Form on the surface of the blades

◆

Drip from the blades

➢

E-9

ENGLISH

Here are a few recommendations that you should follow when using

your air conditioner.

Topic ecommendation

The heat pump inside the air conditioner absorbs heat from

outside air and brin s it indoors. If the temperature of the outside

air drops, the air conditioner will heat less. If you find that the

room is not warm enou h, use an additional heatin appliance.

Heating

performances

The air conditioner circulates warm air to heat your room;

as a result, some time will be required after startin

the air conditioner to warm the entire room. If necessary,

set the air conditioner oin a short time before you wish

to use the room.

Warm air

circulation

When outside temperatures are low and humidity is hi h,

frost may form in the unit’s condenser when heatin with your

air conditioner.

If this happens:

◆

The unit stops heatin

◆

The air flow blades stop swin in

◆

The Deice mode is tri ered automatically for about

five minutes.

No intervention is required from you; after about five minutes,

the air conditioner starts operatin a ain normally.

Frost

If both the indoor and outdoor temperatures are hi h and you

select the Heat mode, the fan and compressor in the unit may

stop at times. This is normal; simply wait until the air conditioner

switches on a ain.

High indoor

and outdoor

temperatures

If a power failure occurs when the air conditioner is operatin ,

the unit is switched off. When the power returns,

the air conditioner starts up a ain automatically.

Power failure

Operating ecommendations

E-10

Ce manuel convient aux modèles suivants

Autres manuels Samsung Climatiseur

Samsung

Samsung AS09F Series Manuel utilisateur

Samsung

Samsung AJ026TN1DKH Manuel utilisateur

Samsung

Samsung AW08ECB7 Manuel utilisateur

Samsung

Samsung AM RN4 CH Series Manuel utilisateur

Samsung

Samsung AC JNCDEH Series Manuel utilisateur

Samsung

Samsung AM056FN2DEH Series Manuel utilisateur

Samsung

Samsung AM TN4DKH Series Manuel utilisateur

Samsung

Samsung GH052EAM Manuel utilisateur

Samsung

Samsung AVXCSH023/032/040CE Manuel utilisateur

Samsung

Samsung AW08PKHAA Manuel utilisateur

Samsung

Samsung SH09AI8R Manuel utilisateur

Samsung

Samsung AS24A1RE/B Manuel utilisateur

Samsung

Samsung AWT18P1HBA Manuel utilisateur

Samsung

Samsung AE090JNYDEH Manuel utilisateur

Samsung

Samsung AQ07**SER Series Manuel utilisateur

Samsung

Samsung AM***FXVAF Series Manuel utilisateur

Samsung

Samsung AZ18A1WE Manuel utilisateur

Samsung

Samsung AR CSFC Series Manuel utilisateur

Samsung

Samsung APC4082E Manuel utilisateur

Samsung

Samsung AQ09NSB Manuel utilisateur

Samsung

Samsung AJ NCJ2EG Series Manuel utilisateur

Samsung

Samsung AJ NBRDCH Series Manuel utilisateur

Samsung

Samsung AWT18PHHBB Manuel utilisateur

Samsung

Samsung AP500F Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
