Samsung AW078AA Manuel utilisateur

ROOM AIR CONDITIONER

AW078AA

AW088AA

AW108AA

AW128AA

AW069AB

AW089AB

AW109AB

AW129AB

AIR CONDITIONER CONTENTS

1. Precautions

2. Product Specifications

3. Installation and Operating

Instructions

4. Disassembly and Reassembly

5. Troubleshooting

6. Exploded Views and Parts List

7. Block Diagram

8. Wiring Diagram

SERVICE Manual

DB98-04511A(1)-CO 3/20/02 2:28 PM Page 2

1. Precautions

Samsung Electronics 1-1

1. Warning: Prior to repair, disconnect the

power cord from the circuit breaker.

2. Use proper parts: Use only exact

replacement parts. (Also, we recommend

replacing parts rather than repairing them.)

3. Use the proper tools: Use the proper tools

and test equipment, and know how to use

equipment may cause problems later-

intermittent contact, for example.

4. Power Cord: Prior to repair, check the

power cord and replace it if necessary.

5. Avoid using an extension cord, and avoid

tapping into a power cord. This practice

may result in malfunction or fire.

6. After completing repairs and reassembly,

check the insulation resistance.

Procedure: Prior to applying power, measure

the resistance between the power cord and the

ground terminal. The resistance must be

greater than 30 megaohms.

7. Make sure that the grounds are adequate.

8. Make sure that the installation conditions

are satisfactory.

Relocate the unit if necessary.

9. Keep children away from the unit while it is

being repaired.

10. Be sure to clean the unit and its surrounding

area.

Fig. 1-1 Avoid Dangerous Contact

Fig. 1-2 No Tapping and No Extension Cords

Fig. 1-3 No Kids Nearby!

Fig. 1-4 Clean the Unit

DB98-04511A(1)-1 3/20/02 2:23 PM Page 1-1

1-2 Samsung Electronics

Type Model Name

: The symbol of model name

Notice

AW078AA

AW088AA

AW069AB

AW089AB

AW109AB

AW128AA

AW129AB

DB98-04511A(1)-1 3/20/02 2:23 PM Page 1-2

AW108AA

Samsung Electronics 2-1

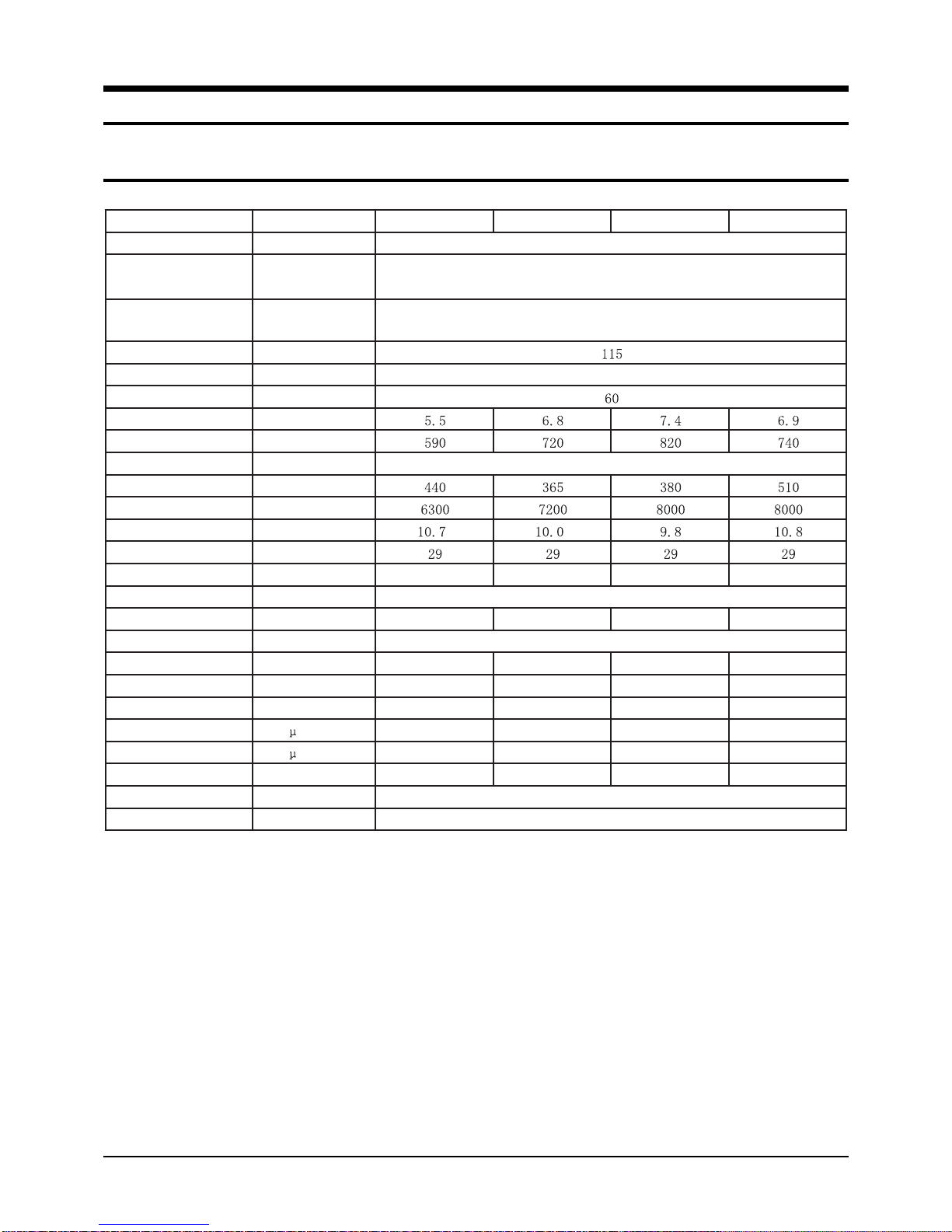

2. Product Specifications

2-1 Table

DB98-04511A(1)-1 3/20/02 2:23 PM Page 2-1

Item Unit of Measure AW069AB AW078AA AW088AA AW089AB

Type -

Voltage Volt

Phase -

Frequency Hz

Operating Current A

Power Consumption W

Refrigerant Type FREON

Refrigerant Charge g

Capacity BTU/h

EER BTU/h.W

Net Weight kg

Condenser Row 3×15 2×15 2×15 3×15

Condenser Fan Type

Evaporator Row 2×14 2×14 2×14 3×14

Evaporator Fan Type

Fan Motor Model YGN55-6F YGN55-6E YGN55-6B YGN55-6B

Compressor(Rotary) Model 44C062HU1EA 44A072HW1EB 44A080HU1EB 44A076HU1EB

Overload Protect -MRA12040-12008 MRA98706-12008 MRA12083-12008 MRA12083-12008

Compressor Capacitor F/VAC 35/370 25/370 35/370 35/370

Fan Motor Capacitor F/VAC 5/250 6/450 6/250 6/250

Fan speed RPM 780/750/670 780/720/650 880/780/710 880/780/710

Thermo Control -

Air Swing Model

WINDOW

M2CK59ZT79-H

Packing size:

(Width×Height×Depth) mm

Dimensions:

(Width×Height×Depth) mm

THERMISTOR

520×345× 485

571×454× 546

R22

Propeller Fan

Blower

Single

2-2 Samsung Electronics

Table (cont.)

DB98-04511A(1)-1 3/20/02 2:23 PM Page 2-2

Item Unit of Measure AW108AA AW109AB AW128AA AW129AB Remarks

Type

Voltage Volt

Phase -

Frequency Hz

Operating Current A

Power Consumption W

Refrigerant Type FREON

Refrigerant Charge g

Capacity BTU/h

EER BTU/h.W

Net Weight kg

Condenser Row 3×15 3×17 3×17 3×17

Condenser Fan Type

Evaporator Row 2×12 2×16 3×16 2×14

Evaporator Fan Type

Fan Motor Model YGN61-6A YFK70-6A YGN60-6B YGN60-6G

Compressor(Rotary) Model 44B098HU2EF 44B098HU2EF 44B124HX1EL 44B124HX1EL

Overload Protect -MRA12132-12007 MRA12132-12007 MRA98693-12007 MRA98693-12007

Compressor Capacitor F/VAC 45/370 45/370 50/370 50/370

Fan Motor Capacitor F/VAC 15/250 8/250 15/250 15/250

Fan speed RPM 1020/970/900 880/800/740 880/780/710 880/780/710

Thermo Control -

Air Swing Model

WINDOW

M2CK59ZT79-H

660×394× 595550×345× 485

590×468× 578 728×459× 647

THERMISTOR

R22

Propeller Fan

Dimensions:

(Width×Height×Depth) mm

Blower

Single

Packing size:

(Width×Height×Depth) mm

Samsung Electronics 2-3

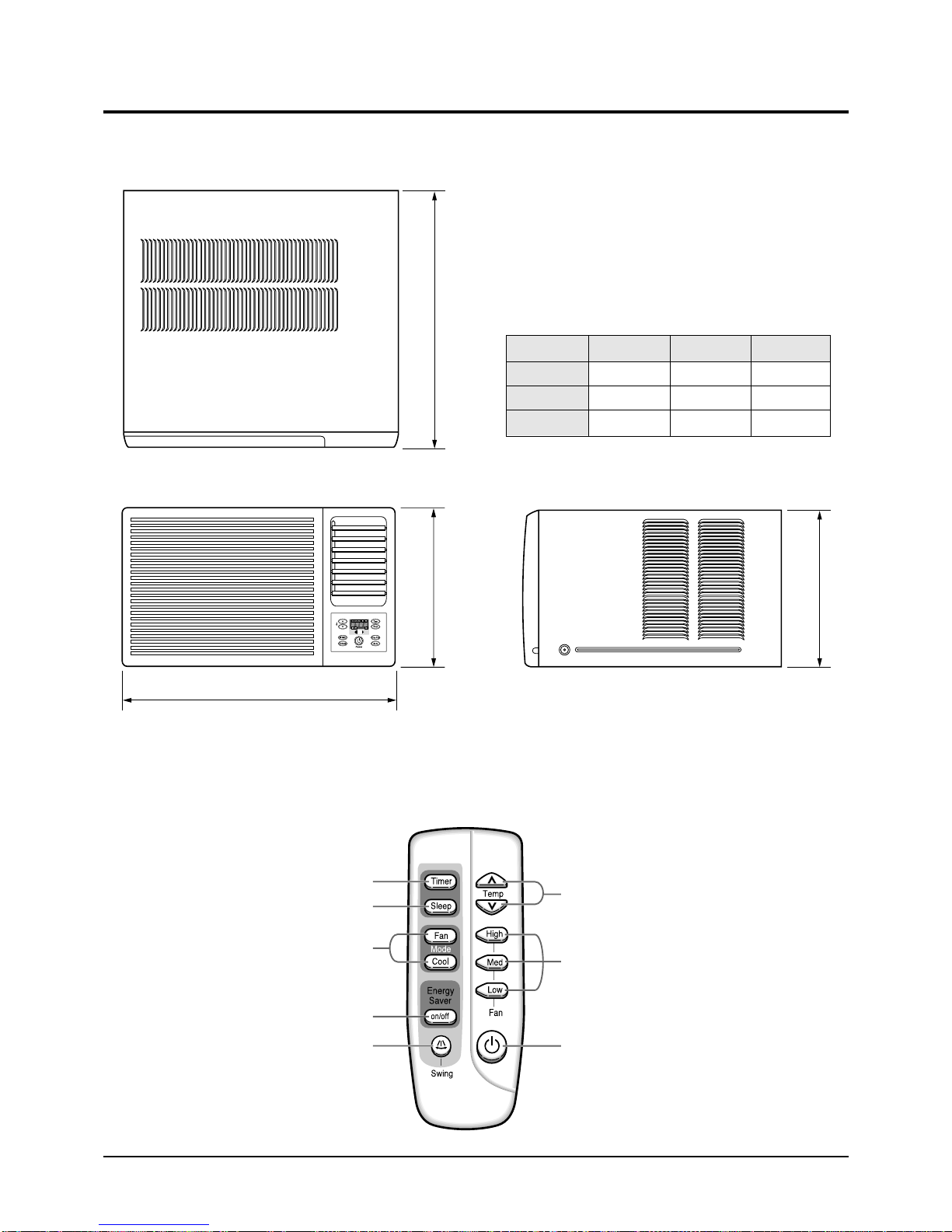

2-2 Dimensions

2-2-1 Main Unit

2-2-2 Remote Control

Front view Side view

(Unit : mm)

Timer setting button

Sleep timer setting button

Operating mode

selection buttons

Energy Saver button

Air flow blade swing button

Temperature adjustment

buttons

Fan speed

adjustment buttons

ON/OFF button

Type W H D

A520 345 485

B600 394 595

DB98-04511A(1)-1 3/20/02 2:23 PM Page 2-3

C550 345 485

2-4 Samsung Electronics

MEMO

DB98-04511A(1)-1 3/20/02 2:23 PM Page 2-4

Samsung Electronics 3-1

3. Installation and Operating Instructions

3-1 Installation

3-1-1 Selecting Area for Installation

1. Make sure that you install the unit in an area

providing good ventilation. The air conditioner

must not be blocked by any obstacle affecting the

air flow near the air inlet and air outlet.

2. Make sure that you install the unit in an area that

allow good air handling. The installation area must

be able to endure vibration from the unit.

3. Make sure that you install the unit away from heat

or vapor.

4. Make sure that you install the unit in an area

which is cool and has adequate space.

5. Make sure that you install the unit in an area away

from TVs, audio units, cordless phones,

fluorescent lighting fixtures and other electrical

appliances (obtain a clearance of at least one meter).

6. Make sure that you install the unit in an area which

provides easy drainage for condensed water.

7. Make sure that you install the unit in an area not

exposed to rain or direct sunlight.

(Install a separate sunblind if exposed to direct

sunlight.)

8. Make sure that you install the unit in an area

allowing good air movement. Do not install it in

a space that would cause noise amplification of

noise.

9. Fix the unit firmly if mounted in a high place.

Caution:

Do not use the air conditioner in the following environments : greasy areas (including areas near

machines), or marine areas. Contact your local dealer for advice.

DB98-04511A(1)-1 3/20/02 2:23 PM Page 3-1

3-2 Samsung Electronics

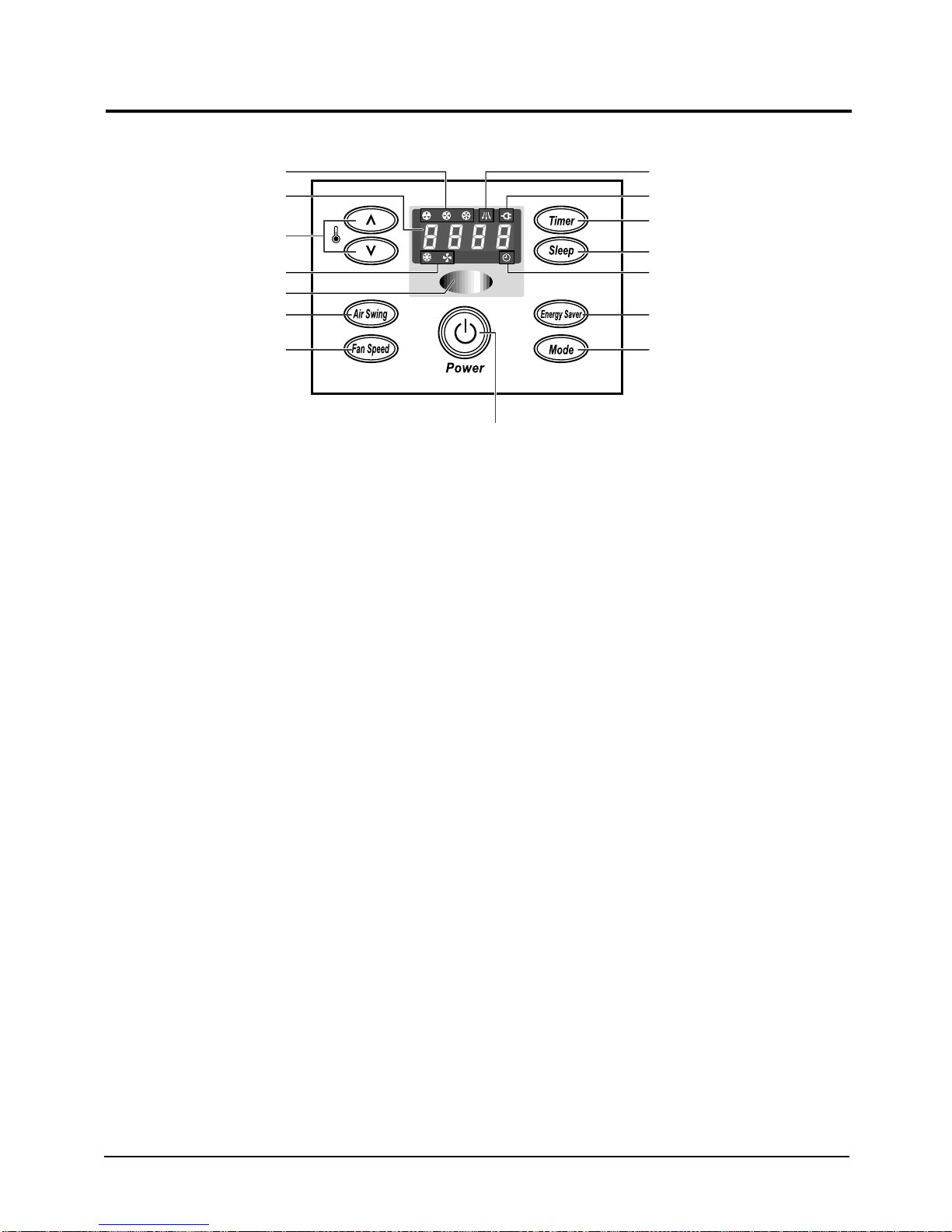

3-2 Function Description

3-2-1 Cooling operation mode

Fan speed indicator

(LOW, MED, HIGH)

Temperature/Timer settings

Temperature

adjustment buttons

Operating mode indicators

(COOL, FAN)

Remote control sensor

Air flow blade swing button

Fan Speed adjustment button

Air flow blade swing indicator

Energy saver indicator

ON/OFF Timer adjustment button

Sleep adjustment button

Timer indicator

Energy saver button

Operating mode selection button

Operating on/off

The compressor is turned on and off according to the ambient temperature and set temperature.

1) Compressor on and off control

• Compressor on and off control according to the ambient temperature

*The compressor is turned off when "ambient temperature = set temperature

*The compressor is turned on when "ambient temperature = set temperature +1˚C"

2) Default value after power reset ➔set temperature = 24˚C

Fan speed = High

3) Set temperature indicating (setting) range : 1˚C interval from 18˚C to 30˚C.

3-2-2 Fan operation mode

1) If "Fan operation mode" signal is received from remocon or panel.

➔ the compressor is immediately turned off and only fan motor is operated at set blowing speed.

➔ it changes such as "High ➔Med ➔Low ➔ High"( if Fan speed is selected).

2) The initial Fan motor speed is set to "High".

3) The set temperature can not be indicated and set.

3-2-3 Energy saver operation mode

*If the compressor turn off at the cooling operation, the fan motor turn off after operation during the fixation time only,

and operation that energy saver by turn off the fixation time only, and operation that energy saver by turn off the motor

continuously before the condition of the compressor on.

*The fan motor is not operated at flow wind operation.

*Energy saver operation specification at the cooling operation.

1) Fan motor control in compressor on : operate with setting wind speed

2) Fan motor control in compressor off : After compressor off, the fan motor is operated breeze for 2 minutes and then it

turn off.

3) After the fan motor off, the compressor and fan motor is operated normally when the compressor on.

DB98-04511A(1)-1 3/20/02 2:23 PM Page 3-2

Installation and Operating Instructions

Samsung Electronics 3-3

3-2-4 Sleep operation mode

1) Enable to sleep operation only when cooling operation.

2) First, 7-SEG LED DISPLAY "SLEEP" while 15 second, Second, 7-SEG LED DISPLAY "8Hr"

And, automatically SET OFF after operated while 8 Hour

3) If sleep operation, setting Temperature rise 1˚C after 1 Hour

4) ON TIMER operation, not operation, ENERGY SAVER operation, not sleep operation.

3-2-5 Air flow blade swing motor operation

1) The Air flow blade swing motor is turned on and off according to Air flow blade swing operation in remocon or panel,

if SET is cooling or Fan operation mode.

2) If the operation mode is "ENERGY SAVER", in case of fan motor being turned off Air flow blade swing motor is

immediately turned off.

3-2-6 LED display indication in case of error detection

ERROR OPERATION

ROOM THERMISTOR

(OPEN or SHORT)

7-SEG

LED DISPLAY

E1 displayed

1) Set operation in case of error occurrence.

• Malfunction of each temperature sensor (open, short)

- Error mode display, warning sound.

- The operation status is off.

DB98-04511A(1)-1 3/20/02 2:23 PM Page 3-3
