Samsung SH12YA1 Manuel utilisateur

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

ISTRUZIONI PER L’USO

MANUAL DE INSTRUÇÕES

MANUEL D’UTILISATION

GEBRAUCHSANWEISUNG

Split-type Room Air Conditioner (Cool and Heat)

Aire acondicionado doméstico sistema Split (Refrigeración y Calefacción)

Condizionatore d’aria per ambienti ad unitàSeparate (Raffreddamento e Riscaldamento)

Aparelho de ar condicionado tipo Split (Refrigeração e Aquecimento)

Climatiseur de type Séparé(Refroidissement et Chauffage)

Geteilte raumklimaanlage (Kühlen und Wärmen)

SH12YA1

SH12UA1

SH12YA9

Indoor Unit

ENGLISH

ESPAÑOL

ITALIANO

EUTSCH

ES I PF B68-01374A(4)

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

1 Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials

over it.

2 NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your

air conditioner and contact your installation specialist.

3 Do NOT insert anything between the air flow blades, as the inner fan may be damaged and you may be hurt.

Keep children away from the indoor unit.

4 Do NOT place any obstacles in front of the outdoor unit.

5 If the remote control will not be used for a long time, remove the batteries.

6 Users of this product are cautioned not to attempt repair of this product at their own discretion.

Instead, they are requested to directly contact a designated service center or the outlet at which the

product was purchased.

7 If the supply cord is damaged, it must be replaced by a special cord or assembly available from the

manufacturer or its service agent.

8 This device must be installed according to the national electrical rules.

9 Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

The manufacturer do not take the responsibility of the accident happened

because the air conditioner is not fixed firmly or installed securely, during

installing or using the product. In case you have difficulty in installation,

you must ask for an installation specialist help. The accident will be hap-

pened in case of installing improperly.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-3

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

■ Remote Control-Buttons and isplay . . . . . . . . . . . . . . . . . . . . .6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . .8

◆

PERATING YOUR AIR CONDITIONER

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . .9

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . .12

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . .13

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

■ Adjusting the Air Flow irection Vertically . . . . . . . . . . . . . . . .15

■ Adjusting the Air Flow irection Horizontally . . . . . . . . . . . . . .15

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . .19

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . .20

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . .20

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . .21

■ Operating Your Air Conditioner Without the Remote Control . .22

■ Installing a Filter (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

◆

ECHNICAL SPECIFICATIONS

ENGLISH

E-4

View of the Unit

The design and shape are subject to change according to the model.

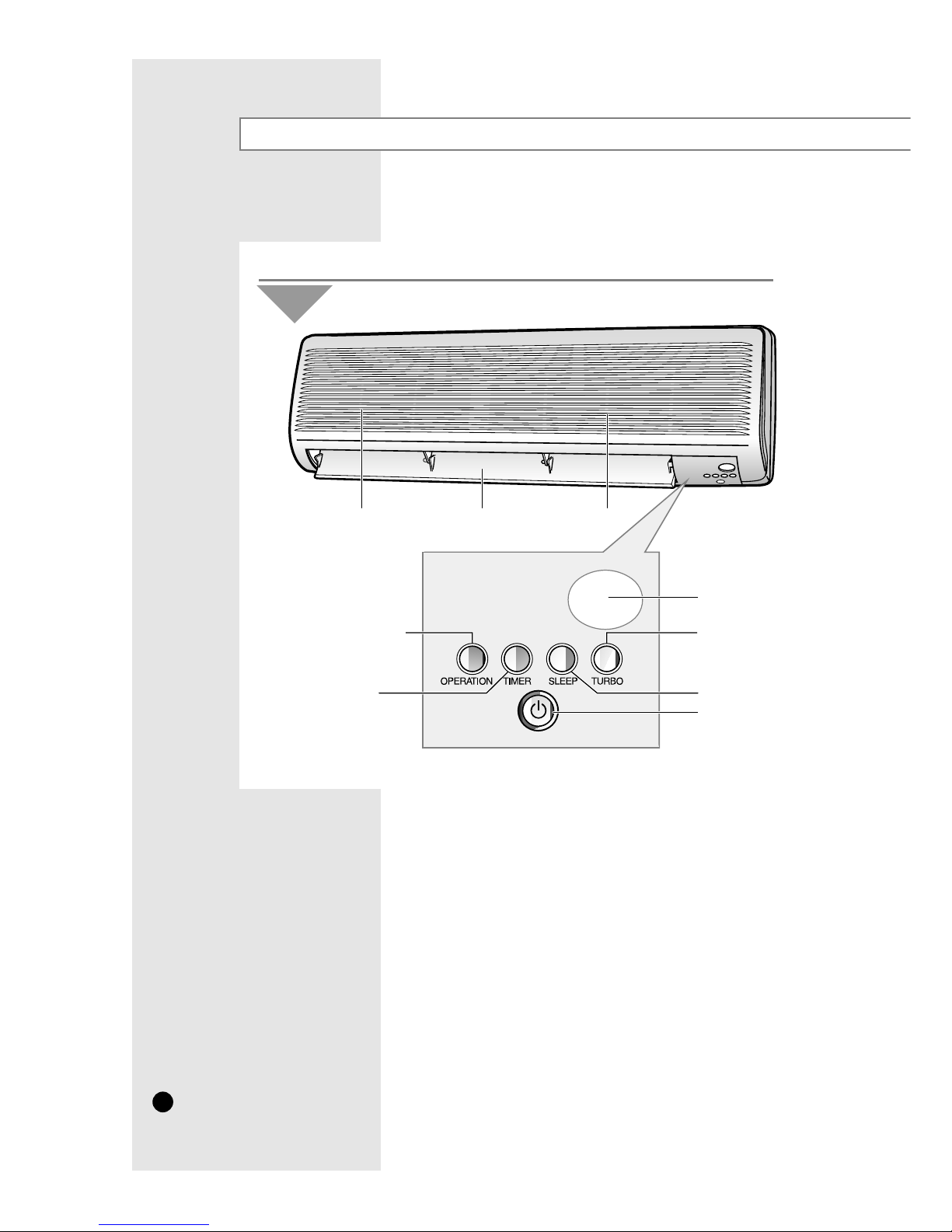

Indoor Unit

Air filter

(under the grille) Air flow blades (outlet) Air Inlet

OPERATION indicator

(Operation : Red,

eice : Green)

TIMER indicator

(Orange)

Remote Control Sensor

TURBO indicator(Orange)

SLEEP indicator(Orange)

ON/OFF Button

E-5

Air Inlet(Rear)

Air Outlet Connection Valve

(Inside)

ENGLISH

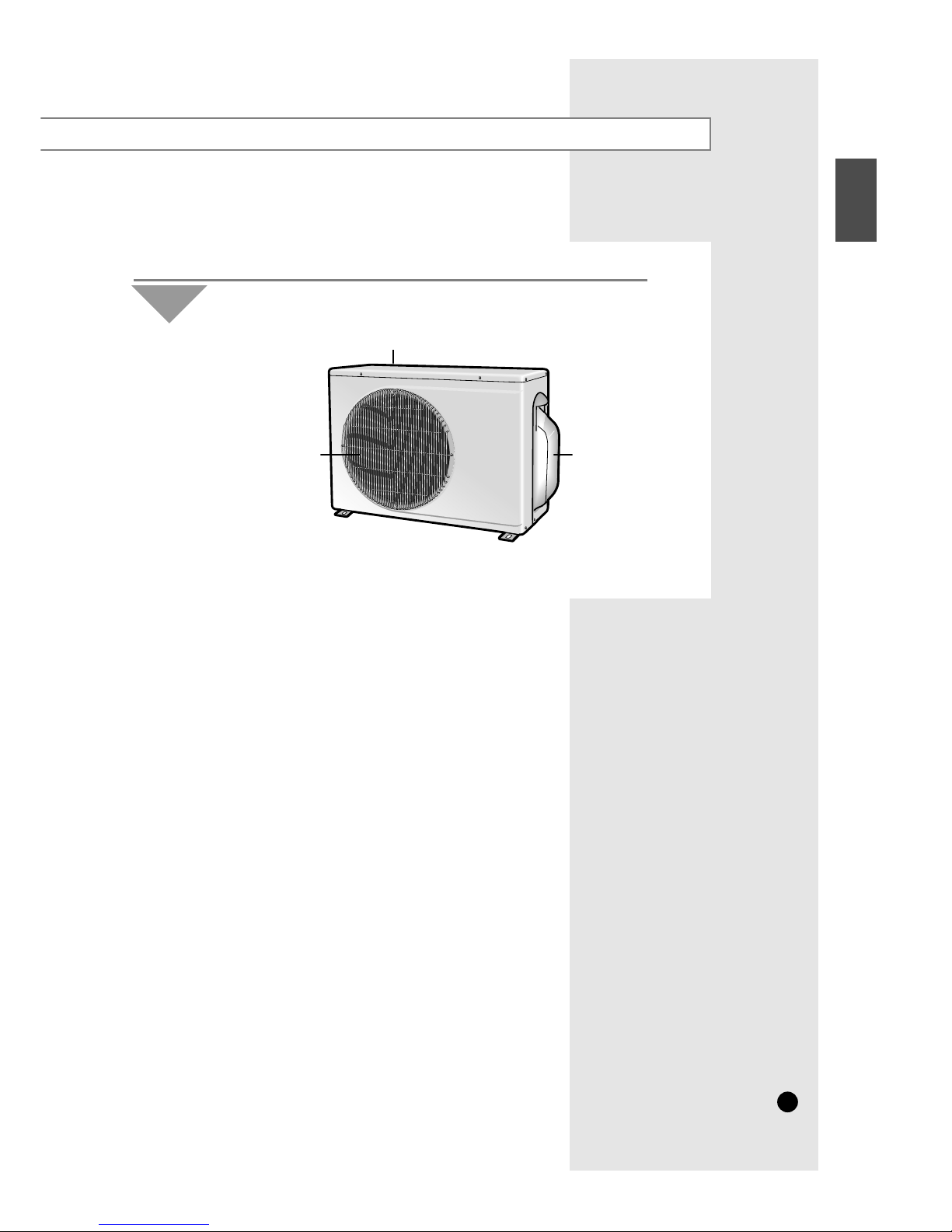

Outdoor Unit

E-6

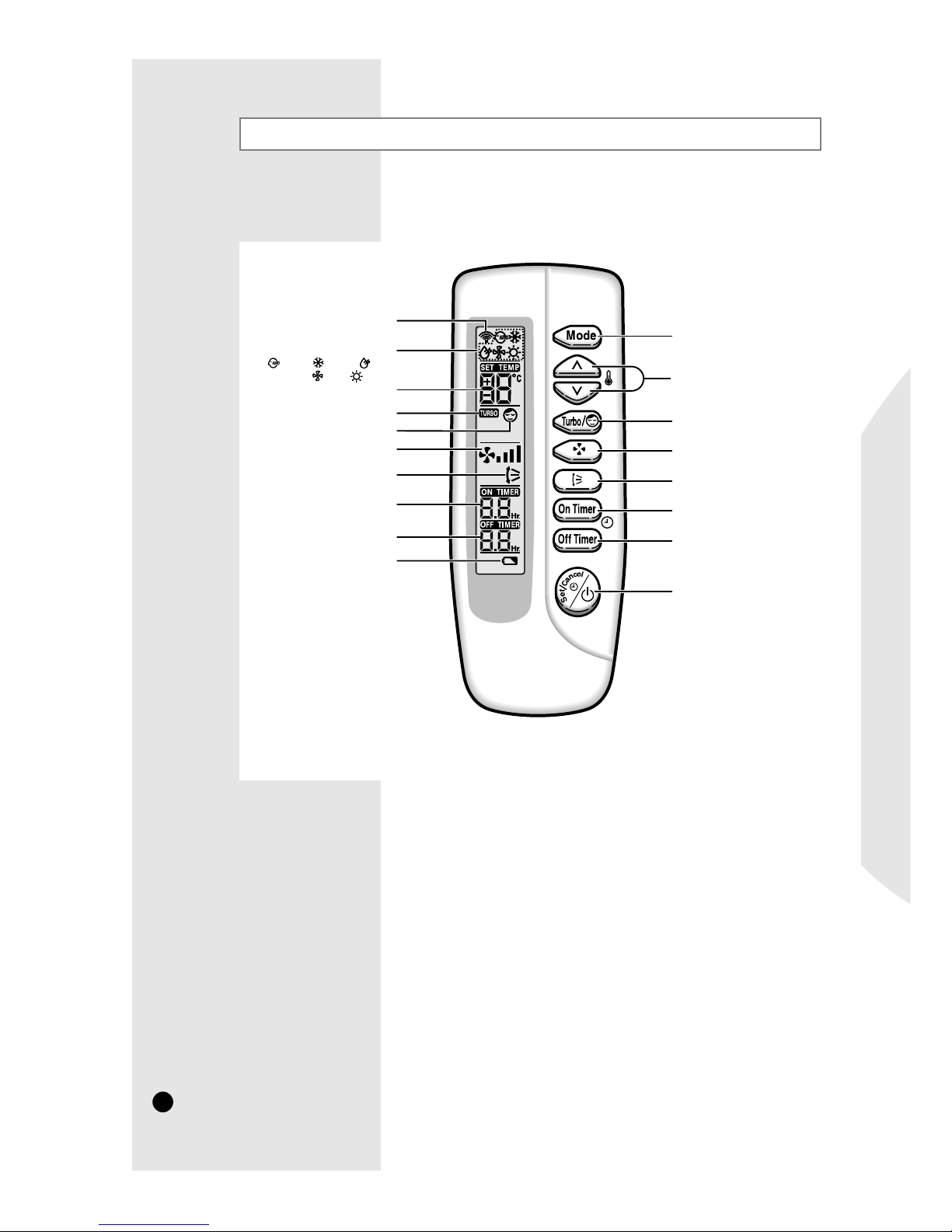

Remote Control - Buttons and Display

Operating mode

( AUTO, COOL, RY,

FAN, HEAT)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, RY, FAN, HEAT)

Turbo/Sleep mode

selection button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Sleep mode

Turbo mode

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

E-7

ENGLISH

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contain much valuable information on using your

air conditioner. Please take the time to read them as they will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the document, you will find a series of step-by-step

procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-8

Inserting the Remote Control Batteries

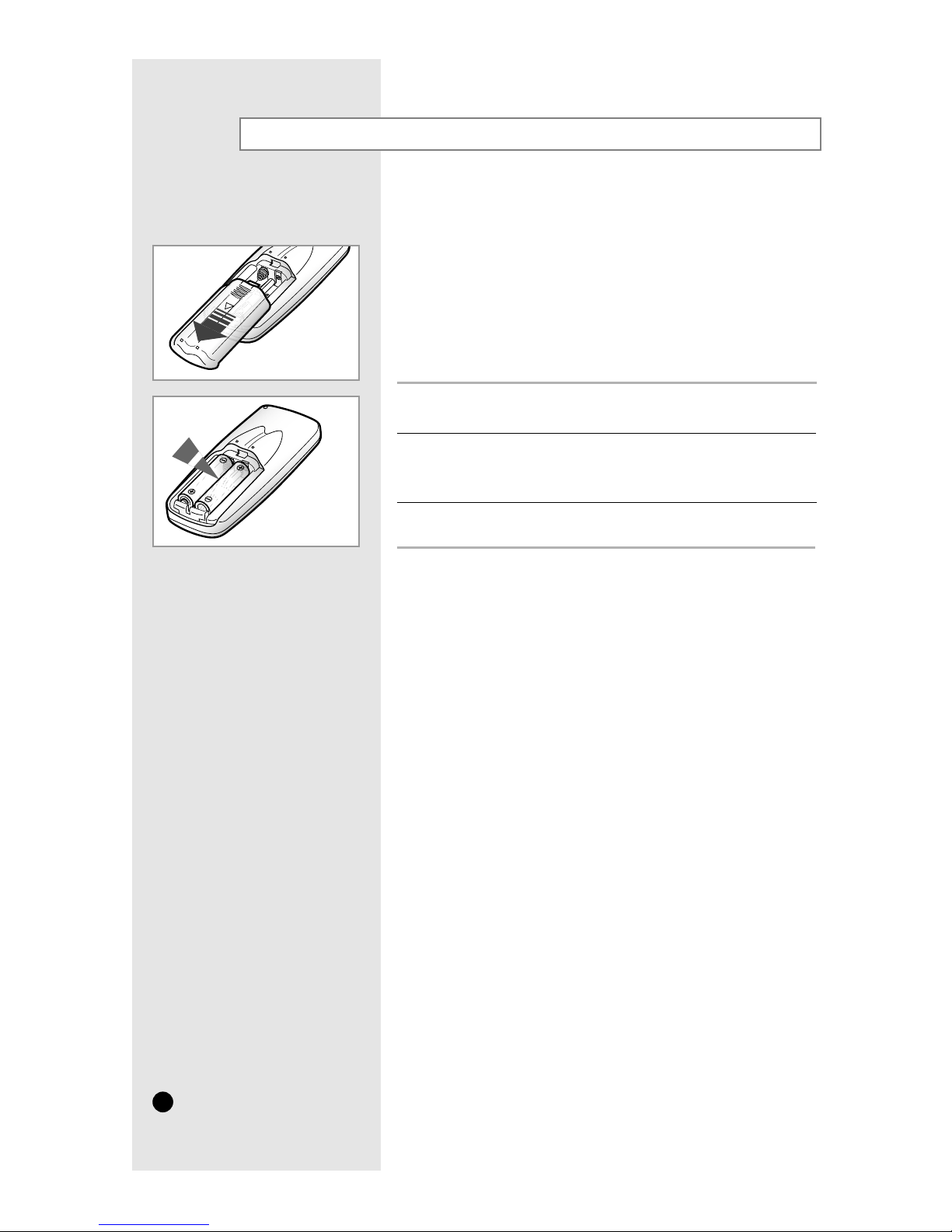

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆o not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-9

ENGLISH

Selecting the Automatic Operating Mode

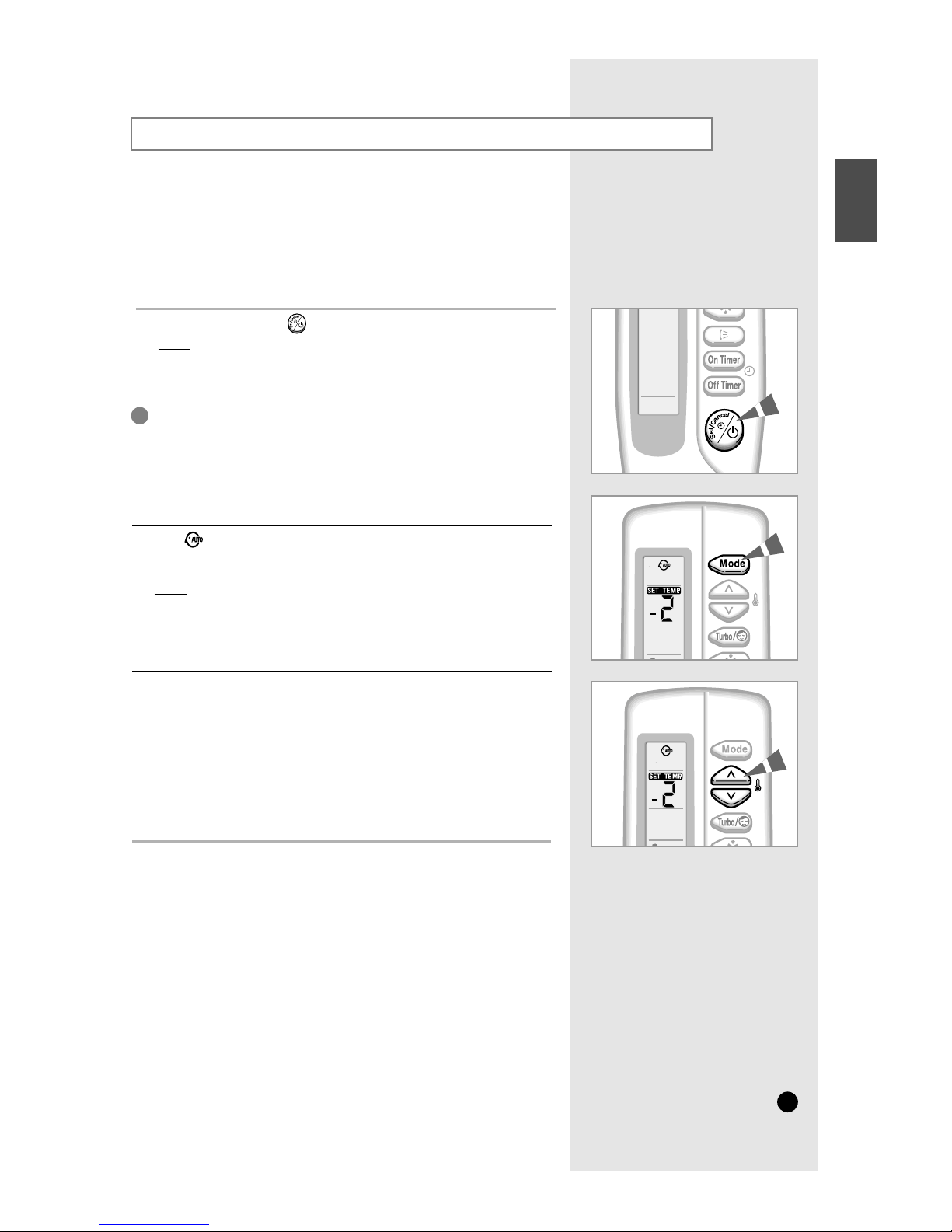

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the MO E button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the MO E button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The OPERATION indicator on the indoor unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

Auto Change Over Function (Only the Inverter Models)

◆

In the Automatic mode, the air conditioner selects one of

COOL, HEAT, RY depending on the indoor and outdoor

temperatures. If the air conditioner has not been operated

for an hour, the air conditioner will take the current

temperatures again and it will restart operating in

the optimum mode.

NNoo

oott

ttee

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the TEMPERATURE buttons one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-2°C -1°C Standard temperature +1°C +2°C

< When you feel hot > < When you feel chilly >

E-10

Cooling Your Room

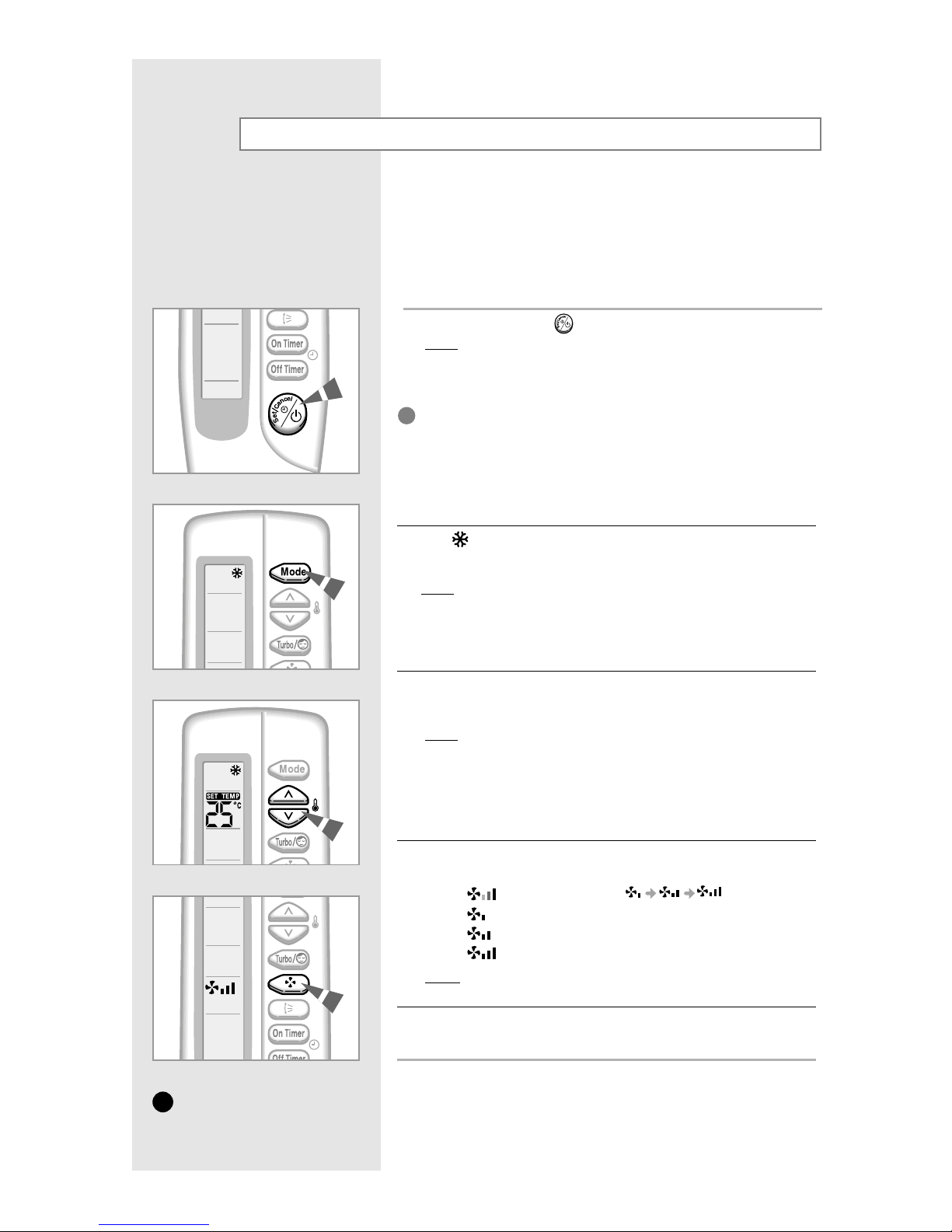

If necessary, press the (On/Off) button.

Result:

◆

The OPERATION indicator on the indoor unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

If the is not displayed at the top of the remote control,

press the MO E button on the remote control one or more times until it

appears.

Result:

◆

The indoor unit beeps each time you press the MO E button.

◆

The air conditioner runs in COOL mode.

You can change modes at any time.

NNoo

oott

ttee

To adjust the temperature, press the TEMPERATURE buttons one or

more times until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C inclusive.

Result:◆

Each time you press the TEMPERATURE buttons:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆The air conditioner starts cooling, provided that the room

temperature is higher than the selected temperature;

the fan will, however, operate.

Select the fan speed by pressing the FAN button one or more times

until the required setting is displayed:

Automatic (rotated : )

Low

Medium

High

Result: Each time you press the FAN button, the indoor unit beeps.

To control the direction of the air flow, refer to page 15.

You must select the Cool mode if you wish to adjust the:

◆Cooling temperature

◆Fan speed when cooling

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung AC035MNLDKH Manuel utilisateur

Samsung

Samsung SINGLE AC MNMSEH/EU Series Manuel d'instructions

Samsung

Samsung AF**FSSDA Series Manuel utilisateur

Samsung

Samsung DC18BTVA(X) Manuel utilisateur

Samsung

Samsung JH026EAV Series Manuel utilisateur

Samsung

Samsung CC24BTVA Manuel utilisateur

Samsung

Samsung SINGLE AC N Series Manuel d'instructions

Samsung

Samsung AS24CM2X Mode d’emploi

Samsung

Samsung AP80S0A Series Mode d’emploi

Samsung

Samsung AM080*XV Series Manuel utilisateur

Samsung

Samsung AM AXV Series Manuel utilisateur

Samsung

Samsung AQV12NSAN Manuel utilisateur

Samsung

Samsung AR TSFA Series Manuel utilisateur

Samsung

Samsung AC026HBLDKH Manuel utilisateur

Samsung

Samsung mini DVM Series Manuel utilisateur

Samsung

Samsung MWR-SH10N Manuel utilisateur

Samsung

Samsung AQV09VBA Series Manuel utilisateur

Samsung

Samsung AQ09C8ME Manuel utilisateur

Samsung

Samsung AWT18SBWDB Manuel utilisateur

Samsung

Samsung MH FN A Series Manuel utilisateur

Samsung

Samsung MH026FNEA/UH026EAV1 Manuel utilisateur

Samsung

Samsung AQT18PJG Series Manuel utilisateur

Samsung

Samsung AJ052TNMDEG Manuel utilisateur

Samsung

Samsung AC TN4PKC Series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
