Unpacking

Help Printer Exit

Content

Introductions

Unpacking

Specification

Product overview

HOME

Getting Started

Using this system

Removal and

Replacement

BIOS Setup

How to use PDF

e-manual

Exploded View

and Replaceable

parts

General Specification

Introductions

Unpacking

Specification

Product overview

HOME

Getting Started

Using this system

Removal and

Replacement

BIOS Setup

How to use PDF

e-manual

Exploded View

and Replaceable

parts

Dimension(mm)

387mm(W) × 278mm(L) × 340mm(H)

mens

(

)

7mm

(W)

(L)

(H)

Weight 5.8 Kg

CPU : Intel Atom Processor N270 1.6GHz(Onboard) Without FAN

FSB : 533MHz

Chip Sets Northbridge : Intel 945GSE

Southbridge : Intel ICH7M

Processor

HDD 2.5" SATA Type

Serial(RS-232) Connector : D-SUB 9Pin x 3(COM1,3,4) + RJ45 Port x 1(COM5)

COM1,3,4,5 --> 5V or 12V Output(Main Board DIP Switch Setting)

I/O Interface

,,, p ( g)

Serial(RS-422/485) Connector : D-SUB 9Pin x 1(COM1 Common Use : BIOS Setting)

Parallel Connector : D-SUB 25Pin x 1

USB 2.0 Connector : Left Side x 1, Rear Side x 4

LAN Connector : RJ45 Port x 1(8Pin)

Cash Drawer Connector : RJ11 Port x 1(6Pin)

Cash

Drawer

Connector

RJ11

Port

1(6Pin)

VGA Connector : VGA Port x 1(15pin)

Audio Connector : Line out x 1, MIC x 1

(Operating System)

Windows XP / 2000 / WEPOS / …

(Operating

System)

Main Memory DDR2 533/667/800 SO-DIMM Slot, (Up to 2GB)

Booting Device HDD, External CD/DVD-ROM Drive, USB Memory

Help Printer Exit

Content

Introductions

Unpacking

Specification

Product overview

HOME

Getting Started

Using this system

Removal and

Replacement

BIOS Setup

How to use PDF

e-manual

Exploded View

and Replaceable

parts

20Char × 2Line 5 × 7 Dot VFD or

Customer Display

20Ch

2Li

ne,

VFD

256 × 32 Graphic Dot, 15" TFT LCD, XGA(1024 ×768)

MSR

Read Track : ISO Track 2&3 or ISO Track 1&2

Interface : USB

MSR

(Magnetic Stripe Reader) Performance : 10~150CM/Sec

Head Reliability : 500,000 times

Error Rate : Less than 0.5%

Wall Mount

Wall Mountable

Wall

Mount

Wall

Mountable

Dallas Key Magnet Type

Cash Drawer RJ11 Port(6pin) x 1, 12V or 24V (selection is possible)

BIOS

AMI(Amerian Megatrends Inc ) BIOS

BIOS

AMI(A

mer

atren

nc.

)

BIOS

15" TFT LCD, LVDS Interface

Resolution & Colors : 1024x768(XGA), 16.2M(RGB) Color

Contrast Ratio : 450 : 1

Display Viewing Angle(H-V) : 150˚ / 130˚ (Left : 75˚, Right : 75˚, Up : 70˚, Down : 60˚)

Backlight Type : 2-CCFL

BacklightBrightness : 250 cd/㎡

Backlight MTBF : 50,000hrs

Touch Panel

15" 5-Wire Resistive Type

Type : Serial COM6

Transparency : 80%

Surface Hardness : 3H

Hitting Life : 35million times

Hitti

Lif

illi

mes

Power Supply

100W Adapter

AC INPUT : AC 100~240V / 50~60Hz

DC OUTPUT : 12V /8.33A

Optional Specification

Help Printer Exit

Content

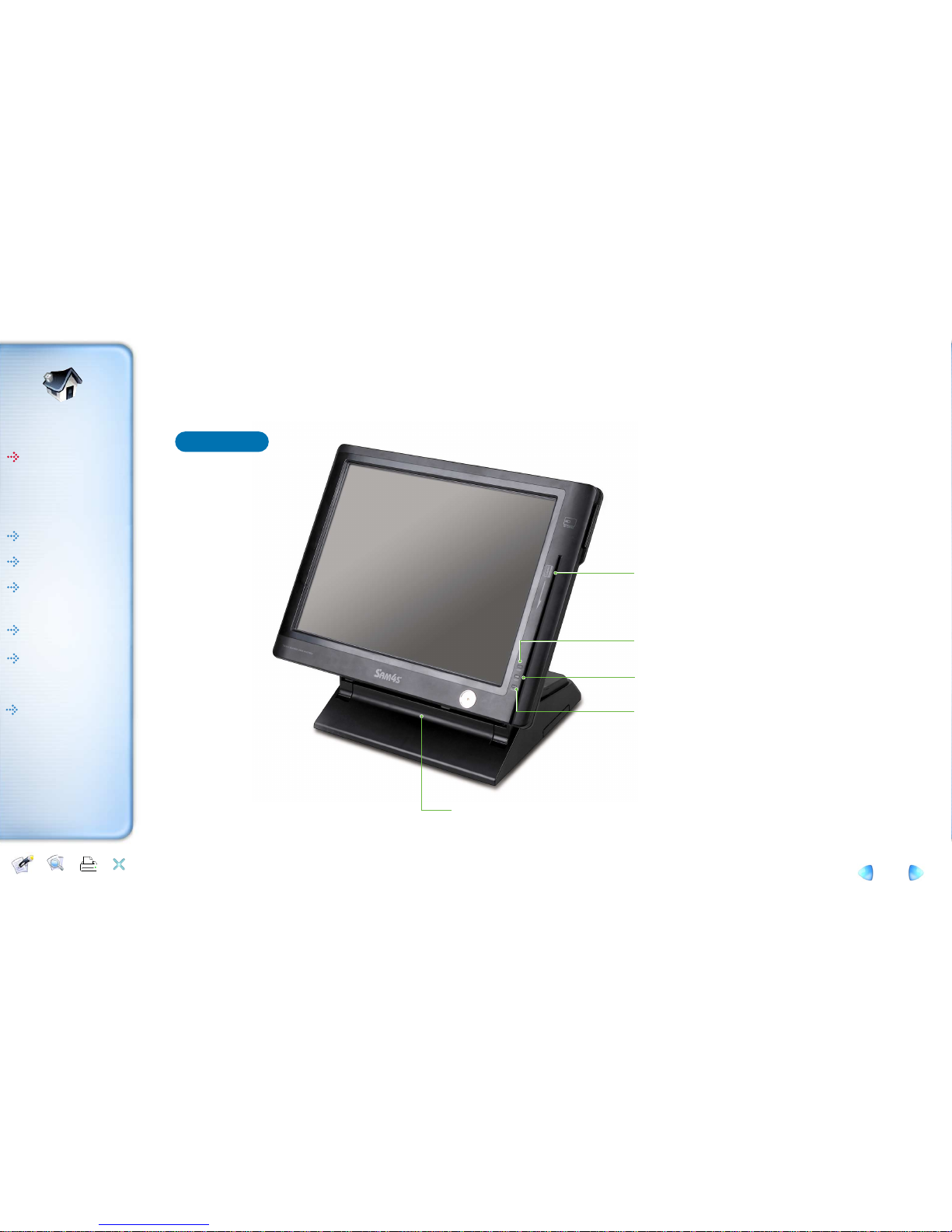

Features names of Functions and each part

MSR(Magnetic Stripe Reader)

Card (Credit Card, Loyalty Card and so on)

can be recognized for transaction.

Hard Drive Light

When the Hard Drive is in operation, the light will be lit.

Power Light

When the system is on, the light will be lit.

STAND

Card Recognition Light

When the card is swiped correctly, the light will be lit.

Front View

Help Printer Exit

Content

Introductions

Unpacking

Specification

Product overview

HOME

Getting Started

Using this system

Removal and

Replacement

BIOS Setup

How to use PDF

e-manual

Exploded View

and Replaceable

parts

Help Printer Exit

Content

Introductions

Unpacking

Specification

Product overview

HOME

Getting Started

Using this system

Removal and

Replacement

BIOS Setup

How to use PDF

e-manual

Exploded View

and Replaceable

parts

Bottom View

RJ11 Cash Drawer Port

Customer Display Port

DC Power Output Port

CF CARD

Audio Port

RJ45 LAN Port

USB Port

Dual Monitor Port

Serial Port

Parallel Port

DC Power Supply Port

Microphone Port

USB

USB Devices can be used through this

port, i.e. USB scanner, USB Keyboard,

USB Printer, etc.

SD CARD SLOT

POWER BUTTON

LCD BRTGHTNESS

Screen Brightness can be altered.

CUSTOMER DISPLAY(CDP)

This shows the amount which Customers

have to pay

ANGLE ADJUSTMENT LEVER

Angle can be altered between 20 ~ 90 degree.

DUMMYDUAL MONTITOR EXPANSION COVER

Rear View

SD Card, MMC Card can be used.

(Option)

Turns On-Off your system

Help Printer Exit

Content

Introductions

Unpacking

Specification

Product overview

HOME

Getting Started

Using this system

Removal and

Replacement

BIOS Setup

How to use PDF

e-manual

Exploded View

and Replaceable

parts

2-1

Introductions

Safety Instructions

Connecting the

External Device

Turning the System

On and Off

Getting Started

Using this system

Removal and

Replacement

BIOS Setup

Exploded View

and Replaceable

parts

90。

50。 [STANDARD ANGLE]

20。

▶

Safety Instructions

Read the safety instructions carefully and thoroughly. All cautions and warnings on the equipment or user’s manual should be noted.

Lay this equipment on a stable surface before setting it up.

Keep this equipment away from humidity and high temperature.

Make sure the power voltage is within safety range and has been adjusted properly to the value of 100~240V before connecting

the equipment to the power outlet.

Always keep the strong magnetic or electrical objects away from the equipment.

Always unplug the power cord before conecting any External Devices. Never pour liquid into the opening that could damage

the equipment or cause an electrical shock.

The openings on the enclosure are used for air convection and to prevent the equipment from overheating. Do not cover the openings.

●

Adjust the angle of Display.

Screen angle can be adjusted for best viewing.

Note !

How to use PDF

e-manual

HOME

Removing the Cover

Cable

Help Printer Exit

Content

2-2

Before connecting Peripherals

Remove Cover Cable

❶

In case the screws of Cover Cable are fixed, remove them first.

❷

After removing screws, press hook of Cover Cable and remove.

Hook of Cover Cable

Introductions

Safety Instructions

Connecting the

External Device

Turning the System

On and Off

Getting Started

Using this system

Removal and

Replacement

BIOS Setup

Exploded View

and Replaceable

parts

How to use PDF

e-manual

HOME

Removing the Cover

Cable

Help Printer Exit

Content

Connecting Peripherals

2-3

Remove Cable Tidy Dummy by using (-) shaped driver. Depending upon the places,

the system can be used while Cable Tidy Dummy is removed.

Remove Cable Tidy Dummy

Dual Monitor Expansion Cover

In case there is not enough space for connecting Dual Monitor or Customer Display (Pole),

Dual Monitor Expansion Cover can be removed.

Cable Tidy Dummy

Dual Monitor Expansion

Cover

Introductions

Safety Instructions

Connecting the

External Device

Turning the System

On and Off

Getting Started

Using this system

Removal and

Replacement

BIOS Setup

Exploded View

and Replaceable

parts

How to use PDF

e-manual

HOME

Removing the Cover

Cable

Help Printer Exit

Content

Table des matières
