Ruijie RG-EG210G-E Series Routers

Hardware Installation and Reference Guide

Ruijie Networks reserves all copyrights of this document. Anyreproduction, excerption, backup, modification, transmission,

translation or commercial use of this document or any portion of this document, in any form or by any means, without the

prior written consent of Ruijie Networks is prohibited.

Exemption Statement

This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain

the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will

not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Thank you for using our products. This manual will guide you through the installation of the device.

This manual describes the functional and physical features and provides the device installation steps, hardware

troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors.

Audience

It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it

is assumed that the users are already familiar with the related terms and concepts.

Obtaining Technical Assistance

Ruijie Networks Website: https://www.ruijienetworks.com/

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Skype: [email protected]

Related Documents

Documents

Description

Configuration Guide

Describes network protocols and related mechanisms that supported by the

product, with configuration examples.

Command Reference

Describes the related configuration commands, including command modes,

parameter descriptions, usage guides, and related examples.

Symbol Conventions

Means reader take note. Notes contain helpful suggestions or references.

Means reader be careful. In this situation, you might do something that could result in equipment damage or loss of

data.

Ruijie RG-EG210G-E Series Routers Hardware Installation and Reference Guide Product Overview

1 Product Overview

Featured with global-leading semiconductor technologies and communication control technologies, Ruijie RG-EG210G-E

series router is a data communication product developed by Ruijie Networks with independent intellectual property right.

The RG-EG210G-E series router is designed according to international standards, similar to the mainstream router

products in the international market. By reading this manual, a network administrator familiar with mainstream router

configuration commands can use this device without training.

1.1 RG-EG210G-E

Specifications

Model

RG-EG210G-E

CPU

Dual-core CPU with the clock speed of 1.35GHz

Flash Memory

16MB

SDRAM

DDRIII 256MB

Power Module

AC input:

Rated voltage range: 100V to 240V

Maximum voltage range: 90V to 264V

Frequency: 50/60 Hz

Rated current: 0.6A

Earth Leakage

Current

≤3.5mA

EEE

Not supported

PoE

Not supported

Power Consumption

＜15W

Working

Temperature

0ºC to 40ºC (32ºF to 104ºF)

Storage

Temperature

-40ºC to 70ºC (-40ºF to 158ºF)

Working Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Fan

N/A

Temperature

Warning

Not supported

EMC Standards

GB9254 CLASS A

EN 55032:2015+AC:2016

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 55035:2017

Ruijie RG-EG210G-E Series Routers Hardware Installation and Reference Guide Product Overview

ETSI EN 300 386 V2.1.1 (2016-07)

Safety Standards

GB4943-2011

EN 62368-1

Dimensions

Width: 440mm

Depth: 201.5mm (including panel)

Height: 43.6mm

Weight

2.35kg

RG-EG210G-E is a class A product. In a domestic environment, this product may cause radio interference in which

case the user may be required to take adequate measures.

Appearance

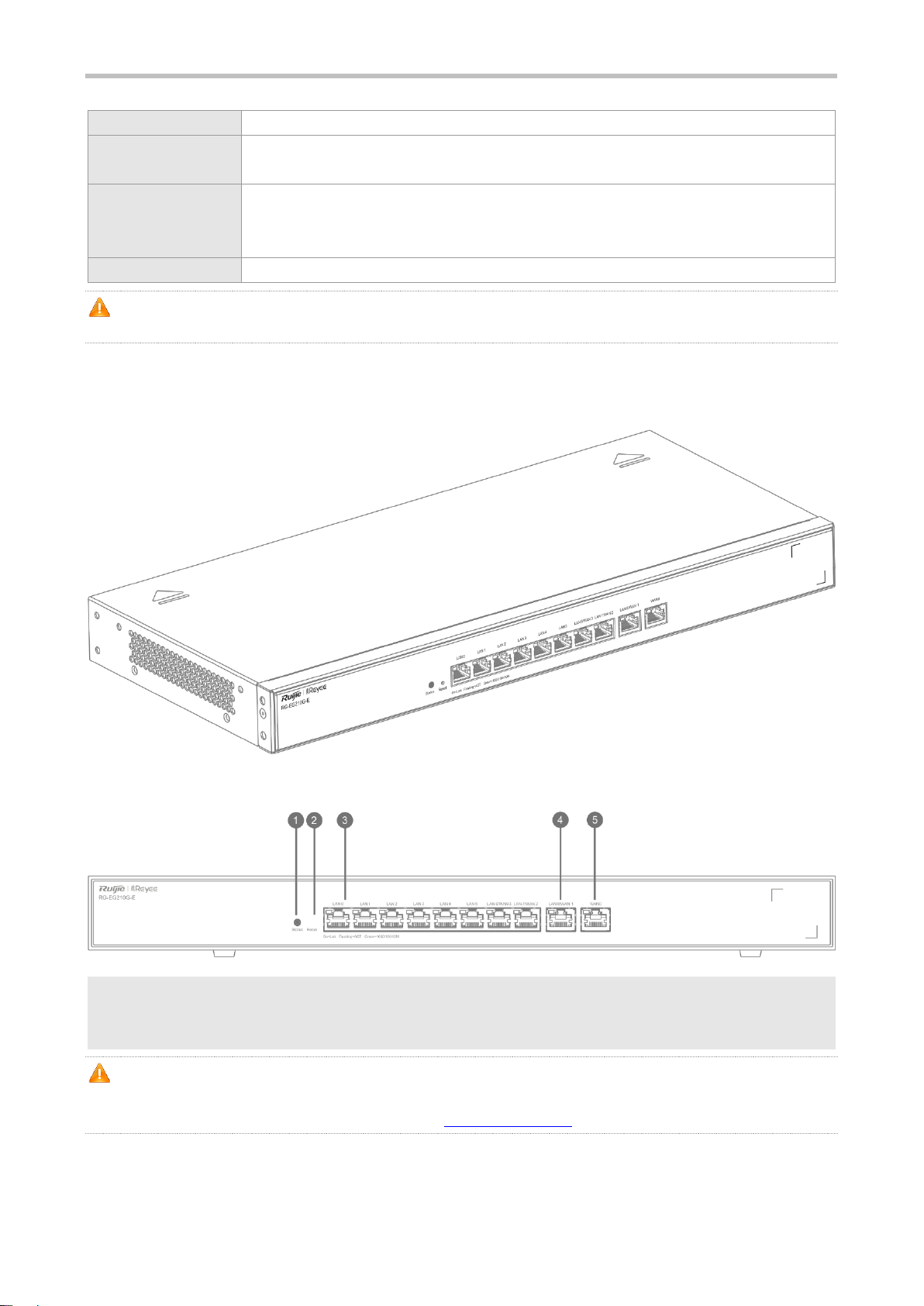

Figure 1-1 Appearance of RG-EG210G-E

Figure 1-2 Front Panel of RG-EG210G-E

Note

1. System status LED

2. Reset button

3. LAN ports

4. LAN/WAN ports

5. WAN port

Reset button: Press the button for less than 2 seconds, the system will restart; press for more than 5 seconds until

the system status LED blinks, the system will restore the factory settings and restart. After the device restores the

factory settings, the default management address is http://192.168.110.1.

Ruijie RG-EG210G-E Series Routers Hardware Installation and Reference Guide Product Overview

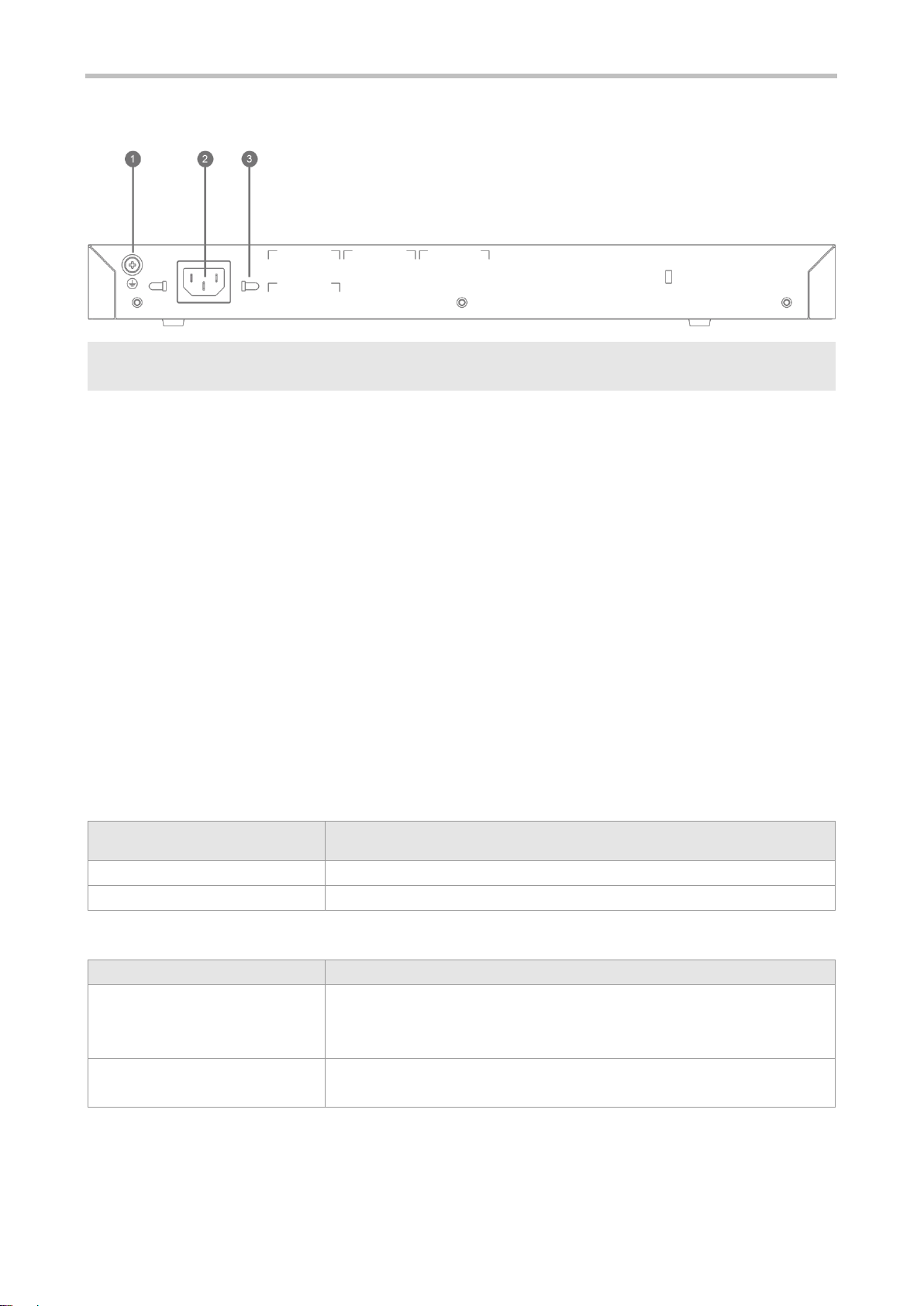

Figure 1-3 Back Panel of RG-EG210G-E

Note

1. Grounding pole

2. Three-hole AC power receptacle

3. Power cord retention clips

Power Supply

The RG-EG210G-E router adopts AC power input.

AC input:

Rated voltage range: 100V to 240V, 50Hz/60Hz

Maximum voltage range: 90V to 264V, 47Hz to 63Hz

Frequency: 50Hz/60Hz

Rated current: 0.6A

Power cord: 10A power cord

Heat Dissipation

The RG-EG210G-E adopts natural heat dissipation, thereby ensuring normal function of the device in the specified

environment. 10 cm distance space should be reserved at both sides and the back plane of the cabinet to allow air

circulation. It is recommended to clean the device once every 3 months to avoid dust from blocking vents.

Port

Description

WAN

1 WAN port, used to connect to the DSL/Cable modem for Internet access.

LAN

9 LAN ports, used to connect to the computer, switch or AP.

LED Indicator

Description

Status

Blinking green (0.5Hz): The device is not connected to Ruijie Cloud.

Solid green: The device has started up, and is connected to Ruijie Cloud.

Blinking green (10Hz): The device is restoring the factory settings or starting up.

Link/ACT

Solid green: The port is up.

Blinking green: Data are being forwarded on the port.

Ruijie RG-EG210G-E Series Routers Hardware Installation and Reference Guide Preparation before Installation

2 Preparation before Installation

2.1 Safety Suggestions

To avoid personal injury and equipment damage, please carefully read the safety suggestions before you install the

RG-EG210G-E series router.

The following safety suggestions do not cover all possible dangers.

2.1.1 Installation

Keep the chassis clean and free from any dust.

Do not place the equipment in a walking area.

Do not wear loose clothes or accessories that may be hooked or caught by the device during installation and

maintenance.

2.1.2 Movement

Do not frequently move the device.

When moving the device, note the balance and avoid hurting legs and feet or straining the back.

Before moving the device, turn off all power supplies and dismantle all power modules.

2.1.3 Electricity

Observe local regulations and specifications when performing electric operations. Relevant operators must be

qualified.

Before installing the device, carefully check any potential danger in the surroundings, such as ungrounded power

supply, and damp/wet ground or floor.

Before installing the device, find out the location of the emergency power supply switch in the room. First cut off the

power supply in the case of an accident.

Try to avoid maintaining the switch that is powered-on alone.

Be sure to make a careful check before you shut down the power supply.

Do not place the equipment in a damp location. Do not let any liquid enter the chassis.

Any non-standard and impropriate electric operations may cause an accident such as a fire or electrical shock, thus

causing severe even fatal damage to human bodies and equipment.

Direct or indirect touch through a wet object on high-voltage and commercial electricity may bring a fatal danger.

If a power supply system is equipped with a leakage protector (also referred to as "leakage current switch" or "leakage

current breaker"), the rated leakage action current of each leakage protector is greater than twice of the theoretical

maximum leakage current of all the power supplies in the system. For example, if a system is equipped with eight

identical power supplies, the leakage current of each power supply is equal to or less than 3.5 mA, and the leakage

current of the system totals 56 mA. A leakage protector with 30 mA rated action current supports less than five power

Ruijie RG-EG210G-E Series Routers Hardware Installation and Reference Guide Preparation before Installation

supplies (that is, Action current of the leakage protector/2/Maximum leakage current of each power supply = 30/2/3.5

= 4.28). In other words, the leakage protector with 30 mA rated action current supports no more than four power

supplies. In this case, the sixteen power supplies in the system require at least four leakage protectors with 30 mA

rated action current and each leakage protector supports four power supplies. If power supplies in a system differ in

models, the rated leakageaction current ofeach leakage protector divided by two is greater than the sum ofmaximum

leakage currents of all the power supplies. The rated leakage non-action current of a leakage protector shall be 50%

of the leakage action current. Take a leakage protector with 30 mA rated leakage action current as an example. The

rated leakage non-action current shall be 15 mA. When the leakage current is below 15 mA, the protector shall not

act. Otherwise, misoperation may easily occur due to high sensitivity and thus the leakage protector trips, devices

are powered off, and services are interrupted.

To guarantee personal safety, the rated leakage action current of each leakage protector in the system must beequal

to or less than 30 mA (human body safety current is 30 mA). When twice of the total leakage current of the system is

greater than 30 mA, the system must be equipped with two or more leakage protectors.

For the leakage current value of each power supply model, see the power supply model parameter table in Chapter

2.1.4 Static Discharge Damage Prevention

To prevent damage from static electricity, pay attention to the following:

Proper grounding of grounding screws on the back panel of the device.

Indoor dust prevention

Proper humidity conditions

2.2 Installation Site Requirements

To ensure the normal working and a prolonged durable life of the equipment, the installation site must meet the following

requirements.

2.2.1 Installation Site

If the router is installed in the cabinet, the following requirements shall be met:

Make sure sufficient room has been reserved for the air intake and air vent of router to facilitate the heat elimination

of the router chassis.

Make sure the cabinet is equipped with a good ventilation and cooling system.

Make sure the cabinet and workbench is steady enough and capable of withstanding the weight of the router and its

accessories.

Make sure the cabinet is properly grounded.

2.2.2 Ventilation

For the RG-EG210G-E router, a sufficient space (at least 10 cm distances from both sides and the back plane of the

cabinet) should be reserved at the ventilation openings to ensure the normal ventilation. After various cables have been

connected, they should be arranged into bundles or placed on the cabling rack to avoid blocking the air inlets. It is

Ruijie RG-EG210G-E Series Routers Hardware Installation and Reference Guide Preparation before Installation

recommended to clean the router at regular intervals (like once every 3 months). Especially, avoid dust from blocking the

screen mesh on the back of the cabinet.

2.2.3 Temperature and Humidity

To ensure the normal operation and prolong the service life of router, you should keep proper temperature and humidity

in the equipment room.

If the equipment room has temperature and humidity that do not meet the requirements for a long time, the equipment

may be damaged.

In an environment with high relative humidity, the insulating material may have bad insulation or even leak

electricity. Sometimes the materials may suffer from mechanical performance change and metallic parts may get

rusted.

In an environment with low relative humidity, however, the insulating strip may dry and shrink. Static electricity may

occur easily and endanger the circuit on the equipment.

In an environment with high temperature, the equipment is subject to even greater harm, as its performance may

degrade significantly and various hardware faults may occur.

Table 2-1 Temperature and Humidity Requirements of the RG-EG210G-E Series Router

Temperature

Relative Humidity

0 ºC to 40ºC (32ºF to 104ºF)

10% to 90% (-40ºF to 158ºF)

The requirements for the sampling site of the temperature and humidity in the operating environment of the device

are as follows:

There is no protective plate at the front or back of the equipment rack.

The vertical height is 1.5 m above the floor.

The distance from the front panel of the equipment is 0.4 m.

2.2.4 Cleanness

Dust poses a severe threat to the running of the equipment. The indoor dust falling on the equipment may be adhered by

the static electricity, causing bad contact of the metallic joint. Such electrostatic adherence may occur more easily when

the relative humidity is low, not only affecting the useful life of the equipment, but also causing communication faults.

Table 2-2 Requirements for the Dust Content and Granularity in the Equipment Room

Dust

Unit

Density

Diameter≥0.5μm

Particles/m3

≤3.5×106

Diameter≥5μm

Particles/m3

≤3×104

Apart from dust, the salt, acid and sulfide in the air in the equipment room must also meet strict requirements, as such

poisonous substances may accelerate the corrosion of the metal and the aging of some parts. The equipment room

should be protected from the intrusion of harmful gases such as sulfur dioxide, sulfured hydrogen, nitrogen dioxide, and

chlorine.

Table 2-3 Requirements for Harmful Gases in the Equipment Room

Gas

Average (mg/m3)

Maximum (mg/m3)

Ruijie RG-EG210G-E Series Routers Hardware Installation and Reference Guide Preparation before Installation

SO2

0.3

1.0

H2S

0.1

0.5

NO2

0.5

1.0

Cl2

0.1

0.3

2.2.5 Grounding

A good grounding system is the basis for the stable and reliable operation of the RG-EG210G-E series router. It is the

chief condition to prevent lightning stroke and resist interference. Please carefully check the grounding conditions on the

installation site according to the grounding requirements, and perform grounding operations properly as required.

Safety Grounding

The equipment using AC power supply must be grounded by using the yellow/green safety grounding cable. Otherwise,

when the insulating resistance decreases the power supply and the enclosure in the equipment, electric shock may

occur.

The building must provide protective grounding connection to ensure that the device is connected to the protection

location.

CE warning: Operation of this equipment in a residential environment could cause radio interference.

Lightning Grounding

The lightning protection system of a facility is an independent system that consists of the lightning rod, download

conductor and the connector to the grounding system, which usually shares the power reference ground and

yellow/green safety cable ground. The lightning discharge ground is for the facility only, irrelevant to the equipment.

EMC Grounding

The grounding required for EMC design includes shielding ground, filter ground, noise and interference suppression, and

level reference. All the above constitute the comprehensive grounding requirements. The resistance of earth wires

should be less than 1Ω. The RG-EG210G-E series router’s back plane is reserved with one grounding pole.

2.2.6 EMI

Electro-Magnetic Interference (EMI), from either outside or inside the equipment or application system, affects the

system in the conductive ways such as capacitive coupling, inductive coupling, and electromagnetic radiation.

There are two types of electromagnetic interference: radiated interference and conducted interference, depending on the

type of the transmission path.

When the energy, often RF energy, from a component arrives at a sensitive component via the space, the energy is

known as radiated interference. The interference source can be either a part of the interfered system or a completely

electrically isolated unit. Conducted interference results from the electromagnetic wire or signal cable connection

between the source and the sensitive component, along which cable the interference conducts from one unit to another.

Conducted interference often affects the power supply of the equipment, but can be controlled by a filter. Radiated

interference may affect any signal path in the equipment and is difficult to shield.

For the AC power supply system TN, single-phase three-core power socket with protective earthing conductors

(PE) should be adopted to effectively filter out interference from the power grid through the filtering circuit.

Table des matières

Autres manuels Ruijie Routeur réseau

Ruijie

Ruijie Reyee RG-EG105GW-X Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-RSR77 Series Manuel utilisateur

Ruijie

Ruijie RG-MTFi-M520 Manuel utilisateur

Ruijie

Ruijie RG-MTFi-M520 Manuel utilisateur

Ruijie

Ruijie RSR10 Series Instructions de montage

Ruijie

Ruijie RG-RSR77 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-RSR20-14E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-RSR77 Series Mode d'emploi

Ruijie

Ruijie RG-RSR20-X-28 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-RSR77-XA Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBR-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EG105GWT Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBR-E Series Manuel utilisateur

Ruijie

Ruijie Reyee RG-EW3200GX PRO Manuel utilisateur

Ruijie

Ruijie RG-RSR20-XA Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EG Series Manuel utilisateur

Ruijie

Ruijie Reyee RG-EW Series Dimensions

Ruijie

Ruijie RSR30-X-SPU10 Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EG300GH-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EG210G-E Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-RSR10-02E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EW Series Comment utiliser

Ruijie

Ruijie Reyee RG-EG209GS Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EW3000GX PRO Manuel d'installation et d'exploitation

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
