Ruijie Reyee RG-NBR-E Series Manuel d'installation et d'exploitation

Ruijie Reyee RG-NBR-E Series Routers

Hardware Installation and Reference Guide

Document Version: V1.0

Date: November 1, 2022

All rights are reserved in this document and this statement.

Without the prior written consent of Ruijie Networks, any organization or individual shall not reproduce, extract,

back up, modify, or propagate the content of this document in any manner or in any form, or translate it into other

languages or use some or all parts of the document for commercial purposes.

,, and other Ruijie networks logos

are trademarks of Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by their respective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms, and some or

all of the products, services, or features described in this document may not be available for you to purchase or

use. Except for the agreement in the contract, Ruijie Networks makes no explicit or implicit statements or

warranties with respect to the content of this document.

The content of this document will be updated from time to time due to product version upgrades or other reasons,

Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and

reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is

completely free of errors or omissions, and all the information in this manual does not constitute any explicit or

implicit warranties.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and servicing engineers

Network administrators

Technical Support

The official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee

Technical Support Website: https://www.ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Conventions

1. Signs

This document also uses signs to indicate some important points during the operation. The meanings of these

signs are as follows:

Caution

An alert that calls attention to safety instruction that if not understood or followed can result in personal injury.

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Note

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Instruction

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

2. Note

This manual provides installation steps, troubleshooting, technical specifications, and usage guidelines for

cables and connectors. It is intended for users who want to understand the above and have extensive experience

in network deployment and management, and assume that users are familiar with related terms and concepts.

Hardware Installation and Reference Guide Product Overview

Contents

Preface.................................................................................................................................................. I

1 Product Overview.............................................................................................................................. 1

1.1 Ruijie RG-NBR-E Series Enterprise-class Routers...................................................................1

1.1.1 Ruijie RG-NBR6205-E Enterprise-class Router............................................................1

1.1.2 Ruijie RG-NBR6210-E Enterprise-class Router............................................................3

1.1.3 Ruijie RG-NBR6215-E Enterprise-class Router............................................................5

1.1.4 Ruijie RG-NBR6120-E Enterprise-class Router............................................................8

1.2 Modules....................................................................................................................................10

1.2.1 Ruijie RG-NBR-HDD-1T Hard Disk .............................................................................10

2 Preparations before Installation...................................................................................................... 12

2.1 Safety Precautions...................................................................................................................12

2.2 Requirements on Installation Environment..............................................................................12

2.2.1 Temperature/Humidity Requirements..........................................................................13

2.2.2 Cleanliness Requirements...........................................................................................13

2.2.3 Anti-Static Requirements.............................................................................................14

2.2.4 Anti-Interference Requirements...................................................................................14

2.2.5 Checking the Installation Location...............................................................................15

2.3 Installation Tools and Devices.................................................................................................15

3 Installing the Enterprise-class Router............................................................................................. 16

3.1 Installation Procedure of Enterprise-class Router...................................................................16

3.2 Mounting the Enterprise-class Router.....................................................................................16

3.2.1 Mounting into a Cabinet...............................................................................................17

3.2.2 Mounting on a Workbench...........................................................................................17

Hardware Installation and Reference Guide Product Overview

3.3 Installing Power Cables...........................................................................................................17

3.4 EMC Grounding.......................................................................................................................17

3.5 Checking after the Installation .................................................................................................18

4 Starting and Configuring the Enterprise-class Router.................................................................... 19

4.1 Starting a Enterprise-class Router...........................................................................................19

4.1.1 Building Configuration Environment............................................................................19

4.1.2 Powering on the Enterprise-class Router....................................................................21

4.1.3 Starting Process...........................................................................................................22

4.2 Starting the Enterprise-class Router........................................................................................23

5 Troubleshooting............................................................................................................................... 24

5.1 Power Supply Troubleshooting................................................................................................24

5.2 Configuration System Troubleshooting...................................................................................24

Hardware Installation and Reference Guide Product Overview

1 Product Overview

Ruijie RG-NBR-E series enterprise-class routers employ the global-leading semiconductor technologies and

communication control technologies.The enterprise-class routers are completely developed as per international

standards and are similar to the mainstream enterprise-class routers in the international market. By reading this

manual, network administrator being familiar with mainstream enterprise-class router configuration commands

can easily use this product without training.

1.1 Ruijie RG-NBR-E Series Enterprise-class Routers

1.1.1 Ruijie RG-NBR6205-E Enterprise-class Router

1. Appearance of Ruijie RG-NBR6205-E Enterprise-class Router

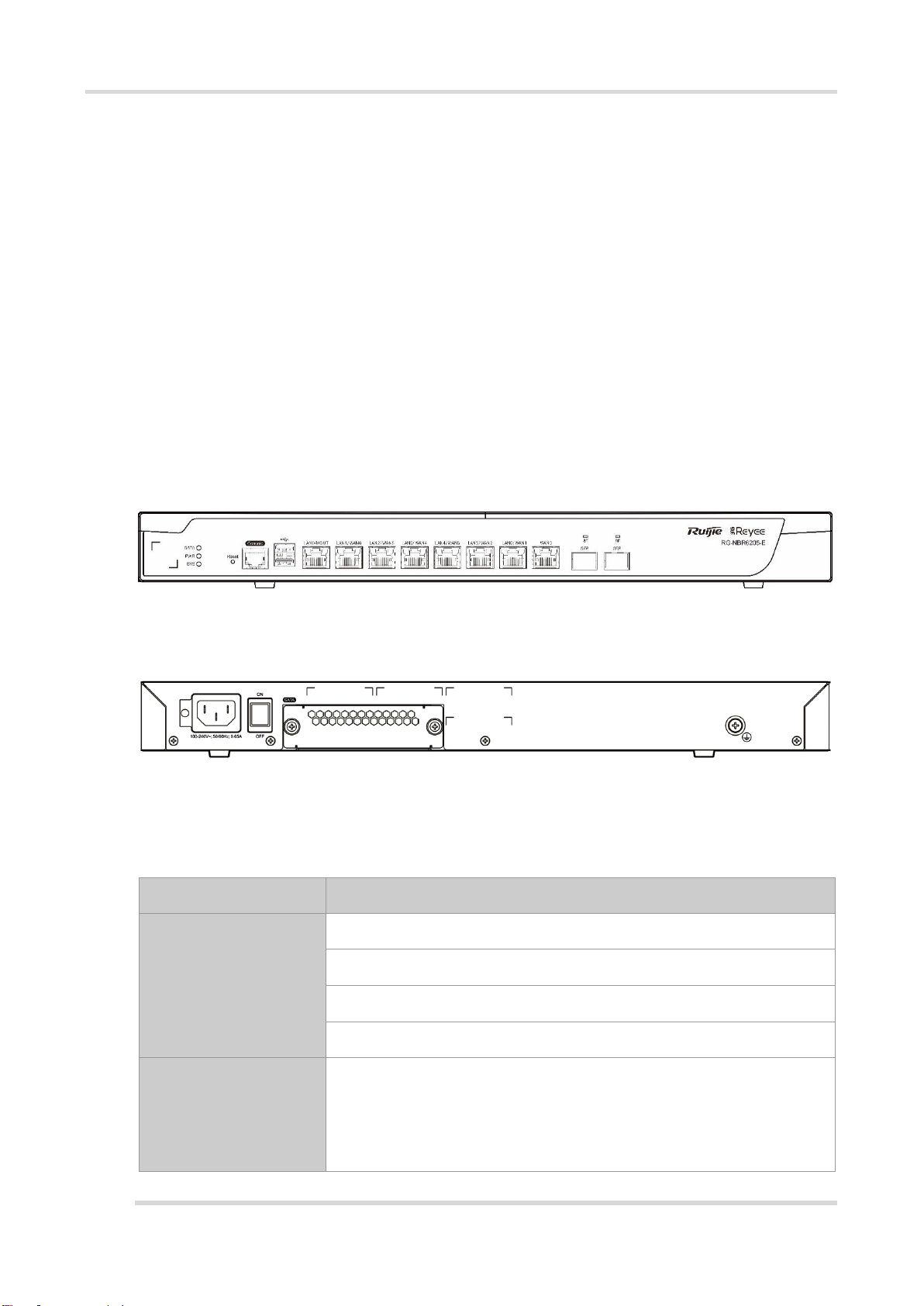

Figure 1-1 Front Panel of Ruijie RG-NBR6205-E Enterprise-class Router

Figure 1-2 Backpanel of Ruijie RG-NBR6205-E Enterprise-class Router

2. Specifications of Ruijie RG-NBR6205-E Enterprise-class Router

Table 1-1 Specifications of Ruijie RG-NBR6205-E Enterprise-class Router

Item

Description

Storage

DDR4 SDRAM: 2 GB

BOOTROM: 8 MB

eMMC: 8 GB

SATA: 1 TB (Optional)

I/O Setup

8 copper ports. Supports 8 10/100/1000 M (copper) fast Ethernet ports and

automatic recognition of network cables and cross-over cables.

By default, ports LAN0, LAN1, LAN2, LAN3, LAN4 and LAN5 are LAN ports,

while ports WAN0 and WAN1 are WAN ports.

Hardware Installation and Reference Guide Product Overview

Ports LAN1, LAN2, LAN3, LAN4, LAN5 and WAN1 support WAN/LAN

switchover.

2 SFP ports. Supports 1000BASE-SX/LX/ZX mini GBIC and GE-SFP-

LX20/LH40-BIDI SPF modules.

By default, the SFP ports are WAN ports, and support WAN/LAN switchover.

1 management port (in bridging mode)

1 console port

2 USB ports

Hardware Disk Module

1 hardware disk module (optional)

Hot Swapping

Hot swapping of hardware disk module: not support

Interface Standard

Ethernet: 10Base-T/100Base-TX/1000Base-TX, 1000BASE-SX/LX/ZX,

10GBASE-SR/LR/ZR

Console port: RS-232

Dimension (W x H x D)

440 mm x 43.6 mm x 200 mm (excluding the foot pad)

Voltage

100–240 V; 50/60 Hz

Power Consumption

Less than 25 W

Working Environment

Temperature: 0°C to 45°C (32°F to 113°F)

Humidity: 10% to 90% RH (non-condensing)

Instruction

Not all USB disks are supported. The Kingston USB disk with FAT 32 is recommended.

Note

Please avoid the vibration and collision in the process of moving and usage.

To power off the device with the hard disk module inserted, please turn off the power button. Do not

remove the power cable until the PWR LED turns off, or else the hardware disk will be damaged.

3. LED Indicators of Ruijie RG-NBR6205-E Enterprise-class Router

Table 1-2 LED Indicators of Ruijie RG-NBR6205-E Enterprise-class Router

LED Indicators

Working Status

PWR

Solid green indicates the device is receiving power properly.

Off indicates the power module is faulty or not powered on.

SYS

Blinking green indicates the system is being initialized.

Hardware Installation and Reference Guide Product Overview

Solid green indicates system initialization has completed.

Solid red indicates system warning.

SATA

Solid green indicates the SATA hard disk is inserted.

Blinking green indicates data reading/writing.

Link/ACT Indicators of

0-7 Copper Ports

Solid green indicates that the port is connected at 10/100/1000 Mbps.

Blinking green indicates that the port is receiving or transmitting traffic at

10/100/1000 Mbps.

Speed Indicators of 0-

7 Copper Ports

Solid orange indicates that the port is connected at 1000 Mbps.

Off indicates that the port is connected at 10/100 Mbps.

Indicators of 8F-9F

SFP Ports

Solid green indicates that the port is connected.

Blinking green indicates that the port is receiving or transmitting traffic.

1.1.2 Ruijie RG-NBR6210-E Enterprise-class Router

1. Appearance of Ruijie RG-NBR6210-E Enterprise-class Router

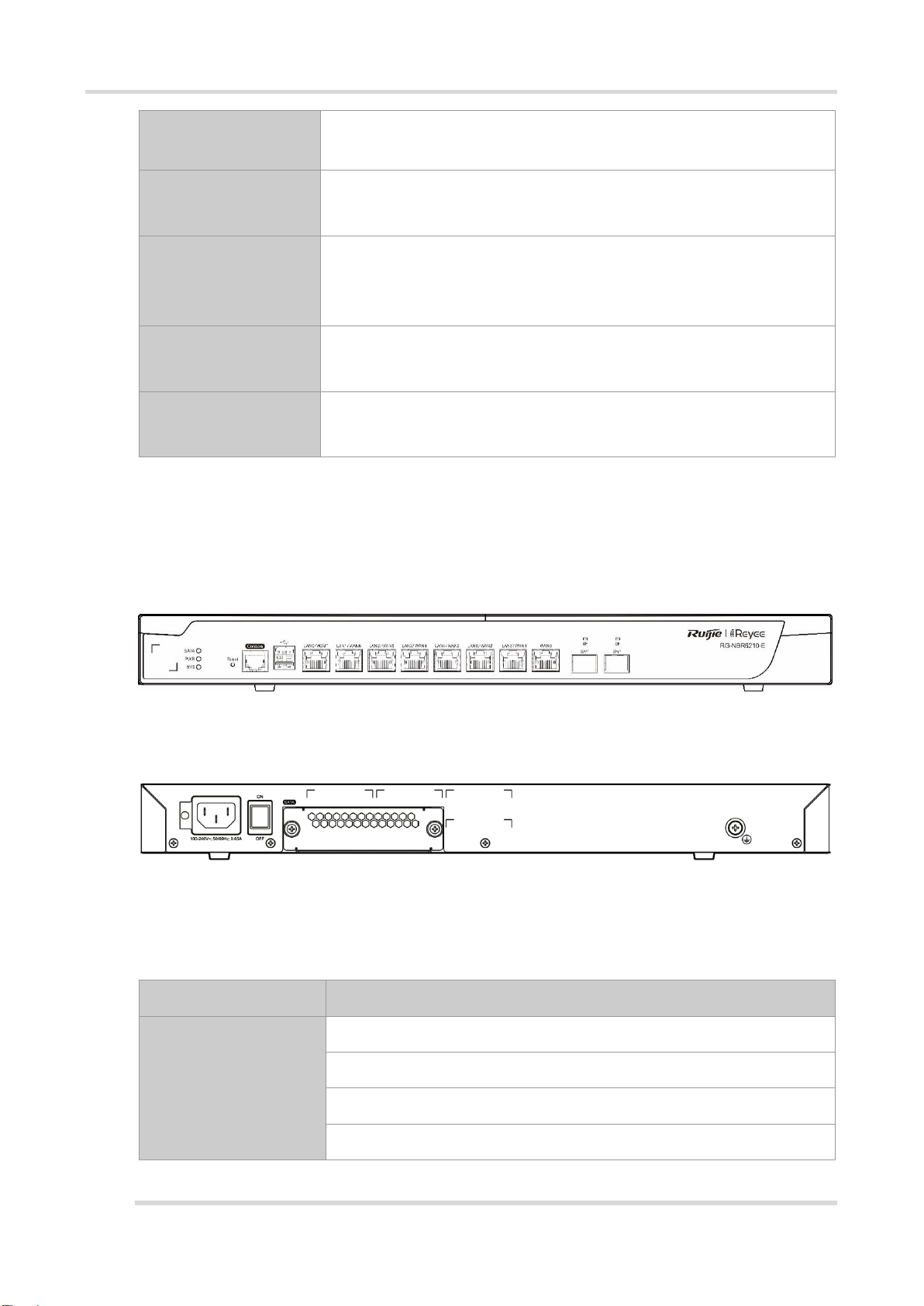

Figure 1-3 Front Panel of Ruijie RG-NBR6210-E Enterprise-class Router

Figure 1-4 Backpanel of Ruijie RG-NBR6210-E Enterprise-class Router

2. Specifications of Ruijie RG-NBR6210-E Enterprise-class Router

Table 1-3 Specifications of Ruijie RG-NBR6210-E Enterprise-class Router

Item

Description

Storage

DDR4 SDRAM: 2 GB

BOOTROM: 8 MB

eMMC: 8 GB

SATA: 1 TB (Optional)

Hardware Installation and Reference Guide Product Overview

I/O Setup

8 copper ports. Supports 8 10/100/1000 M (copper) fast Ethernet ports and

automatic recognition of network cables and cross-over cables.

By default, ports LAN0, LAN1, LAN2, LAN3, LAN4 and LAN5 are LAN ports,

while ports WAN0 and WAN1 are WAN ports.

Ports LAN1, LAN2, LAN3, LAN4, LAN5 and WAN1 support WAN/LAN

switchover.

2 SFP ports. Supports 1000BASE-SX/LX/ZX mini GBIC and GE-SFP-

LX20/LH40-BIDI SPF modules.

By default, the SFP ports are WAN ports, and support WAN/LAN switchover.

1 management port (in bridging mode)

1 console port

2 USB ports

Hardware Disk Module

1 hardware disk module (optional)

Hot Swapping

Hot swapping of hardware disk module: not support

Interface Standard

Ethernet: 10Base-T/100Base-TX/1000Base-TX, 1000BASE-SX/LX/ZX,

10GBASE-SR/LR/ZR

Console port: RS-232

Dimension (W x H x D)

440 mm x 43.6 mm x 200 mm (excluding the foot pad)

Voltage

100–240 V; 50/60 Hz

Power Consumption

Less than 25 W

Working Environment

Temperature: 0°C to 45°C (32°F to 113°F)

Humidity: 10% to 90% RH (non-condensing)

Instruction

Not all USB disks are supported. The Kingston USB disk with FAT 32 is recommended.

Note

Please avoid the vibration and collision in the process of moving and usage.

To power off the device with the hard disk module inserted, please turn off the power button. Do not

remove the power cable until the PWR LED turns off, or else the hardware disk will be damaged.

Autres manuels pour Reyee RG-NBR-E Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Routeur réseau

Ruijie

Ruijie Reyee RG-EW3200GX PRO Manuel utilisateur

Ruijie

Ruijie RG-MTFi-M520 Manuel utilisateur

Ruijie

Ruijie Reyee RG-EG209GS Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EW1200 Manuel utilisateur

Ruijie

Ruijie RSR30-X-SPU10 Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EW1800GX PRO Manuel utilisateur

Ruijie

Ruijie RG-MTFi-M520 Manuel utilisateur

Ruijie

Ruijie Reyee RG-EG V2 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-RSR77 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBR-E Series Manuel utilisateur

Ruijie

Ruijie RG-RSR77 Series Manuel utilisateur

Ruijie

Ruijie Reyee RG-EG105GWT Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EG Series Manuel utilisateur

Ruijie

Ruijie RG-RSR77 Series Manuel utilisateur

Ruijie

Ruijie RSR10 Series Instructions de montage

Ruijie

Ruijie Reyee RG-EW1300G Manuel utilisateur

Ruijie

Ruijie Reyee RG-EW300 PRO Manuel utilisateur

Ruijie

Ruijie Reyee RG-EW1200G PRO Manuel utilisateur

Ruijie

Ruijie Reyee RG-EW Series Manuel utilisateur

Ruijie

Ruijie RG-R SR30 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-S6200 Series Manuel utilisateur

Ruijie

Ruijie RG-RSR10-02E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EG210G-E Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EW3200GX PRO Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
