Ruijie Reyee RG-NBR-E Series Manuel utilisateur

Ruijie Reyee RG-NBR-E

Series Routers

Cookbook

Document Version: V1.0

Date: November 1, 2022

All rights are reserved in this document and this statement.

Any reproduction, excerption, backup, modification, transmission, translationor commercial use of this document

or any portion of this document, in any formor by any means, without the prior written consent ofRuijie Networks

is prohibited.

Trademarks including , , are owned

by Ruijie Networks.

All other trademarks or registered trademarks mentioned in this document are owned by theirrespective owners.

Disclaimer

The products, services, or features you purchase are subject to commercial contracts and terms. Some or all of

the products, services or features described in this document may not be within the scope of your purchase or

use. Unless otherwise agreed in the contract, Ruijie Networks does not make any express or implied statement

or guarantee for the content of this document.

Due to product version upgrades or other reasons, the content of this document will be updated from time to

time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt.

This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder

any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

Preface

Intended Audience

This document is intended for:

Network engineers

Technical support and service engineers

Network administrators

Technical Support

Official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee

Technical Support Website: https://ruijienetworks.com/support

Case Portal: https://caseportal.ruijienetworks.com

Community: https://community.ruijienetworks.com

Technical Support Email: [email protected]

Conventions

1. GUI Symbols

Interface

symbol

Description

Example

Boldface

1. Button names

2. Window names, tab name, field name and

menu items

3. Link

1. Click OK.

2. Select Config Wizard.

3. Click the Download File link.

Multi-level menus items

Select System >Time.

2. Signs

The signs used in this document are described as follows:

Warning

An alert that calls attention to important rules and information that if not understood or followed can result in

data loss or equipment damage.

Caution

An alert that calls attention to essential information that if not understood or followed can result in function

failure or performance degradation.

Note

An alert that contains additional or supplementary information that if not understood or followed will not lead to

serious consequences.

Specification

An alert that contains a description of product or version support.

3. Note

This manual is used to guide users to understand the product, install the product, andcomplete the configuration.

The example of the port type may be different from the actual situation. Proceed with the configuration

according to the port type supported by the product.

The example of display information may contain the content of other product series (such as model and

description). Refer to the actual display information.

The router and router product icons involved in this manual represent common routers and Layer 3 switches

running routing protocols.

Contents

Preface.................................................................................................................................................. I

1 Overview ........................................................................................................................................... 1

1.1 Introduction................................................................................................................................1

1.2 Specifications of Ruijie RG-NBR-E Series Routers ..................................................................1

1.2.1 Ruijie RG-NBR6120-E Router.......................................................................................1

1.2.2 Ruijie RG-NBR6205-E Router.......................................................................................4

1.2.3 Ruijie RG-NBR6210-E Router.......................................................................................7

1.2.4 Ruijie RG-NBR6215-E Router.....................................................................................10

1.3 Specifications of the Hard Disk Module...................................................................................14

2 Getting Started................................................................................................................................ 15

2.1 Preparing for Installation..........................................................................................................15

2.1.1 Safety Precautions.......................................................................................................15

2.1.2 Requirements on the Installation Environment............................................................15

2.1.3 Installation Tools...........................................................................................................18

2.2 Installing a Router....................................................................................................................18

2.2.1 Installation Procedure..................................................................................................18

2.2.2 (Optional) Installing the Hard Disk for the RG-NBR6200-E Series Routers ...............18

2.2.3 Installing the Device in a Specific Location.................................................................19

2.2.4 Performing EMC Grounding ........................................................................................20

2.2.5 Installing the Power Cord.............................................................................................20

2.2.6 Checking After the Installation.....................................................................................21

3 Configuration................................................................................................................................... 21

3.1 WAN Load Balance .................................................................................................................21

3.2 DHCP Configuration ................................................................................................................25

3.2.1 Configuring DHCP Through the Web Page.................................................................25

3.2.2 Configuring DHCP in CLI Mode...................................................................................27

3.3 DNS Configuration...................................................................................................................28

3.3.1 Working Principle.........................................................................................................28

3.3.2 Effect............................................................................................................................28

3.3.3 Procedure.....................................................................................................................28

3.4 Behavior Policies .....................................................................................................................30

3.4.1 Basic Settings ..............................................................................................................30

3.4.2 Advanced Settings.......................................................................................................39

3.5 Rate Limit.................................................................................................................................52

3.6 Port Mapping............................................................................................................................54

3.7 DMZ Host Mapping..................................................................................................................57

3.8 IPsec VPN................................................................................................................................58

3.8.1A Branch RouterAccesses the HQ Router Using a Static IPAddress in Dialup Mode58

3.8.2 The Branch RouterAccesses the HQ Router Using a Dynamic IPAddress in Dialup

Mode...............................................................................................................................66

3.8.3 The Branch RouterAccesses the HQ Router on the LAN in Dialup Mode.................74

3.9 Integrating the NBR Device with Ruijie Cloud.........................................................................81

3.9.1 Synchronizing Voucher/Account Login to a Router.....................................................82

3.9.2 Synchronizing Voucher/Account Login to a Router.....................................................86

3.9.3 Synchronizing Voucher/Account Login to the NBR Device.........................................90

3.10 Local Web Authentication......................................................................................................91

3.11 AD Domain Integration ..........................................................................................................95

iii

3.12 Firewall.................................................................................................................................100

3.12.1 Attack Defense Configuration..................................................................................101

3.12.2 Security Zone Configuration....................................................................................108

3.12.3 Defense Zone Monitoring ........................................................................................121

3.12.4 IP Resource Configuration.......................................................................................123

3.12.5 Service Resource Configuration..............................................................................126

4 Upgrade and Maintenance............................................................................................................ 129

4.1 Logging In ..............................................................................................................................129

4.1.1 Logging In Through the Web Management System..................................................129

4.1.2 Logging In Through the Console Port........................................................................133

4.1.3 Logging In Through Telnet.........................................................................................136

4.2 Configuring a Password.........................................................................................................139

4.3 Upgrading ..............................................................................................................................141

4.3.1 Upgrading through Web Management System .........................................................141

4.4 Backing Up the Configuration and Resetting the NBR Device .............................................143

4.4.1 Exporting Configuration Files.....................................................................................143

4.4.2 Importing Configuration Files.....................................................................................144

4.5 Restoring Factory Settings....................................................................................................146

4.5.1 One-Click Reset Through Web..................................................................................146

4.5.2 One-Click Reset Through Reset Button....................................................................147

Cookbook Overview

1 Overview

1.1 Introduction

RG-NBR-E series enterprise-class routers are multi-service integrated routers tailored by Ruijie Reyee for

integrated scenarios such as office, hotel, restaurant, entertainment, and scenic spot. RG-NBR-E series

enterprise-class routers support many functions such as service acceleration channel, precise flow control,

network access behavior management, VPN total-division interconnection, and intelligent routing, and support

connection to Ruijie cloud platform (MACC free cloud platform) for remote cloud O&M and central management,

which can well meet the integrated network needs of scenarios such as office, hotel, restaurant, entertainment,

and scenic spot.

RG-NBR-E series enterprise-class routers support the web management GUI. The web management system

can be used to configure and manage the common functions of the devices.

1.2 Specifications of Ruijie RG-NBR-E Series Routers

1.2.1 Ruijie RG-NBR6120-E Router

1. Appearance of Ruijie RG-NBR6120-E Router

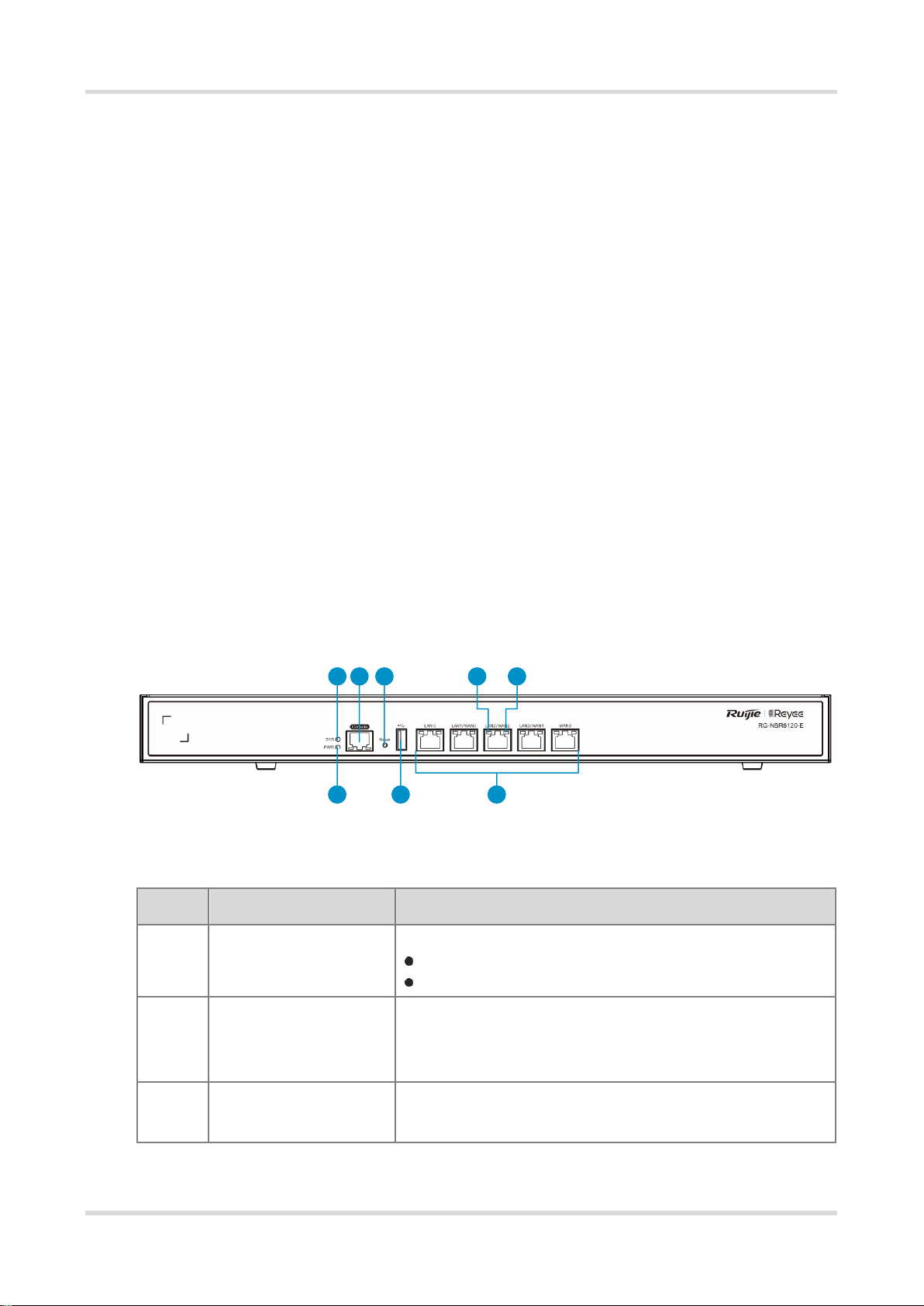

Figure 1-1 Front Panel of Ruijie RG-NBR6120-E Router

Table 1-1 Description of the Front Panel of Ruijie RG-NBR6210-E Router

No.

Indicator/Port

Description

SYS

System indicator:

If it blinks green, the system is being initialized.

If it is steady green, system initialization is completed.

Console

Console port. It connects to the console cable. After connecting to

the serial port of the management PC, the device can be managed

through the console port.

Reset

Restarts the device. Press and hold this button for more than 5s to

reset the device to factory defaults.

21 3

4 5

Cookbook Overview

No.

Indicator/Port

Description

LAN2

If it is steady orange, the port is connected at a rate of 1000

Mbit/s.

If it is off, the port is connected at a rate of 10 Mbit/s or 100

Mbit/s.

WAN2

If it is steady green, the port is connected.

If it blinks green, the port is receiving or transmitting traffic.

10/100/1000M self-

adaptive Ethernet ports

Five 10/100/1000M self-adaptive fast Ethernet ports: support

automatic recognition of network cables and cross-over cables.

LAN0 (GE 0/0) is a LAN port and WAN0 (GE 0/4) is a WAN

port, and they do not support the WAN/LAN switchover.

LAN3/WAN1 (GE 0/3) is a WAN port by default and supports

the WAN/LAN switchover.

LAN1/WAN3 (GE 0/1) and LAN2/WAN2 (GE 0/2) are LAN ports

by default and support the WAN/LAN switchover.

USB

USB2.0 port that connects to USB-compliant peripheral devices,

such as USB flash drives.

PWR

Power supply indicator:

If it is steady green, the device is receiving power properly.

If it is off, the power module is faulty or not powered on.

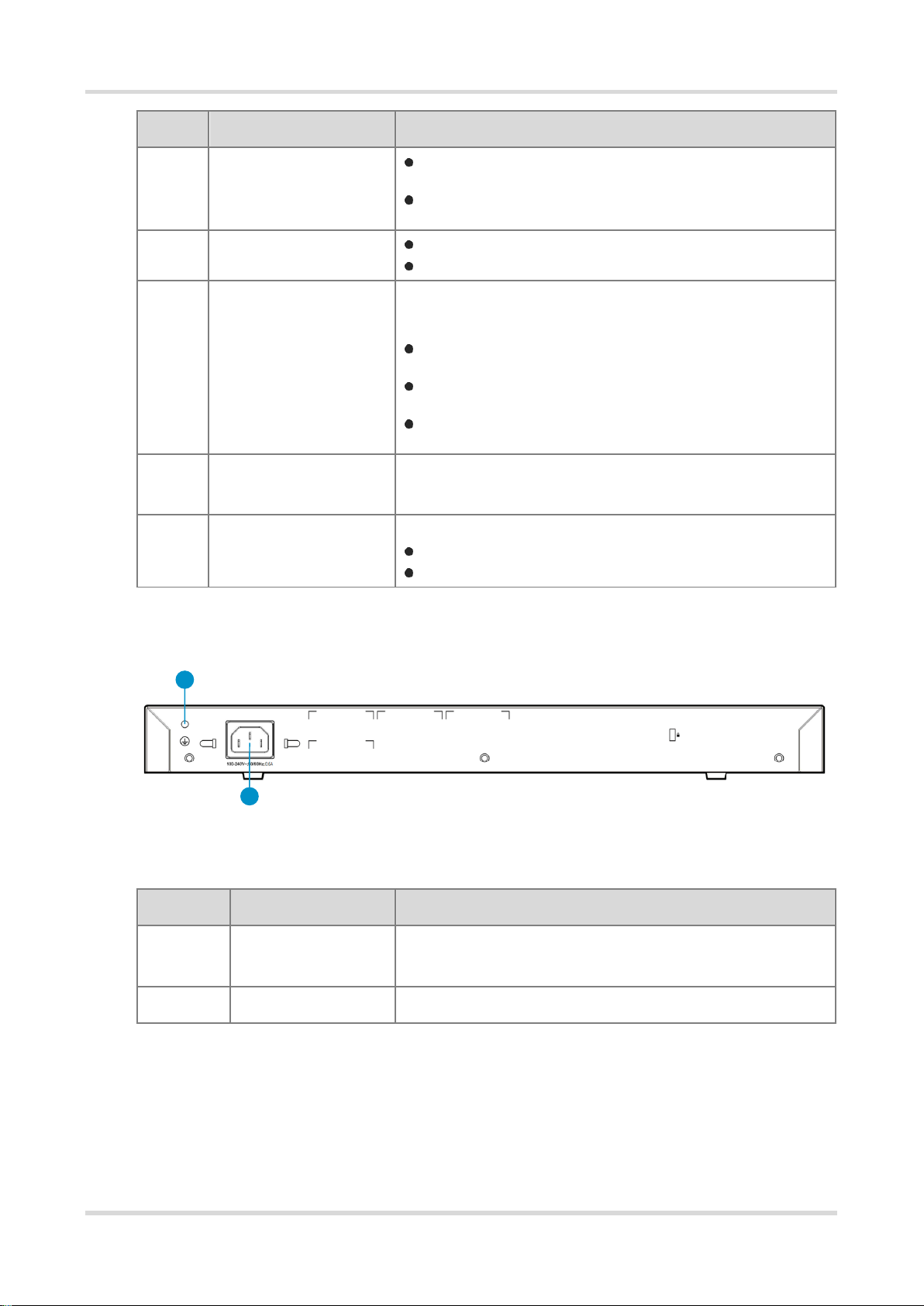

Figure 1-2 Back Panel of Ruijie RG-NBR6210-E Router

Table 1-2 Description of the Back Panel of Ruijie RG-NBR6210-E Router

No.

Button/Port

Description

Grounding screw

Connects to the grounding system of the installation site through the

grounding wire to provide grounding protection.

Power port

Connects to an AC power cord.

Cookbook Overview

2. Specifications of Ruijie RG-NBR6210-E Router

Table 1-3 Specifications of Ruijie RG-NBR6210-E Router

Item

Description

Model

RG-NBR6120-E

Storage

DDR3 SDRAM: 512 MB

eMMC: 4 GB

BOOTROM: 2 MB

I/O setup

Five 10/100/1000M self-adaptive fast Ethernet ports: support automatic recognition of

network cables and crossover cables.

WAN ports:

Two WAN ports by default. WAN0 (GE 0/4) port is a WAN port and does not support

the WAN/LAN switchover. LAN3/WAN1 (GE 0/3) port is a WAN port by default and

supports the WAN/LAN switchover.

LAN ports:

Three LAN ports by default. LAN0 (GE 0/0) port is a LAN port and does not support

the WAN/LAN switchover. LAN1/WAN3 (GE 0/1) and LAN2/WAN2 (GE 0/2) ports are

LAN ports by default and support the WAN/LAN switchover.

One console port

One USB port

Interface standard

Ethernet: 10Base-T/100Base-TX/1000Base-TX

Console port: RS-232

Dimension (W x H x

440 mm x 43.6 mm x 200 mm (excluding the foot pad)

Voltage

100-240 V, 50/60 Hz

Power consumption

Less than 20 W

Working

environment

Temperature: 0°C to 45°C (32°F to 113°F)

Humidity: 10% to 90% RH (non-condensing)

Note

Not all USB disks are supported. The Kingston USB disk with FAT 32 is recommended.

Autres manuels pour Reyee RG-NBR-E Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ruijie Routeur réseau

Ruijie

Ruijie Reyee RG-EG210G-E Manuel d'installation et d'exploitation

Ruijie

Ruijie RSR10 Series Instructions de montage

Ruijie

Ruijie Reyee RG-EW1800GX PRO Manuel utilisateur

Ruijie

Ruijie RG-EG210G-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-RSR77 Series Mode d'emploi

Ruijie

Ruijie Reyee RG-EW Series Manuel utilisateur

Ruijie

Ruijie RG-RSR77-XA Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EW1200G PRO Manuel utilisateur

Ruijie

Ruijie RG-RSR10-02E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-EG Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RG-RSR30-XA Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EG Series Manuel utilisateur

Ruijie

Ruijie Reyee RG-EW1300G Manuel utilisateur

Ruijie

Ruijie Reyee RG-EW3200GX PRO Manuel utilisateur

Ruijie

Ruijie RG-RSR77 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RSR30-X-SPU10 Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-EW Series Manuel utilisateur

Ruijie

Ruijie Reyee RG-EW3000GX PRO Manuel utilisateur

Ruijie

Ruijie RG-MTFi-M520 Manuel utilisateur

Ruijie

Ruijie RG-RSR77 Series Manuel utilisateur

Ruijie

Ruijie Reyee RG-EW1200 Manuel utilisateur

Ruijie

Ruijie RG-RSR20-X-28 Series Manuel d'installation et d'exploitation

Ruijie

Ruijie Reyee RG-NBR-E Series Manuel d'installation et d'exploitation

Ruijie

Ruijie RSR10-01G-T-I Series Manuel d'installation et d'exploitation

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
