ROSE DISPLAYS CABLE CLIP Manuel utilisateur

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Parts

SuperSnap™ with Rod Connector

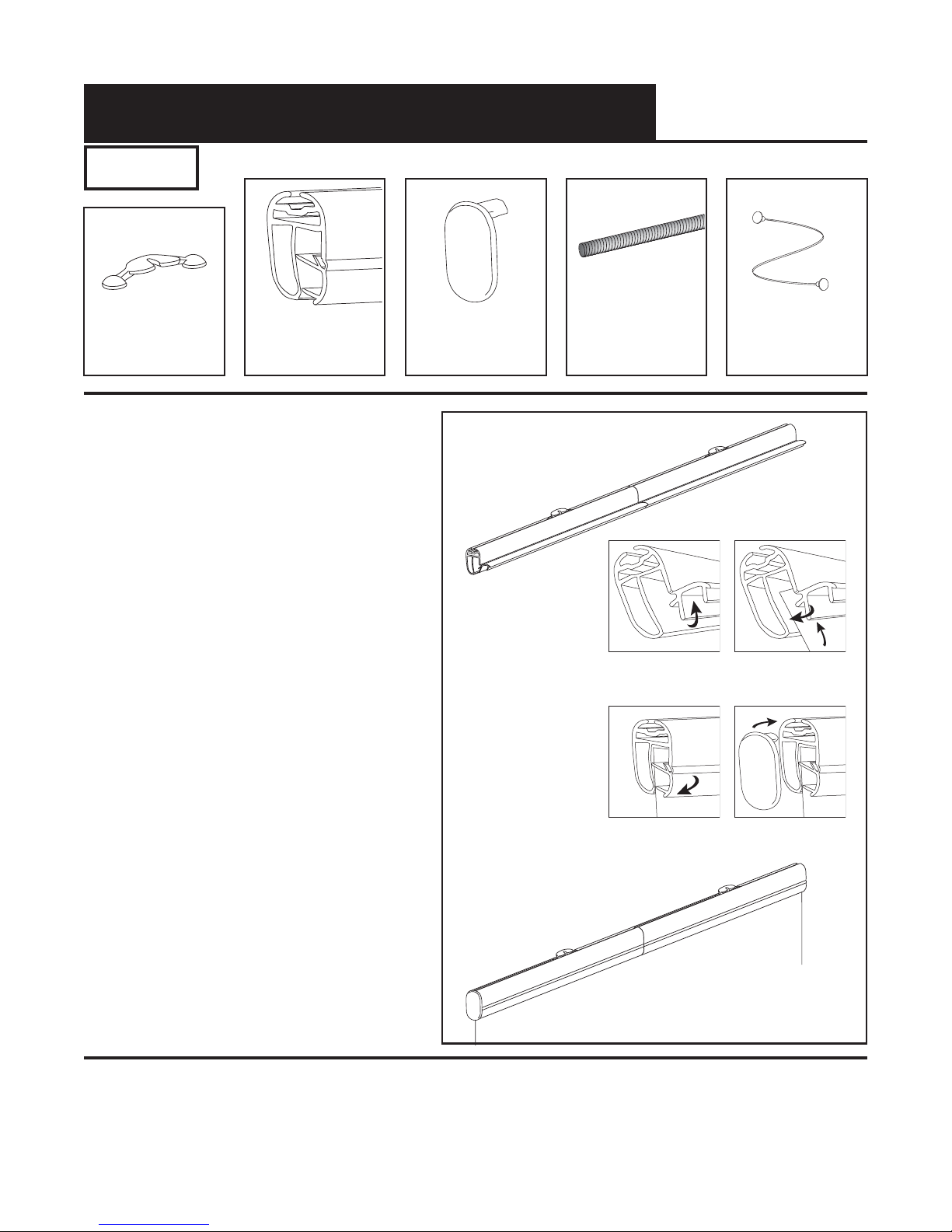

Step 1

Place cable into inner channel of

CableClip. The cable should

snap into place. Fig. 1

Align one end of the CableClip with

the top channel of the plastic holder.

Then insert one round end, press

down on the other round end and

slide CableClip into rail. Fig. 2

Note: Position CableClip about

halfway down each SuperSnap. Fig. 3

Step 2

Push rod halfway into clip rail

of one SuperSnap. Fig. 4

Step 3

Insert rod into top clip rail of second

SuperSnap until both holders meet.

Fig. 5 & 6 Repeat steps 2-3 for

additional SuperSnaps.

Instruction Sheet

Instructions for assembly

Incept-11.13.02

The SuperSnap™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSSuperSnapRodCCSaucer

Figure 3

Figure 6

Figure 2Figure 1

Figure 5

Figure 4

Page 1 of 2

SuperSnap

12S300

Cable Clip

06-5050

End Caps

06-5475

6” Rod

97-0304-06

Cable and

Saucer

16-0018SS

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Parts

(continued)

Step 4

Snap all sections of the SuperSnap

open. Fig. 7

Note: It is easier to open and close

the SuperSnap by starting at one

end and working your way down

the holder.

Step 5

Insert poster (top and bottom) into

all sections of SuperSnap. Fig. 8

Step 6

To close, snap the SuperSnap shut.

Fig. 9

Step 7

Push end caps into place. Fig. 10

Step 8

Suspend holders. Finished Look

Important note:

Please save and reuse the

SuperSnap, End Caps and

CableClips for future projects.

Instructions for assembly

Incept-11.13.02

The SuperSnap™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSSuperSnapRodCCSaucer

SuperSnap™ with Rod Connector Instruction Sheet

Open all

holders

Finished Look

Page 2 of 2

Figure 10Figure 9

Figure 7 Figure 8

SuperSnap

12S300

Cable Clip

06-5050

End Caps

06-5475

6” Rod

97-0304-06

Cable and

Saucer

16-0018SS

Parts

SuperSnap™ with Rod Connector

Step 1

Place cable into inner channel of

CableClip. The cable should

snap into place. Fig. 1

Align one end of the CableClip with

the top channel of the plastic holder.

Then insert one round end, press

down on the other round end and

slide CableClip into rail. Fig. 2

Note: Position CableClip about

halfway down each SuperSnap. Fig. 3

Step 2

Push rod halfway into clip rail

of one SuperSnap. Fig. 4

Step 3

Insert rod into top clip rail of second

SuperSnap until both holders meet.

Fig. 5 & 6 Repeat steps 2-3 for

additional SuperSnaps.

Instruction Sheet

Instructions for assembly

Incept-11.13.02

The SuperSnap™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSSuperSnapRodCCSaucer

Figure 3

Figure 6

Figure 2Figure 1

Figure 5

Figure 4

Page 1 of 2

SuperSnap

12S300

Cable Clip

06-5050

End Caps

06-5475

6” Rod

97-0304-06

Cable and

Saucer

16-0018SS

Parts

(continued)

Step 4

Snap all sections of the SuperSnap

open. Fig. 7

Note: It is easier to open and close

the SuperSnap by starting at one

end and working your way down

the holder.

Step 5

Insert poster (top and bottom) into

all sections of SuperSnap. Fig. 8

Step 6

To close, snap the SuperSnap shut.

Fig. 9

Step 7

Push end caps into place. Fig. 10

Step 8

Suspend holders. Finished Look

Important note:

Please save and reuse the

SuperSnap, End Caps and

CableClips for future projects.

Instructions for assembly

Incept-11.13.02

The SuperSnap™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSSuperSnapRodCCSaucer

SuperSnap™ with Rod Connector Instruction Sheet

Open all

holders

Finished Look

Page 2 of 2

Figure 10Figure 9

Figure 7 Figure 8

SuperSnap

12S300

Cable Clip

06-5050

End Caps

06-5475

6” Rod

97-0304-06

Cable and

Saucer

16-0018SS
