ROSE DISPLAYS SIDE-LOADING ANOSKYBOX Manuel utilisateur

Parts

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Note: You will be assembling four frames.

Below instructions are for one frame only.

Repeat steps 1 & 2 for each frame.

Step 1

Locate two split rails and a solid rail that is

the same length as the split rails.

Insert two corner brackets in each end of

the solid side AnoFrame rail. Insert one

corner bracket into each end of each split

side AnoFrame rails. Fig. 1.

Note: Tension tabs on corner brackets face

towards outside of frame rails.

Step 2

Assemble frame following steps in Fig. 2

sliding sides together in the order shown.

Side-Loading AnoSkyBoxTM

Instructions for assembly

Incept-1.24.03

The AnoSkybox™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #03INSSideLoadingAnoSkyBox

Instruction Sheet

Figure 1

32 Corner

Brackets

12 AnoFrame Rails

12AF-100

8 AnoFrame

split rails

Figure 2

split rails

solid rail

split rails

Parts

split

rails

solid rail

split rails

8 Corner

Braces 4 Spine Rails

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

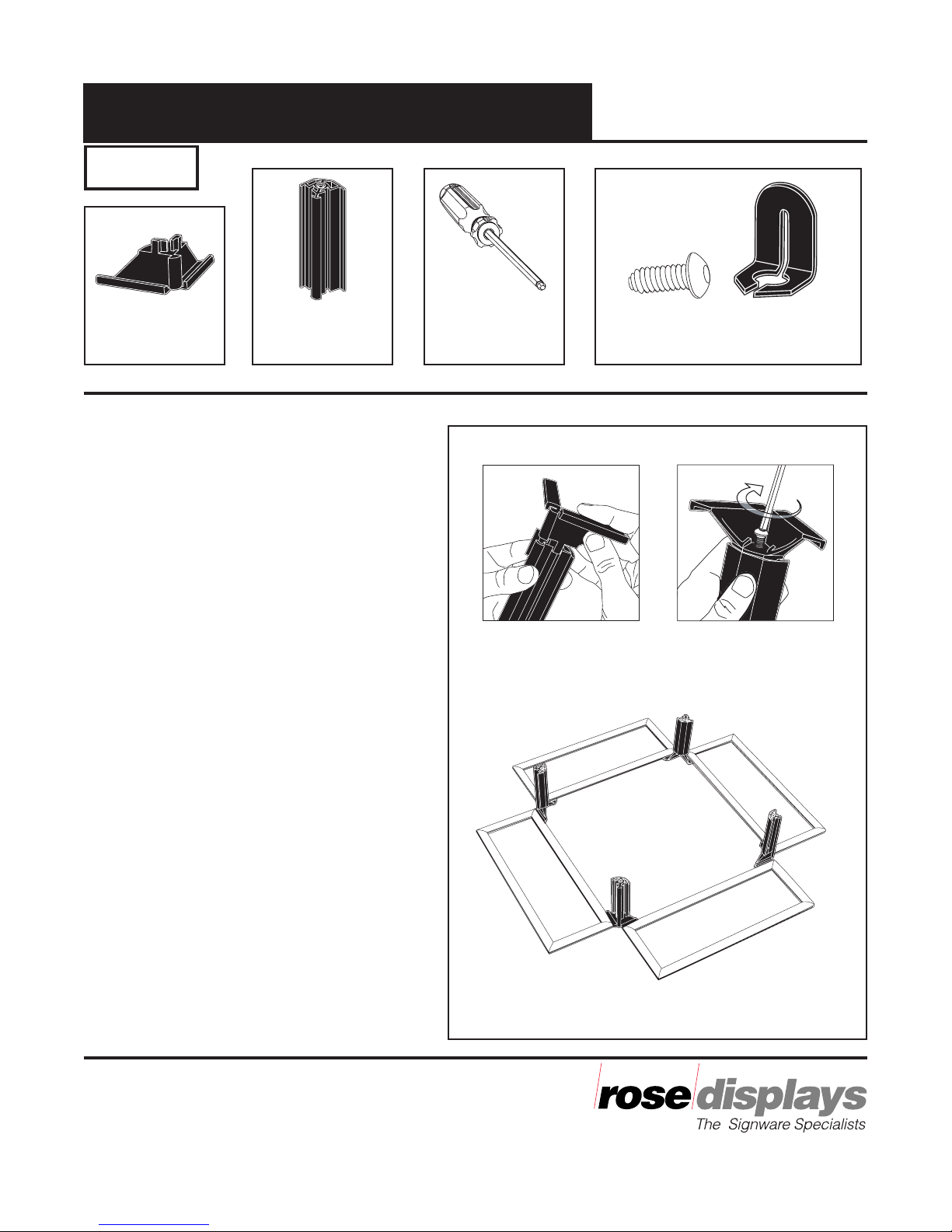

Step 3

Attach one corner brace onto one end of

each corner spine. Fig. 3.

Step 4

Screw into place and tighten. Fig. 4.

Step 5

Lay out AnoSkyBox parts as shown.

Be sure to lay out frames so each corner

contains matching frame sides — two

corners should contain only split rails and

two corners should contain only solid rails.

Fig. 5.

Note: Once side of each frame contains

split rails. When laying out your

AnoSkybox, make sure you match the

split rail sides of both frames to the same

corner spine. You should have only 2

corners containing split rails.

Instructions for assembly

Incept-1.24.03

The AnoSkybox™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #03INSSideLoadingAnoSkyBox

Figure 5

Figure 3 Figure 4

1 Ball Head

Screwdriver 8 Screws 4 Hanger Tabs

Side-Loading AnoSkyBoxTM Instruction Sheet

Parts

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Step 6

Attach frames to corner spines. Be sure

to insert bottom rib of corner brace into

bottom channel of the AnoFrame rail,

as shown in Fig. 6.

Repeat for all frames. Fig. 7.

Step 7

Attach one corner brace onto the top

of each corner spine rail. Fig. 8.

Step 8

If using the cable and loop for hanging,

insert loop into hanger tab. If using the

cable and saucer for hanging, insert saucer

into hanger tab. Fig. 9.

Step 9

Insert one screw into each hanger tab

and align with hole in top corner brace.

Fig. 10.

Step 10

Screw hanger tab into place. Fig. 11.

Instructions for assembly

Incept-1.24.03

The AnoSkybox™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #03INSSideLoadingAnoSkyBox

Figure 8

Figure 6 Figure 7

Figure 11Figure 10

8 Corner

Braces 4 Spine Rails

1 Ball Head

Screwdriver 8 Screws 4 Hanger Tabs

Figure 9

Side-Loading AnoSkyBoxTM Instruction Sheet

Parts

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Step 11

Insert one Velcro strap through each

corner containing split rails. Slide the

strap through the split rails. Fig. 12.

Step 12

Tighten and secure in place on the inside

of the AnoSkyBox. Fig. 13.

Step 13

Suspend AnoSkyBox through hanger

tabs with appropriate Rose Displays

hanging accessories.

Step 14

Insert graphics. Fig. 14.

Instructions for assembly

Incept-1.24.03

The AnoSkybox™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSSideLoadingAnoSkyBox

Figure 14

2 Velcro Straps

Figure 12 Figure 13

Side-Loading AnoSkyBoxTM Instruction Sheet
