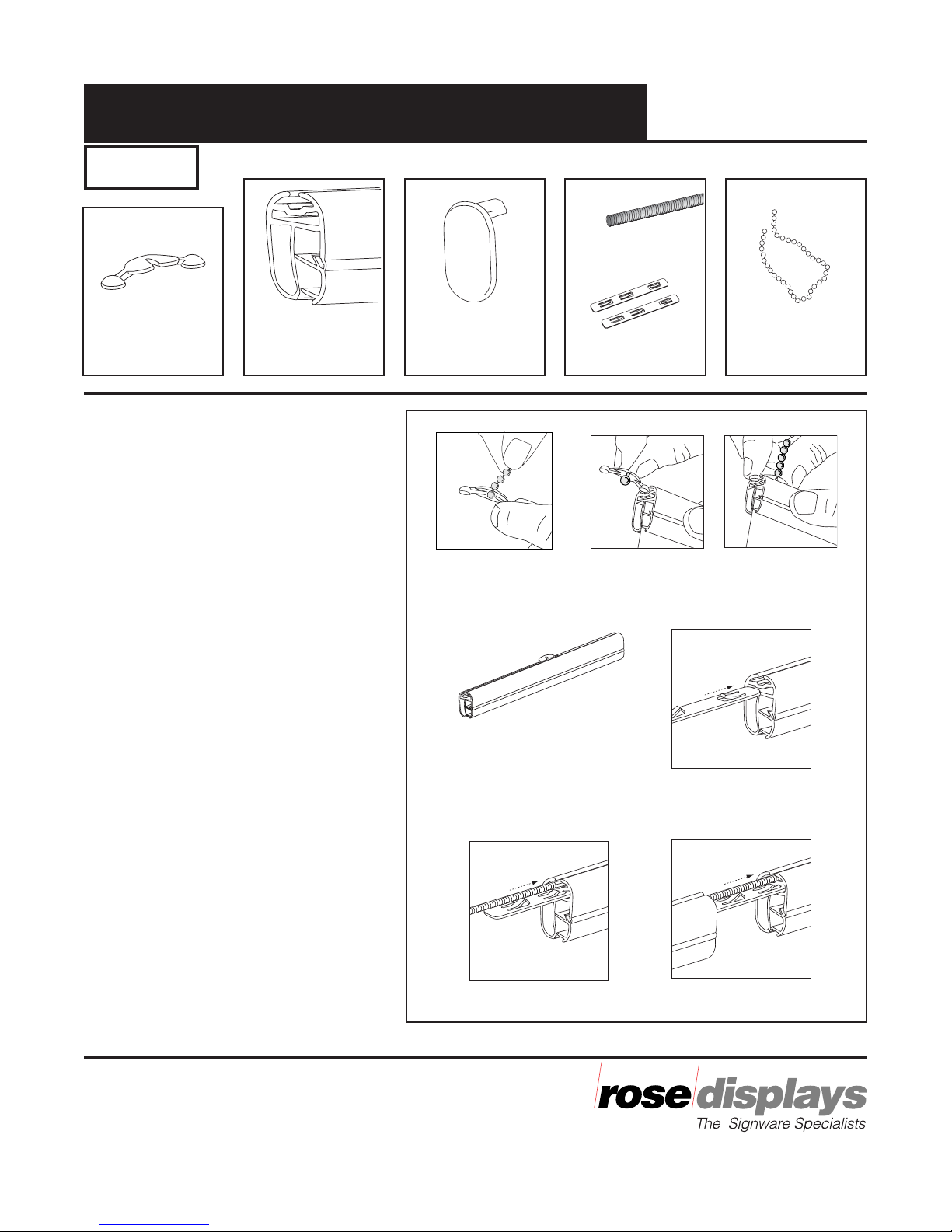

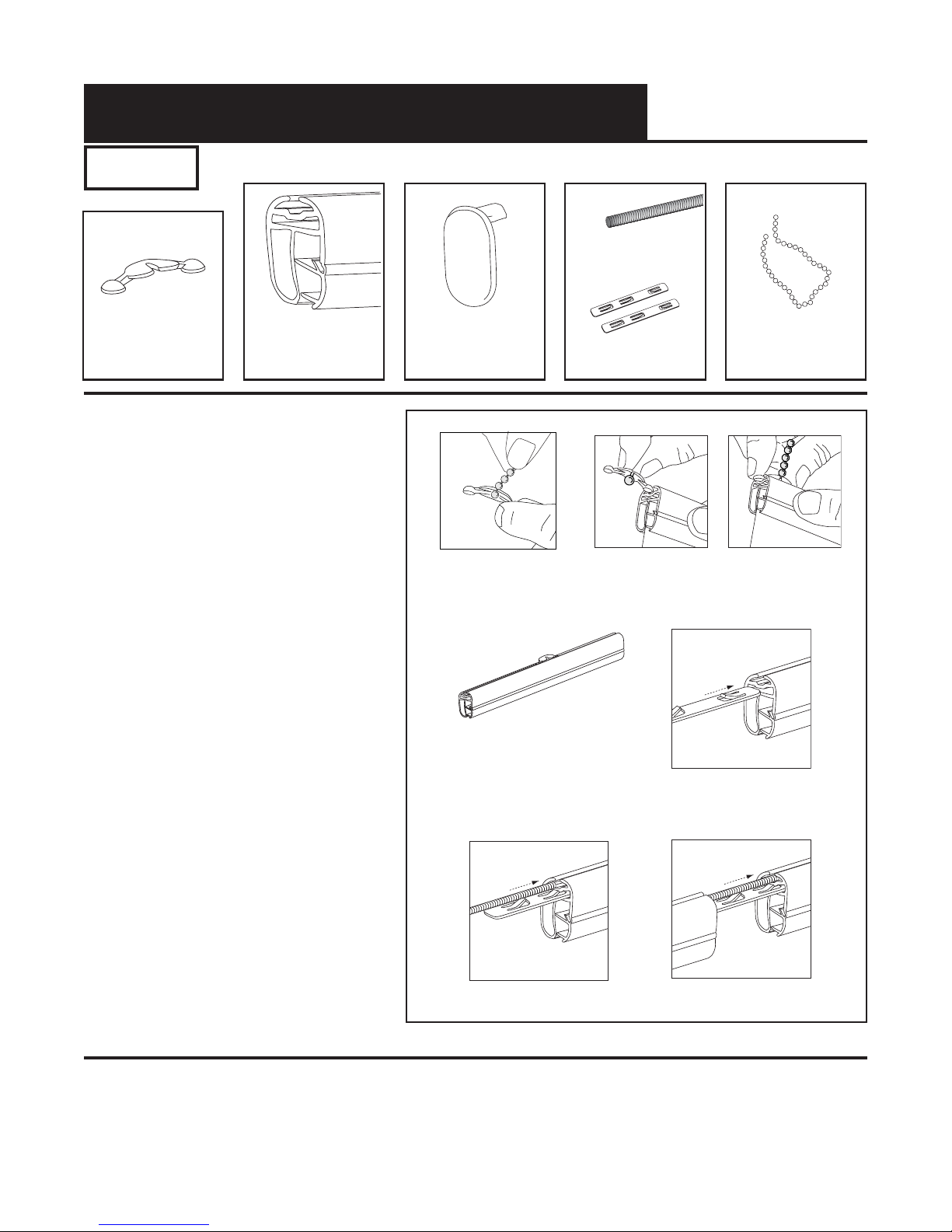

ROSE DISPLAYS CABLE CLIP Manuel utilisateur

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Parts

Step 1

Insert single ball of ball chain into inner

channel of Cable Clip. The cable should

snap into place. Fig. 1

Align one round end of cable clip with top

channel of the rail and insert. Once in

place, insert end of ball chain into channel.

Then press down on the other round end of

the cable clip and slide into rail by pushing

on the clip. Fig. 2

Note: Be sure to push on the cable clip in

order to slide the ball chain into place. Do

not pull on, or push against, the ball chain

as this will cause it to bind in the channel.

Note: Position CableClip about halfway

down each SuperSnap. Fig. 3

Step 2

Insert AnoConnector into rail of one

SuperSnap. Make sure tabs face upward. The

side with one tab must go in first. Fig. 4

Step 3

Insert threaded rod halfway into clip rail of

the same SuperSnap. Fig. 5

Step 4

Push the second piece of SuperSnap onto

both AnoConnector and the threaded rod.

Push together until

both holders meet. Fig. 6 Repeat steps 2-4

for additional SuperSnaps.

Instructions for assembly

Incept-11.13.02

The SuperSnap™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSSuperSnapAnoConnectorCCBC

Figure 6

Figure 3

SuperSnap™ with AnoConnector Instruction Sheet

Figure 1 Figure 2

Figure 4

Figure 5

Page 1 of 2

AnoConnector

06-2930

SuperSnap

12S300

6” Rod

97-0304-06

CableClip

06-5050

End Caps

06-5475

Ball Chains

96-0302P

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

Parts

(continued)

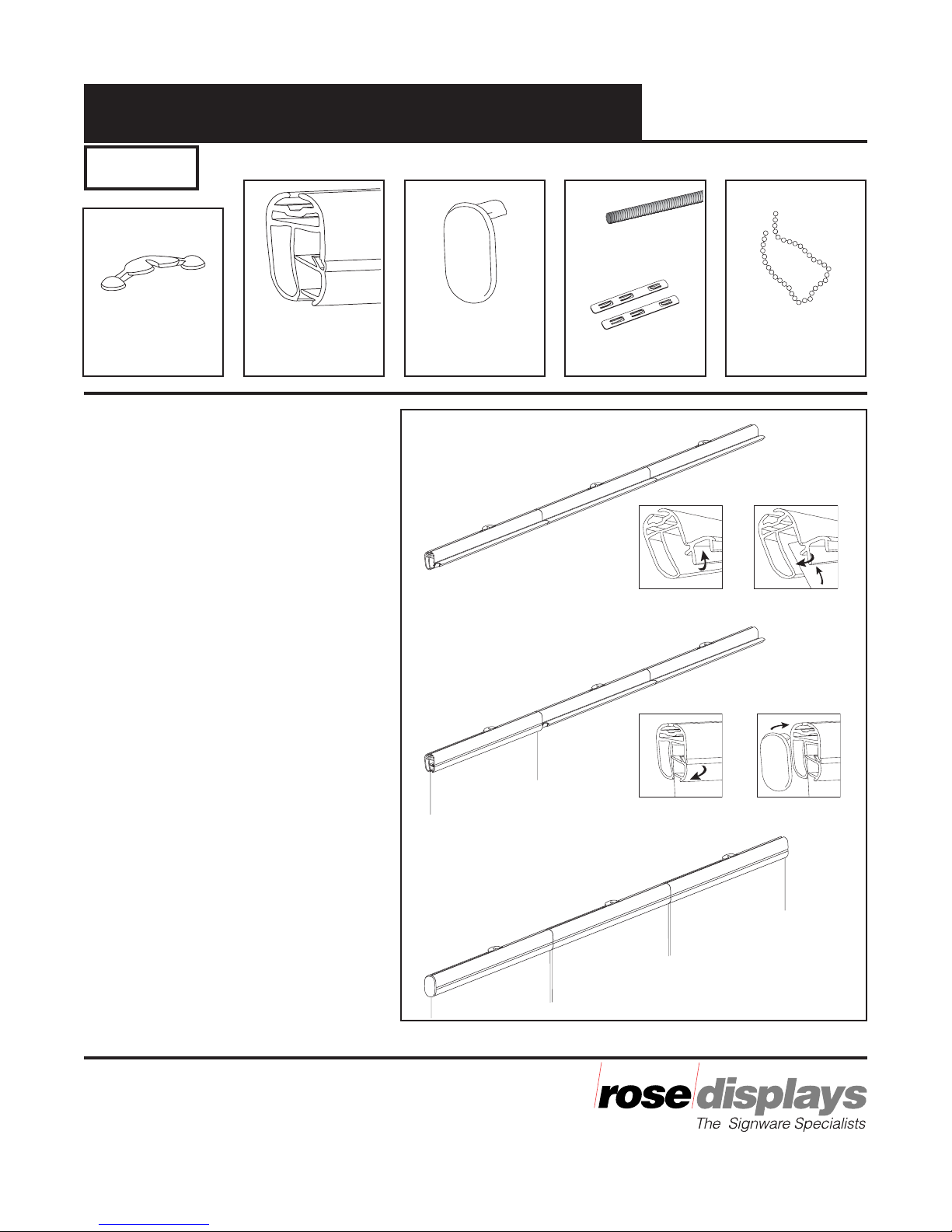

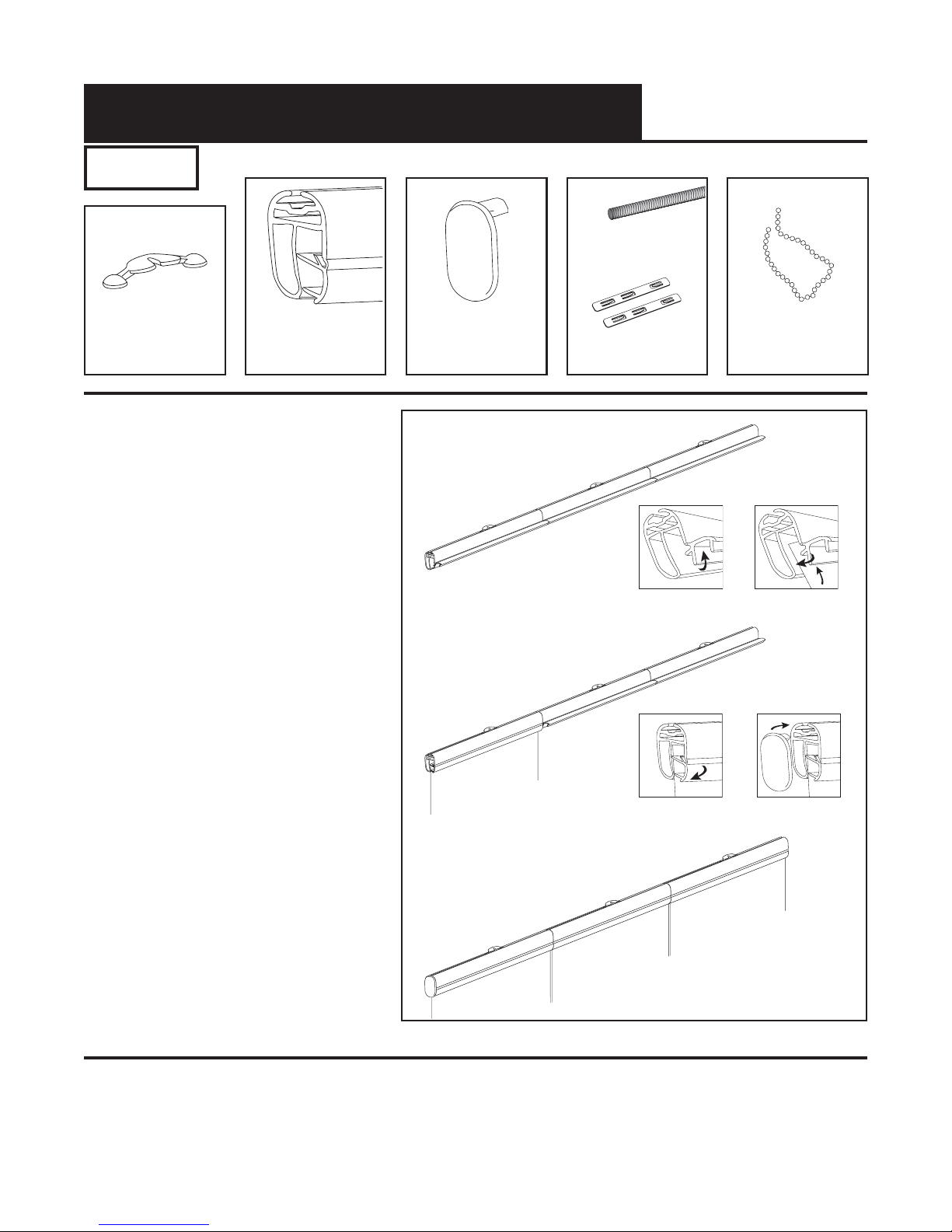

Step 5

Snap all sections of the SuperSnap

open. Fig. 7

Note: It is easier to open and close

the SuperSnap by starting at one

end and working your way down

the holder.

Step 6

Insert graphic into one section of

SuperSnap (top and bottom). Fig. 8

Step 7

To close, snap the SuperSnap shut.

Fig. 9

Step 8

You should now have one graphic in

place. Repeat steps 5-7 for hanging

additional graphics.

Step 9

Push end caps into place. Fig 10

Step 10

Suspend holders. Finished Look

Important note:

Please save and reuse the

SuperSnap, End Caps and

CableClips for future projects.

Instructions for assembly

Incept-11.13.02

The SuperSnap™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSSuperSnapAnoConnectorCCBC

SuperSnap™ with AnoConnector Instruction Sheet

Page 2 of 2

Finished Look

Open all holders Figure 8Figure 7

Figure 10Figure 9Insert posters

AnoConnector

06-2930

SuperSnap

12S300

6” Rod

97-0304-06

CableClip

06-5050

End Caps

06-5475

Ball Chains

96-0302P

Parts

Incept-11.13.02

The SuperSnap™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSSuperSnapAnoConnectorCCBC

Figure 6

Figure 3

SuperSnap™ with AnoConnector Instruction Sheet

Figure 4

Figure 5

Page 1 of 2

AnoConnector

06-2930

SuperSnap

12S300

6” Rod

97-0304-06

CableClip

06-5050

End Caps

06-5475

Ball Chains

96-0302P

Step 1

Insert single ball of ball chain into inner

channel of Cable Clip. The cable should

snap into place. Fig. 1

Align one round end of cable clip with top

channel of the rail and insert. Once in

place, insert end of ball chain into channel.

Then press down on the other round end of

the cable clip and slide into rail by pushing

on the clip. Fig. 2

Note: Be sure to push on the cable clip in

order to slide the ball chain into place. Do

not pull on, or push against, the ball chain

as this will cause it to bind in the channel.

Note: Position CableClip about halfway

down each SuperSnap. Fig. 3

Step 2

Insert AnoConnector into rail of one

SuperSnap. Make sure tabs face upward. The

side with one tab must go in first. Fig. 4

Step 3

Insert threaded rod halfway into clip rail of

the same SuperSnap. Fig. 5

Step 4

Push the second piece of SuperSnap onto

both AnoConnector and the threaded rod.

Push together until

both holders meet. Fig. 6 Repeat steps 2-4

for additional SuperSnaps.

Instructions for assembly

Figure 1 Figure 2

Parts

(continued)

Step 5

Snap all sections of the SuperSnap

open. Fig. 7

Note: It is easier to open and close

the SuperSnap by starting at one

end and working your way down

the holder.

Step 6

Insert graphic into one section of

SuperSnap (top and bottom). Fig. 8

Step 7

To close, snap the SuperSnap shut.

Fig. 9

Step 8

You should now have one graphic in

place. Repeat steps 5-7 for hanging

additional graphics.

Step 9

Push end caps into place. Fig 10

Step 10

Suspend holders. Finished Look

Important note:

Please save and reuse the

SuperSnap, End Caps and

CableClips for future projects.

Instructions for assembly

Incept-11.13.02

The SuperSnap™ is a trademark of Rose Displays, Ltd. Neither the

manufacturer nor any sales agent may be held liable for injury, loss or

damage resulting from the use of these products.

Part #02INSSuperSnapAnoConnectorCCBC

AnoConnector

06-2930

SuperSnap

12S300

SuperSnap™ with AnoConnector Instruction Sheet

Page 2 of 2

Finished Look

Open all holders

6” Rod

97-0304-06

Figure 8Figure 7

Figure 10Figure 9Insert posters

CableClip

06-5050

End Caps

06-5475

Ball Chains

96-0302P
