Rollplay W495NB Instructions de montage

Read and understand the entire manual before assembly and operation. The vehicle must be

assembled by an adult who has read and understands the instructions.

Made in China.

Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and

replacement parts.

IMPORTANT:

Save this manual with your sales receipt.

Owner’s Manual and Assembly Instructions

Model #: W495NB

Introduction

Thank you for purchasing this Rollplay vehicle. We hope the rider enjoys

it for miles to come. Please read this instruction guide carefully before

assembling and operating the vehicle. Please have your model number

and serial number ready before calling. Please have proof of purchase.

Keep your sales receipt or register your product at

www.rollplay.com.

Please contact Rollplay Customer Service with any questions.

Hours: 9 AM - 5 PM (CST), Monday - Friday

Phone: 1-888-982-9309

Email: customerservice@rollplay.com

Web: www.rollplay.com

Speciﬁcations:

BATTERY 6V 7AH

MOTOR 6V

AGE 3-8 Years

MAX WEIGHT 35 kg(77 lb)

PRODUCT SIZE 121 x 69 x 65 cm (47.6 x 27.2 x25.6 in)

SPEED 4 km/h(2.5 MPH)

RECHARGE TIME 8-12 Hours

TYPICAL RUN TIME 1-2 Hours

CHARGER OUTPUT DC 7.0V

IMPORTANT!

YOU MUST CHARGE THE BATTERY

FOR 24 HOURS BEFORE FIRST USE!

Charge the battery after each use.

Charge the battery at least once a month, even if the vehicle is not in use.

DO NOT RETURN THIS ITEM

TO THE STORE!

Call Customer Service if you need assistance or replacement parts. Please

have your model number and serial number ready before calling. Please

have proof of purchase. Keep your sales receipt or register your product at

www.rollplay.com as we may require proof of purchase.

1-888-982-9309

Read this entire manual to ensure

proper assembly and safe operation

of the vehicle.

4Table of Contents

Safety......................................................... 5

Parts ......................................................... 7

Charging Instructions.............................. 8

Assemble the Front Wheels.................... 9

Assemble the Left Rear Wheel............... 10

Assemble the Right Rear Wheel............. 11

Assemble the Seat .................................. 12

Steering wheel batteries ........................ 13

Operation Instructions ............................ 14

Maintenance ............................................ 16

Battery Removal ...................................... 15

General Care ............................................ 17

Troubleshooting Guide............................ 18

FCC Information ...................................... 20

Service and Repairs ................................ 21

Warranty ................................................... 22

Product Registration ............................... 23

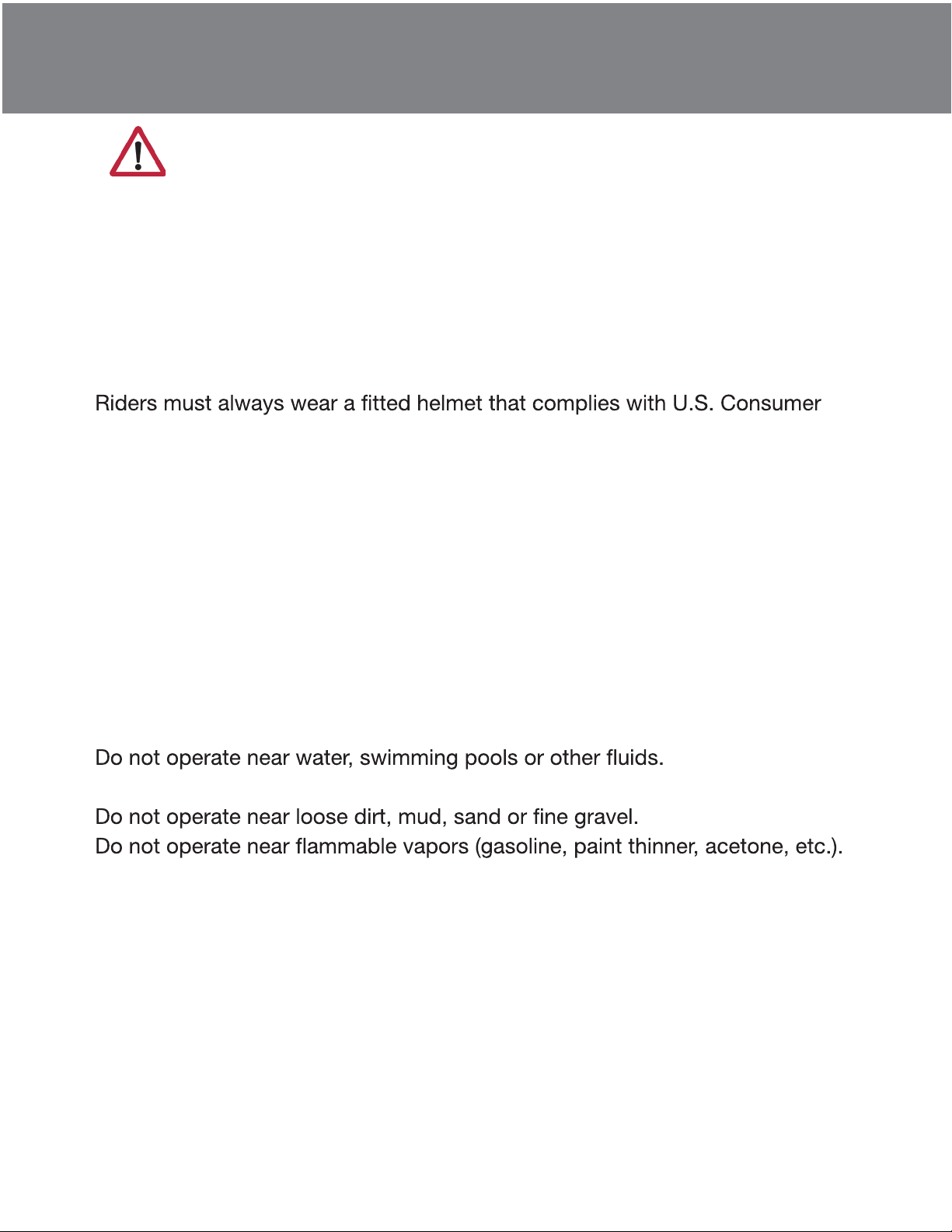

Safety

WARNING: SAFETY RIDING RULES

The user must follow all safety rules and guidelines, or serious injury or death may

occur to the user.

• Always use common sense and safe practices when using the vehicle. The user

must be at least 1year old and weigh no more than 35 kg (77 lbs).

• This product contains small parts that are for adult assembly only. Keep small

children away when assembling. Remove and dispose of all protective material

and plastic bags before assembly.

•

Product Safety Commission (CPSC) Standard 16 CFR 1203.

• Only sit on the seat in the vehicle.

• Do not allow more than one rider.

• Do not overload the vehicle. Do not remove the weight restriction decals.

• Do not pull the vehicle with another vehicle or similar device.

• Keep body parts such as hands, legs, hair and clothing away from moving parts.

Moving parts can cause serious injury.

• Always wear shoes in the vehicle.

• Do not operate near streets or motor vehicles.

• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on

relatively level ground.

•

• Do not operate in dangerous weather conditions such as rain or snow.

•

• Always use the vehicle in a safe, secure environment with adult supervision.

PREVENT INJURIES AND DEATHS:

NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in

vehicle. Direct adult supervision is REQUIRED.

NEVER use in roadways, near cars, on or near steep inclines or steps, swimming

pools or other bodies of water.

ALWAYS wear shoes. ALWAYS sit on the seat. RISK OF FIRE. Do not bypass.

Remove batteries if product is to be left unsed for a long time ; Always replace the

whole set of batteries at one time , taking care not to mix old and new ones, or

batteries of different types.

6Safety

(Continued)

WARNING: BATTERY SAFETY

• Battery posts, terminals and related accessories contain lead and lead compound

(asic) chemicals known to the state of California to cause cancer, reproductive

harm, and are toxic and corrosive. DO NOT open the battery.

• Contact exposure to battery leakage (lead acid) may cause serious injury.

Immediately contact your doctor if exposure occurs. If the chemical is on the skin,

immediately give the person water or milk. Do not give water or milk if the person

is vomiting or has decreased alertness. Do not induce vomiting.

•

explosion. It could permanently damage the system. Keep the charger housing

closed to prevent exposed wiring, which may cause electric shock.

IMPORTANT:

charged for a full 24 hours (no more than 30 hours).

WARNING: ADULT SUPERVISION

REQUIRED

• Before using the vehicle, the rider must understand the vehicle controls and safety

issues.

• It is the responsibility of the adult to educate the child and to determine if the child

is capable of understanding the vehicle controls.

• An adult must ALWAYS directly supervise the use of this vehicle.

• NEVER leave a child unsupervised in the vehicle.

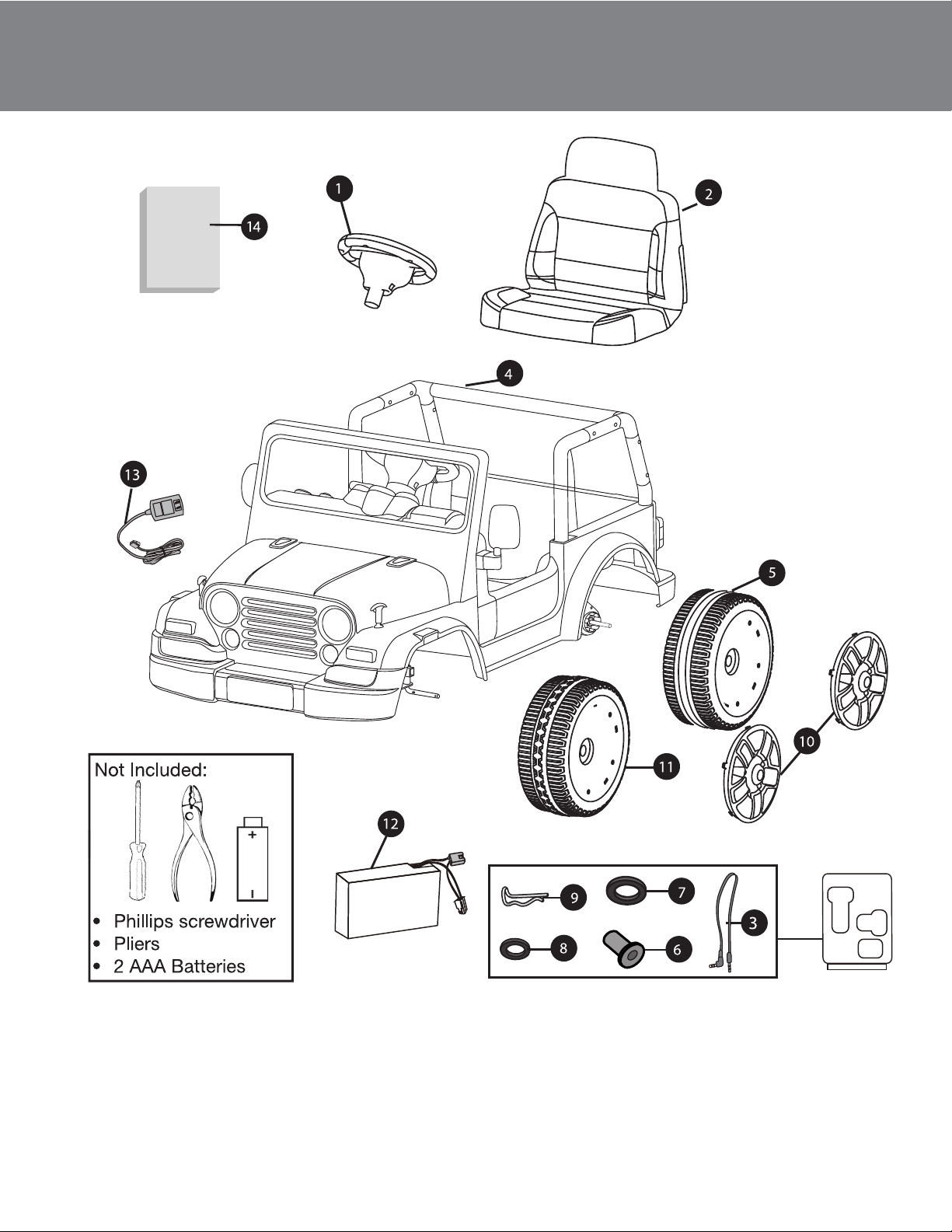

Parts 7

1. Steering wheel

2. Seat

3. MP3

4. Ride-on body

5. Rear wheels (2)

6. Inner wheel spacer

7. Large washers

8. Small washers

9. Snap pins

10. Wheel covers (4)

11. Front wheels(2)

12. Battery

13. Charger

14. Manual

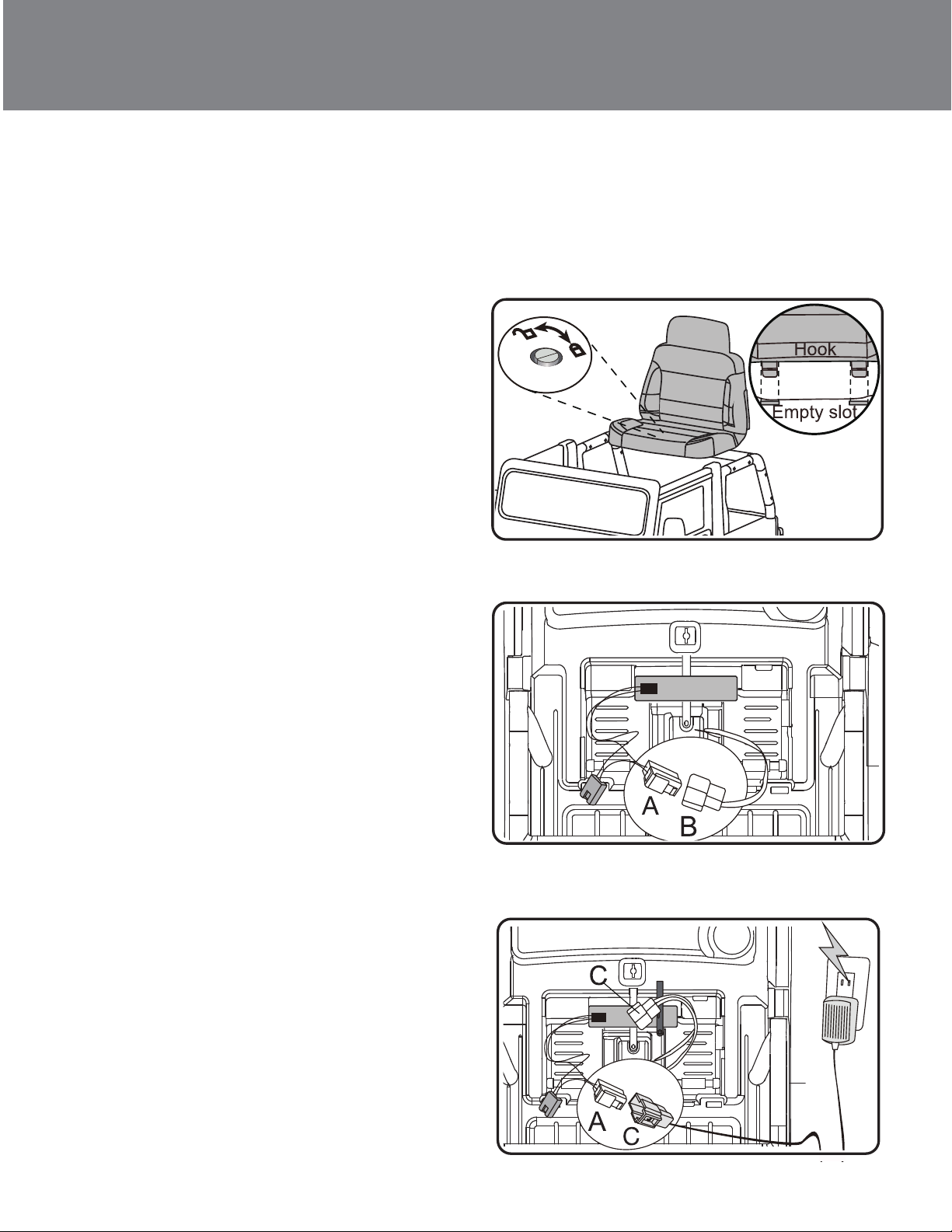

8Charging Instructions

ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

To Charge the Battery:

1. Ensure the car is stopped and the

power switch is turned off.

2. Unlock and remove the seat.

3. Unplug the red battery connector

(A) from the red engine connector

(B).

4. Connect the red battery connector

(A) to the red battery charger

connector (C) and plug (D) into a

120 V outlet.

To Unplug the Battery:

1. Unplug the battery charger (D)

from the outlet.

2. Unplug the red battery connector

(A).

3. Reconnect the red battery

connector (A) to the red engine

connector (B).

4. Replace the seat and tighten lock.

Note: It is not necessary to remove

the battery for charging. However, if

the battery does not reach the outlet,

it can be removed for charging. For

Battery Removal instructions,

see Page 15.

YOU MUST CHARGE THE BATTERY FOR 24

HOURS BEFORE THE FIRST USE!

Battery

Wheel cover

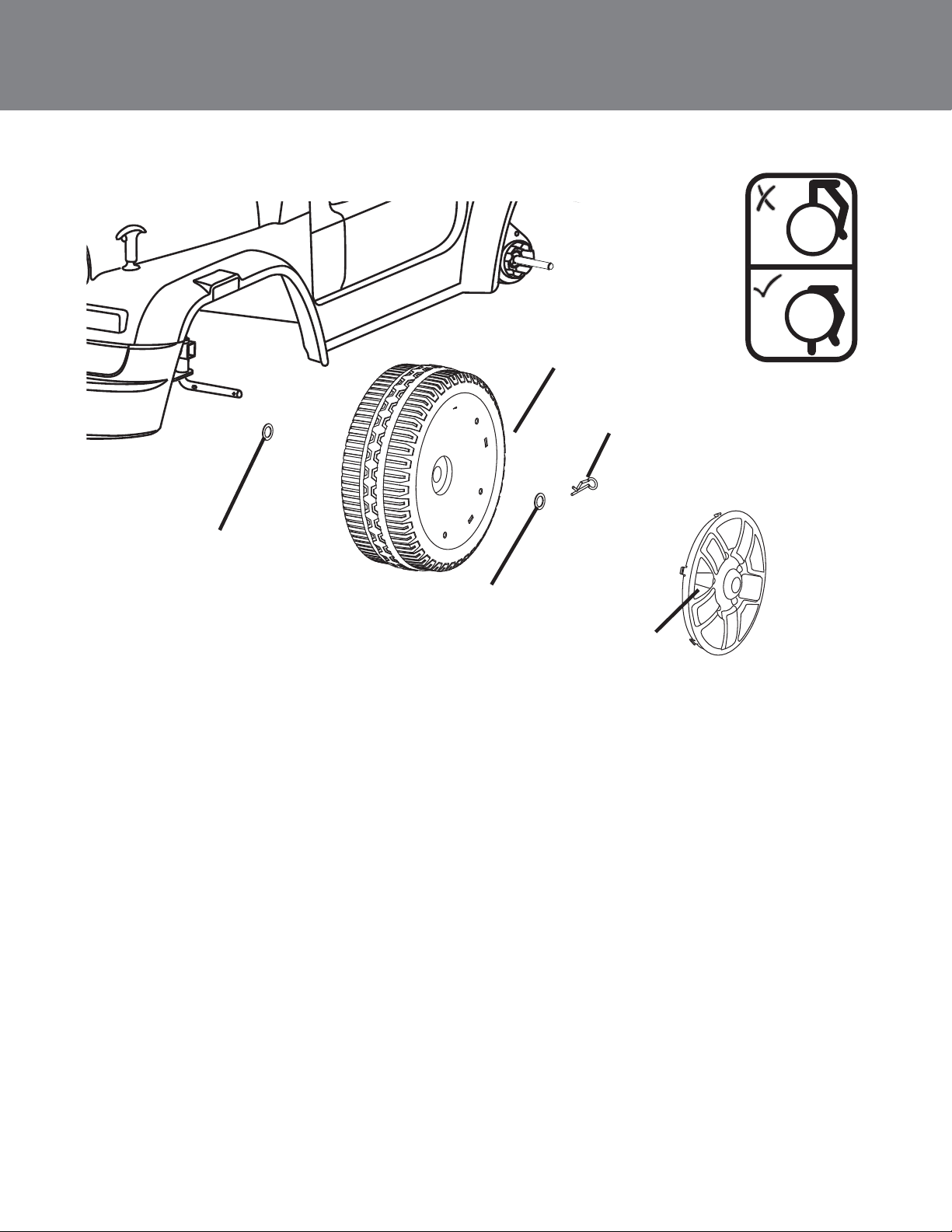

Assemble the Front Wheels

1. Slide the small washer onto the front axle.

2. Slide the front wheel onto the front axle.

3. Slide the small washer onto the front axle.

4. Insert the straight end of the snap pin through the hole at the end

of the axle to keep the wheel in place.

5. Finally snap the wheel cover on the wheel to complete the assembly.

6. Repeat steps 1-5 for the remaining front wheel.

Snap pin

Front wheel

Small washer

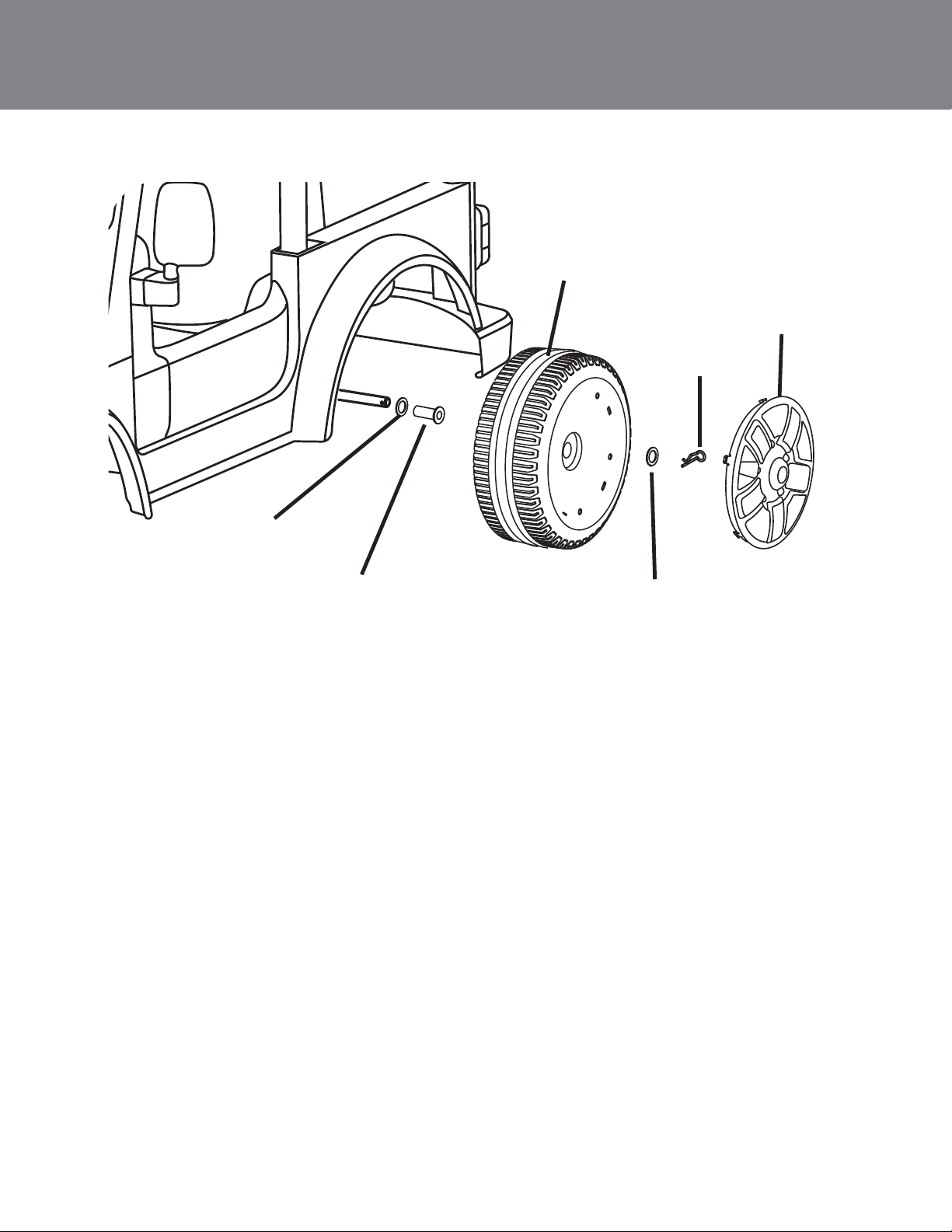

10 Assemble the Left Rear Wheel

Left Rear Wheel:

1. Slide the large washer onto the rear axle, then slide the inner wheel

spacer onto the axle.

2. Slide the left rear wheel onto the left rear axle. The side with the

gear teeth faces inward.

3. Slide the large washer onto the rear axle.

4. Insert the straight side of the snap pin through the hole at the end of

the axle to keep the wheel in place.

5. Finally snap the wheel cover onto the wheel to complete the

assembly.

Inner wheel spacer

Rear wheel

Large washer

Snap pin

Wheel cover
