Rollplay W461P-02 Instructions de montage

Read and understand the entire manual before assembly and operation. The vehicle must be

assembled by an adult who has read and understands the instructions.

Made in China.

Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and

replacement parts.

IMPORTANT:

Save this manual with your sales receipt.

Owner’s Manual and Assembly Instructions

(2-Person Assembly Recommended)

Model #: W461P-01, W461P-02, W461P-03, W461P-04，W461-P-F-TL

12V Chevy Silverado

Scan here

to view the

assembly video

Introduction

Thank you for purchasing this vehicle from Rollplay. We hope the rider

enjoys it for miles to come. Please read this instruction guide carefully

before assembling and operating the vehicle. Please have your model

number and serial number ready before calling. Please have proof of

purchase. Keep your sales receipt and register your product at

www.rollplay.com.

Please contact Rollplay Customer Service with any questions.

Hours: 9 AM - 5 PM (CST), Monday - Friday

Phone: 1-888-982-9309

Email: customerservice@rollplay.com

Web: www.rollplay.com

Speciﬁcations:

BATTERY 12V 12AH

MOTOR 12V

AGE 3 Years and Up

MAX WEIGHT 59 kg (130 lb)

PRODUCT SIZE 156.5 x 90 x 71 cm

61.61 x 35.43 x 27.95 in

SPEED 4 - 8 km/h

2.5 MPH - 5 MPH (Preset at 4km/h 2.5 MPH)

RECHARGE TIME 8-12 Hours

TYPICAL RUN TIME 1-2 Hours

CHARGER OUTPUT DC 12.0V 1A

IMPORTANT!

YOU MUST CHARGE THE BATTERY

FOR 24 HOURS BEFORE FIRST USE!

Charge the battery after each use.

Charge the battery at least once a month, even if the vehicle is not in use.

DO NOT RETURN THIS ITEM

TO THE STORE!

Contact Customer Service if you need assistance or replacement parts.

Please have your model number and serial number ready before calling.

Please have proof of purchase. Keep your sales receipt and register your

product at www.rollplay.com as we may require proof of purchase.

customerservice@rollplay.com

1-888-982-9309

Read this entire manual to ensure

proper assembly and safe operation

of the vehicle.

4Table of Contents

Safety..........................................................5

Parts ..........................................................7

Charging Instructions ...............................8

Assemble the Rear Support Bars ............9

Install the Rear Support Bars .................10

Install the Rear Wheel Axle.....................11

Install the Gear Boxes.............................12

Assemble the Rear Wheels.....................13

Assemble the Front Wheels....................14

Attach the Truck Bed ..............................15

Attach the Mirrors ...................................16

Attach the Windshield and Dashboard..17

Attach the Steering Rod .........................18

Assemble the Steering Wheel ................19

Attach the Doors .....................................20

Attach the Tailgate ..................................21

Battery Attachment .................................22

Attach the Seat / Fasten Seatbelt ..........23

Operation Instructions ............................24

Maintenance ............................................25

General Care ............................................26

Troubleshooting Guide............................27

FCC Information ......................................29

Service and Repairs ...............................30

Warranty ...................................................31

Product Registration ...............................32

Safety

WARNING: SAFETY RIDING RULES

PREVENT INJURIES AND DEATHS:

NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in

vehicle. Direct adult supervision is REQUIRED.

NEVER use on roadways, near cars, on or near steep inclines or steps, swimming

pools or other bodies of water.

ALWAYS wear shoes.

ALWAYS sit on the seat.

NEVER allow more than (2) riders in the vehicle.

RISK OF FIRE. Do not bypass.

The user must follow all safety rules and guidelines, or serious injury or death may

occur to the user.

• Always use common sense and safe practices when using the vehicle.

• This product contains small parts that are for adult assembly only. Keep small

children away when assembling. Remove and dispose of all protective material and

plastic bags before assembly.

•

Safety Commission (CPSC) Standard 16 CFR 1203.

• Do not overload the vehicle. Do not remove the weight restriction decals.

• Do not pull the vehicle with another vehicle or similar device.

• Keep body parts such as hands, legs, hair and clothing away from moving parts.

Moving parts can cause serious injury.

• Always wear shoes in the vehicle.

• Do not operate near streets or motor vehicles.

• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on

relatively level ground.

•

• Do not operate in dangerous weather conditions such as rain or snow.

•

• Always use the vehicle in a safe, secure environment with adult supervision.

• Remove batteries if product is to be left unused for a long time; Always replace

the whole set of batteries at one time; Do not mix old and new batteries; Do not mix

alkaline, standard (carton-zinc) or rechargeable (nickel-cadmium) batteries.

6Safety

(Continued)

WARNING: BATTERY SAFETY

• Battery posts, terminals and related accessories contain lead and lead compound

chemicals known to the state of California to cause cancer, reproductive

harm, and are toxic and corrosive. DO NOT open the battery.

• Contact exposure to battery leakage (lead acid) may cause serious injury.

Immediately contact your doctor if exposure occurs. If the chemical is on the skin,

immediately give the person water or milk. Do not give water or milk if the person

is vomiting or has decreased alertness. Do not induce vomiting.

•

explosion. It could permanently damage the system. Keep the charger housing

closed to prevent exposed wiring, which may cause electric shock.

IMPORTANT:

charged for a full 24 hours (no more than 30 hours).

WARNING: ADULT SUPERVISION

REQUIRED

• Before using the vehicle, the rider must understand the vehicle controls and safety

issues.

• It is the responsibility of the adult to educate the child and to determine if the child

is capable of understanding the vehicle controls.

• An adult must ALWAYS directly supervise the use of this vehicle.

• NEVER leave a child unsupervised in the vehicle.

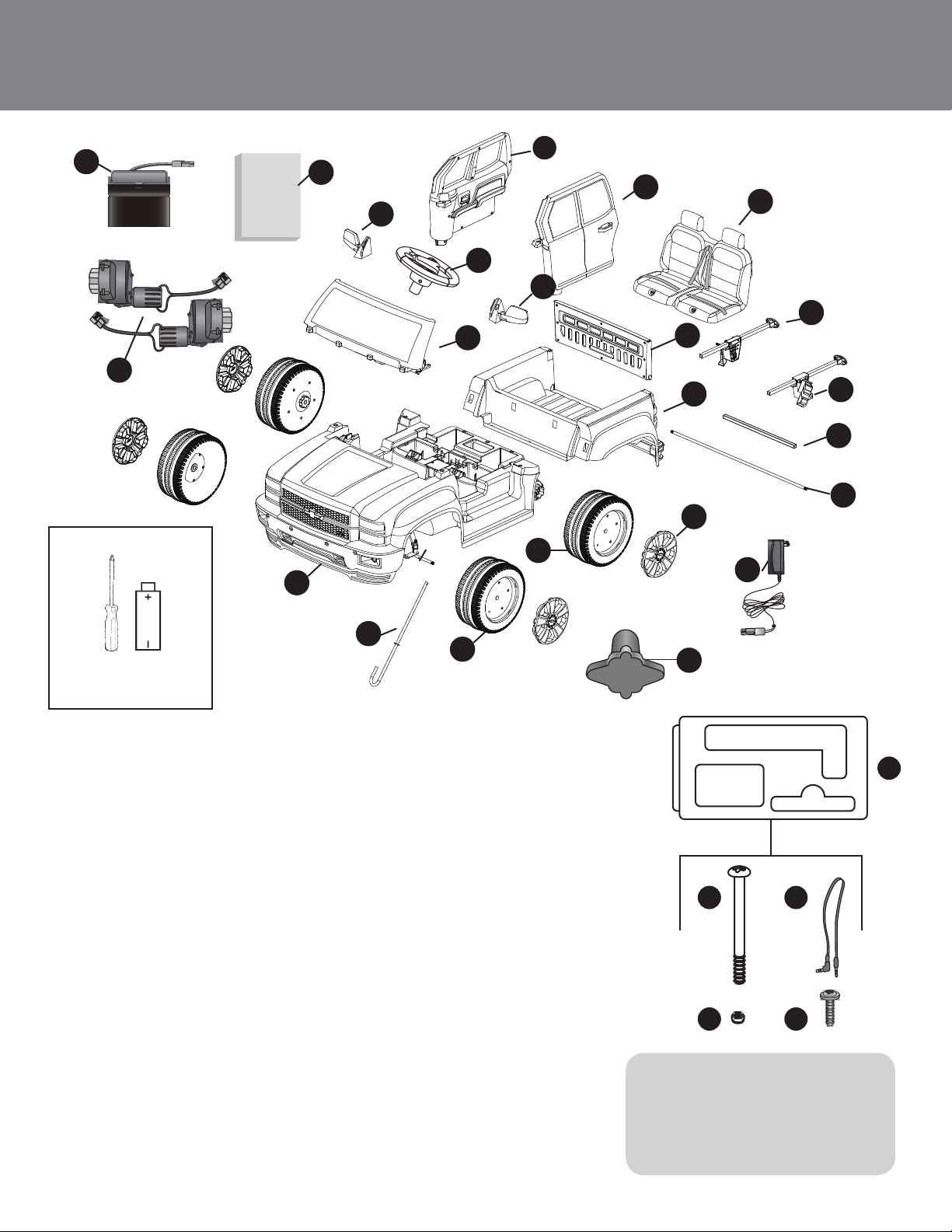

Parts

1. Gear Box ( x 2 )

2. 12V Battery

3. Right Mirror

4. Left Mirror

5. Right Door

6. Left Door

7. Seat

8. Right Support Bar (R)

9. Left Support Bar (L)

10. Support Lateral Bar

11. Rear Axle

12. Battery Charger

13. Wheel Covers ( x 4 )

14. Front Wheels ( x 2 )

15. Rear Wheels ( x 2 )

16. Windshield & Dashboard

17. Steering Wheel

18. Tailgate

19. Truck Bed

20. Truck Body

21. Manual

22. Hex Wrench

23. Steering Rod

24. Steering Wheel Screw

25. Steering Wheel Nut

26. Screws ( x 19 )

27. MP3 Cable

28. Blister Pack

• Phillips screwdriver

• 2 AA batteries

Not Included:

Helpful Tip:

1. Parts 24-27 are located in the

blister pack

2. Spare parts: Screws (2)

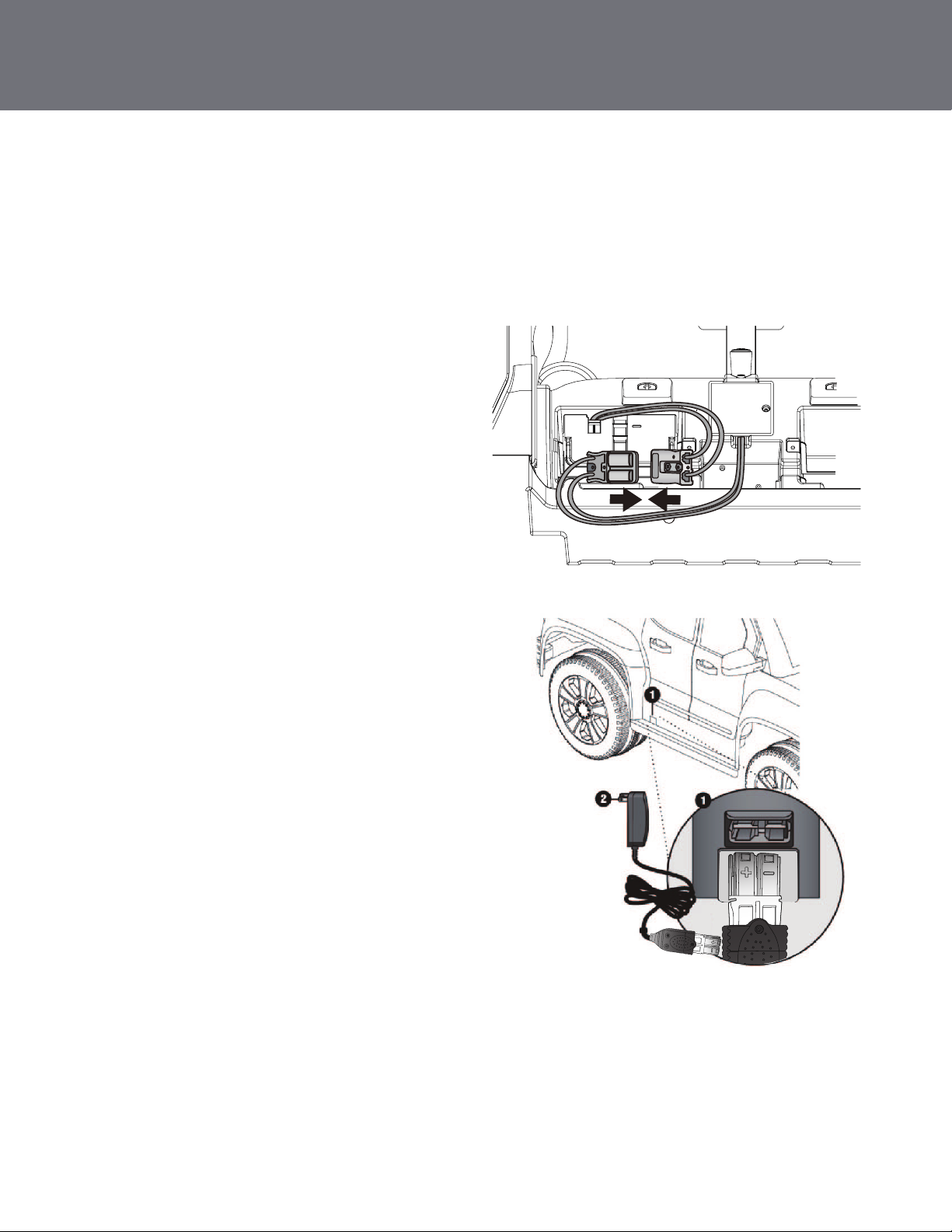

8Charging Instructions

ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

Connect the Battery:

1. Ensure the vehicle is stopped and turned

off.

2. Unlock and remove the seat.

3. Locate the white battery connector (A)

that attaches directly to the battery.

4. Connect the white battery connector (A) to

the white battery charger connector (B).

5. Replace the seat.

Charge the Battery:

YOU MUST CHARGE THE BATTERY FOR 24 HOURS

BEFORE THE FIRST USE!

1.The charging station is located on the

bottom of the right door (1).

2.Plug in the connector on the charger into

the charging station (1).

3.Plug the charger into a 120V outlet (2).

4.Unplug the charger from the outlet when

charging is complete.

5. Remove the charger connector from the

charging station.

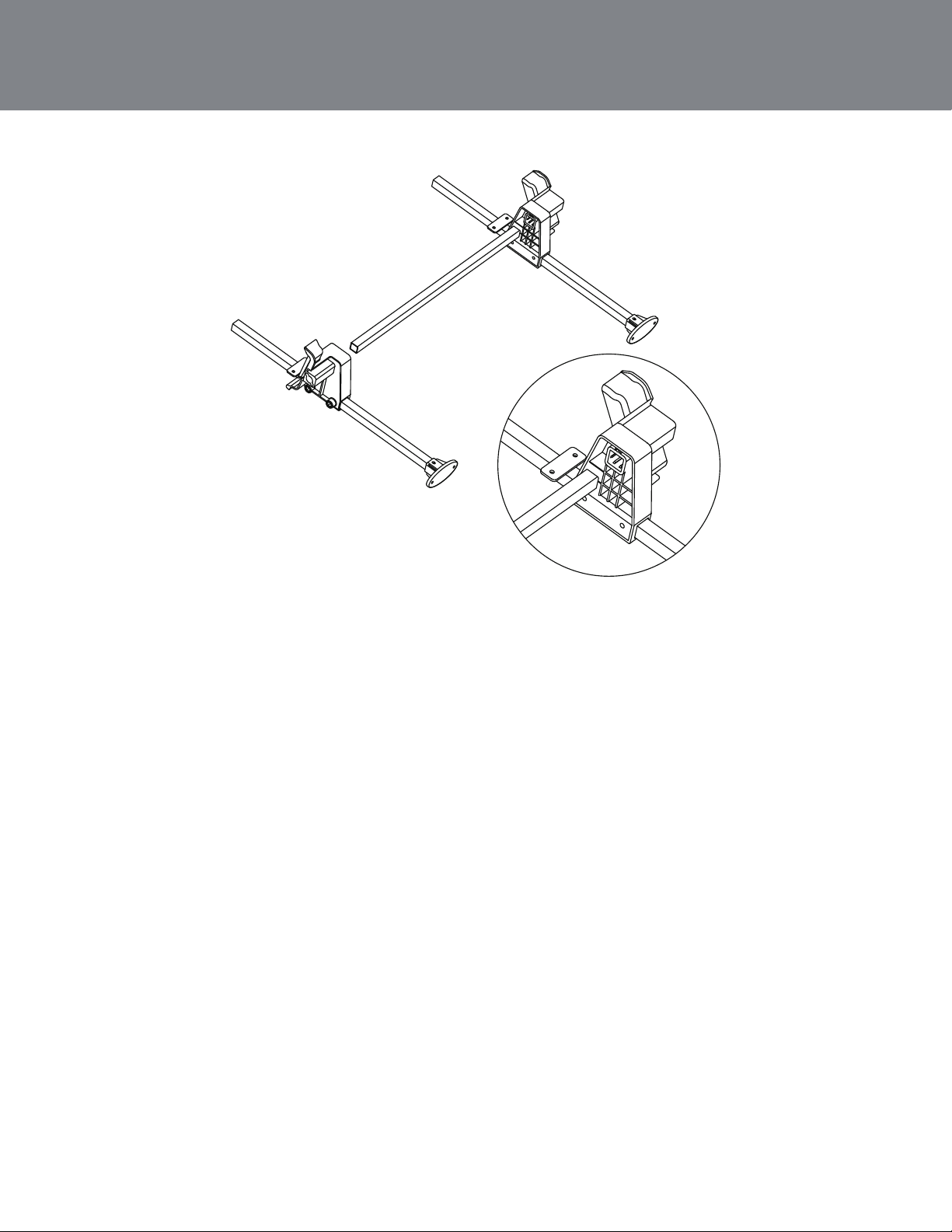

Assemble the Rear Support Bars

1. Locate the right (8) and left (9) support bars and the support lateral bar (10)

2. Insert the rear support lateral bar (10) into the square slots on the rear support side

bars (8,9)

3. Ensure the assembly is secure before moving on to the next step

2-Person Assembly Recommended

L(9)

R(8)

Support Lateral

Bar (10)

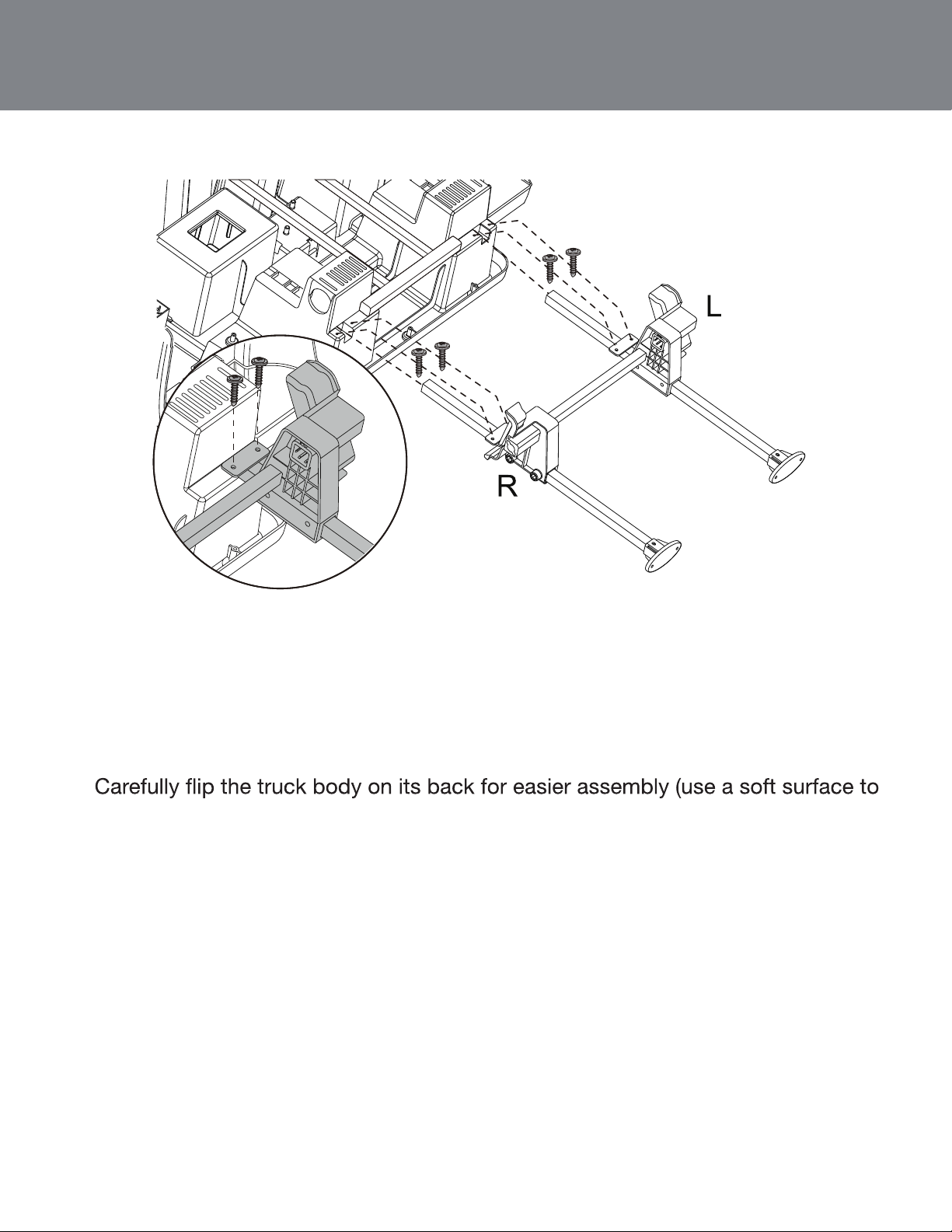

10 Install the Rear Support Bars

avoid any scratches or damage)

2. Slide the assembled rear support bars (8,9,10) into the square holes on the back

of the truck body

3. Align the screw holes on the support bars with the holes on the truck body

4. Insert 4 screws (26) from the blister pack into the holes and fasten securely with a

screwdriver
