Rollplay W498AC Instructions de montage
BMW X5 Children’s Electronic Car manufactured by Paragon Child Products Co., Ltd. The
BMW trademarks are used under license from BMW AG. BMW X5 name and associated logos
are trademarks of BMW AG.
Owner’s Manual and Assembly Instructions
Model #: W498AC W498AC-F W499AC-F
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Visit us online at www.rollplay.com for
assistance and replacement parts.
Save this manual with your sales receipt.
6V
Introduction
Thank you for purchasing the BMW X5. We hope the rider enjoys it for miles
to come. Please read this instruction guide carefully before assembling and
operating the vehicle.
Please contact Rollplay Customer Service with any questions.
Hours: 9 AM - 5 PM (CST), Monday - Friday
Web: www.rollplay.com
Email: customerservice@rollplay.com
Phone: 1-888-982-9309
Specifications:
BATTERY
MOTOR
AGE
MAX WEIGHT
PRODUCT SIZE
SPEED
RECHARGE TIME
TYPICAL RUN TIME
CHARGER OUTPUT
6V 7AH
6V 36W
3 Years and Up
77 lbs.
45.28 x 26.38 x 23.9 in.
2.5 MPH
8-12 Hours
1-2 Hours
DC 7.0V0.7A
IMPORTANT!
YOU MUST CHARGE THE BATTERY
FOR 24 HOURS BEFORE FIRST USE!
Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.
DO NOT RETURN THIS ITEM
TO THE STORE!
Email or call Customer Service if you need assistance or replacement
parts.
customerservice@rollplay.com
1-888-982-9309
Read this entire manual to ensure
proper assembly and safe operation
of the vehicle.
5
Table of Contents
Safety..........................................................6
Parts ..........................................................8
Charging Instructions ...............................9
Assemble the Front Wheels....................10
Assemble the Left Rear Wheel...............11
Assemble the Right Rear Wheel ............12
Attach the Steering Wheel......................13
Attach the Mirrors ...................................14
Attach the Seat ........................................15
Battery Removal ......................................16
Operating Instructions ............................17
Maintenance ............................................18
General Care ............................................19
Troubleshooting Guide............................20
FCC Information ......................................22
Service and Repairs ...............................23
Warranty ...................................................24
Product Registration ...............................26
6Safety
WARNING: SAFETY RIDING RULES
The user must follow all safety rules and guidelines, or serious injury or death may
occur to the user.
•Always use common sense and safe practices when using the vehicle. The user
must be at least 3 years old and weigh no more than 77 lbs.
•This product contains small parts that are for adult assembly only. Keep small
children away when assembling. Remove and dispose of all protective material
and plastic bags before assembly.
•
Product Safety Commission (CPSC) Standard CFR 1203.
•Only sit on the seat in the vehicle.
•Do not allow more than one rider.
•Do not overload the vehicle. Do not remove the weight restriction decals.
•Do not pull the vehicle with another vehicle or similar device.
•Keep body parts such as hands, legs, hair and clothing away from moving parts.
Moving parts can cause serious injury.
•Always wear shoes in the vehicle.
•Do not operate near streets or motor vehicles.
•Do not operate near drop-offs such as steps, steep inclines or hills. Operate on
relatively level ground.
•
•Do not operate in dangerous weather conditions such as rain or snow.
•
•
•
•
Always use the vehicle in a safe, secure environment with adult supervision.
Always replace the whole set of batteries at one time , taking care not to mix old
and new ones , or batteries of the different types.
7
Safety
(Continued)
WARNING: BATTERY SAFETY
• Battery posts, terminals and related accessories contain lead and lead compound
(asic) chemicals known to the state of California to cause cancer, reproductive
harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury.
Immediately contact your doctor if exposure occurs. If the chemical is on the skin,
ush immediately with cool water for 15 minutes. If the chemical is swallowed,
immediately give the person water or milk. Do not give water or milk if the person
is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, re or
explosion. It could permanently damage the system. Keep the charger housing
closed to prevent exposed wiring, which may cause electric shock.
IMPORTANT: Before using the vehicle for the rst time, the battery must be
charged for a full 24 hours (no more than 30 hours).
WARNING: ADULT SUPERVISION
REQUIRED
• Before using the vehicle, the rider must understand the vehicle controls and safety
issues.
• It is the responsibility of the adult to educate the child and to determine if the child
is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.
8Parts
1. Manual
2. Seat
3. Mirrors (2)
4. Battery
5. Steering wheel
assembly
6.
7.
8.
Car body
9.
10. Blister pack
10.1. Steering wheel screw (1)
Front wheels (2)
10.2. Mirrors screws (2)
Rear wheels (2)
10.3. Nuts (3)
10.4. Washers (3)
10.5. MP3 Cable
Battery charger
•Phillips screwdriver
Not Included:
1
4
9
23
5
68
8
7
7
10.4
10.4
10
10.1 10.2 10.5
10.3
10.4
Helpful Tip:
1. Parts 10.1-10.5 are located
in the blister pack
2. Spare parts: washer 1
9
Charging Instructions
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:
1. Ensure the car is stopped and
turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector
(A) from the red engine connector
(B).
4. Connect the red battery connector
(A) to the red battery charger
connector (C) and plug (D) into a
120 V outlet.
To Unplug the Battery:
1. Unplug the battery charger (D)
from the outlet.
2. Unplug the red battery connector
(A).
3. Reconnect the red battery
connector (A) to the red engine
connector (B).
4. Replace the seat and tighten lock.
Note: It is not necessary to remove
the battery for charging. However, if
the battery does not reach the outlet,
it can be removed for charging. For
Battery Removal instructions, see
Page 16.
AC
Battery
AB
D
YOU MUST CHARGE THE BATTERY FOR 24
HOURS BEFORE THE FIRST USE!
10 Assemble the Front Wheels

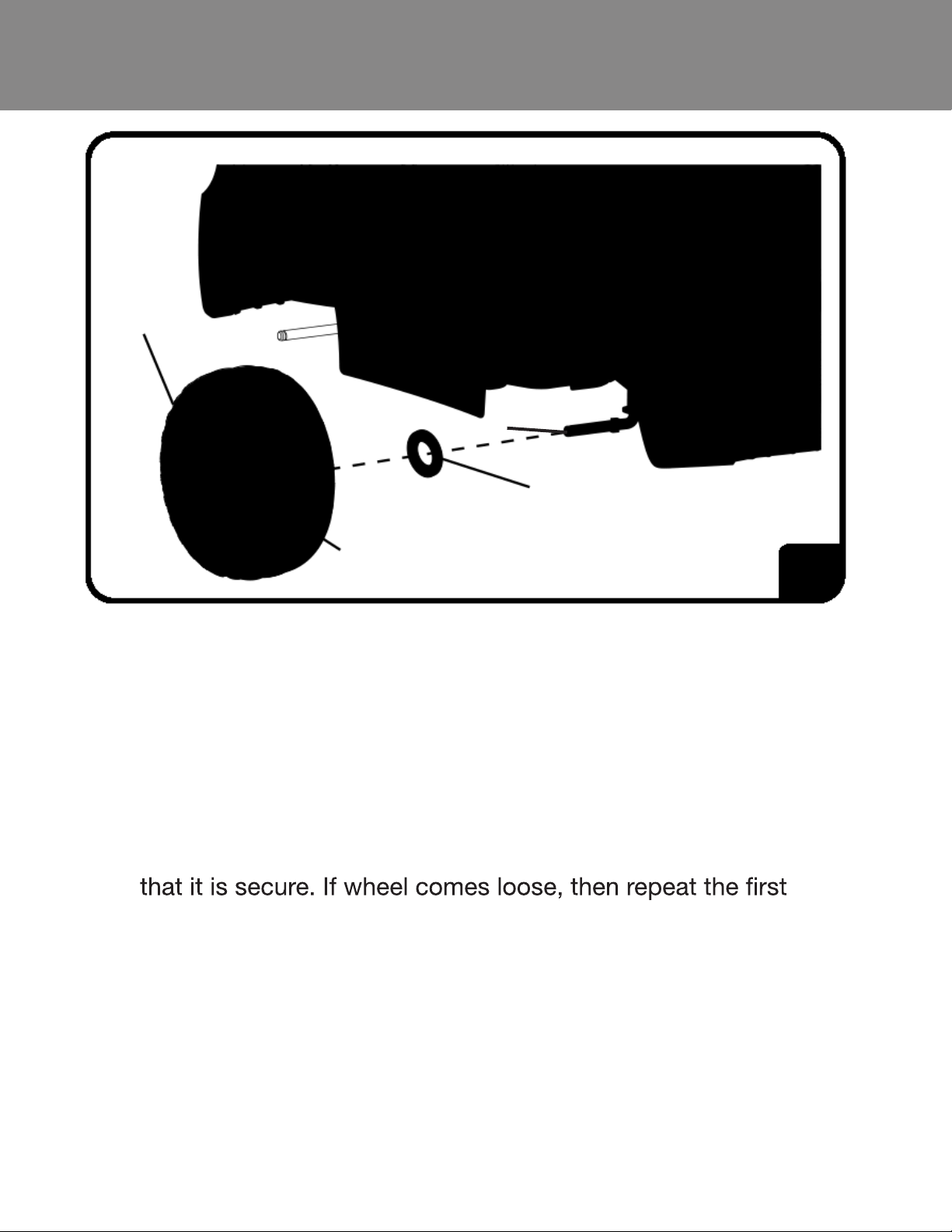

2. Slide the washer (10.4) onto the front axle (A).
1. Locate the washer(10.4) from the blister box.
3. Slide the front wheel (7) onto the front axle.
4. Push on the center BMW button on the wheel (B), and slide the
wheel into place while holding the button.
5. Release the BMW button then gently pull the wheel to ensure
steps.
6. Repeat steps 1-5 for the remaining front wheel.
1
7
10.4
B
A
four
