Roland Texart RT-640 Manuel utilisateur

Setup Guide

Thank you very much for purchasing this product.

- To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through

this manual completely and store it in a safe location.

- Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.

- The contents of this manual and the specications of this product are subject to change without notice.

- This manual and the product have been prepared and tested as much as possible. If you nd any misprint or error, please

inform us.

- Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this

product, regardless of any failure to perform on the part of this product.

- Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur with respect to any

article made using this product.

Company names and product names are trademarks or registered trademarks of their respective holders.

http://www.rolanddg.com/

Contents

Contents ...............................................................................................................................................................1

1. Installation Environment .............................................................................................................................3

Deciding on an Installation Site ......................................................................................................................3

Temperature and Humidity ..............................................................................................................................4

Installation Space .................................................................................................................................................4

2. Included Items ................................................................................................................................................5

3. About the Symbols ........................................................................................................................................7

4. Assembling and Installing ...........................................................................................................................8

Assembling and Installing .................................................................................................................................8

Installing the Roland Ink System .................................................................................................................19

5. Filling with Ink ..............................................................................................................................................20

Filling with Ink for the First Time ................................................................................................................. 20

6. Network Settings .........................................................................................................................................32

Step 1：Make the Network Settings for the Computer ..................................................................... 32

Step 2：Make the Network Settings on the Machine ........................................................................ 34

Step 3：Make the Port Settings for the Software RIP ......................................................................... 36

1. Installation Environment

Deciding on an Installation Site

Install in a quiet, stable location oering good operating conditions. An unsuitable location can cause accident,

re, faulty operation, or breakdown.

WARNING Install the machine in a location that is level, stable, and able to bear the

weight of the machine.

The total weight may reach over 241 kg (518 lbs). Installation in an unsuitable

location may cause a major accident, including tip over, fall, or collapse.

WARNING Never install out of doors or in any location where exposure to water or

high humidity may occur.

Current leakage may cause electrical shock, electrocution, or combustion and

re.

WARNING Never install close to any ammable object or in a gas-lled location.

Combustion or explosion may be a danger.

WARNING Install in a clean, brightly lit location.

Conduct operations in a clean, brightly lit location. Working in a location that

is dark or cluttered may lead to an accident, such as becoming caught in the

machine as the result of an inadvertent stumble.

WARNING Position so that the power plug is within immediate reach at all times.

This is to enable quick disconnection of the power plug in the event of an emer-

gency. Install the machine next to an electrical outlet. Also, provide enough

empty space to allow immediate access to the electrical outlet.

CAUTION Ensure adequate ventilation for the work area.

Failing to perform ventilation may result in a health hazard or danger of com-

bustion due to ink fumes.

Unsuitable Installation Sites

Locations subject to large uctuations in temperature or humidity

Locations subject to shaking or vibration

Locations where the oor is tilted, not level, or unstable

Dusty locations

Locations exposed to direct sunlight

Locations exposed to direct near air-conditioning or heating equipment

Locations exposed to water or moving air

Locations exposed to considerable electrical or magnetic noise, or other forms of electro-

magnetic energy

1. Installation Environment

Temperature and Humidity

Maintain the specied temperature and humidity even when the machine is not in use. If temperatures are

too high or too low, it may cause malfunction.

Installation Space

The space shown in the gure is required in order to use this machine.

During operation: Temperature 18 to 25˚C (64.4 to 77 ˚F), relative humidity 35 to 65 % RH (no con-

densation)

During non-operation: Temperature 15 to 30˚C (59 to 86 ˚F), relative humidity 20 to 80% (no con-

densation)

3,600 mm (141.8 in)

800 mm (31.5 in)

2,600 mm (102.4 in)

Machine Space

Work Space

2,000 mm (78.8 in)

2. Included Items

The following items are packed together with the machine. Make sure they are all present and accounted for.

Printer unit

Power cord (1) Arms (one for right and

left each) Casters (2) Stand legs (one for

right and left each)

Stand stay (1) Shafts (2)

Feed adjusters (2) Feed adjuster stays (2)

Shaft clamps (2) Bolts (long) (38) Bolts (short) (8) Hexagonal wrench

(1 large, 1 small)

Pipe (1) Cable clamp (1)

Media holders / Media

holder retaining screws

(one for right and left each)

Media clamps*(one for

right and left each)

Cleaning sticks Replacement blades for

separating knife (1) Drain bottles (2) Tweezers (1)

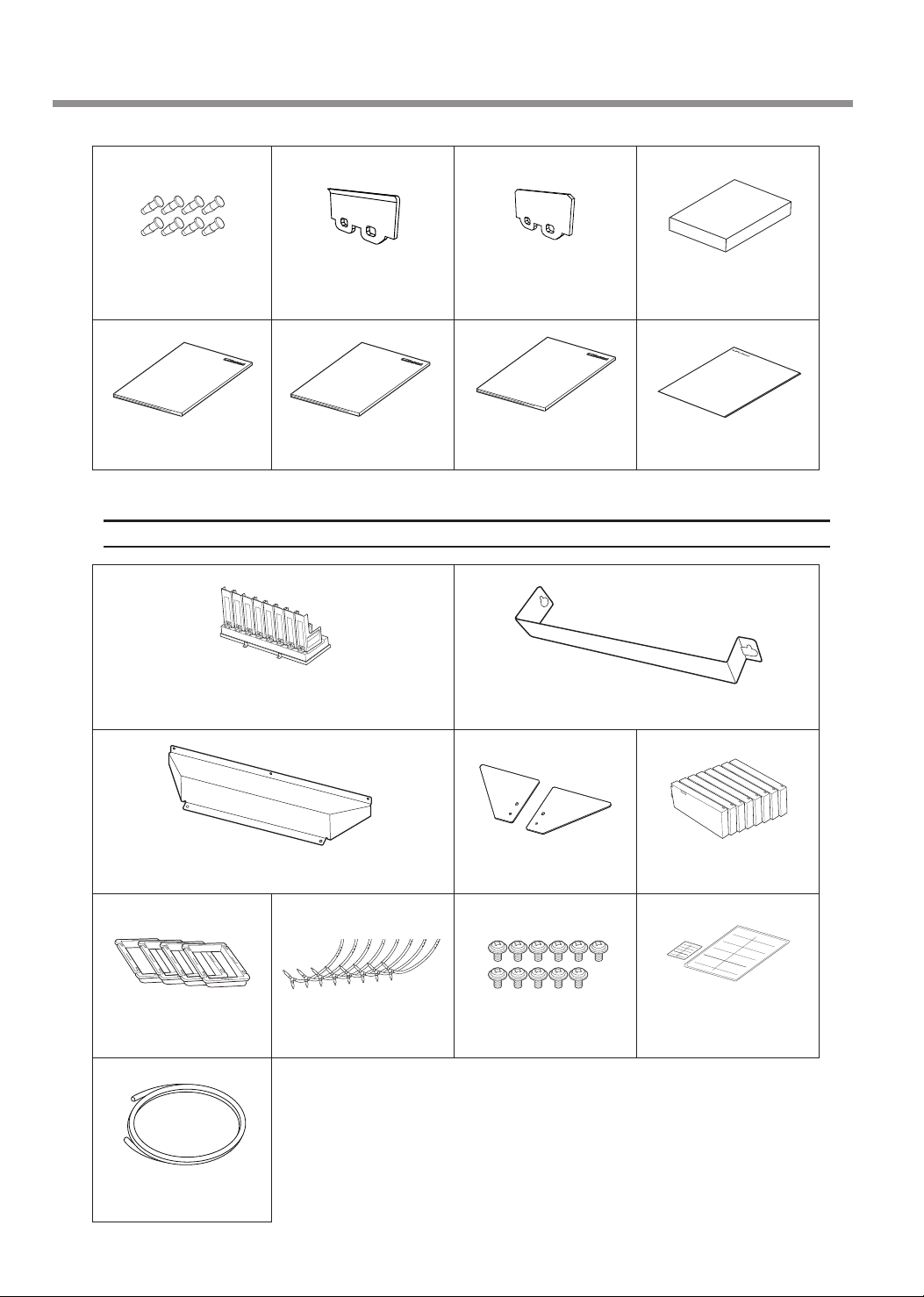

2. Included Items

Tube caps

(for 8 colors)* Replacement wiper (1) Replacement felt wiper

(1) Software RIP (1)

User's Manual (1) Setup Guide (This

document) (1) Read this rst (1) INKJET PRINTER MAIN-

TENANCE GUIDE (1)

* Not required when using four colors (cyan, magenta, yellow, and black).

Roland Ink System

Ink pouch holder (1) Subtank guard (1)

Ink tube cover (top) (1) Ink tube covers (bottom)

(one for right and left each) Subtank cartridges (8)

Square bushes (4) Y-shaped tubes (8) Screws (11) Ink color labels

(L, S one for each)

Spare tube (1 m) (1)

3. About the Symbols

The meanings of the symbols used in this document are as follows.

The symbol indicates things that must be followed in relation to operation.

Always follow these instructions to prevent accident or damage due to misop-

eration.

The symbol indicates things that must be checked visually in relation to op-

eration. Always perform a visual check to prevent accident or damage due to

failure to check.

4. Assembling and Installing

Completed drawing

About the picture

Assembling and Installing

WARNING Perform this task with all power switches left switched off.

Otherwise sudden movement of the machine may cause injury.

CAUTIONUnpacking and installation must be carried out by six or more personnel.

Otherwise the machine or the stand may fall, resulting in injury.

Necessary tools

Included items Commercial item

Hexagonal Wrench

(large)

Hexagonal Wrench

(small)

Pipe

(Use this pipe if the

hexagonal wrench is

too short to tighten the

bolt)

Phillips screwdriver

Tighten temporarily Tighten fully
