Rockwell Automation 1734-OE4C Manuel utilisateur

Installation Instructions

POINT I/O 4 Channel Analog Current Output

Module

Catalog Number 1734-OE4C

Topic Page

Important User Information 2

Environment and Enclosure 3

Prevent Electrostatic Discharge 4

European Hazardous Location Approval 5

North American Hazardous Location Approval 6

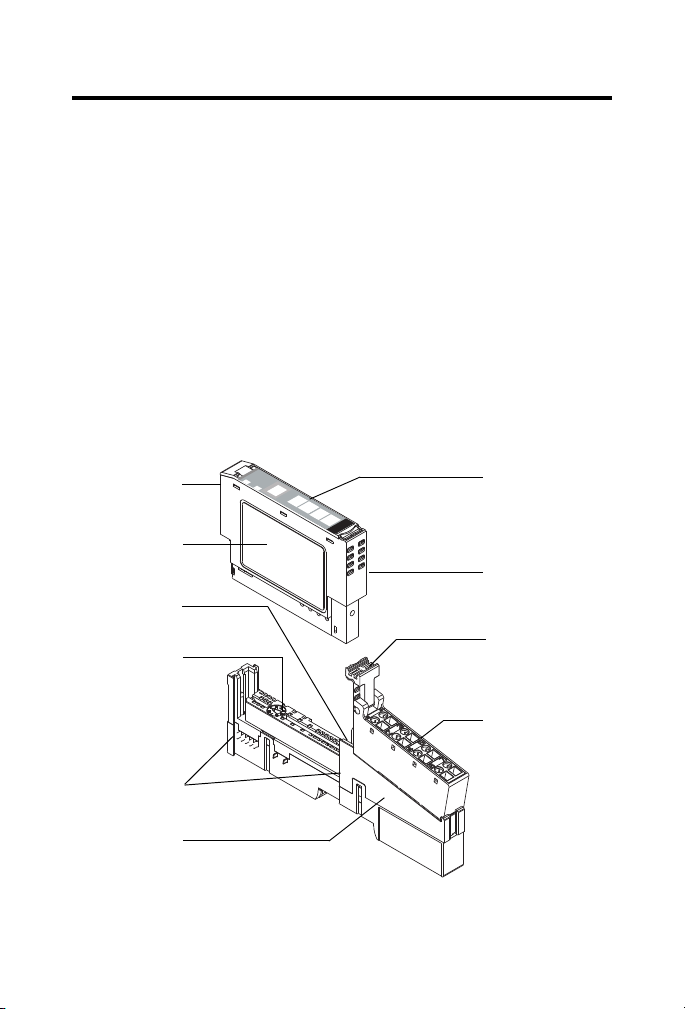

About the Module 7

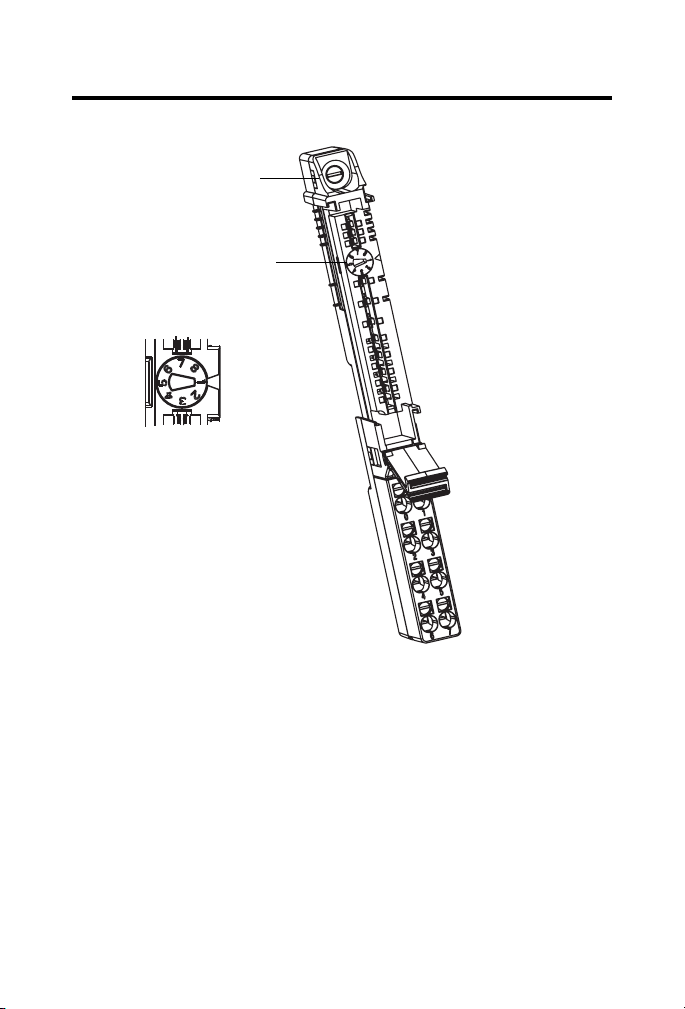

Install the Mounting Base 8

Install the I/O Module 9

Install the Removable Terminal Block (RTB) 11

Remove a Mounting Base 11

Communicate with Your Module 12

Wire the Current Output Analog Module 14

Interpret the Status Indicators 15

Specifications 17

Additional Resources 22

2POINT I/O 4 Channel Analog Current Output Module

Publication 1734-IN034B-EN-P - November 2010

Important User Information

Solid state equipment has operational characteristics differing from those of electromechanical

equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls

Publication SGI-1.1 available from your local Rockwell Automation sales office or online at

http://literature.rockwellautomation.com) describes some important differences between solid state

equipment and hard-wired electromechanical devices. Because of this difference, and also because of

the wide variety of uses for solid state equipment, all persons responsible for applying this equipment

must satisfy themselves that each intended application of this equipment is acceptable.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages

resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the

many variables and requirements associated with any particular installation, Rockwell Automation, Inc.

cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits,

equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell

Automation, Inc., is prohibited.

Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

WARNING

Identifies information about practices orcircumstances that can cause an explosion

in a hazardous environment, which may lead to personal injury or death, property

damage, or economic loss.

IMPORTANT

Identifies information that is critical for successful application and understanding

of the product.

ATTENTION

Identifies information about practices or circumstances that can lead to personal

injury or death, property damage, or economic loss. Attentions help you identify a

hazard, avoid a hazard and recognize the consequences.

SHOCK HAZARD

Labels may be on or inside the equipment (for example, drive or motor) to alert

people that dangerous voltage may be present.

BURN HAZARD

Labels may be on or inside the equipment (for example, drive or motor) to alert

people that surfaces may reach dangerous temperatures.

POINT I/O 4 Channel Analog Current Output Module 3

Publication 1734-IN034B-EN-P - November 2010

Environment and Enclosure

ATTENTION

This equipment is intended for use in a Pollution Degree 2 industrial

environment, in overvoltage Category II applications (as defined in IEC

60664-1), at altitudes up to 2000 m (6562 ft) without derating.

This equipment is considered Group 1, Class A industrial equipment according

to IEC/CISPR 11. Without appropriate precautions, there may be difficulties

with electromagnetic compatibility in residential and other environments due

to conducted and radiated disturbances.

This equipment is supplied as open-type equipment. It must be mounted within

an enclosure that is suitably designed for those specific environmental

conditions that will be present and appropriately designed to prevent personal

injury resulting from accessibility to live parts. The enclosure must have

suitable flame-retardant properties to prevent or minimize the spread of flame,

complying with a flame spread rating of 5VA, V2, V1, V0 (or equivalent) if

non-metallic. The interior of the enclosure must be accessible only by the use

of a tool. Subsequent sections of this publication may contain additional

information regarding specific enclosure type ratings that are required to

comply with certain product safety certifications.

In addition to this publication, see:

• Industrial Automation Wiring and Grounding Guidelines, Rockwell

Automation publication 1770-4.1, for additional installation

requirements.

• NEMA Standard 250 and IEC 60529, as applicable, for explanations of the

degrees of protection provided by different types of enclosure.

WARNING

When you insert or remove the module while backplane power is on, an

electrical arc can occur. This could cause an explosion in hazardous location

installations. Be sure that power is removed or the area is nonhazardous

before proceeding. Repeated electrical arcing causes excessive wear to

contacts on both the module and its mating connector. Worn contacts may

create electrical resistance that can affect module operation.

WARNING

When you connect or disconnect the Removable Terminal Block (RTB) with

field side power applied, an electrical arc can occur. This could cause an

explosion in hazardous location installations. Be sure that power is removed or

the area is nonhazardous before proceeding.

4POINT I/O 4 Channel Analog Current Output Module

Publication 1734-IN034B-EN-P - November 2010

Prevent Electrostatic Discharge

ATTENTION

This equipment is sensitive to electrostatic discharge, which can cause

internal damage and affect normal operation. Follow these guidelines when

you handle this equipment.

• Touch a grounded object to discharge potential static.

• Wear an approved grounding wriststrap.

• Do not touch connectors or pins on component boards.

• Do not touch circuit components inside the equipment.

• Use a static-safe workstation, if available.

• Store the equipment in appropriate static-safe packaging when not in

use.

ATTENTION

POINT I/O is grounded through the DIN rail to chassis ground. Use zinc plated

yellow-chromate steel DIN rail to assure proper grounding. The use of other

DIN rail materials (for example, aluminum, plastic) that can corrode, oxidize, or

are poor conductors, can result in improper or intermittent grounding.

Secure DIN rail to mounting surface approximately every 200 mm (7.8 in.) and

use end-anchors appropriately.

ATTENTION

If this equipment is used in a manner not specified by the manufacturer, the

protection provided by the equipment may be impaired.

ATTENTION

To comply with UL restrictions, field power and all connected devices must be

powered from a single source compliant with the following:

Class 2.

ATTENTION

To comply with the CE Low Voltage Directive (LVD), field power and all

connected I/O must be powered from a source compliant with the following:

Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV).

POINT I/O 4 Channel Analog Current Output Module 5

Publication 1734-IN034B-EN-P - November 2010

European Hazardous Location Approval

European Zone 2 Certification (The following applies when the product bears the Ex

Marking)

This equipment is intended for use in potentially explosive atmospheres as defined by

European Union Directive 94/9/EC and has been found to comply with the Essential Health

and Safety Requirements relating to the design and construction of Category 3 equipment

intended for use in Zone 2 potentially explosive atmospheres, given in Annex II to this

Directive.

Compliance with the Essential Health and Safety Requirements has been assured by

compliance with EN 60079-15 and EN 60079-0.

WARNING

Observe the following additional Zone 2 certification requirements.

• This equipment is not resistant to sunlight or other sources of UV

radiation.

• The secondary of a current transformer shall not be open-circuited when

applied in Zone 2 environments.

• This equipment must be installed in an enclosure providing at least IP54

protection when applied in Zone 2 environments.

• This equipment shall be used within its specified ratings defined by

Rockwell Automation.

• Provision shall be made to prevent the rated voltage from being exceeded

by transient disturbances of more than 40% when applied in Zone 2

environments.

• Secure any external connections that mate to this equipment by using

screws, sliding latches, threaded connectors, or other means provided

with this product.

• Do not disconnect equipment unless power has been removed or the area

is known to be nonhazardous.

6POINT I/O 4 Channel Analog Current Output Module

Publication 1734-IN034B-EN-P - November 2010

North American Hazardous Location Approval

The following information applies when

operating this equipment in hazardous

locations:

Informations sur l'utilisation de cet équipement

en environnements dangereux:

Products marked "CL I, DIV 2, GP A, B, C, D" are

suitable for use in Class I Division 2 Groups A, B, C, D,

Hazardous Locations and nonhazardous locations only.

Each product is supplied with markings on the rating

nameplate indicating the hazardous location

temperature code. When combining products within a

system, the most adverse temperature code (lowest

"T" number) may be used to help determine the overall

temperature code of the system. Combinations of

equipment in your system are subject to investigation

by the local Authority Having Jurisdiction at the time of

installation.

Les produits marqués "CL I, DIV 2, GP A, B, C, D" ne

conviennent qu'à une utilisation en environnements de Classe I

Division 2 Groupes A, B, C, D dangereux et non dangereux.

Chaque produit est livré avec des marquages sur sa plaque

d'identification qui indiquent le code de température pour les

environnements dangereux. Lorsque plusieurs produits sont

combinés dans un système, le code de température le plus

défavorable (code de température le plus faible) peut être

utilisé pour déterminer le code de température global du

système. Les combinaisons d'équipements dans le système

sont sujettes à inspection par les autorités locales qualifiées

au moment de l'installation.

WARNING

EXPLOSION HAZARD -

• Do not disconnect equipment

unless power has been removed

or the area is known to be

nonhazardous.

• Do not disconnect connections to

this equipment unless power has

been removed or the area is

known to be nonhazardous.

Secure any external connections

that mate to this equipment by

using screws, sliding latches,

threaded connectors, or other

means provided with this

product.

• Substitution of components may

impair suitability for Class I,

Division 2.

• If this product contains batteries,

they must only be changed in an

area known to be nonhazardous.

AVERTISSEMENT

RISQUE D’EXPLOSION –

• Couper le courant ou s'assurer

que l'environnement est classé

non dangereux avant de

débrancher l'équipement.

• Couper le courant ou s'assurer

que l'environnement est classé

non dangereux avant de

débrancher les connecteurs. Fixer

tous les connecteurs externes

reliés à cet équipement à l'aide

de vis, loquets coulissants,

connecteurs filetés ou autres

moyens fournis avec ce produit.

• La substitution de composants

peut rendre cet équipement

inadapté à une utilisation en

environnement de Classe I,

Division 2.

• S'assurer que l'environnement

est classé non dangereux avant

de changer les piles.

WARNING

If you connect or disconnect wiring while the field-side power is on, an

electrical arc can occur. This could cause an explosion in hazardous location

installations. Be sure that power is removed or the area is nonhazardous

before proceeding.

WARNING

When you connect or disconnect the Removable Terminal Block (RTB) with

field side power applied, an electrical arc can occur. This could cause an

explosion in hazardous location installations. Be sure that power is removed or

the area is nonhazardous before proceeding.

POINT I/O 4 Channel Analog Current Output Module 7

Publication 1734-IN034B-EN-P - November 2010

About the Module

Note that this series C product can be used with the following:

• DeviceNet and PROFIBUS adapters

• ControlNet and EtherNet/IP adapters, using RSLogix 5000 software,

version 11 or later

See the figures to familiarize yourself with major parts of the module, noting

that the wiring base assembly is one of the following:

• 1734-TB or 1734-TBS POINT I/O two-piece terminal base, which

includes the 1734-RTB removable terminal block and 1734-MB

mounting base

• 1734-TOP or 1734-TOPS POINT I/O one-piece terminal base

Module

Status

Network

Status

NODE:

Mechanical

keying (orange)

Module wiring

diagram

Module locking

mechanism

Insertable I/O

module

Mounting base

RemovableTerminal

Block (RTB)

RTB removal

handle

DIN rail locking

screw (orange)

Slide-in writable

label

Interlocking side

pieces

44328

8POINT I/O 4 Channel Analog Current Output Module

Publication 1734-IN034B-EN-P - November 2010

Install the Mounting Base

To install the mounting base on the DIN rail, proceed as follows.

1. Position the mounting base vertically above the installed units

(adapter, power supply or existing module).

2. Slide the mounting base down allowing the interlocking side pieces to

engage the adjacent module or adapter.

3. Press firmly to seat the mounting base on the DIN rail. The mounting

base will snap into place.

4. To remove the mounting base from the DIN rail, remove the module,

and use a small bladed screwdriver to rotate the base locking screw to

a vertical position. This releases the locking mechanism. Then lift

straight up to remove.

44221

1734-TOP or

1734-TOPS

one-piece terminal

base with screw or

spring clamp

Insertable

I/O module

Slide-in

writable label

Handle

Module locking

mechanism

Interlocking

side pieces

DIN rail locking

screw (orange)

Module wiring

diagram

Mechanical

keying (orange)

POINT I/O 4 Channel Analog Current Output Module 9

Publication 1734-IN034B-EN-P - November 2010

Install the I/O Module

The module can be installed before, or after base installation. Make sure that

the mounting base is correctly keyed before installing the module into the

mounting base. In addition, make sure the mounting base locking screw is

positioned horizontal referenced to the base.

1734-TB Base

Be sure the DIN-rail

locking screw is in the

horizontal position.

Turn the keyswitch to align

the number with the notch.

Notch position 3 is shown.

44229

44009

10 POINT I/O 4 Channel Analog Current Output Module

Publication 1734-IN034B-EN-P - November 2010

1734-TOP Base

1. Using a bladed screwdriver, rotate the keyswitch on the mounting base

clockwise until the number required for the type of module being

installed aligns with the notch in the base.

2. Make certain the DIN rail locking screw is in the horizontal position.

You cannot insert the module if the locking mechanism is unlocked.

3. Insert the module straight down into the mounting base and press to

secure. The module will lock into place.

Turn the keyswitch to align

the number with the notch.

Notch position 1 is shown.

Be sure the DIN-rail

locking screw is in the

horizontal position.

44228

44325

Table des matières

Autres manuels Rockwell Automation Unité de contrôle

Rockwell Automation

Rockwell Automation Trusted TMR Expander Interface Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley 1756-HIST1G Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley ControlLogix 1756-MVI Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley 1746-HSCE Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley ControlLogix 1756-HSC Manuel utilisateur

Rockwell Automation

Rockwell Automation Sprecher + Schuh CEP7 Guide de l'utilisateur

Rockwell Automation

Rockwell Automation 2711P-RPA Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley SynchLink 1751-SLBA Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley MicroLogix 1762-OW16 Manuel utilisateur

Rockwell Automation

Rockwell Automation ControlLogix 1756-EN2TR Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley SLC 500 Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley SynchLink 1756-DM Series Mode d’emploi

Rockwell Automation

Rockwell Automation Allen-Bradley 1734-232ASC Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley FactoryTalk Historian ME Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley Guard I/O DeviceNet 1732DS-IB8 Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley Guard I/O DeviceNet 1732DS-IB8 Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley ControlLogix 1756-MVI Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley 1794-IV16 Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley PowerFlex 750 Series Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley FLEX Ex 1797-IRT8 Manuel utilisateur

Rockwell Automation

Rockwell Automation FlexPak 3000 OIM Manuel utilisateur

Rockwell Automation

Rockwell Automation SILVER Technology HARRY HI 1734-WS Manuel utilisateur

Rockwell Automation

Rockwell Automation Allen-Bradley PowerFlex 20-750-PNET Manuel utilisateur

Rockwell Automation

Rockwell Automation Micro800 Series Manuel

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
