Rocktron Reaction Phaser Manuel utilisateur

May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047,

4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498 and 5493617.

Other patents pending. Foreign patents pending.

Reaction Phaser

Instruction Manual

Your Reaction Phaser™pedal has been tested and complies with the following Standards and

Directives as set forth by the European Union:

Council Directive(s): 89/336/EEC Electromagnetic

Compatibility

Standard(s): EN55013, EN50082-1

This means that this product has been designed to meet stringent guidelines on how much

RF energy it can emit, and that it should be immune from other sources of interference when

properly used. Improper use of this equipment could result in increased RF emissions, which

may or may not interfere with other electronic products.

To insure against this possibility, always use good shielded cables for all audio input and

output connections. This will help insure compliance with the Directive(s).

For more information about other Rocktron products, please see your local dealer or one of

our importers closest to you (listed on the Rocktron website

(www.rocktron.com).

Read all instructions contained in this manual.

Keep these instructions

Heed all warnings

Follow all instructions.

Do not use this apparatus near water.

Clean with dry cloth

Compliance

Do not block any ventilation openings (if applicable). Install in accordance with the

manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, stoves or other ap-

paratus (including ampliers) that produce heat.

This product is not equipped with a plug or cable. This pedal runs on a 9 Volt Battery, if a

9Volt DC adapter is the used please follow adapter manufacturer’s operation instructions.

Only used attachments/accessories specied by the manufacturer.

Do not use this product with any case, stand tripod, bracket or table that is not specied by

the manufacturer. Insure that the case, stand, tripod, bracket etc. is properly adjusted and

setup (follow all instructions). Extra care and caution should be taken to avoid tip over

and injury.

Unplug this apparatus during lightening storms or when unused during long periods of time.

Refer all service to qualied service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power supply or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus or if the apparatus has been exposed to rain

or moisture, does not operate normally or has been dropped.

DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT. QUALIFIED PERSONNEL

SHOULD SERVICE THIS EQUIPMENT ONLY. DO NOT MAKE ANY INTERNAL

ADJUSTMENTS OR ADDITIONS TO THIS EQUIPMENT AT ANY TIME OR TAMPER

WITH INTERNAL ELECTRONIC COMPONENTS AT ANY TIME. FAILURE

TO FOLLOW THESE INSTRUCTIONS MAY VOID THE WARRANTY OF THIS

EQUIPMENT AS WELL AS CAUSING A SHOCK HAZARD.

OPERATING TEMPERATURE

Do not expose this unit to excessive heat. This unit is designed to operate between 32 F and

104 F (0 C and 40 C). This unit may not function properly under extreme temperatures.

Precautions

Introduction

Set your phasers for stun, gang! Rocktron

brings you the Reaction Phaser, a classic

phaser pedal that will add a great effect to your

arsenal.

Rocktron’s Reaction Series pedals are built

into a rugged metal slim form factor chassis,

taking up as little space as possible on your

pedalboard. The Reaction Phaser is a TRUE

BYPASS pedal: when you turn it off…it is out

of your signal path!

The Reaction Phaser is very easy to use. Just

set the SPEED control and off you go. The

SPEED knob controls the speed of the modula-

tion waveform. Simple!

A phaser is one of those effects that does not

have a stringent placement within the signal

chain. Some players love it rst in the chain,

while others like it after the distortion. Some

even love it at the end of the chain.

Placing the Reaction Phaser rst in the chain

in front of your distortion or directly into your

amp will produce a grainy, gritty effect that

adds excitement to your playing. Conversely,

if placed after your distortion pedal, or within

the effects loop of an amp, it will produce a

smoother effect. Experiment and nd what

works best for you.

You ain’t talkin’ about phasers unless your talk-

ing about the Reaction Phaser! It’s that classic

phaser sound with true bypass to boot.

The footswitch on the Reaction Phaser controls

On/Off status as shown by the LED indicator.

Reaction stomp boxes run on a 9V Alkaline

battery, or may also be powered by Rocktron’s

DC OnTap Universal Power Supply adaptor.

Introduction continued......

Descriptions

Descriptions continued.........

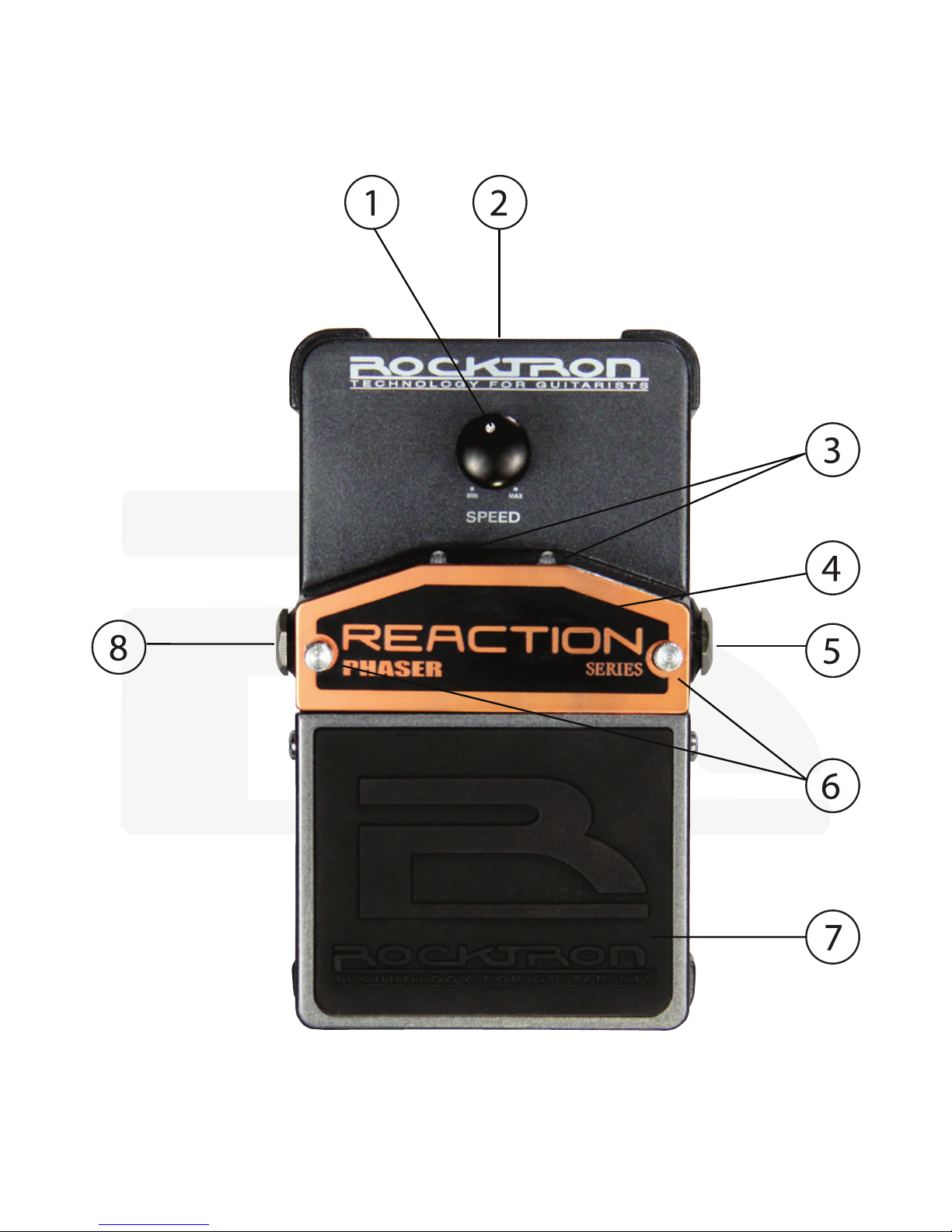

SPEED Control - This control determines

how quick (or the speed) of the phaser

waveform.

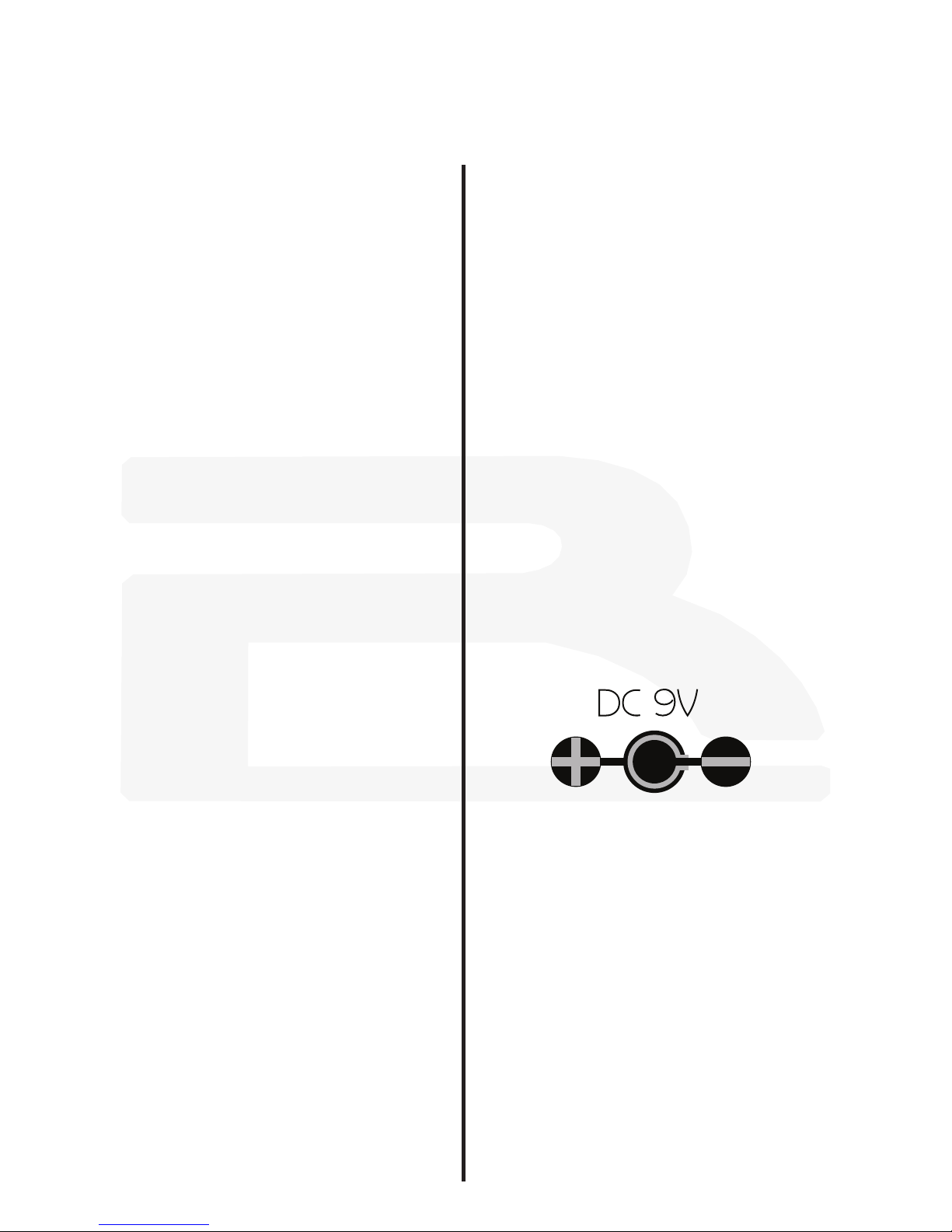

9VDC Input - This input jack provides

9VDC power to the pedal from the

Rocktron DC OnTap 9V power supply (sold

seperately).

ON/OFF Leds - These LEDs shows if the

pedal is on or off. When the LED is lit the

pedal is on. When the LED is not lit the

pedal is off.

BATTERY COMPARTMENT and COVER

- The 9V battery can be found in this

compartment.

INPUT Jack - Using a standard 1/4” guitar

cable, plug your guitar into this jack.

THUMB SCREWS for Battery

Compartment. Unscrew these thumb

screws to access the battery compartment.

FOOTSWITCH - Use this switch to turn on

or off the pedal. The On/Off Led will show

you if the pedal is on or off.

OUTPUT Jack - Using a standard 1/4”

guitar cable you can plug in another pedal

from this jack or plug directly into your

amplier.

Descriptions continued.........

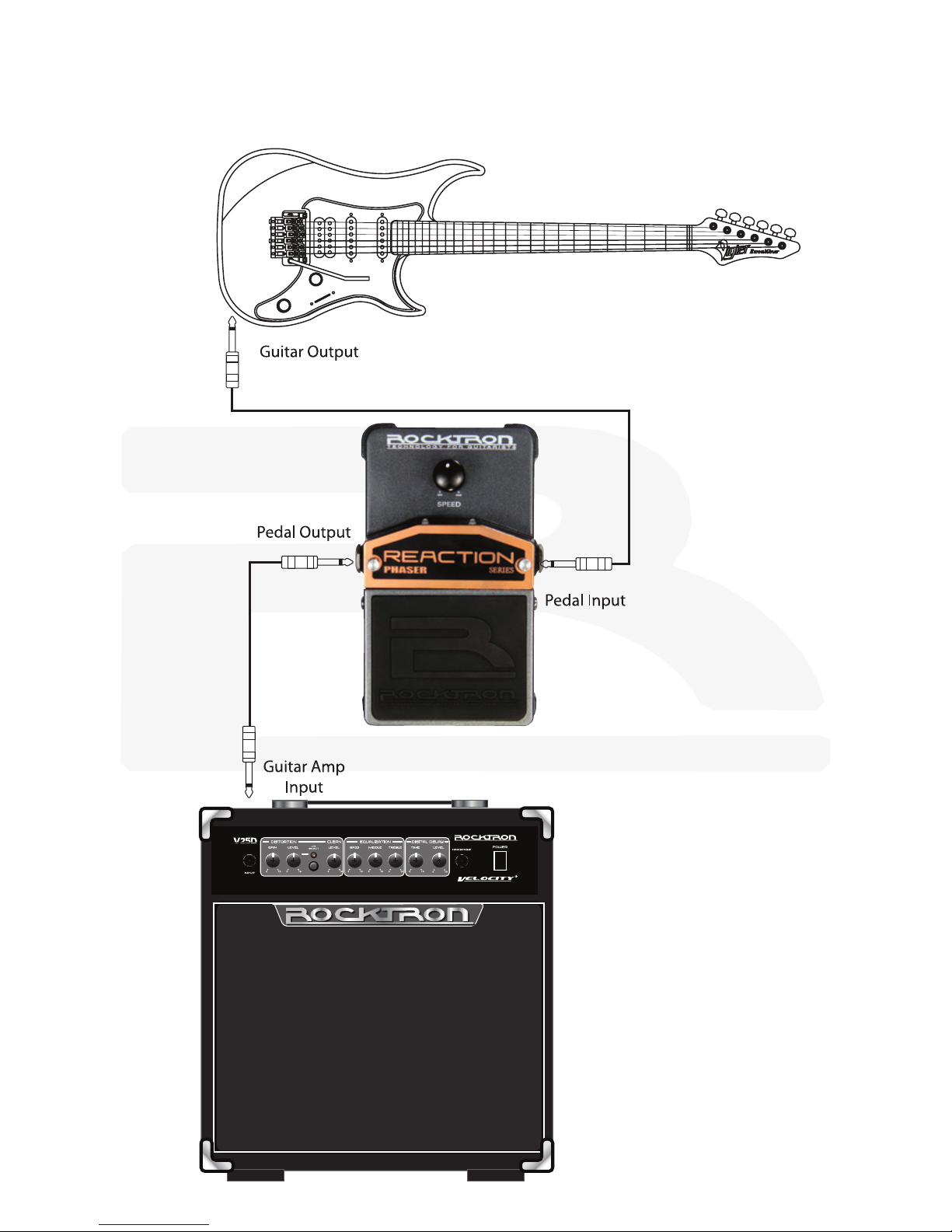

Typical Connection

Specications

Maximum Input

Maximum Output

Imput Impedance

Output Impedance

Current Consumption

Power Requirements

Dimensions

Weight

-7dBu

-3dBu

470kΩ

10kΩ

20mA

9V Alkaline Battery or

Rocktron DC OnTap

Univeral Power Supply

(sold seperately) Nega-

tive tip

125mm x 78mm x

61mm

5” x 3.25” x 2.5”

0.7kg

1.5lbs
