Cat Litter Box Enclosure--WP059
2. Please read manual carefully before assembling and use the product in strict
accordance with the manual.
Cat Litter Box Enclosure
1
2. Please read manual carefully before assembling and use the product in strict
accordance with the manual.
1
2
3
4
5
6
7
8
9
10
Parts In General：
2
123
456
789
10
3
Parts List：
Smaller top （1pc）
Left side (1pc）
Enclosure top
mat (1pc）
Back board with 7
holes (1pc) Scratching post (1pc) Smaller top mat (1pc)
Bottom (1pc)
Enclosure top （1pc）Right side (1pc)
Front door (1pc)
4
Hardware list:
Pre-inserted Nut for
bottom board(4pcs)
Wooden pin （8pcs）
Hinge 1 set
washer （1pc）3 in 1 Eccentric Wheel
Connector（4pcs）
Pre-inserted Nut for top
board（4pcs）
magnet （1pc）
long screw-used for
scratching post (2pcs）short screw (16pcs)
Hook and loop dots
（8pcs）
ABC
D E F
G
J
HI
screw for front door
handle （1pc）front door handle (1pc)
KL
M6*50 M8*35 M4*14
M6*40
M4*20
M4 M5
5
Assembly Instruction:
Screwdriver（1pc）
Furniture mats（4pcs）
Smaller Allenwrench
（1pc）Bigger Allenwrench 1pc
MNP
Q
1: Firstly assemble bottom board with two sides board, Use
N wrench for tighten.
3
4
5
A
A
A
A
D
D
D
D
A*4 D*4
6

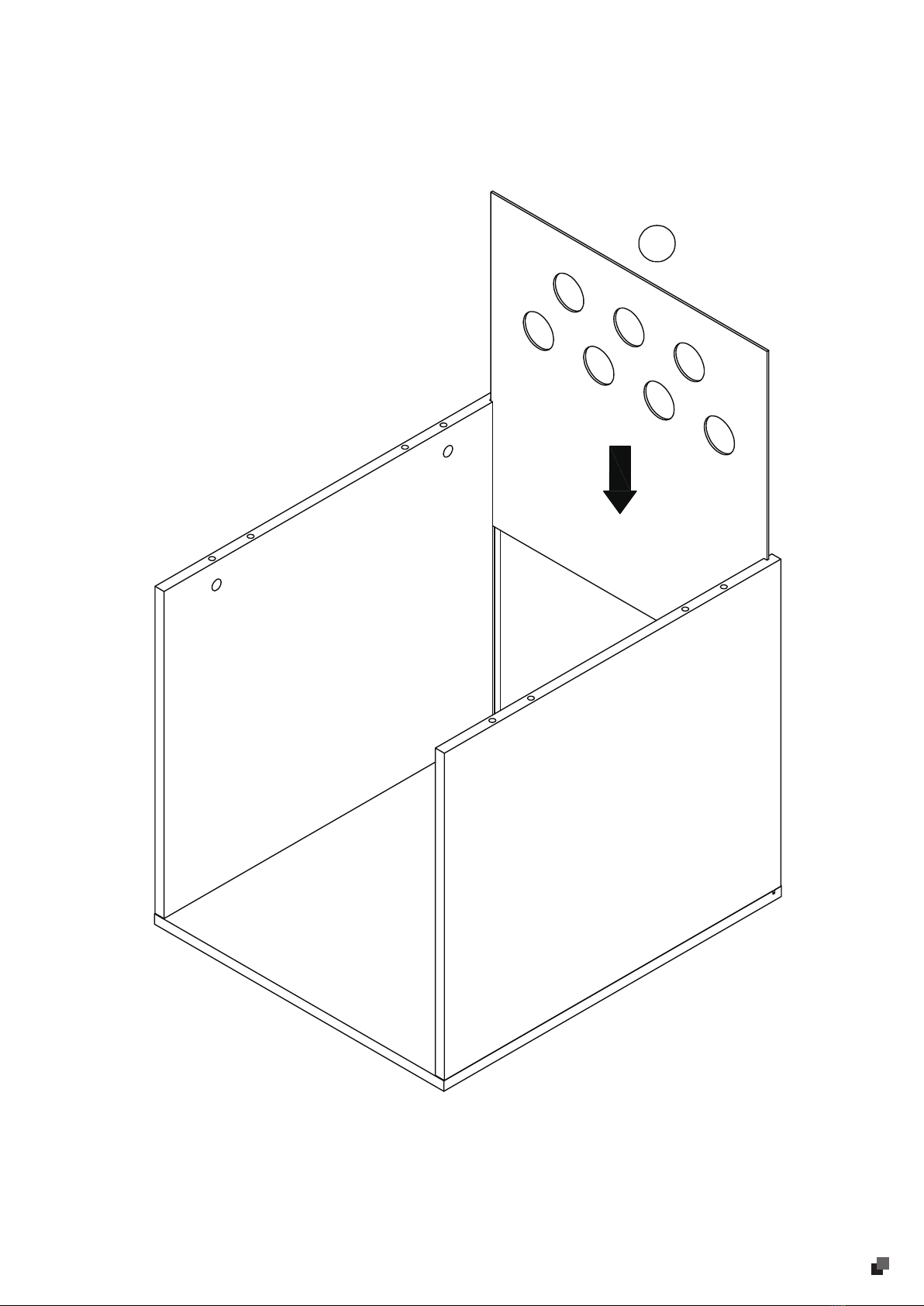

2: Insert back boards with holes.
7
7

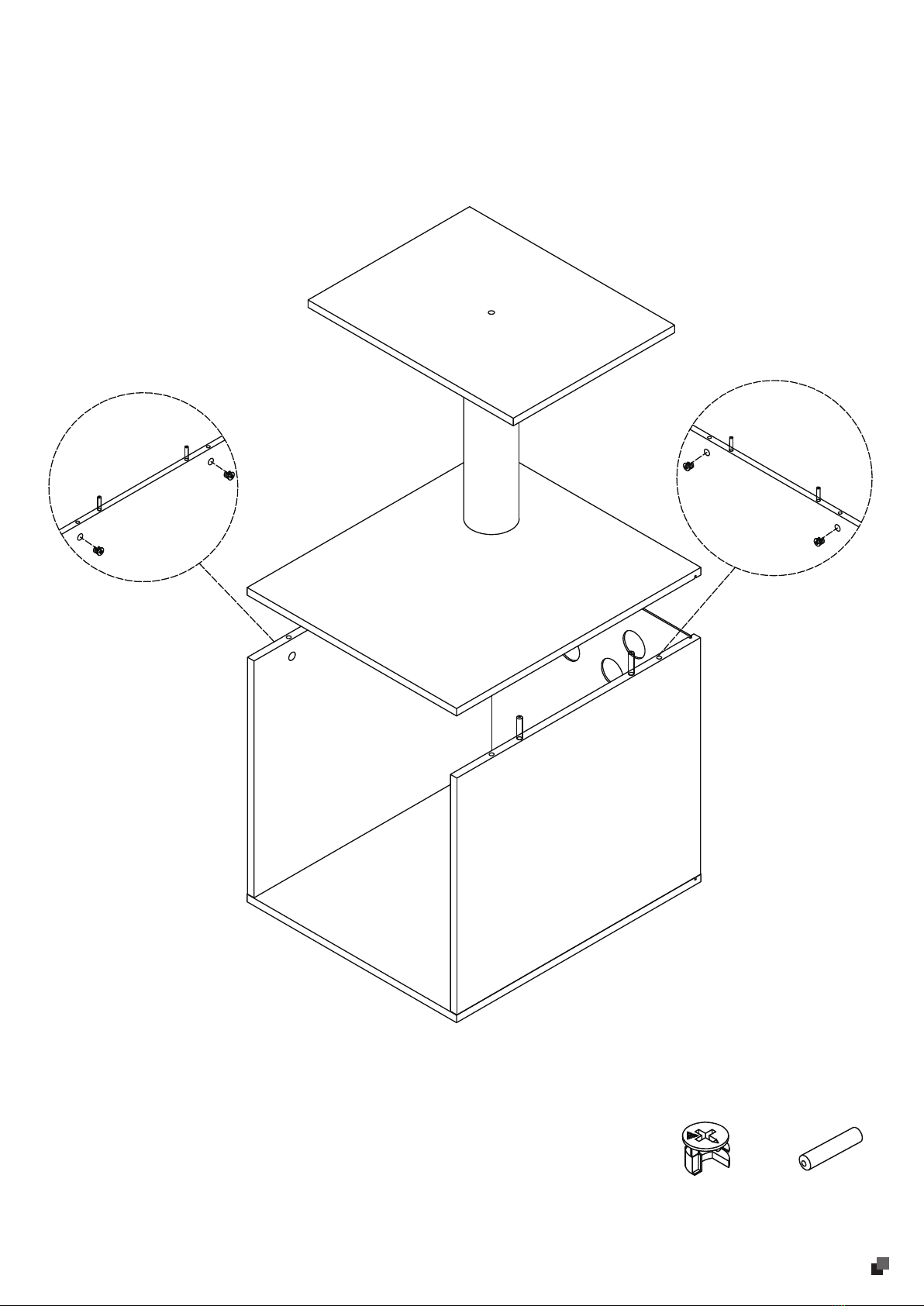

3: Top board with magnet.
1
E
C*2 I
I
I
I
2
1
8
B
B
G
B
B
G
2
8
1
I*4 C*2B*2 G*1
Please put G(the washer) underneath
the board 2(top board) in case of crack when tighten
the screw firmly.
Remember please do not put G on the top of board 2,
otherwise the scratching post keeps rotation.
Use P wrench for tighten.
8
4: Insert enclosure top board.
H
HH
H
D
DD
D
D*4H*4
9
5: Assemble the front door.
6
CCC
C
C
CJ
J
E
6
C*4
C*4
C*14
10
6: please put F before attaching cushions
F
FF
F
F
F
F
F
L
K
F*8
K*1
