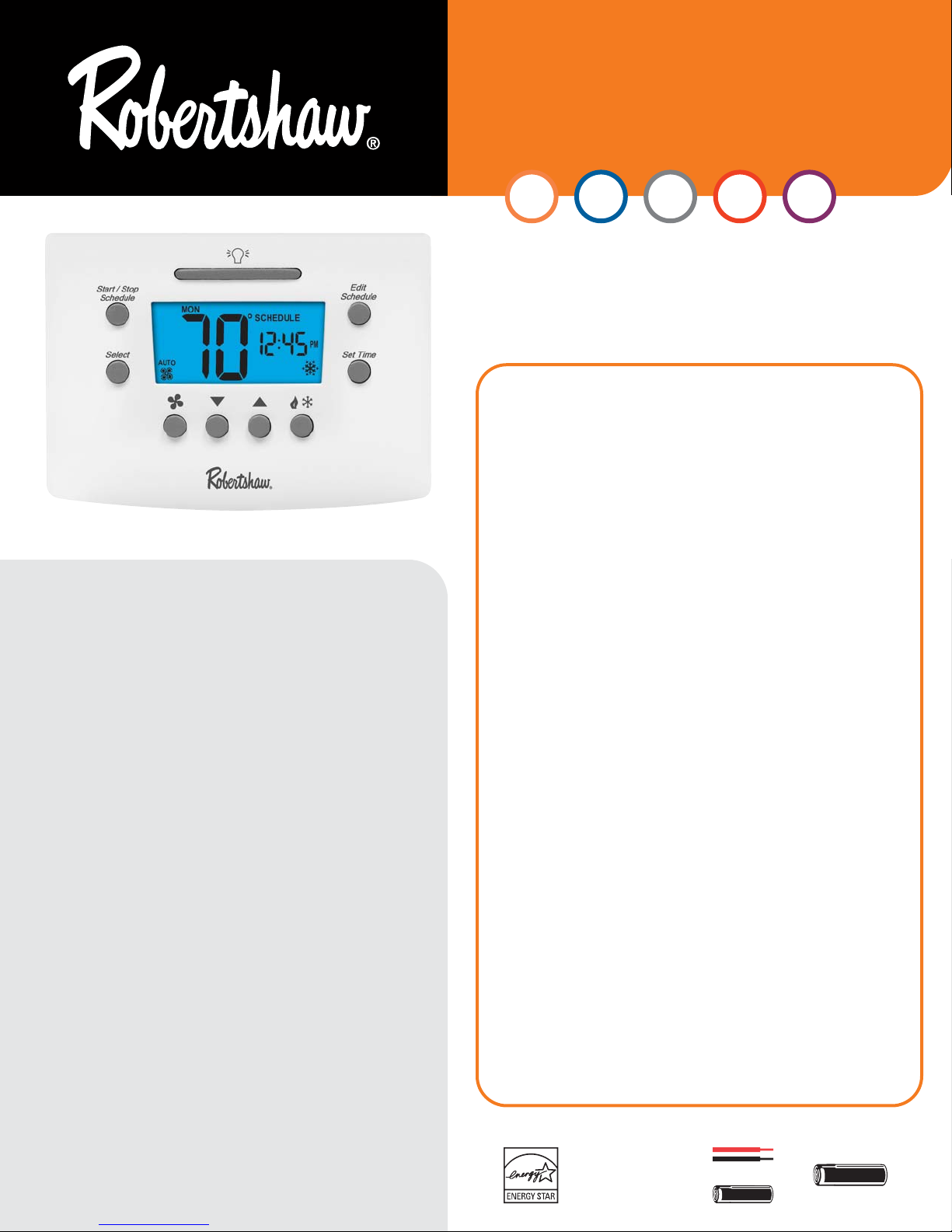

Robertshaw RS6110 Manuel utilisateur

7 Day Programmable

RS6110 – 1 Heat / 1 Cool

RS6220 – Universal Control up to 2 Heat / 2 Cool

RS6320 – Universal Control up to 3 Heat / 2 Cool

GAS

ELECTRIC

OIL

HEAT PUMP

5Year

Limited

Warranty

An ISO 9001 – 2000 Certified Company

Seven Day Comfort

Control Simplified

The Robertshaw®RS6000 thermostat family is

Simply the Right Choice

™

when it comes to daily

programmable temperature controls that can save

energy and money.

With the comfort, convenience, and efficiency

features that homeowners and contractors want, the

RS6000 family provides EnergyStar®and California

Title 24 compliant features for an affordable price.

• Fully programmable with soft touch keys to easily

set four events per day AND 7 day scheduling.

• Copy command that makes programming simple

to set up and flexible to use.

• Pop-Up Wizard to customize thermostat settings

with an instant start-up menu.

The RS6000 thermostats are fully compatible with all

standard 24V AC heating and cooling systems.

Additional compatibility with multi-stage gas/electric

furnaces and heat pump systems are available in the

RS6220 and RS6320 models.

Add in easy installation, Contractor ID option, and

quality you can depend on, and you have the

Robertshaw RS6000 thermostat family -

Simply the Right Choice

Features and Benefits

Universal Control up to 2 Heat / 2 Cool – RS6220 only

Universal Control up to 3 Heat / 2 Cool – RS6320 only

Operates on both multi-stage gas/electric furnaces and heat

pumps means less inventory.

Auto Changeover

Switches automatically between heating and cooling for constant

home comfort.

Pop-Up Wizard

Launches instant installation menu to quickly enter the

settings for programmed thermostat functions.

Bigger Brighter Backlight with Nightlight Option

Makes viewing and setting the temperature easier any time of

the day.

Worry-Free Memory Retention

Maintains set point and programmed parameters, even during

power outages.

Easy Change Battery Access

Provides drop down removable compartment for quick

battery replacement.

Circulating Fan

Maintains optimal air circulation between demand cycles for

improved comfort with minimal energy use.

Low Temperature Freeze Protection

Turns on heat automatically when temperature goes below 41°F.

Protects pipes from freezing.

Adjustable Temperature Differential and Upstaging

Provides for full selection of parameters to deliver maximum

comfort or energy savings.

High and Low Setpoint Limits

Protects the heating and cooling systems by limiting

temperature settings.

MILLIVOLT

24V ACPOWERED

WITH

BATTERY

BACK-UP

BATTERY

OPERATED

- OR -

VALUE SERIES

DIGITAL PROGRAMMABLE

THERMOSTATS

RS6110

RS6220

RS6

191 E. North Avenue

Carol Stream Illinois 60188 USA

Customer Service Telephone 1.800.304.6563

Customer Service Facsimile 1.951.737.8261

[email protected]

www.RobertshawTstats.com

www.invensyscontrols.com

For Technical Service

Telephone 1.800.445.8299

Facsimile 1.630.260.7243

[email protected]

3505 Laird Road Unit #14

Mississauga Ontario L5L 5Y7 Canada

Customer Service Telephone 1.800.387.7978

Customer Service Facsimile 1.905.828.1265

[email protected]

Invensys®, Robertshaw®and Simply the Right Choice™

are trademarks of Invensys plc., its subsidiaries and/or

affiliated companies. All other brands mentioned in this

report may be the trademarks of their respective owners. 2/08 – 150-2091B

RH/R

24V AC

Transformer

(Heating)

24V AC

Common

24V AC

Transformer

(Cooling)

Fan Relay

Heat Active

Reversing

Valve

Cool Active

Reversing

Valve

Cooling

Relay

(Stage 1)

Heating

Relay

(Stage 1)

RS6110

Braeburn®5000, 5050

Honeywell TH6110D

White-Rodgers 1F80-0471

RS6220

Braeburn®5300

Lux PSPA722E

Honeywell TH6220D

White-Rodgers 1F85-0471

RS6320

Honeywell TH6320D

White-Rodgers 1F85-0471

Product Weight 12.8 oz.

Electrical Rating 24V AC (18-30V AC)

1 amp maximum load per terminal

3 amp total maximum load

(all terminals combined)

Temp. Control Range 45°F to 90°F (7°C to 32°C)

Accuracy ± 1°F (± 0.5°C)

Power 24V AC with battery back-up OR 3.0V DC

(2 AA alkaline batteries included)

System Configurations Two stage gas, electric, oil, millivolt, and

up to three stage heat pump systems

Terminations RS6110 – RH/R, RC, C, G, B, O, Y1, W1

RS6220 / RS6320 – RH/R, RC, C, G, B, O,

Y1, W1, Y2, W2, E, L

Individual Carton Dimensions 6.75" x 4.375" x 1.625"

Master Carton Quantity 6

Master Carton Dimensions 9.25" x 5.625" x 7.625"

Master Carton Weight 5 lbs.

Pallet Quantity 1170

Pallet Dimensions 40" x 48" x 48"

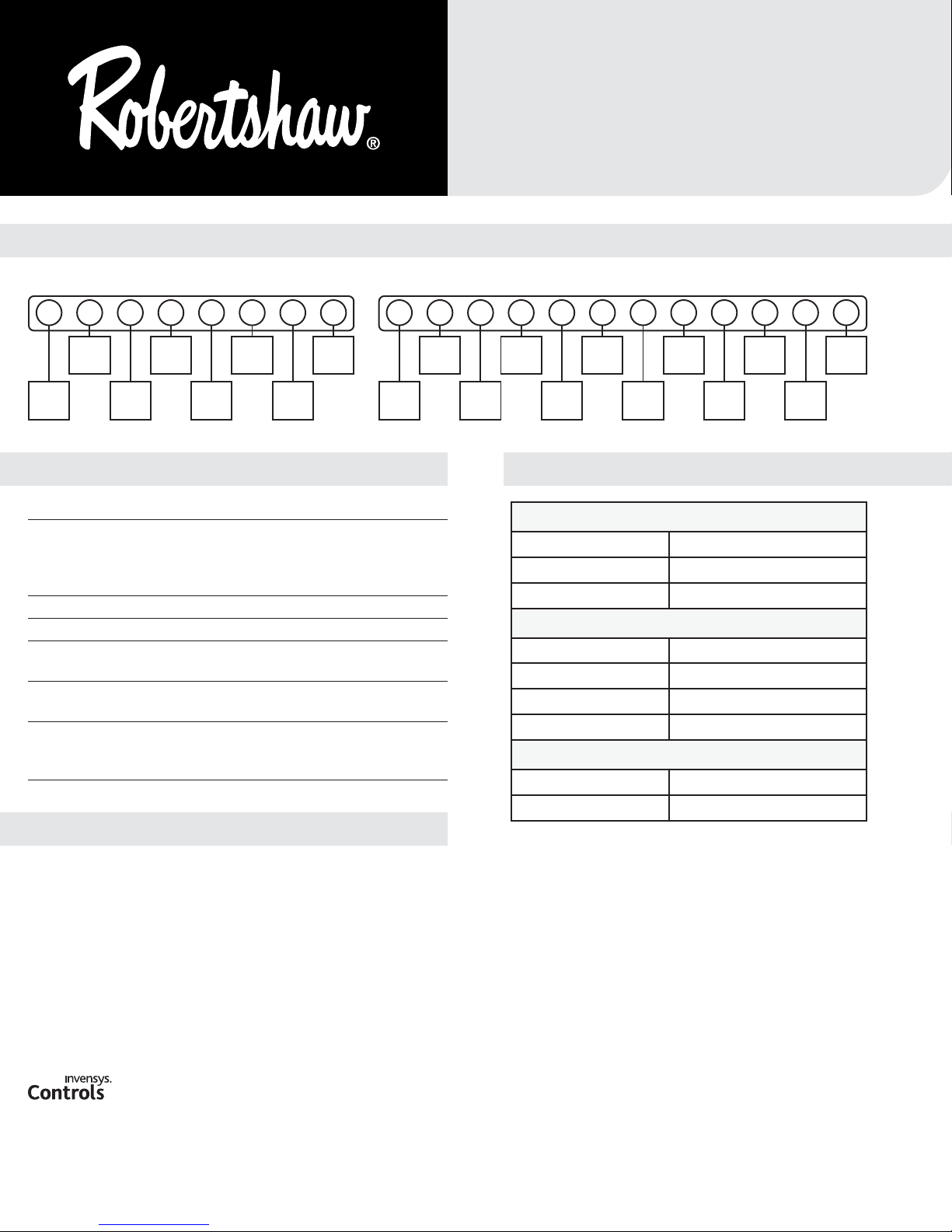

Technical Specifications

Terminal Designations

Replacement Chart

Verify specific application requirements before substitution.

RH/R

24V AC

Transformer

(Heating)

24V AC

Common

24V AC

Transformer

(Cooling)

Fan Relay

Heat Active

Reversing

Valve

Cool Active

Reversing

Valve

Cooling

Relay

(Stage 1)

Heating

Relay

(Stage 1)

Cooling

Relay

(Stage 2)

Heating

Relay

(Stage 2)

Emergency

or 3rd Stage

Heating

Relay

System

Monitor

RS6110 RS6220 and RS6320

VALUE SERIES

DIGITAL PROGRAMMABLE

THERMOSTATS

RS6110

RS6220

RS6

Shipping Specifications
