Robertshaw 9615 Manuel utilisateur

Important Safety Information Warning:

•Always turn off power at the main power source by unscrewing

fuse or switching circuit breaker to the off position before installing,

removing, cleaning or servicing thermostat.

•Read all of the information in this manual before installing or

programming this thermostat.

•This is a 24V AC low-voltage thermostat. Do not install on voltages

higher than 30V AC.

•All wiring must conform to local and national building and electrical

codes and ordinances.

•Do not short (jumper) across terminals on the gas valve or at the

system control to test installation. This will damage the thermostat

and void the warranty.

110-737

INTEGRATED COMFORT SOLUTIONS

™

DIGITAL

PROGRAMMABLE

THERMOSTAT

9615

7 Day Programmable

2 Heat / 2 Cool

User’s Manual

Quick Start

Installation and

Programming

ELECTRIC

GAS

As an Energy Star partner, Maple Chase has

determined that this thermostat product meets

the Energy Star guidelines for energy efficiency.

110-737 3/11/04 8:15 AM Page 1

Features

• Four pre-programmed Energy Star setpoints for each day of the week

• Quickset™ programming for quickly programming all days of the

week simultaneously

• Energy Efficient Recovery (EER™)

• Residual cooling for added air-conditioning efficiency

• Two “AA” ENERGIZER brand batteries retain program memory, even

during power outages

• Low battery indicator

• LED indicator for auxiliary system operation

• Zone compatible as master thermostat

• Fahrenheit/Celsius display option

• Programmable from 45°F (7°C) to 90°F (32°C)

• Accuracy within ±1 degrees

• Adjustable 1st and 2nd stage differential: 1-3 degrees,

1st stage: 2-6 degrees, 2nd stage

• Maintains summer and winter programming

Replacing Existing Thermostat

1. Turn off power to heating and cooling system.

2. Remove cover of old thermostat to expose wires. Do not

disconnect wires. (Fig. 1)

3. Label wires per Table 1.

TABLE 1

Old Label New Label Description

R, V-VR or VR-R R 24 VAC

Y, Y1 or M Y1 1st Stage Cooling Circuit

O or R O Reversing Valve (Cooling Mode)

B B Reversing Valve (Heating Mode)

G or F G Fan Contactor Circuit

Y2 Y2 2nd Stage Cooling Circuit

W2 or W-U W2 2nd Stage Heating Circuit

W1 W1 1st Stage Heating Circuit

C, X or B C 24 VAC, Transformer Common Side

NOTE: THIS THERMOSTAT REQUIRES A 24V AC COMMON WIRE FOR PROPER OPERATION.

4. After labeling wires, remove wires from terminals.

5. Remove existing thermostat base from wall.

6. Refer to the following section for instructions on how to

install thermostat.

110-737 3/11/04 8:15 AM Page 2

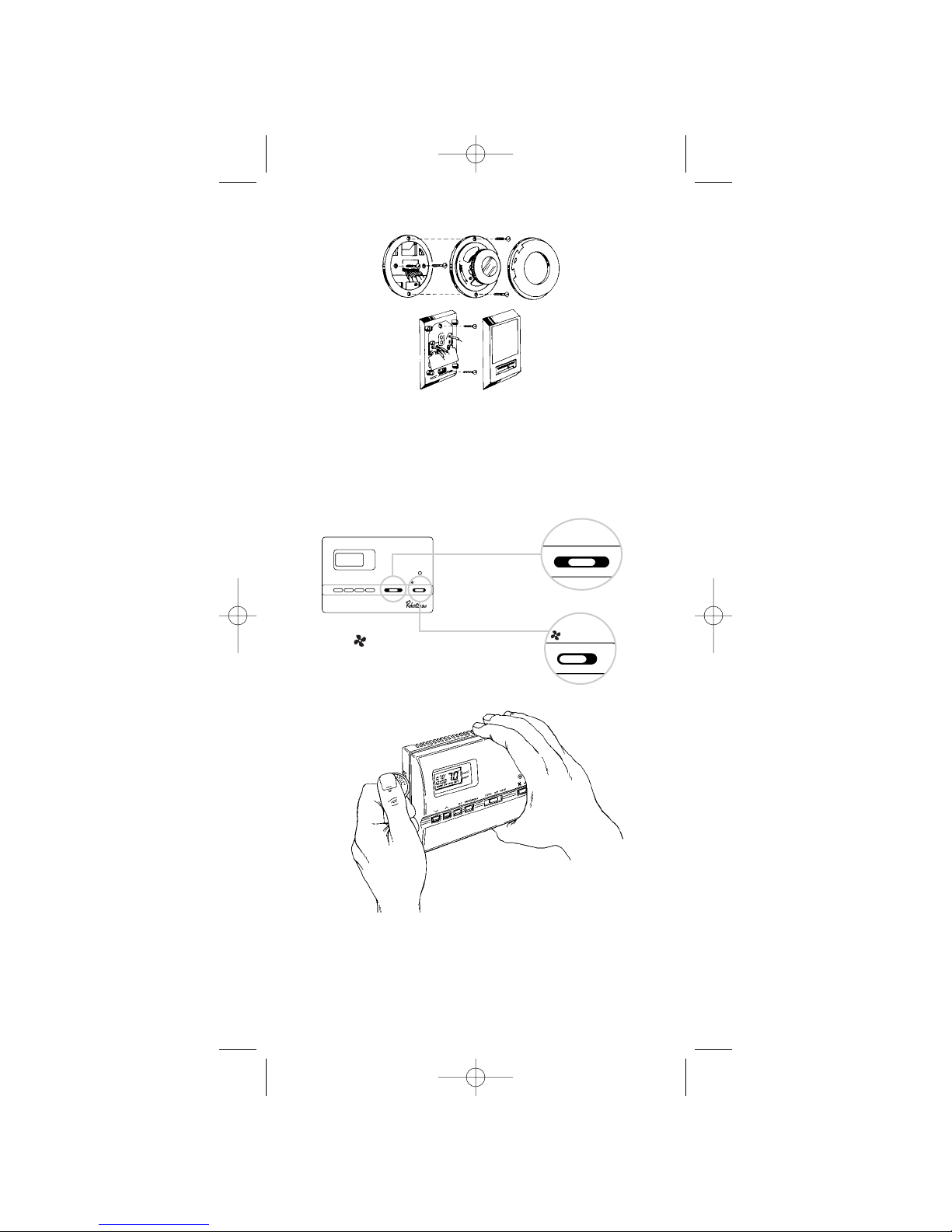

FIGURE 1

Installing Item 9615 Thermostat

NOTE: FOR NEW INSTALLATIONS, MOUNT THERMOSTAT ON INSIDE WALL, 4-5 FEET ABOVE THE FLOOR. DO NOT INSTALL

BEHIND A DOOR, IN A CORNER, NEAR AIR VENTS, IN DIRECT SUNLIGHT, OR NEAR ANY HEAT OR STEAM GENERATING FIX-

TURES. INSTALLATION AT THESE PLACES WILL AFFECT THERMOSTAT OPERATION.

IMPORTANT: THIS THERMOSTAT IS COMPATIBLE WITH 100% LOCKOUT SYSTEMS. TO RESET THE SYSTEM, TURN

THERMOSTAT TO OFF POSITION FOR AT LEAST 60 SECONDS.

1. Turn power off to the heating and cooling systems.

2. Place COOL-OFF-HEAT switch in OFF position.

3. Place AUTO-ON switch

into AUTO position.

4. Remove the cover using a coin

or screwdriver.

FIGURE 2

5. Place thermostat against the wall at desired location. Make sure

wires will feed through opening on base of thermostat.

6. Mark placement of mounting holes. See Fig. 3. Set base aside.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT

AUX

AUTO - ON

COOL-OFF-HEAT

110-737 3/11/04 8:15 AM Page 3

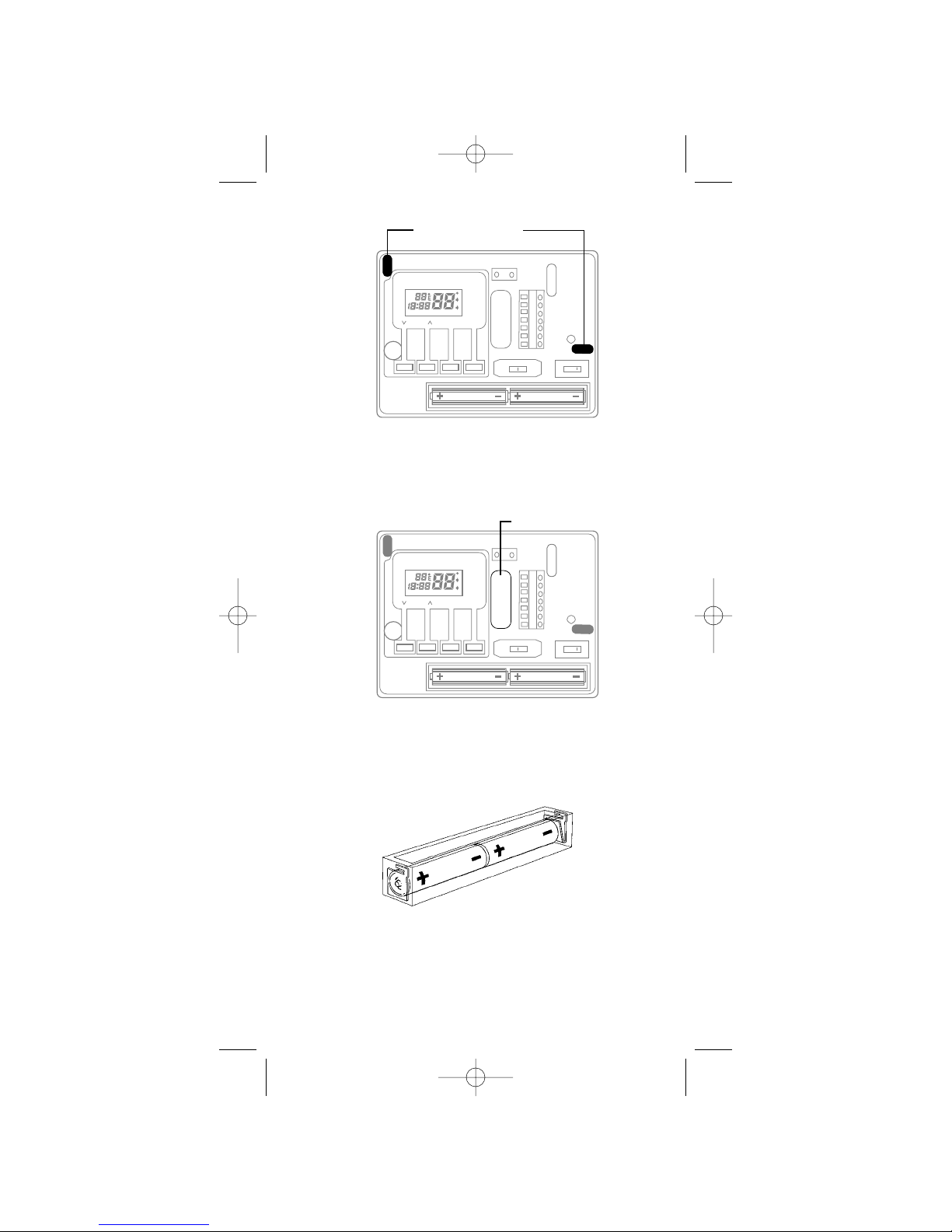

FIGURE 3

7. Drill the marked holes using a 3/16" drill bit. NOTE: Enclosed plastic

anchors do not require a drilled hole for drywall.

8. Tap plastic anchors into the holes.

9. Align base with plastic anchors and feed wires through opening.

See Fig 4. FIGURE 4

10. Secure base to wall with supplied screws.

11. Connect wires to terminal strip. Refer to wiring diagrams on other

side of this sheet. Make sure wire connections are secure.

12. Install two "AA" ENERGIZER brand batteries or equivalent into bat-

tery compartment. Be sure to match positive (+) ends of batteries

with positive (+) battery terminals in the battery compartment.

13. Replace cover onto thermostat by snapping into place.

14. Turn on power to system. Test thermostat as described in the

following section.

PROG

MAN

Y1 W1

FAN AUTO ON

COOL OFF HEAT

CHANGE SET PROG/MAN

MORN DAY EVE NITE EER

C R

MOUNTING HOLES

PROG

MAN

Y1 W1

FAN AUTO ON

COOL OFF HEAT

CHANGE SET PROG/MAN

MORN DAY EVE NITE EER

C R

OPENING

110-737 3/11/04 8:15 AM Page 4

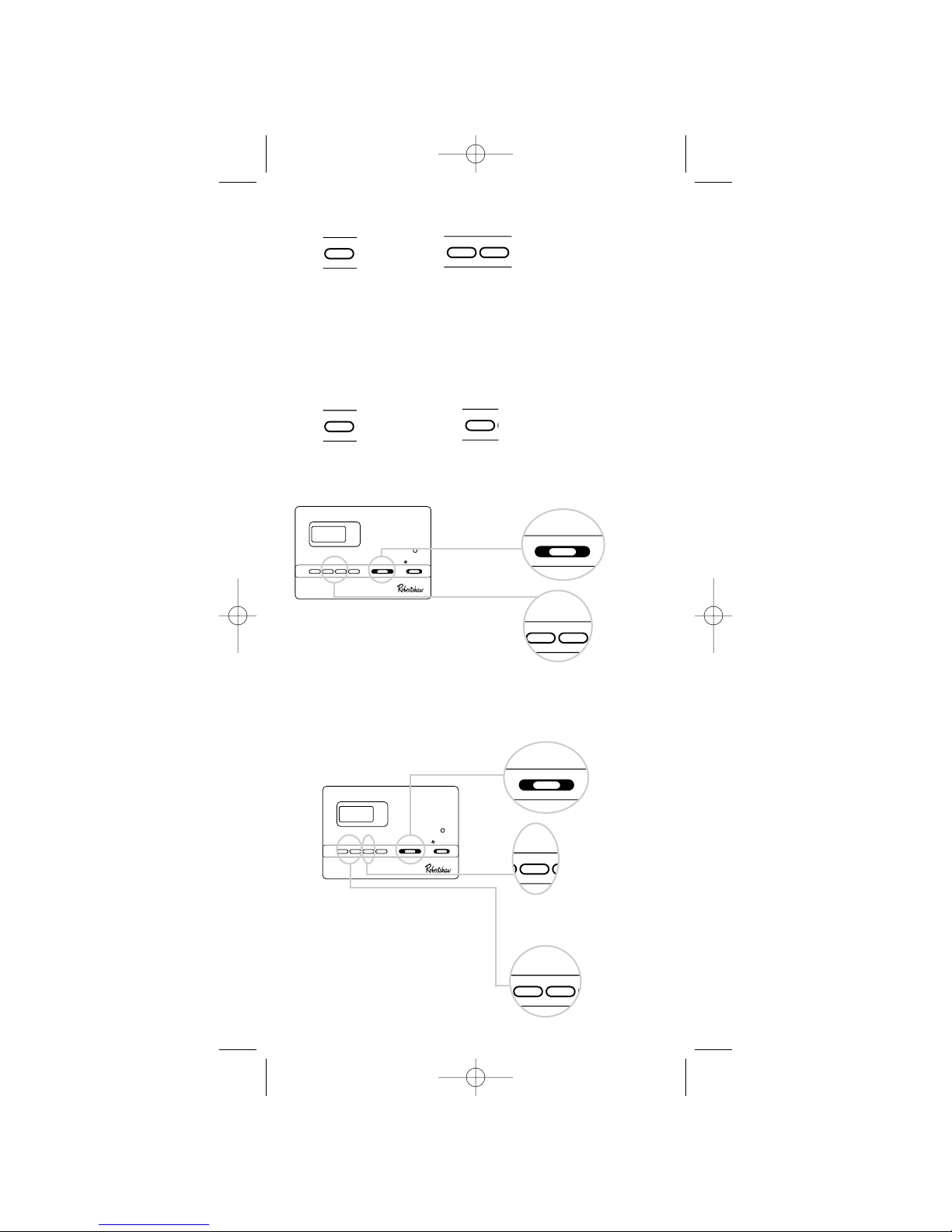

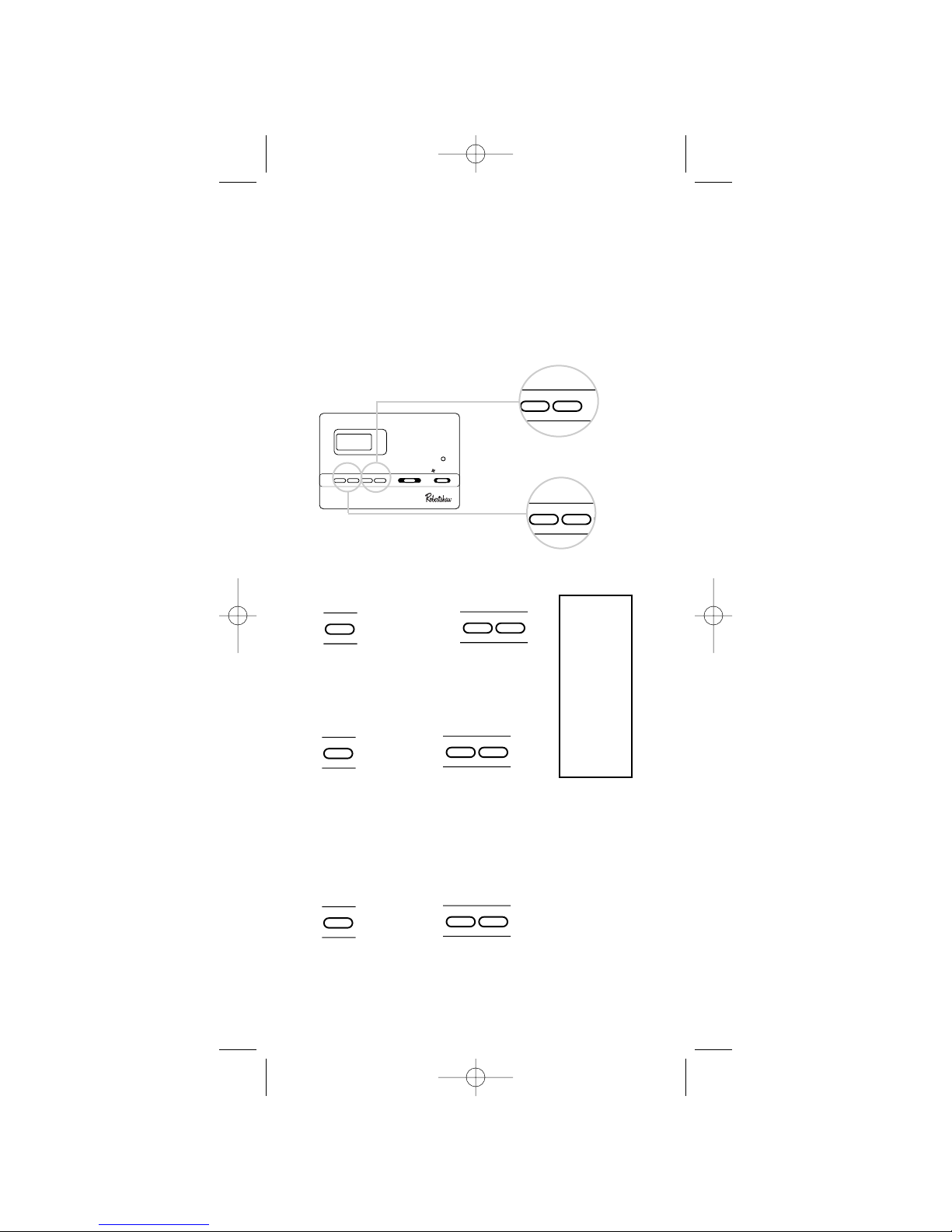

Programming Guide

Set Time of Day, Day of Week,

Temperature Differential,

Residual Cooling

1. Press SET & PROG/MAN.

Release simultaneously.

Press or to change

Time of Day.

2. Press Press

To Change

Day of Week

3. Press Press

To change 1st Stage

Temperature Differential

NOTE: THE TEMPERATURE DIFFERENTIAL IS FACTORY PRESET AT 1°. THIS MEANS

THAT WHENEVER THE ROOM TEMPERATURE CHANGES BY ONE FULL DEGREE FROM

THE TEMPERATURE SETTING, THE SYSTEM WILL TURN ON. IF THE SYSTEM TURNS

ON TOO OFTEN, INCREASE THE TEMPERATURE DIFFERENTIAL.

4. Press Press

To change 2nd Stage

Temperature Differential

NOTE: SECOND STAGE DIFFERENTIAL IS FACTORY PRESET AT 2°.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT

AUX

AUTO - ON

SET PROG/MAN

SET P

1=MO

2=TU

3=WE

4=TH

5=FR

6=SA

7=SU

SET P

SET

110-737 3/11/04 8:15 AM Page 5

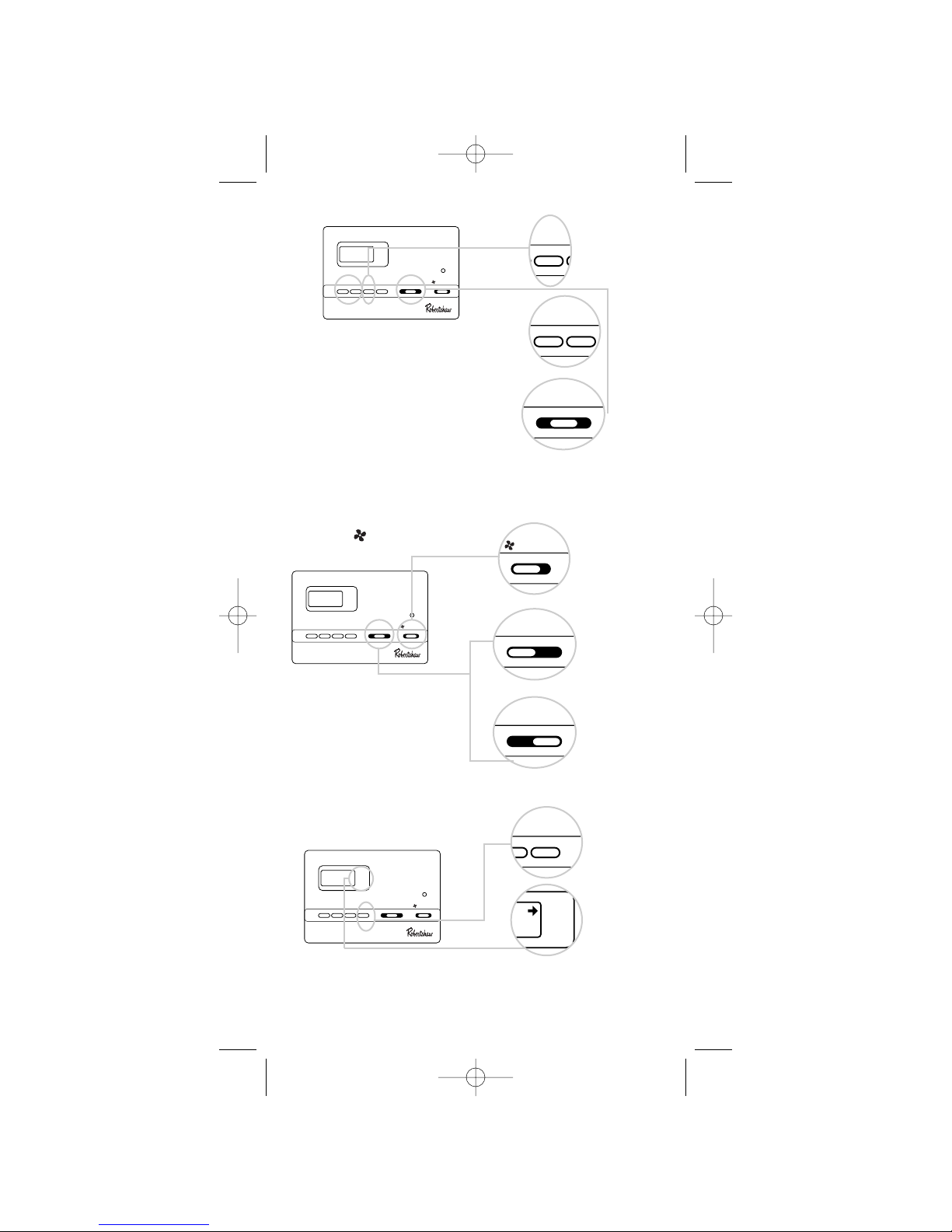

5. Press Press

To change

Residual Cooling

NOTE: THE RESIDUAL COOL FEATURE WILL KEEP THE SYSTEM FAN ON FOR AN

ADDITIONAL 30, 60 OR 90 SECONDS AFTER THE COMPRESSOR CYCLES OFF.

THE RESIDUAL COOL FEATURE CAN ONLY BE SET IN THE COOL MODE.

Changing Fahrenheit (F) to Celsius (C)

Press and Hold SET Press

Release both simultaneously.

QuickSet™ Programming Mode

1. Place COOL-OFF-HEAT

in COOL or HEAT position.

2. Press & Hold SET. Press the button.

Release simultaneously.

3. The MORN indicator should be blinking. Program the Time-of-Day and

the temperature as outlined in the Setting Daily Program section.

NOTE: QuickSet™ will program all 7 days of the week with the same program.

Setting Daily Programming

1. Place COOL-OFF-HEAT

in COOL position.

2. Press SET button. The display will

show a number from 1 to 7. This

number represents the day of the

week to be programmed. If pro-

gramming individual days, press

either or button to adjust

the day of the week to program.

3. Press SET. Press or to change

MORN time 6

SET P

SET

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT

AUX

AUTO - ON

COOL-OFF-HEAT

SET PR

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT

AUX

AUTO - ON

SET P

COOL-OFF-HEAT

110-737 3/11/04 8:15 AM Page 6

4. Press SET.

5. Press or to change

MORN temperature.

6. Repeat Steps 2-5 for DAY, EVE, and NITE.

7. Repeat steps 2–6 above to program

any other day of the week.

8. Shift COOL-OFF-HEAT to

HEAT position.

9. Repeat steps 2-6 to program HEAT

(winter) settings.

Begin Programmed Operation

1. Place AUTO/ON

into AUTO.

2. Place COOL-OFF-HEAT

into COOL or HEAT

Depending upon the season.

3. Press PROG/MAN button

until indicator is in

PROG position.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT

AUX

AUTO - ON

SET PR

COOL-OFF-HEAT

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT

AUX

AUTO - ON

COOL-OFF-HEAT

SUMMER

WINTER

ET PROG/MAN C

PROG

MAN

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT

AUX

AUTO - ON

NOTE: W

HILE IN THE

OOL MODE ONCE THE THERMOSTAT TURNS THE SYSTEM OFF

A BUILT

IN DELAY KEEPS THE

COMPRESSOR FROM TURNING ON FOR ABOUT

MINUTES

. T

HIS PROTECTS THE COMPRESSOR

. N

O ADDITIONAL TIME

DELAY RELAY

(

DELAY ON BREAK

)

IS NECESSARY

. T

O OVERRIDE THE

MINUTE DELAY FOR INSTALLATION

PRESS

RESET. T

HIS WILL ERASE THE DELAY AS WELL AS ALL PROGRAMMING

110-737 3/11/04 8:15 AM Page 7

Energy Efficient Recovery EER™

EER™ allows your system to operate at peak efficiency for optimal energy

savings. EER™ looks up to 2 hours prior to the end of a set-back period to

begin monitoring system performance and determine the most efficient

time to turn on your system. During this period, the auxiliary stages of

heating or cooling will be locked out. Only the most efficient stages will be

utilized. At 20 minutes prior to the upcoming setpoint time, the auxiliary

stages will be available to achieve temperature setpoint if required.

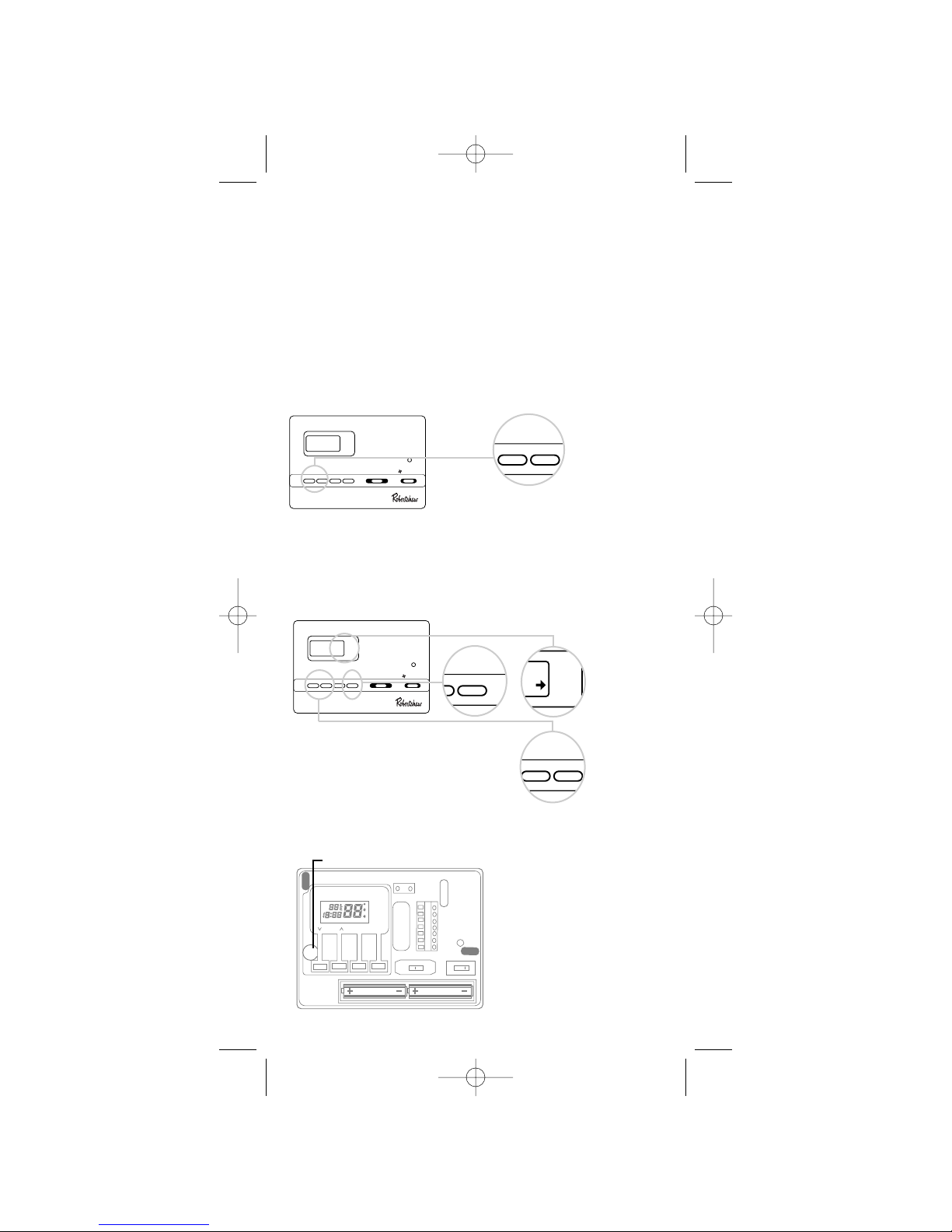

Temporary Program Override

To temporarily increase or decrease temperature

Press or

The Thermostat will automatically return

to the program at the next scheduled

setting change or after 4 hours.

Manual Operation

1. Press PROG/MAN until indicator is in MAN position.

2. Press or to adjust

temperature settings.

Reset

To Reset the thermostat to factory pre-programmed

conditions, press the reset button located directly

to the right of the display.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT

AUX

AUTO - ON

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT

AUX

AUTO - ON

T PROG/MAN

PROG

MAN

PROG

MAN

FAN AUTO ON

COOL OFF HEAT

CHANGE SET PROG/MAN

MORN DAY EVE NITE EER

C L R

RESET BUTTON

110-737 3/11/04 8:15 AM Page 8

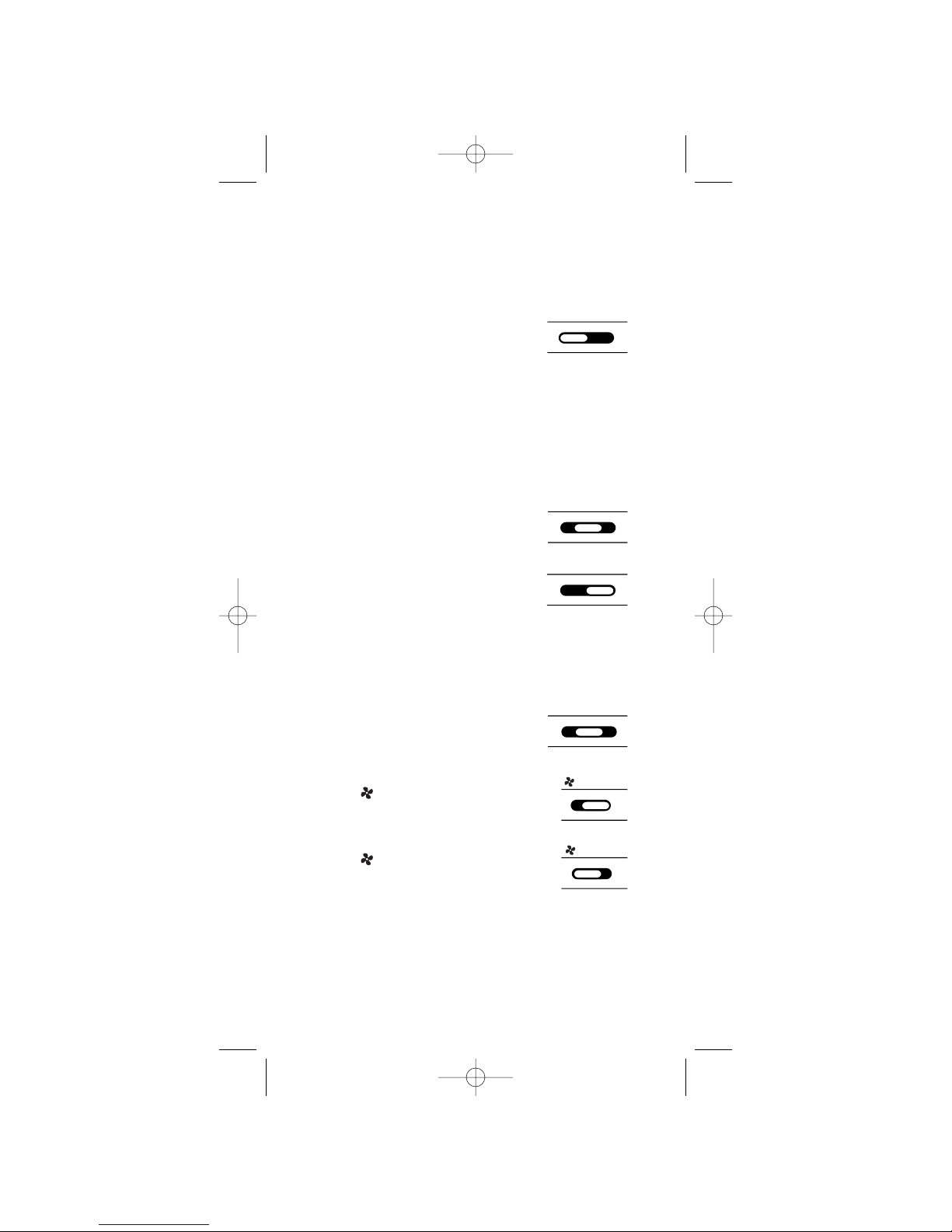

To Test Thermostat

WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS VALVE OR SYSTEM CONTROL

TO TEST OPERATION. THIS WILL DAMAGE THE THERMOSTAT AND VOID YOUR WARRANTY.

CAUTION: DO NOT SWITCH SYSTEM TO COOL IF THE TEMPERATURE IS BELOW 50°F (10°C). THIS CAN DAMAGE

THE AIR CONDITIONING SYSTEM AND CAUSE PERSONAL INJURY.

1. Place the COOL-OFF-HEAT

switch into the COOL position.

2. Press the button until the temperature

setting is at least 3 degrees below the room temperature. The air

conditioning system should turn on within a few seconds.

NOTE: W

HILE IN THE

OOL MODE ONCE THE THERMOSTAT TURNS THE SYSTEM OFF

A BUILT

IN DELAY KEEPS THE COMPRESSOR

FROM TURNING ON FOR ABOUT

MINUTES

. T

HIS PROTECTS THE COMPRESSOR

. N

O ADDITIONAL TIME DELAY RELAY

(

DELAY ON BREAK

)

IS NECESSARY

. T

O OVERRIDE THE

MINUTE DELAY FOR INSTALLATION

PRESS

RESET. T

HIS WILL ERASE THE DELAY AS WELL AS ALL

PROGRAMMING

3. Put the COOL-OFF-HEAT switch into

the OFF position. The air conditioning

system should turn off. The fan may

continue to run for a short period of time.

4. Put the COOL-OFF-HEAT switch

into the HEAT position.

5. Press the button until the temperature setting is at least

3 degrees above room temperature. The heating system should turn

on. The fan may not turn on immediately, depending upon the fan

delay built into the furnace.

6. Put the COOL-OFF-HEAT switch

into the OFF position. The heating

system should turn off. Once again,

the fan may have a delay.

7. Put the AUTO-ON switch

to the ON position. The blower

fan should turn on.

8. Put the AUTO-ON switch

to the AUTO position. The blower

fan should turn off.

LED Indicator

The LED indicator illuminates during a call for second stage heating or

cooling. The auxiliary stages are used to maintain comfort during

extremes in weather conditions. If the LED is illuminated too frequently

during periods of moderate temperature, check the differential settings

(page 5). 9

COOL-OFF-HEAT

AUTO - ON

110-737 3/11/04 8:15 AM Page 9

Troubleshooting

SYMPTOM REMEDY

Thermostat does not turn

on system.

Check Wiring.

(See “INSTALLATION.”)

Check fuse. Replace with 3 amp

fuse if fuse has opened. Five

minute compressor short cycle

protection may be in effect. Press

RESET to override. NOTE: This will

erase programming.

Thermostat turns on and off too

frequently.

Increase Temperature Differential

(See “PROGRAMMING.”)

Display is blank, flashing or

constant "LO BAT".

Replace batteries.

System fan does not operate

properly.

Move fan option switch to either

gas or electric, to match system.

(See “INSTALLATION.”)

Time shown on display is not the

current time of day.

Change time of day setting.

(See “PROGRAMMING.”)

Thermostat does not follow

program.

Thermostat in MANUAL mode. (See

“PROGRAMMING.”)

Thermostat may not have been pro-

grammed in HEAT or COOL position.

Verify program.

Check AM/PM indicators at time of

day and programmed time changes.

(See “PROGRAMMING.”)

Verify program and day of week

are correct. (See “PROGRAMMING.”)

Thermostat does not advance day

of week.

To view or change day of week,

use method on page 5.

If problems with thermostats cannot be solved, call:

Technical Support: (800) 445-8299

Monday-Friday 7:30-5:30 CST

For warranty returns, send thermostat, shipping prepaid to:

Uni-Line North America

Warranty Claims Department

515 S. Promenade

Corona, CA 91719

110-737 3/11/04 8:15 AM Page 10

Autres manuels pour 9615

Table des matières

Autres manuels Robertshaw Thermostat

Robertshaw

Robertshaw 8401 Manuel utilisateur

Robertshaw

Robertshaw RS3210 Series Manuel utilisateur

Robertshaw

Robertshaw 300-224 Caractéristiques techniques

Robertshaw

Robertshaw 300-202 Manuel utilisateur

Robertshaw

Robertshaw smart 3000 Manuel utilisateur

Robertshaw

Robertshaw 8601 Manuel utilisateur

Robertshaw

Robertshaw RS6000 Manuel utilisateur

Robertshaw

Robertshaw 8625 Manuel utilisateur

Robertshaw

Robertshaw Smart Sense SMART 1000 Manuel utilisateur

Robertshaw

Robertshaw RS9110 Manuel utilisateur

Robertshaw

Robertshaw 300-202 Manuel utilisateur

Robertshaw

Robertshaw RS4110 Manuel utilisateur

Robertshaw

Robertshaw 9820I Manuel utilisateur

Robertshaw

Robertshaw 300-204 Manuel utilisateur

Robertshaw

Robertshaw 7610 Manuel utilisateur

Robertshaw

Robertshaw 8400 Manuel utilisateur

Robertshaw

Robertshaw 9901i Manuel utilisateur

Robertshaw

Robertshaw RS4110 Manuel utilisateur

Robertshaw

Robertshaw RS9210 Manuel utilisateur

Robertshaw

Robertshaw 5300 Series Guide d'installation et d'utilisation

Robertshaw

Robertshaw 9600 Manuel utilisateur

Robertshaw

Robertshaw RS8110 Manuel utilisateur

Robertshaw

Robertshaw RS9220 Manuel utilisateur

Robertshaw

Robertshaw 7700 Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
