110-655B

7 Day Programmable

1 Heat / 1 Cool

INTEGRATED COMFORT SOLUTIONS

™

DIGITAL

PROGRAMMABLE

THERMOSTAT

9610

User’s Manual

Quick Start

Installation and

Programming

ELECTRIC

GAS

Installation Guide

IMPORTANT SAFETY INFORMATION WARNING:

•Always turn off power at the main power source by unscrewing

fuse or switching circuit breaker to the off position before installing,

removing, cleaning or servicing thermostat.

•Read all of the information in this manual before installing or

programming this thermostat.

•This is a 24V AC low-voltage thermostat. Do not install on voltages

higher than 30V AC.

•All wiring must conform to local and national building and electrical

codes and ordinances.

•Do not short (jumper) across terminals on the gas valve or at the

system control to test installation. This will damage the thermostat

and void the warranty.

As an Energy Star partner, Maple Chase has

determined that this thermostat product meets

the Energy Star guide lines for energy efficiency.

Features

• Four pre-programmed Energy Star setpoints for each day of the week.

• Two “AA” ENERGIZER brand batteries retain program memory, even

during power outages.

• Low battery indicator.

• Fahrenheit/Celsius display option.

• Programmable from 45°F (7°C) to 90°F (32°C).

• Accuracy within ± 1 degree.

• Adjustable temperature differential: 1-3 degrees.

• Maintains summer and winter programming.

• Low temperature freeze protection. While in heat mode, thermostat

will mechanically turn on heat if temperature drops to 40°F (4°C) -

even if batteries are missing or drained.

• Automatic heating shutdown if temperature exceeds 90°F (32°C).

• Quickset programming for quickly programming all days

of the week simultaneously.

• Mercury free, environmentally friendly.

Replacing Existing Thermostat

1. Turn off power to heating and cooling system.

2. Remove cover of old thermostat to expose wires. Do not

disconnect wires. (Fig. 1)

3. Label wires per Table 1.

Table 1

Old Label New Label Description

M, 4, RH, R5 or R RH Heat Transformer,

hot side

V or RC RC Cooling Transformer, hot side

Y or Y6 Y Cooling Control

H, W or 4 W Heating control

F or G G Fan control relay

C* Y or None Either cooling control or com-

mon side of transformer

O O Cool active reversing valve

B B Heat active reversing valve

*NOTE: ON SOME OLDER MODELS, THE C TERMINAL CAN BE EITHER THE COOLING CONTROL OR THE

COMMON SIDE OF THE TRANSFORMER. CHECK FURNACE WIRING DIAGRAM TO VERIFY C TERMINAL. IFITIS

THE COMMON SIDE OF THE TRANSFORMER, CAP THE WIRE AND TUCK INTO THE WALL. IF IT IS THE COOLING

CONTROL, CONNECT TO THE Y TERMINAL.

4.After labeling wires, remove wires from terminals.

5. Remove existing thermostat base from wall.

6. Refer to the following section for instructions on how to

install thermostat. 2

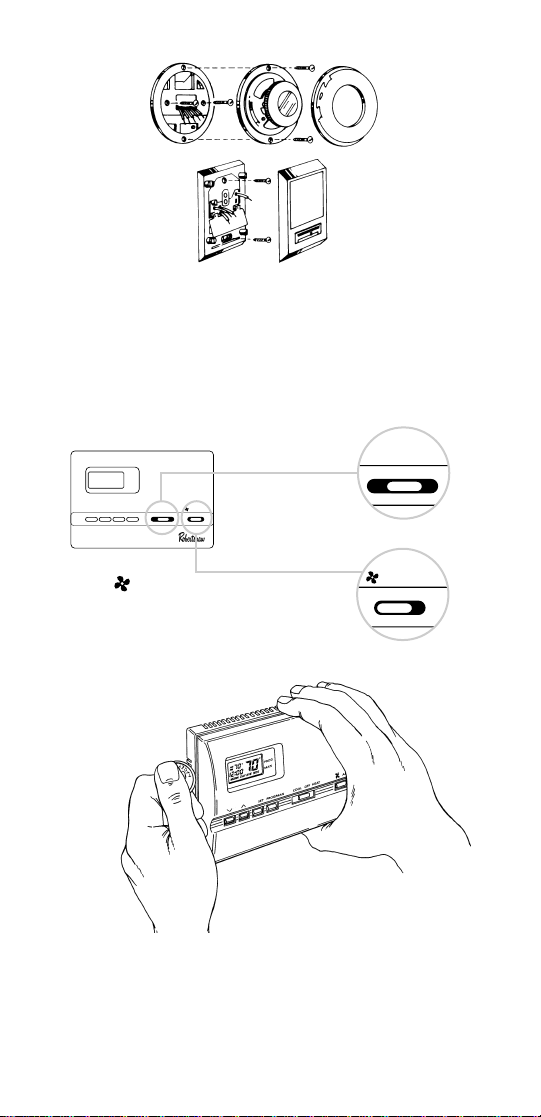

Figure 1

Installing Item 9610 Thermostat

NOTE: FOR NEW INSTALLATIONS, MOUNT THERMOSTAT ON INSIDE WALL, 4-5 FEET ABOVE THE FLOOR.

DO NOT INSTALL BEHIND A DOOR, IN A CORNER, NEAR AIR VENTS, IN DIRECT SUNLIGHT, OR NEAR ANY

HEAT OR STEAM GENERATING FIXTURES. INSTALLATION AT THESE PLACES WILL AFFECT THERMOSTAT OPERA-

TION.

1. Turn power off to the heating and cooling systems.

2. Place COOL/OFF/HEAT In OFF position.

3. Place AUTO-ON switch

Into AUTO position.

4. Remove the cover using a coin

or screwdriver.

Figure 2

5. Place thermostat against the wall at desired location. Make sure

wires will feed through opening on base of thermostat.

6. Mark placement of mounting holes. See Fig. 3. Set base aside.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

COOL-OFF-HEAT

AUTO - ON

Figure 3

7. Drill the marked holes using a 3/16” drill bit.

8. Tap plastic anchors into the holes.

9. Align base with plastic anchors and feed wires through opening.

See Fig 4. Figure 4

10. Secure base to wall with supplied screws.

11. Connect wires to terminal strip. Refer to wiring diagrams on other

side of this sheet. Make sure wire connections are secure.

12. Place fan option switch into either the “ELEC” or “GAS” position

depending upon the type of furnace. Refer to Figure 5.

Figure 5

13. Put heat pump option switch into either the “NON HPUMP” or

“HPUMP” position, depending on the type of system in the home.

MOUNTING HOLES

FAN

OPERATION

SWITCH

Controls fan delay

HEAT PUMP

SWITCH

Controls

heat pump

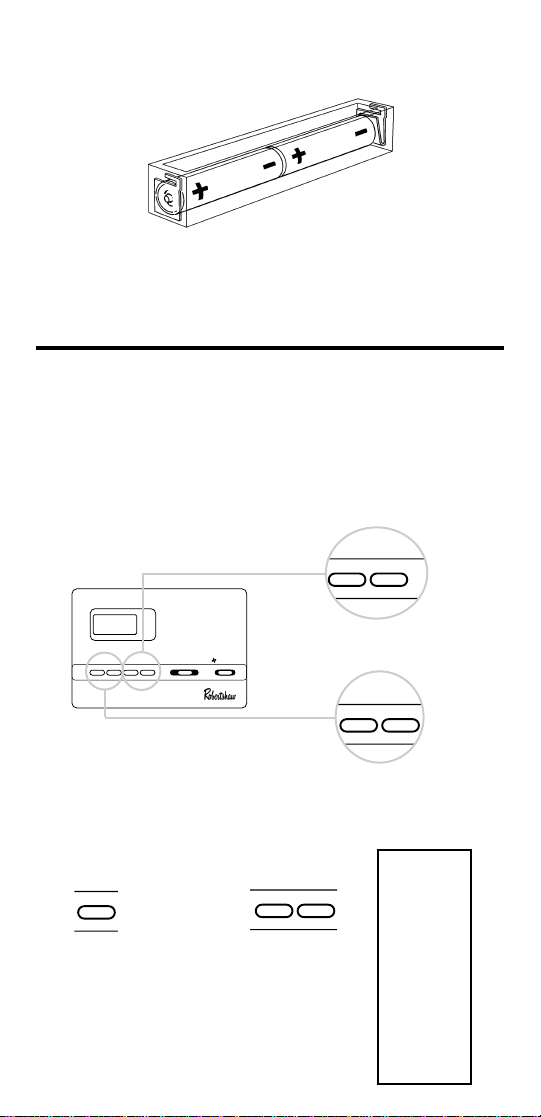

14. Install two “AA” ENERGIZER brand batteries or equivalent into bat-

tery compartment. Be sure to place positive (+) ends of batteries

toward (+) battery terminals in the battery compartment. The display

will show as follows:

15. Replace cover onto thermostat by snapping into place.

16. Turn on power to system . Test thermostat as described in the

following section.

Programming Guide

Set Time of Day, Day of Week,

Temperature Differential,

Residual Cooling

1. Press & Hold SET. Press PROG/MAN

Release simultaneously.

Press ✞or ✟to change

Time of Day.

2. Press Press

To Change

Day of Week

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

SET PROG/MAN

SET P

1=MO

2=TU

3=WE

4=TH

5=FR

6=SA

7=SU

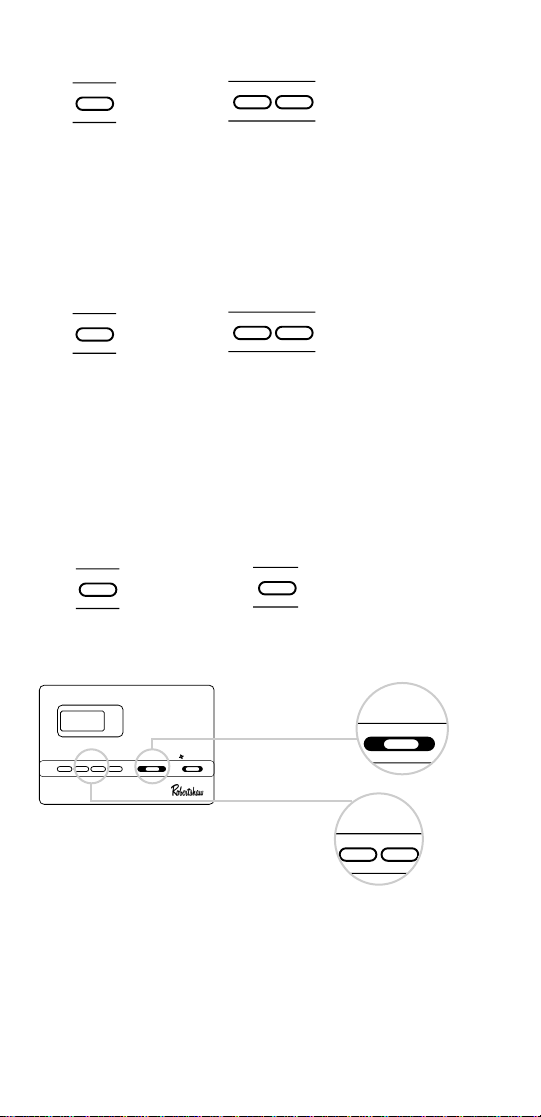

3. Press Press

To change

Temperature Differential*

*THE TEMPERATURE DIFFERENTIAL IS FACTORY PRESET AT 1°. THIS MEANS

THAT WHENEVER THE ROOM TEMPERATURE CHANGES BY ONE FULL DEGREE FROM

THE TEMPERATURE SETTING, THE SYSTEM WILL TURN ON. IF THE SYSTEM TURNS

ON TOO OFTEN, INCREASE THE TEMPERATURE DIFFERENTIAL.

4. Press Press

To change

Residual Cooling**

**THE RESIDUAL COOL FEATURE WILL KEEP THE SYSTEM FAN ON FOR AN ADDITIONAL 30, 60 OR 90

SECONDS AFTER THE COMPRESSOR CYCLES OFF. RESIDUAL COOLING CAN ONLY BE PROGRAMMED WHEN

SETTING THE COOLING PROGRAM.

Changing Fahrenheit (F) to Celsius (C)

Press and Hold SET Press

Release both simultaneously.

QuickSet™ Programming Mode*

1. Place COOL-OFF-HEAT

in HEAT or COOL position.

2. Press & Hold SET. Press the ✟button.

Release simultaneously.

3. The MORN indicator should be blinking. Program the Time-of-Day and

the temperature as outlined in the Setting Daily Program section.

*QuickSet™ will program all 7 days of the week with the same program.

Individual days can then be changed or modified.

SET P

SET

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

COOL-OFF-HEAT

SET P

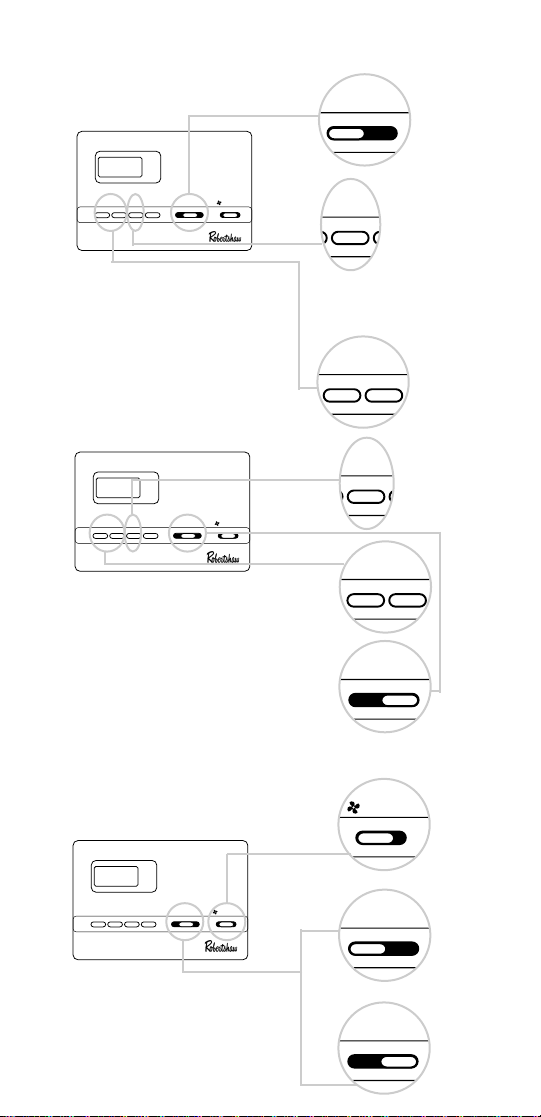

Setting Daily Programming

Summer (Cool) Settings:

1. Place COOL-OFF-HEAT

in COOL position.

2. Press SET button. The display will

show a number from 1 to 7. This

number represents the day of the

week to be programmed If pro-

gramming individual days, press

either ✞or ✟button to adjust

the day of the week to program.

3. Press SET. Press ✞or ✟to change

MORN time

4. Press SET.

5. Press ✞or ✟to change

MORN temperature.

6. Repeat Steps 2-5 for DAY, EVE, and NITE.

7. Repeat steps 2–6 above to program

any other day of the week.

Winter (Heat) Settings:

1. Shift COOL-OFF-HEAT to HEAT position.

2. Repeat steps 2-6 to program HEAT (winter) settings.

Begin Programmed Operation

1. Place FAN AUTO-ON Into AUTO.

2. Place COOL-OFF-HEAT

Into COOL or HEAT

Depending upon the season.

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

COOL-OFF-HEAT

SET PR

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

SET PR

COOL-OFF-HEAT

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

AUTO - ON

COOL-OFF-HEAT

SUMMER

WINTER

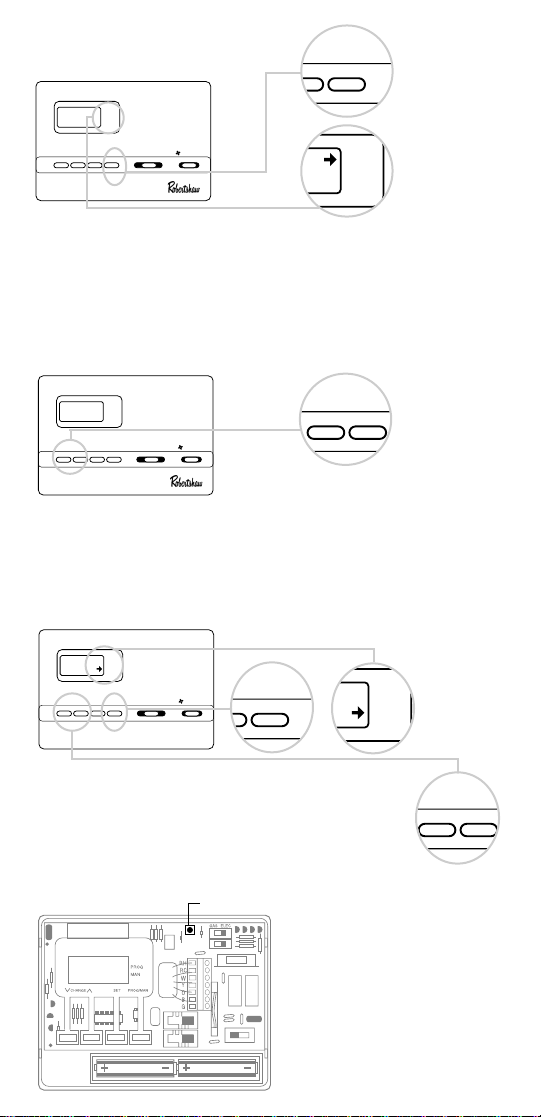

3. Press PROG/MAN button

until indicator is in PROG position.

Temporary Program Override

To temporarily increase or decrease temperature

Press ✞or ✟

The Thermostat will automatically return

to the program at the next scheduled

setting change.

Manual Operation

1. Press PROG/MAN until indicator is in MAN position.

2. Press ✞or ✟to adjust

temperature settings.

Reset

To Reset the thermostat to factory pre-programmed

conditions, press the reset button located directly

above the wiring terminal block.

ET PROG/MAN

PROG

MAN

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

NOTE: W

HILE IN THE

OOL MODE

, (

OR HEAT AND COOL FOR SINGLE STAGE HEAT PUMP SYSTEM

)

ONCE THE THERMOSTAT

TURNS THE SYSTEM OFF

A BUILT

IN DELAY KEEPS THE COMPRESSOR FROM TURNING ON FOR ABOUT

MINUTES

. T

HIS PRO

TECTS THE COMPRESSOR

. N

O ADDITIONAL TIME DELAY RELAY

(

DELAY ON BREAK

)

IS NECESSARY

. T

OP OVERRIDE THE

MINUTE

DELAY FOR INSTALLATION

PRESS

RESET. T

HIS WILL ERASE THE DELAY AND CHANGE PROGRAMMING TO FACTORY PRE

SETS

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

PROG

MAN

SET PROG/MAN COOL-OFF-HEAT AUTO - ON

T PROG/MAN

PROG

MAN

RESET

Clears all memory

To Test Thermostat

WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS VALVE OR SYS-

TEM CONTROL TO TEST OPERATION. THIS WILL DAMAGE THE THERMOSTAT AND VOID

YOUR WARRANTY.

CAUTION: DO NOT SWITCH SYSTEM TO COOL IF THE TEMPERATURE IS BELOW 50°F (10°C). THIS

CAN DAMAGE THE AIR CONDITIONING SYSTEM AND CAUSE PERSONAL INJURY.

1. Place the COOL/OFF/HEAT

switch into the COOL position

2. Press the ✞button until the temperature

setting is at least 3 degrees below the room temperature. The air

conditioning system should turn on within a few seconds.

NOTE: W

HILE IN THE

OOL MODE

, (

COOL AND HEAT FOR SINGLE STAGE HEAT PUMP SYSTEM

)

ONCE THE THERMO

STAT TURNS THE SYSTEM OFF

A BUILT

IN DELAY KEEPS THE COMPRESSOR FROM TURNING ON FOR ABOUT

MINUTES

HIS PROTECTS THE COMPRESSOR

. N

O ADDITIONAL TIME DELAY RELAY

(

DELAY ON BREAK

)

IS NECESSARY

. T

O OVERRIDE

THE

MINUTE DELAY FOR INSTALLATION

PRESS

RESET. T

HIS WILL ERASE THE DELAY AS WELL AS ALL PROGRAMMING

3. Put the COOL-OFF-HEAT switch into

the OFF position. The air conditioning

system should turn off. The fan may

continue to run for a short period of time.

4. Put the COOL-OFF-HEAT switch

into the HEAT position.

5. Press the button until the temperature setting is at least

3 degrees above room temperature. The heating system should turn

on. The fan may not turn on immediately, depending upon the fan

delay built into the furnace.

6. Put the COOL-OFF-HEAT switch

into the OFF position. The heating

system should turn off. Once again,

the fan may have a delay.

7. Put the AUTO-ON switch

to the ON position. The blower

fan should turn on.

8. Put the AUTO-ON switch

to the AUTO position. The blower

fan should turn off.

COOL-OFF-HEAT

AUTO - ON

Troubleshooting

SYMPTOM REMEDY

Thermostat does not Check Wiring

turn on system (See INSTALLATION)

Check fuse. Replace with 3 amp

fuse if fuse has opened.

Thermostat turns on and off Increase Temperature Differential

too frequently. (See PROGRAMMING).

Display is blank, flashing or Replace batteries.

constant “LO BAT.”

System fan does not Move fan option switch to either

operate properly. gas or electric, to match system.

(See INSTALLATION).

Time shown on display is not Change time of day setting.

the current time of day. (See PROGRAMMING)

Thermostat does not Thermostat in MANUAL mode

follow program. (See PROGRAMMING)

Thermostat may not have been

programmed in HEAT or COOL

position. Verify program.

Check AM/PM indicators at time

of day and programmed time

changes. (See PROGRAMMING)

Verify program and day of week

is correct. (See PROGRAMMING).

Thermostat does not advance To view or change day of week

day of week use method on page 5.

If problems with thermostats cannot be solved, call:

Technical Support: (800) 445-8299

Monday-Friday 7:30-5:30 CST

For after hours service, a 24-hour

Automated Help Line is available

For warranty returns, send thermostat, shipping prepaid to:

MAPLE CHASE COMPANY

Warranty Department

2820 Thatcher Road

Downers Grove, IL 60515

Autres manuels pour 9610

Table des matières

Autres manuels Robertshaw Thermostat

Robertshaw

Robertshaw 8400 Manuel utilisateur

Robertshaw

Robertshaw RS4110 Manuel utilisateur

Robertshaw

Robertshaw 7610 Manuel utilisateur

Robertshaw

Robertshaw RS321P Manuel utilisateur

Robertshaw

Robertshaw 9851i Manuel utilisateur

Robertshaw

Robertshaw 8406 Manuel utilisateur

Robertshaw

Robertshaw SMART 2000 Manuel utilisateur

Robertshaw

Robertshaw 300 series Mode d'emploi

Robertshaw

Robertshaw 9500 Manuel utilisateur

Robertshaw

Robertshaw RS8210 Manuel utilisateur

Robertshaw

Robertshaw RS8110 Manuel utilisateur

Robertshaw

Robertshaw 200 Series Guide d'installation et d'utilisation

Robertshaw

Robertshaw RS9110 Manuel utilisateur

Robertshaw

Robertshaw 8601 Manuel utilisateur

Robertshaw

Robertshaw 300-224 Caractéristiques techniques

Robertshaw

Robertshaw 9720 Manuel utilisateur

Robertshaw

Robertshaw 9400 Manuel utilisateur

Robertshaw

Robertshaw 9600 Manuel utilisateur

Robertshaw

Robertshaw RS9220 Manuel utilisateur

Robertshaw

Robertshaw 8625 Manuel utilisateur

Robertshaw

Robertshaw 9600 Manuel utilisateur

Robertshaw

Robertshaw smart 3000 Manuel utilisateur

Robertshaw

Robertshaw C8601 Manuel utilisateur

Robertshaw

Robertshaw 900 series Manuel

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
