Robertshaw 8406 Manuel utilisateur

DIGITAL

NON-PROGRAMMABLE

THERMOSTAT

8406

ELECTRIC

NeW

1 Cool

User's Manual

Quick Start

Installation

Application

The Robertshaw 8406 is a single-stage thermostat designed to control

24 VAC cooling systems.

Features

• Low battery indicator

• Large backlit display

• Adjustable temperature differential: 1°F to 3.0°F (0.5°C to 1.5°C)

• Compressor short cycle protection

• Accuracy within ±1°

• Zone system compatible as a master thermostat

• Permanent memory retention

• Fahrenheit/Celsius display option

• Adjustable from 45°F to 90°F (7°C - 32°C)

• Quick wire terminal block

110-1089B

110-1089B.qxd 3/8/05 10:30 AM Page 1

WARNING:

• Always turn off power at main fuse or circuit breaker panel before

installing, removing, cleaning, or servicing thermostat.

• Read all the information in this manual before installing this thermostat.

• DO NOT CONNECT TO 120 VAC. This is a 24 VAC low-voltage

thermostat. Do not install on voltages higher than 30 VAC.

• All wiring must conform to local and national building and electrical

codes and ordinances.

• Do not short (jumper) across terminals on the gas valve or at the

system control to test installation. This will damage the thermostat

and void the warranty.

• Do not connect ground to any terminal in this unit.

Recycling Thermostat

If this thermostat REPLACES a thermostat that contains mercury,

DO NOT discard the old thermostat in the regular trash. Mercury

is harmful to humans and the environment. For this reason, do

not open, break, or crush the mercury cell. If mercury leaks from

a damaged cell, DO NOT touch or handle mercury with bare

hands. Use protective, non-absorbent gloves to place mercury

into a sealable container. Fill the container with sand or another

absorbent material and seal the container completely.

Return the mercury or mercury products, in a sealed container, to

Invensys Controls Americas or a local recycling center for proper

disposal. If you have any questions, call Robertshaw technical

support at 1-800-445-8299.

Invensys Controls Americas

28C Leigh Fisher Blvd.

El Paso, TX 79906

Attn: Mercury Recycling Center

Step 1: Replacing Existing Thermostat

Wiring Table

Old Terminal New Label Description

M,W,Rh,R5 or 5 Rh Heat transformer, hot side

V or Rc Rc Cool transformer, hot side

Y or Y6 Y1 Cooling control

F or G G Fan control relay

110-1089B.qxd 3/8/05 10:30 AM Page 2

1. Turn off power to heating and cooling system.

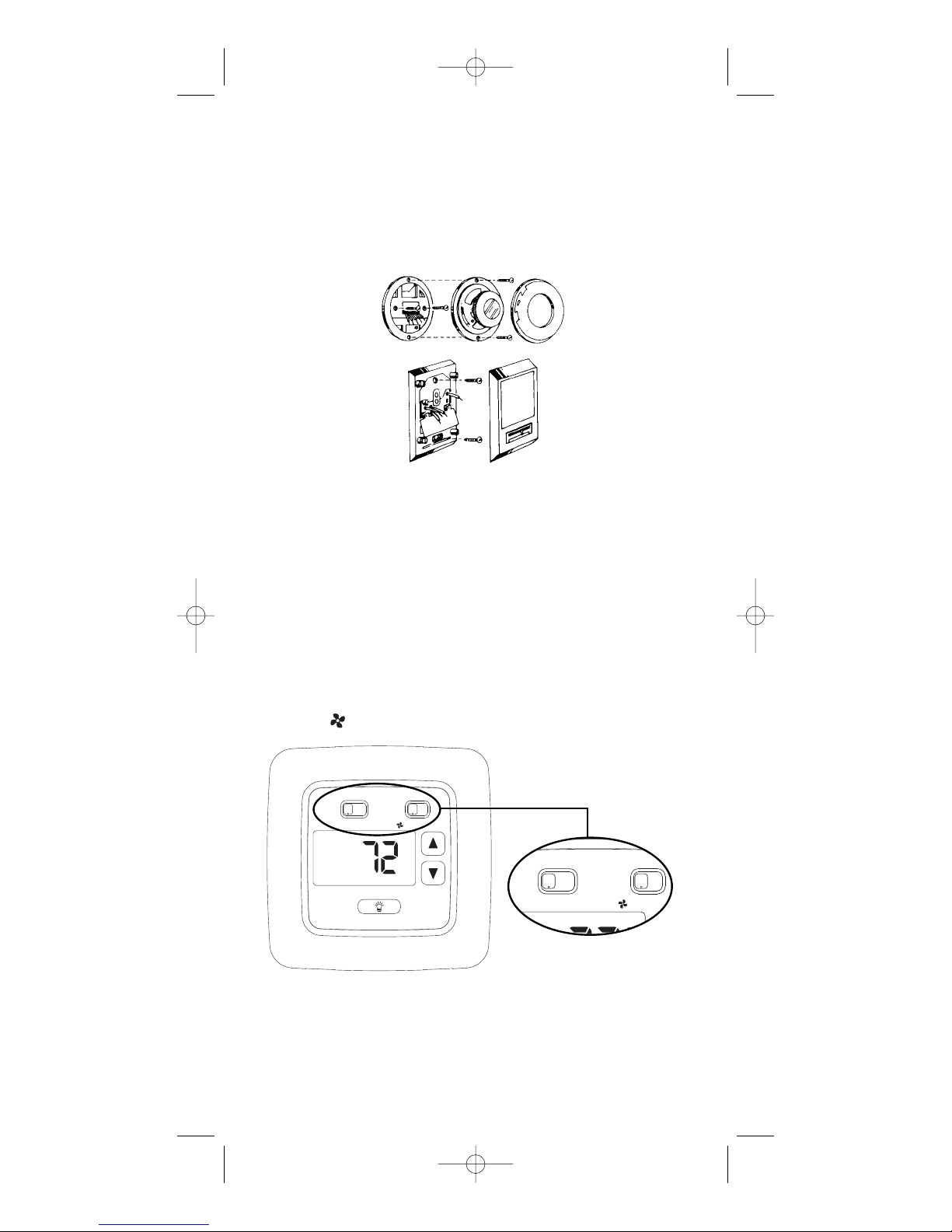

2. Remove cover from old thermostat to expose wires (Figure 1).

3. Disconnect wires one at a time from existing terminals. Use enclosed

labels to mark existing wires. Refer to cross references in the Wiring Table

if existing wiring does not directly match the labels.

4. Remove existing thermostat base from wall.

Step 2: Installing Model 8406 Thermostat

NOTE: FOR NEW INSTALLATIONS, MOUNT THERMOSTAT ON

INSIDE WALL, FIVE FEET ABOVE THE FLOOR. DO NOT

INSTALL BEHIND A DOOR, IN A CORNER, NEAR AIR

VENTS, IN DIRECT SUNLIGHT, OR NEAR ANY HEAT OR

STEAM GENERATING FIXTURES. INSTALLATION AT THESE

LOCATIONS WILL AFFECT THERMOSTAT OPERATION.

1. Turn power off to the heating and cooling systems.

2. Place OFF-COOL in OFF position (Figure 2).

3. Place AUTO-ON switch into AUTO position (Figure 2).

Figure 1

off cool auto on

Figure 2

off cool auto on

110-1089B.qxd 3/8/05 10:30 AM Page 3

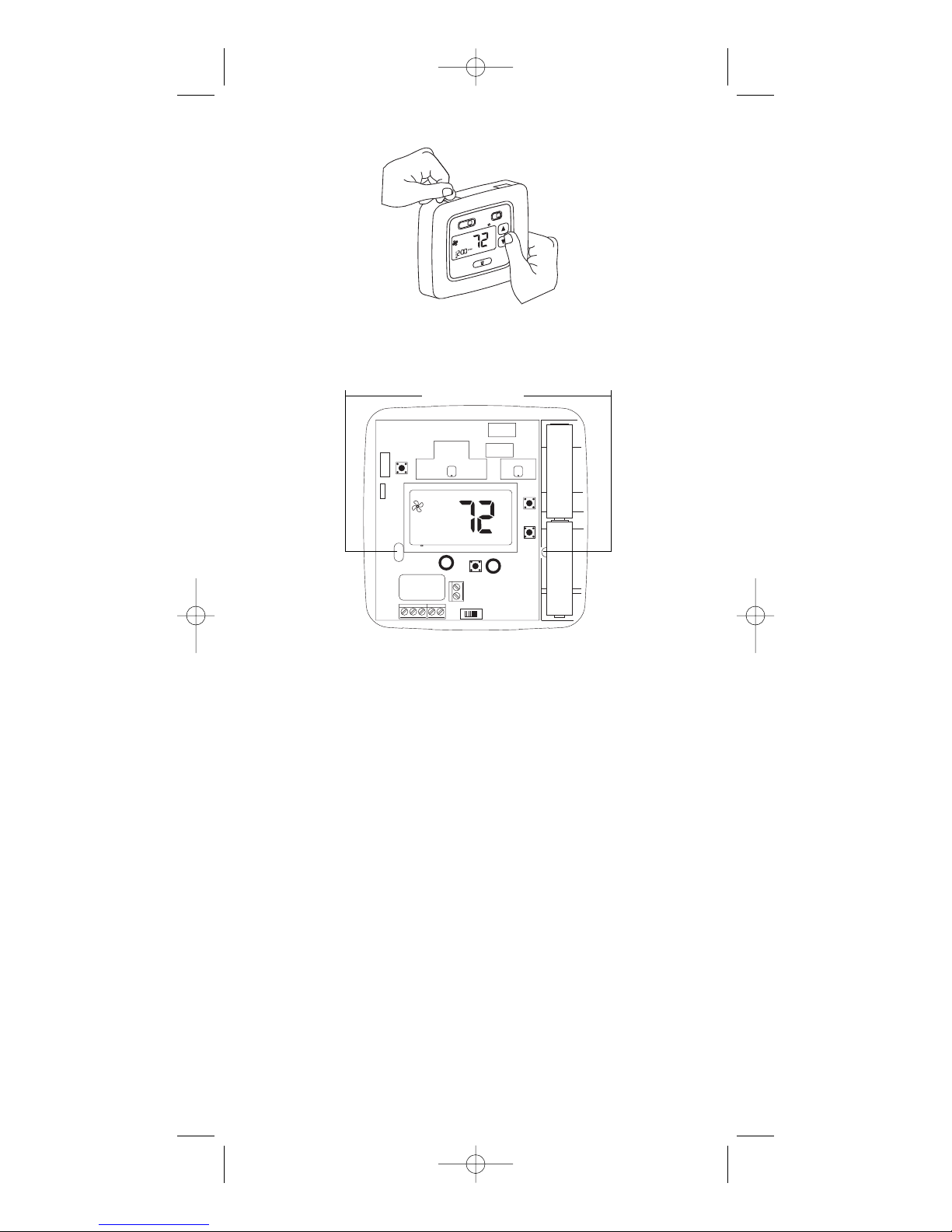

4. Remove the cover using a coin or screwdriver (Figure 3). Set aside.

5. Place thermostat against the wall at desired location. Make sure

wires will feed through opening (Figure 4) on base of thermostat.

6. Mark placement of mounting holes (Figure 4). Set base aside.

7. If mounting on drywall, tap plastic anchors into wall.

NOTE: Enclosed plastic anchors do not require a drilled hole

for drywall.

8. If mounting on a surface other than drywall, drill the marked holes

using a 3/16" (5mm) drill bit.

9. Align base with plastic anchors and feed wires through opening.

10. Secure base to wall with supplied screws. NOTE: The thermostat

will mount horizontally on a single gang junction box.

11. Strip end of wires 5/16” (8mm) if needed.

12. Terminal screws are already loose and ready for wire insertion.

Insert wires into terminal strip (Figure 4) matching the label to the

corresponding terminal (see Wiring Diagrams). Tighten screws.

heat off cool

hold

vac

prog

run/set hold

temp

clock

set

auto on

MON

Figure 3

GOB Y1W1

ELEC GAS

–

Figure 4

Mounting Holes

110-1089B.qxd 3/8/05 10:30 AM Page 4

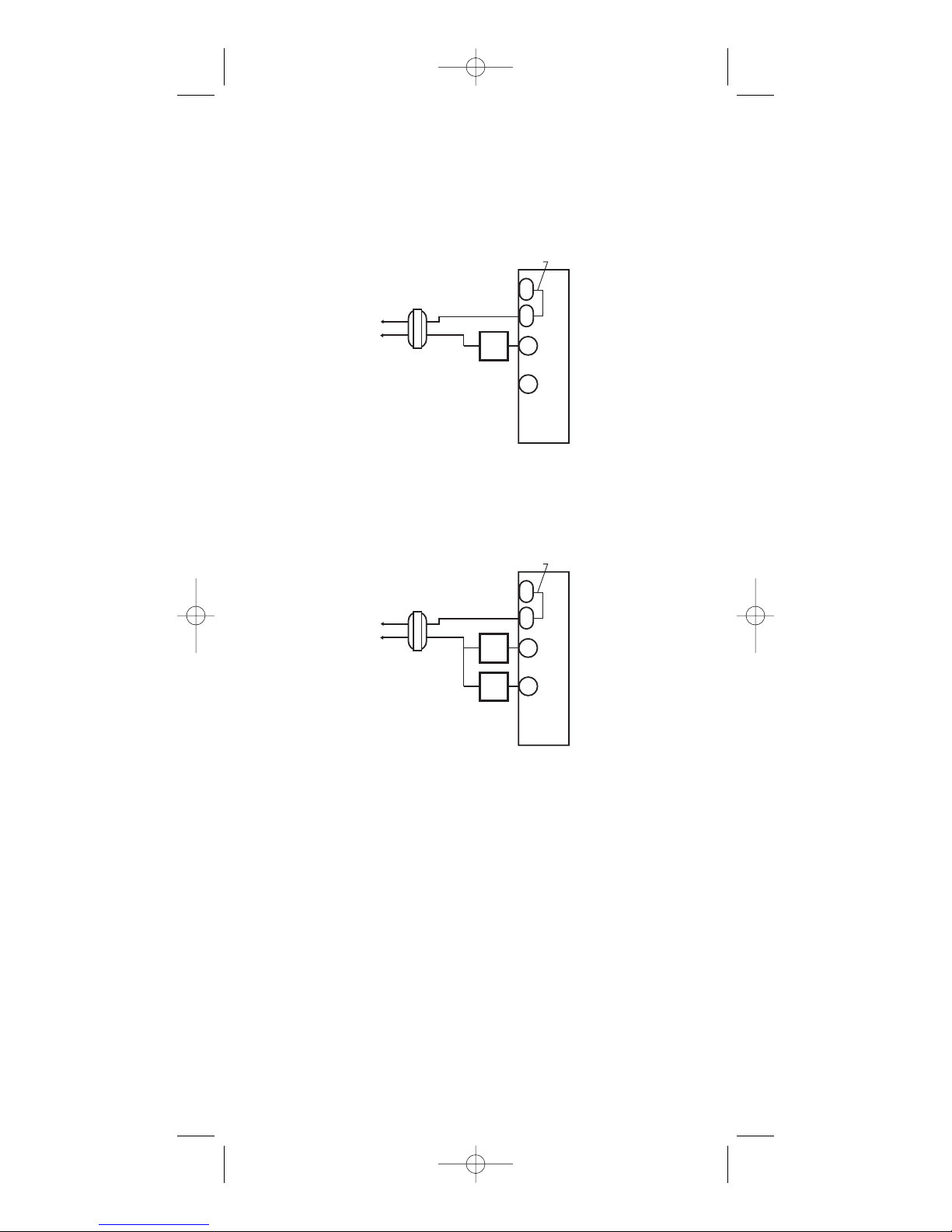

Hot

Cooling

Control

Transformer

24 VAC

120 VAC

COOL ONLY

SINGLE TRANSFORMER

2-WIRE

Factory-Installed

Jumper

Hot

Cooling

Control

Fan

Control

Transformer

24 VAC

120 VAC

COOL ONLY

SINGLE TRANSFORMER

3-WIRE

Factory-Installed

Jumper

♦Wiring Diagrams

110-1089B.qxd 3/8/05 10:30 AM Page 5

13. Make sure wire connections are secure.

14. Push excess wire back through opening.

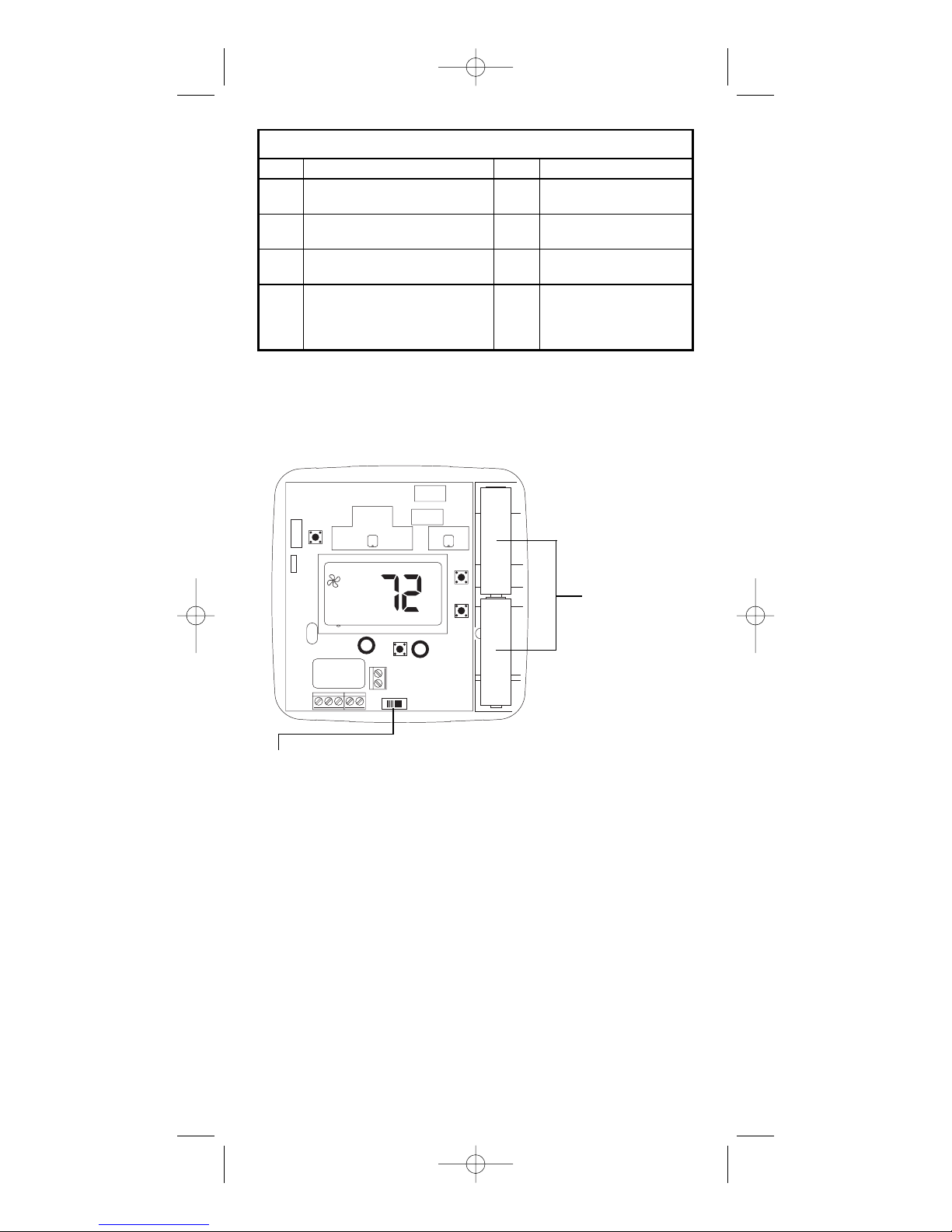

15. Set the Electric/Gas switch to ELEC (Figure 5).

16. Install two AA Energizer®brand batteries or equivalent into

battery compartment as shown (Figure 5).

17. Replace thermostat cover by snapping into place.

GOB Y1W1

ELEC GAS

–

Figure 5

TERMINAL LEGEND - 8406

TERM EQUIPMENT TO CONNECT REQ? TERMINAL FUNCTION

Rh 24VAC hot connection Yes For input of 24VAC hot

side of heat transformer

Rc 24VAC hot connection Yes For input of 24VAC hot

side of cool transformer

Y1 Compressor Connection Yes* Energizes on a call for

cooling

G Indoor fan connection Yes Energizes with Y1 & W1

terminals or with FAN

option switched to the

ON position

Correct battery

placement

ELECTRIC/GAS SWITCH

110-1089B.qxd 3/8/05 10:30 AM Page 6

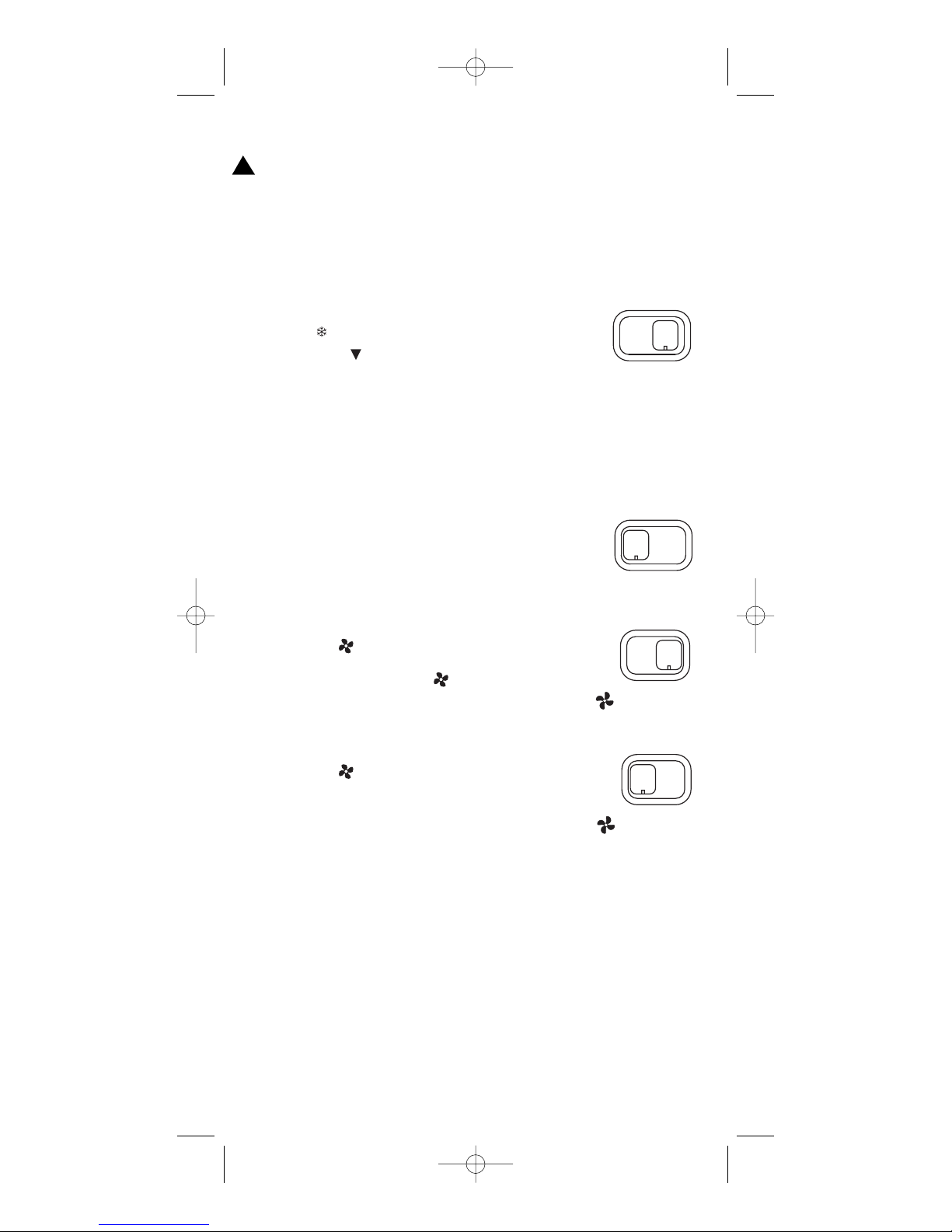

Step 3: Testing the Thermostat

WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS

VALVE OR SYSTEM CONTROL TO TEST OPERATION. THIS WILL

DAMAGE THE THERMOSTAT AND VOID YOUR WARRANTY.

CAUTION: DO NOT SWITCH SYSTEM TO COOL OR LEAVE IN COOL MODE

IF THE TEMPERATURE IS BELOW 50°F (10°C). THIS CAN

DAMAGE THE AIR CONDITIONING SYSTEM AND CAUSE

PERSONAL INJURY.

1. Place the OFF-COOL switch into the COOL position.

The will be displayed.

2. Press the button until the temperature

setting is at least 3 degrees below the room temper-

ature. The air conditioning system should turn on

within a few seconds.

NOTE: ONCE THE THERMOSTAT TURNS OFF WHEN IN THE COOL MODE,

A BUILT IN 5-MINUTE DELAY PREVENTS THE SYSTEM FROM

TURNING ON AGAIN. THIS PROTECTS THE COMPRESSOR. NO

ADDITIONAL TIME DELAY RELAY IS REQUIRED. TO OVERRIDE THE

5-MINUTE DELAY FOR INSTALLATION, PRESS THE RESET BUTTON.

3. Put the OFF-COOL switch into the OFF position.

The air conditioning system should turn off.

4. Put the AUTO-ON switch into the ON

position. The blower fan should turn on.

The display will show a .

5. Put the AUTO-ON switch into the AUTO

position. The blower fan should turn off.

off cool

auto on

110-1089B.qxd 3/8/05 10:30 AM Page 7

Step 4: Customizing the Thermostat

♦Settings

System

Cool: The thermostat controls the cooling.

Off: The heating and cooling systems are off.

Fan

Auto: Equipment controls the fan.

On: The fan operates continuously.

♦Temperature Differential

The temperature differential is factory set at 1.0°F (.5°C). This means that

whenever the room temperature changes by one degree Fahrenheit

from the temperature setting, the system will turn on. If the system turns

on too often, increase the temperature differential.

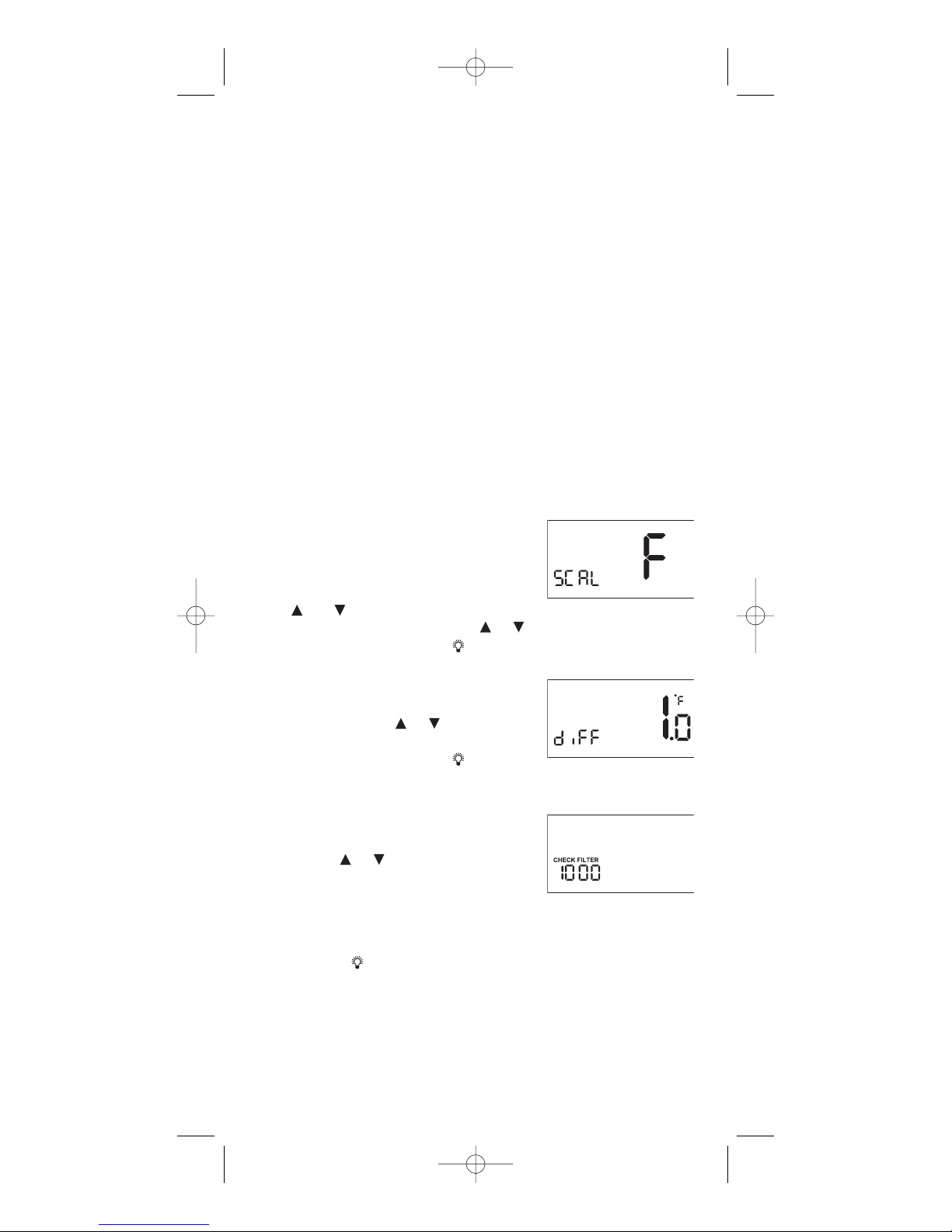

♦Changing Fahrenheit (°F) to Celsius (°C),

the Temperature Differential, and

the Filter Monitor

1. The thermostat is preset to display the

temperature in degrees Fahrenheit (US

models) or degrees Celsius (Canadian

models). The temperature display can be

changed. Press and hold both the

and buttons for three seconds. The display will flash either an F

or C. Release buttons. Press the or button to switch the display.

2. Wait five seconds or press and the display will switch to the

differential setting.

3. The display will read diFF. The tempera-

ture differential is factory set at 1.0°F

(0.5°C). Press the or button to adjust

the differential up or down.

4. Wait five seconds or press and the

display will switch to the

filter monitor setting.

5. CHECK FILTER and the length of hours for

the filter monitor will be displayed.

6. Use the or to adjust the filter timer

from 0 (OFF) to 9900 hours. NOTE: The

filter timer is based on equipment run

time. Select the length of time based on

the recommended service interval for

your filter.

7. Press the to return to normal operation.

110-1089B.qxd 3/8/05 10:30 AM Page 8

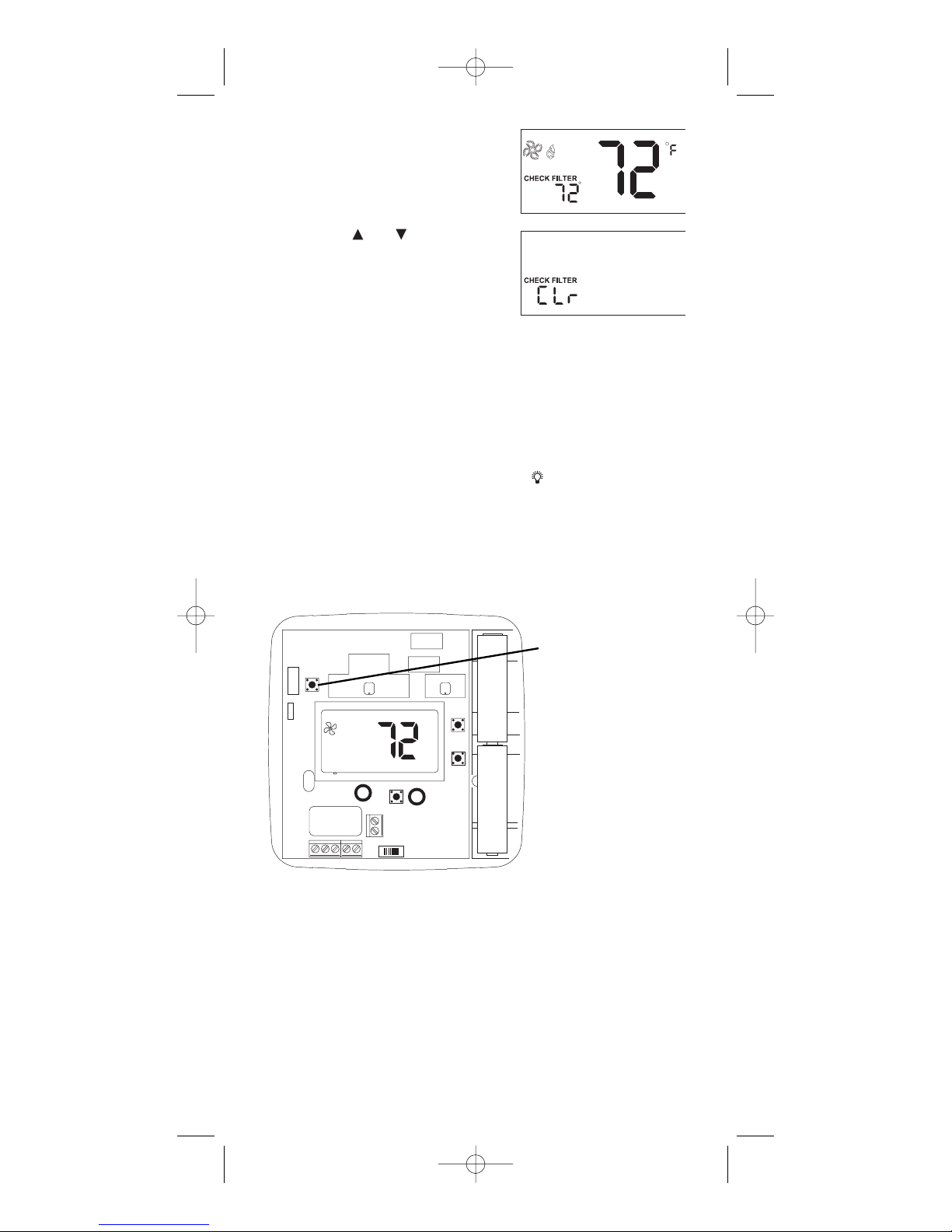

♦Check Filter Reset

Once the filter timer has expired,

CHECK FILTER will turn on and stay

on. To clear the message and reset

the timer:

1. Press the and buttons and hold

for 3 seconds. CLr will appear in the

time display.

2. Press any key to clear the message.

The display will transition to the

temperature scale display as

described in the previous section.

3. No further input is needed. Within a few seconds, the display will

return to the normal operating mode.

♦Backlit Display

This thermostat is equipped with a backlight to make night time temper-

ature adjustments quick and easy. Press the button to activate the

backlight. The backlight will turn off after about 10 seconds of inactivity.

♦Reset

To reset the thermostat press the RESET button located above the upper

left corner of the display.

GOB Y1W1

ELEC GAS

–

RESET BUTTON

110-1089B.qxd 3/8/05 10:30 AM Page 9

Step 5: Troubleshooting

Symptom Remedy

Thermostat does not turn on system. Check wiring (see Installation

section).

Thermostat turns system on and

off too frequently.

Increase temperature differential

(see Changing the Temperature

Differential section).

Display is blank, flashing or

constant LO BATT.

Replace batteries.

Thermostat does not display

proper room temperature.

Check F/C (Fahrenheit/Celsius)

setting. See Changing Fahrenheit

(F) to Celsius (C).

Note: Although the thermostat has a low battery indicator, replace the

batteries once a year to prevent leakage and to prevent the ther-

mostat and heat/cooling system from shutting down due to lack

of battery power in the thermostat.

If problems with thermostat cannot be resolved, call:

Technical Support: (800) 445-8299

Monday-Friday 7:30 AM - 5:30 PM CST

For after hours service, a 24-hour automated help line is available.

110-1089B.qxd 3/8/05 10:30 AM Page 10

Table des matières

Autres manuels Robertshaw Thermostat

Robertshaw

Robertshaw RS10420T Manuel utilisateur

Robertshaw

Robertshaw RS6000 Manuel utilisateur

Robertshaw

Robertshaw 9600 Manuel utilisateur

Robertshaw

Robertshaw RS7210 Mode d’emploi

Robertshaw

Robertshaw 9701i Manuel utilisateur

Robertshaw

Robertshaw 9600 Manuel utilisateur

Robertshaw

Robertshaw RS456-WIFI Manuel utilisateur

Robertshaw

Robertshaw 9610 Manuel utilisateur

Robertshaw

Robertshaw RS8110 Manuel utilisateur

Robertshaw

Robertshaw 9801I Manuel utilisateur

Robertshaw

Robertshaw 9560 Manuel utilisateur

Robertshaw

Robertshaw RS8110 Manuel utilisateur

Robertshaw

Robertshaw 9801i2 Manuel utilisateur

Robertshaw

Robertshaw DSL-520P Manuel

Robertshaw

Robertshaw RS332NE Manuel utilisateur

Robertshaw

Robertshaw RS9220 Manuel utilisateur

Robertshaw

Robertshaw 200 Series Guide d'installation et d'utilisation

Robertshaw

Robertshaw 8405 Manuel utilisateur

Robertshaw

Robertshaw 300-224 Caractéristiques techniques

Robertshaw

Robertshaw 9820I Manuel utilisateur

Robertshaw

Robertshaw RS4110 Manuel utilisateur

Robertshaw

Robertshaw RS8210 Manuel utilisateur

Robertshaw

Robertshaw smart 3000 Manuel utilisateur

Robertshaw

Robertshaw 300 series Mode d'emploi

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
