Robertshaw RS8110 Manuel utilisateur

RS8110

Operation Manual

Table of Contents Page

Table of Contents 1

Thermostat Operation 2-3

Thermostat Quick Reference 4-6

Adjusting the Temperature

Differential/Swing 7

Installation Settings 8

Terminal Designations 9

RS8110

Equipment damage hazard.

Do not operate the cooling

system if the outdoor

temperature is below 50°F

(10°C) to prevent possible

compressor damage.

Caution

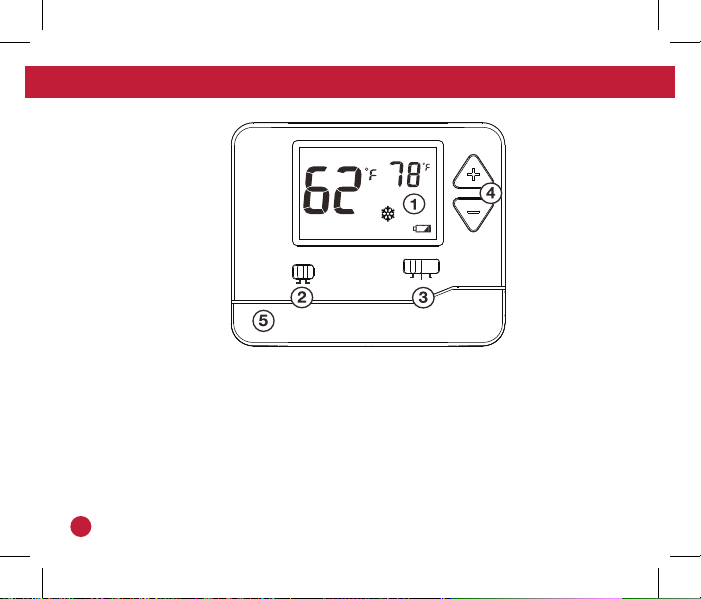

a LCD Display

b Fan Switch

c System Switch

d Temperature Setpoint Buttons

e Easy change battery door

Cool

HEAT

SYSTEM

FAN

AUTO

Room Set At

COOL OFF

THERMOSTAT OPERATION

a LCD Display

See page 6 for details about

this display read out.

b Fan Switch

Select ON or AUTO. ON

will run the fan continuously.

AUTO will turn the fan on only

in a call for heating or cooling.

c System Switch

Selects the operation mode

on your HVAC system.

Selecting HEAT turns on

the heat mode. Selecting

COOL turns on the cool

mode. Selecting OFF turns

both heating and cooling off.

d Temperature Setpoint Buttons

Press the + or - buttons to

select the desired room

temperature.

e Easy change battery door

See page 4 for details.

THERMOSTAT OPERATION

When the low battery icon appears replace your

2x AAA batteries immediately. Failure to do so may result

in your heating and cooling system becoming inoperable.

Freezing or overheating can occur.

Replace with

2xAAA Alkaline

Batteries. High

quality Alkaline

batteries are

recommended.

Caution:

Battery Door Information

Use the nger bevel on

the lower portion of the

thermostat to open the

easy access battery door.

1.5V AAA 1.5V AAA

THERMOSTAT QUICK REFERENCE

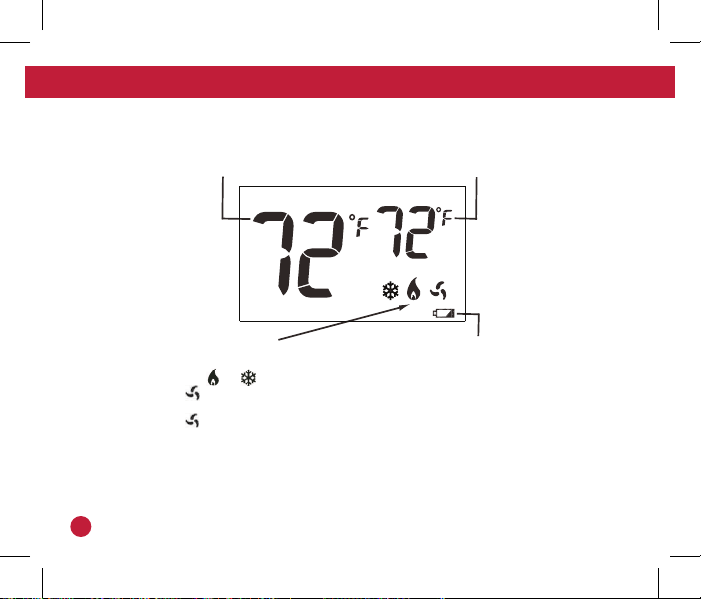

The low battery indicator is displayed when the 2x AAA

batteries need to be replaced.

Important

THERMOSTAT QUICK REFERENCE

Low Battery

Indicator:

Replace batteries

when indicator is

shown.

NOTE: The compressor

delay feature is active if

these icons are ashing.

The compressor will not

turn on until the 5 minute

delay has elapsed.

The ,

or icon will display

when the COOL, HEAT

or FAN is on.

System Operation

Indicators:

Room Temperature:

Indicates the current

room temperature.

Room Set At

Setpoint Temperature:

Displays the selected

setpoint temperature.

THERMOSTAT QUICK REFERENCE

HEAT DIFFERENTIAL OR SWING

Select HEAT with the system switch, hold down the + and - buttons together

for 3 seconds to access the HEAT SWING setting. Use the + or - key to adjust

the swing from ±0.2°F to ±2°F. Wait approximately 15 seconds or slide the

system switch to return to normal operation

COOL DIFFERENTIAL OR SWING

Select COOL with the system switch, hold down the + and - buttons together

for 3 seconds to access the COOL SWING setting. Use the + or - key to

adjust the swing from ±0.2°F to ±2°F. Wait approximately 15 seconds or slide

the system switch to return to normal operation.

ADJUSTING THE TEMPERATURE DIFFERENTIAL

Select OFF with the system switch, hold down the + and - buttons together

for 3 seconds to access the CALIBRATION setting. Use the + to adjust the

temperature from -4°F to +4°F.

Then press - to access the F(Fahrenheit) or C(Celsius) setting, use + to

select.

Press - again to access the DELAY selection, the compressor delay will not

allow the compressor to be turned on for 5 minutes after the last time the

compressor was on. Use the + to select ON or OFF (ON: the Y terminals will

turn off for at least 3 minutes). Wait approximately 15 seconds or slide the

system switch to return to normal operation.

INSTALLATION SETTINGS
