RIKA DOMO MultiAir Manuel utilisateur

Assembly Instructions

DOMO

MULTIAIR

Option for first convection fan

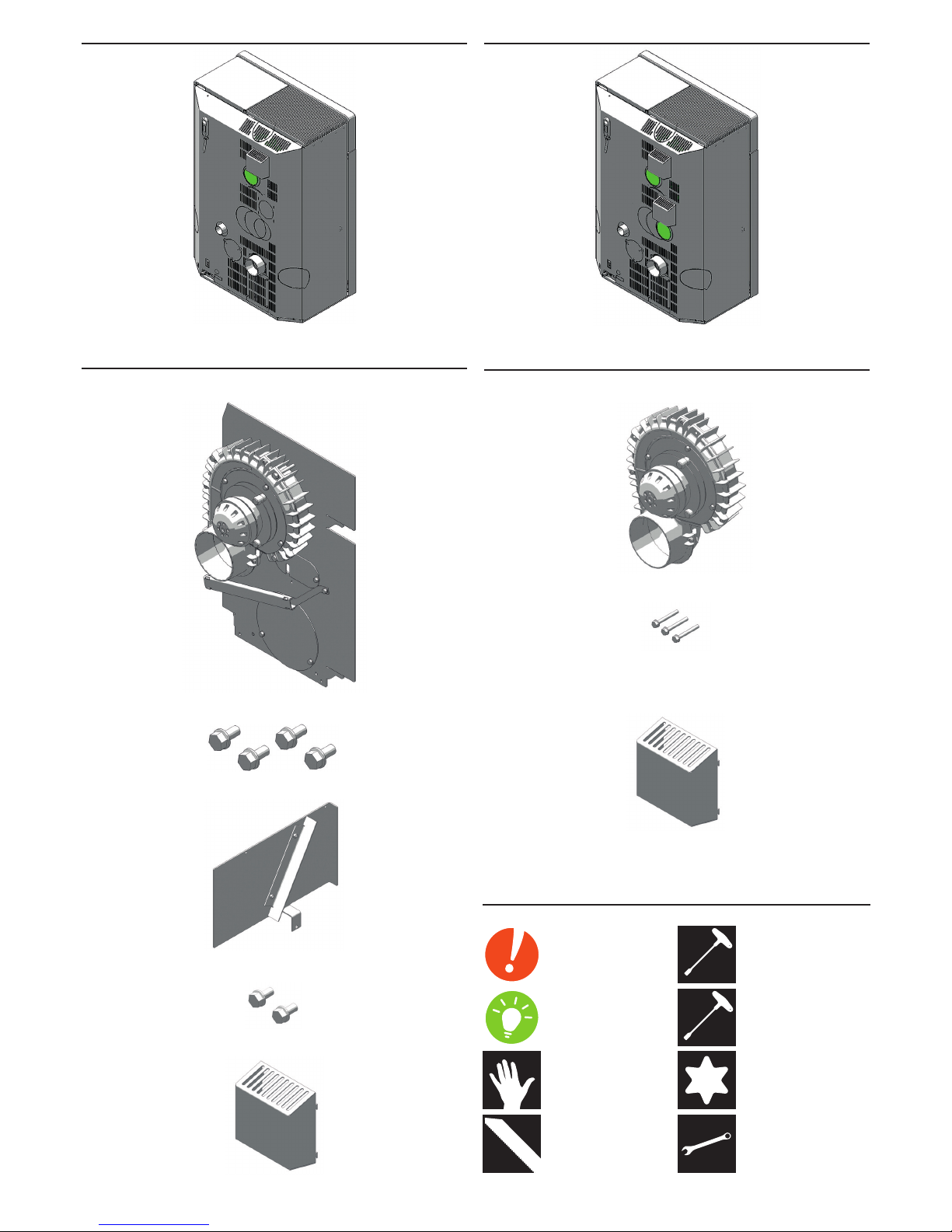

Scope of Delivery E15632

B17528 Support plate including convection fan compl.

4 x N106472 Duo Taptite

LB00630 Air deﬂector complete

2 x N106472 Duo Taptite

L02724 Motor cover

Supplement for second convection fan

Scope of Delivery E15633

B17527 Convection fan complete

3 x N112040 Duo Taptite

L02724 Motor cover

Explanations to symbols

...Important note

...Hex #8

...Useful tip

#10

...Hex #10

...Manually

#25

...Hexalobular

T25

...Hacksaw ...Spanner #13

#13

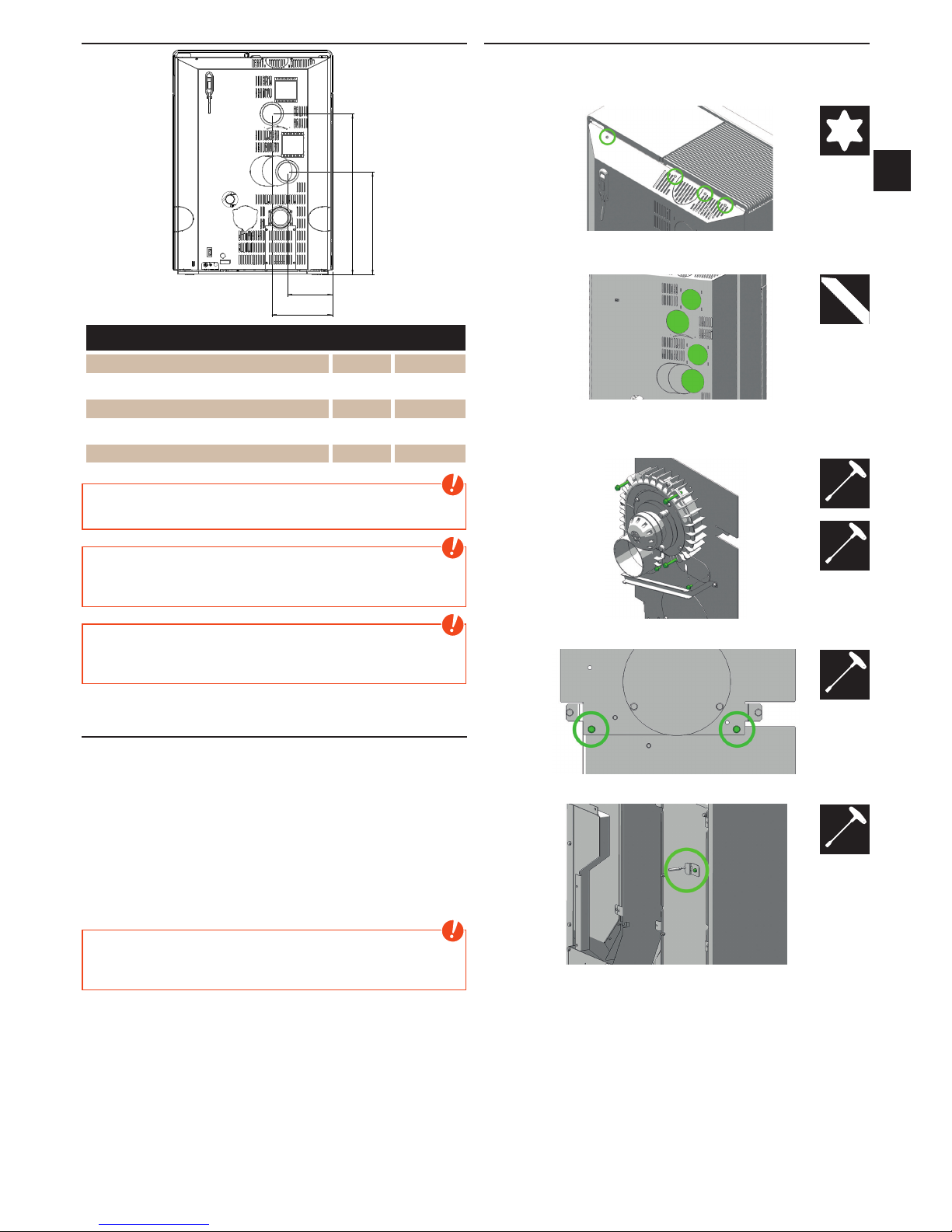

Dimensions

K1-H

K2-H

K2-S

K1-S

Convection Air Connection

Ø Diameter [mm] 100

K1 - H Connection Height [cm] 80

K1 - S Side Distance [cm] 30

K2 - H Connection Height [cm] 51

K2 - S Side Distance [cm] 22

Note

Only work on the unit when the mains plug has been disconnected and the

stove has cooled down completely.

Note

During assembly / dismantling do not allow objects (screws etc.) to fall into

the pellet container – they can block the screw conveyor and damage the

stove.

Note

During any conversion work, take particular care of your ﬁngers and any

panels and stove attachments. Select soft bases to prevent scratches to your

living space furniture and stove panels.

General information

QThe convection air amount and temperature is designed for heating one or,

if two fans are installed, two additional rooms.

QNote the regional speciﬁc ﬁre safety regulations and clarify the connection

situation with the competent authority.

QThe max. temperature of the convection air is 180° C at the air outlet.

QThe convection air should be as short as possible.

QKeep the number of deﬂections as small as possible.

Note

Please pay attention to the national and country-speciﬁc building and ﬁre

regulations when connecting the convection air pipes. Installation and

assembly must be performed by a trained specialist only.

The option MultiAir is basically only with the lower ﬂue pipe connections (rear

/ rear center / side) possible. If only one convection fan is mounted, it can be

combined with the increased rear connections. In this case, leave out the lower

air deﬂector.

Mounting Convection Fan

Prepare the following at the stove:

Loosen the 4 screws on the rear panel. The rear panel tilts backwards, then

you can lift it off.

Depending on the desired option cut off the two upper markers for one fan, for

the second fan in addition the two bottom markers.

The pre-assembled fan unit must be disassembled for installation. Loosen the

screws and remove the entire fan housing with motor and the oval sensor cover.

Remove the cable cover which is secured with cable ties.

Now mount the lower air deﬂector on the support plate of the fan.

Loosen the screw of the ﬂame sensor and remove it.

#25

#10

Loosen the marked screw from the stove. This is used to secure the air

deﬂector below.

Then mount the support plate with 5 screws to the stove.

Thread the ﬂame sensor through the oval hole in the support plate and ﬁx it

with the screw.

Mount the ﬂame sensor cover to this support plate. The ﬂame sensor cable

must be routed through the slotted cover to the outside. Then screw on the fan

housing with 3 screws.

Tip

If you install both convection fans, remove now the lower round cover and the

cable channel and ﬁt here the second fan housing.

Mount the cable channel again after screwing the second convection fan.

Insert the wires from ﬂame sensor and fan in the cable channel and put on the

lid.

To ﬁx this and to avoid vibrations, twist the two tabs (located diagonally) with

pliers.

Note

All cables must be protected from heat. Improper installation can damage

your stove and void your warranty.

Run the cable further through the two recesses at the heat deﬂectors.

Run the cable between the here shown transparent supply air duct and the

conveyor trough back to the green marked vertical cable duct.

#10

Loosen the nut and the ring from the capacitor.

Attach the condenser (with 2 blowers both capacitors) in the free slots behind

the cable channel.

In the cable channel are the three pin connector M3 for the upper convection

fan 1 and the plug M4 for the lower convection fan 2. Insert the correct cable

and put all cables and plugs back into the cable channel.

Install the rear wall of the stove. The fan motor must be covered with the motor

cover. This is only hanged in. If the cover causes noise due to vibration, the

location lugs can be twisted with pliers.

Install the side cover of the stove.

Note

Operation without a cover is not allowed for security reasons. Disregard voids

your warranty and no liability is accepted for damage.

Now test the function of the fan. Connect the power cord back in and select the

Setup menu / Settings submenu Convection Fan.

There are both fans to choose, even if only one was built in. Make your settings.

At the menu Info - Outputs the item Convection fan shows whether the fan

is activated or not.

#13

Technical and design changes, as well as typesetting and printing errors reserved

RIKA Innovative Ofentechnik GmbH

4563 Micheldorf /Austria, Müllerviertel 20

Telefon: +43 7582 686 - 41, Fax-DW: 43

E-Mail: [email protected]

RIKA.AT

Z36198_Domo_multiAir_DE_FR_IT_EN_NL | 12.01.2016
