Ricoh Pro C5200 Series Guide d'installation

2Throughput

CIP Training

Pro C5200 series

CIP Training Pro C5200 series

Throughput

1. ADF

Lower the ADF over originals placed on the exposure glass.

If you load a stack of originals in the ADF, the ADF will automatically feed the originals

one by one.

The ADF scans both sides of an original simultaneously.

2. Exposure glass Place originals face down here.

3. Control panel

4. Front cover Open to change toner cartridges.

5. Drawer Pull out the drawer when a paper jam occurs.

6. Paper trays (Trays 1–3)

7. Lower front cover Open to change the waste toner bottle.

8. Main power switch

To operate the machine, the main power switch must be on. If it is off, open the main power

switch's cover and turn the switch on.

Startup and Shutdown.

CIP Training Pro C5200 series

Throughput

1. Attention light

2. ADF's extender

Pull this extender to support large paper.

3. Paper guides

When loading paper in the bypass tray, align the paper guides ﬂush against the

paper.

4. Extender

Pull this extender out when loading sheets larger than A4 in the bypass tray.

5. Bypass tray

Use to copy or print on transparencies, adhesive labels, translucent paper, and

paper that cannot be loaded in the paper trays.

6. Upper right cover

Open this cover when a paper jam occurs.

7. Vents

Prevent overheating.

Throughput

CIP Training Pro C5200 series

• Do not push the main power switch repeatedly.

• When you push the main power switch, wait at least 10 seconds after it is

conﬁrmed that the main power indicator has lit up or gone out.

• If the main power indicator does not light up or go out in 5 minutes after you

push the main power switch, contact your service representative.

The main power switch is on the top left of the machine. When this switch is turned on,

the main power turns on and the main power indicator on the right side of the control

panel lights up. When this switch is turned off, the main power turns off and the main

power indicator on the right side of the control panel goes out. When this is done,

machine power is off.

Conﬁrm how much power the options draw, and then plug them into an outlet that is

nearby but separate from the outlet that the main machine is plugged into.

Note: This machine automatically enters Fusing Unit Off mode, Low Power mode,

or Sleep mode if you do not use it for a while.

Turning On the Main Power

1. Make sure the power cord is ﬁrmly plugged into the wall outlet.

2. Open the main power switch cover, and then push the main power switch. The main

power indicator goes on.

Throughput

CIP Training Pro C5200 series

• After you switch the main power on, a screen may appear to indicate that the

machine is initializing. Do not switch the power off during this process. Initialization

takes about 18 minutes. However, the time for initialization may differ depending on

which options are installed on the machine.

• If the machine does not turn on even if you press the main power switch, open the front

left cover and make sure that the AC power switch is turned on.

• Application icons appear on the [Home] screen as the applications start running.

Turning Off the Main Power

• Do not turn off the power while the machine is in operation.

• Do not hold down the main power switch while turning off the main power.

Doing so forcibly turns off the machine’s power and may damage the hard disk or

memory and cause malfunctions.

1. Open the main power switch cover, and then push the main power switch.

The main power indicator goes out. The main power turns off automatically

when the machine shuts down. If the screen on the control panel does not

disappear, contact your service representative.

Saving Energy

This machine has the following energy saving functions. Fusing Unit Off mode

If you do not use the machine for a certain period after an operation, the machine

makes a clicking sound and enters Fusing Unit Off mode.

When the machine is in Fusing Unit Off mode, the display is on but the fusing unit

heater is off to save energy. In this mode, you can change the machine's settings on the

control panel. However, the machine must exit this mode to print.

You can change the amount of time that the machine waits before switching to Fusing

Unit Off mode under [Fusing Unit Off Mode (Energy Saving) On/Off]. For details, see

"System Settings", Device Management.

To exit Fusing Unit Off mode, start print jobs.

The time required to return from Fusing Unit Off mode and resume printing is as long as

the time required for warm-up time. For details about the warm-up time.

Throughput

CIP Training Pro C5200 series

Low Power mode

If you do not use the machine for a certain period after an operation, the display will

turn off and the machine goes into Low Power mode. The machine uses less electricity in

Low Power mode.

You can change the amount of time that the machine waits before switching to Low

Power mode under [Low Power Mode Timer]. For details, see "System Settings", Device

Management.

You can change the machine's settings to enter Low Power mode when you press the

[Energy Saver] key. For details, see "System Settings", Device Management.

To exit Low Power mode, do one of the following:

• Press the [Check Status] key

Sleep mode

If the machine remains inactive for a speciﬁed period or the [Energy Saver] key is

pressed, it enters Sleep mode to further reduce the electricity it consumes. For details,

see "System Settings", Device Management.

When the machine is in Sleep mode, only the [Energy Saver] key and the

[Check Status] key are usable. The machine can print jobs from computers.

You can change the amount of time that the machine waits before switching to

Sleep mode under [Sleep Mode Timer]. For details, see "System Settings", Device

Management.

To exit Sleep mode, do one of the following:

• Press the [Energy Saver] key

• Press the [Check Status] key

• When the machine is in Low Power mode, the [Energy Saver] key is lit. In Sleep

mode, the [Energy Saver] key ﬂashes slowly. In Fusing Unit Off mode, the

[Energy Saver] key is not lit.

• The energy saving functions will not operate in the following cases:

• When ﬁxed warm-up is in progress

• When operations are suspended during printing

• When a warning message appears

(The machine enters Fusing Unit Off mode unless the cover is open.)

• When paper is jammed

(The machine enters Fusing Unit Off mode except when the cover is open.)

• When the Data In indicator is lit or ﬂashing

Adding/Replacing Toner bottles

Simply follow the on screen prompts for toner replenishment.

Throughput

CIP Training Pro C5200 series

• Always replace the toner cartridge when a notication appears on the machine.

• Fault may occur if you use toner other than the recommended type.

• When adding toner, do not turn o the main power. If you do, settings will be lost.

• Store toner where it will not be exposed to direct sunlight, temperatures above 35°C

or high humidity.

• Place the toner cartridge on a at surface with its opening facing up.

• Do not shake the toner cartridge with its mouth down after removing it. Residual

toner may scatter.

• Do not repeatedly install and remove toner cartridges. This will result in toner

leakage.

Important

Replacing Waste Toner Bottle.

Simply follow the on screen instructions for replacing the waste toner bottle.

Throughput

https://www.ricoh.com.au/support/my-device/recycle

Recycle: Ricoh consumable recycling

Our consumable recycling program is free to our customers as part of our goal to reach zero

waste-to-landll. Setting the industry benchmark, the program has recycled over 1,104 tonnes

of toner cartridges. The program includes a free pickup service for qualifying customers and

a Reply Paid return service.

CIP Training Pro C5200 series

• Waste toner bottles cannot be re-used.

• Before removing the waste toner bottle from the machine, spread paper or some

other material around the area to keep toner from dirtying your workspace.

• When removing the waste toner bottle, do not touch the inside of the machine.

• Be careful to not allow the toner to leak from the waste toner bottle when you

remove it.

• Carefully pull the waste toner bottle out horizontally when you are replacing it.

• Do not use a waste toner bottle that has not been used for a long time.

• Take care not to drop the waste toner bottle.

• Make sure the waste toner bottle is fully inserted. If it is not, toner will leak inside

the machine.

• We recommend purchasing and keeping a spare waste toner bottle on hand since

waste toner bottles are consumable items.

• Be sure to remove the tape that is attached to the new waste toner bottle. If you

install the new waste toner bottle without removing the tape, the machine will not

operate correctly, causing a malfunction.

• When removing the tape, hold the cap with your ngers not to drop the cap.

Important

Replace the waste toner bottle if:-

“ Waste Toner Bottle is full. Replace Waste Toner Bottle.” appears on the display.

• When the “ Waste Toner Bottle is almost full.” appears on the display, the

waste toner bottle should be replaced soon. Prepare a new waste toner bottle.

• Your service representative can replace the waste toner bottle if it is included in

your contract. For details, contact your local dealer or service representative.

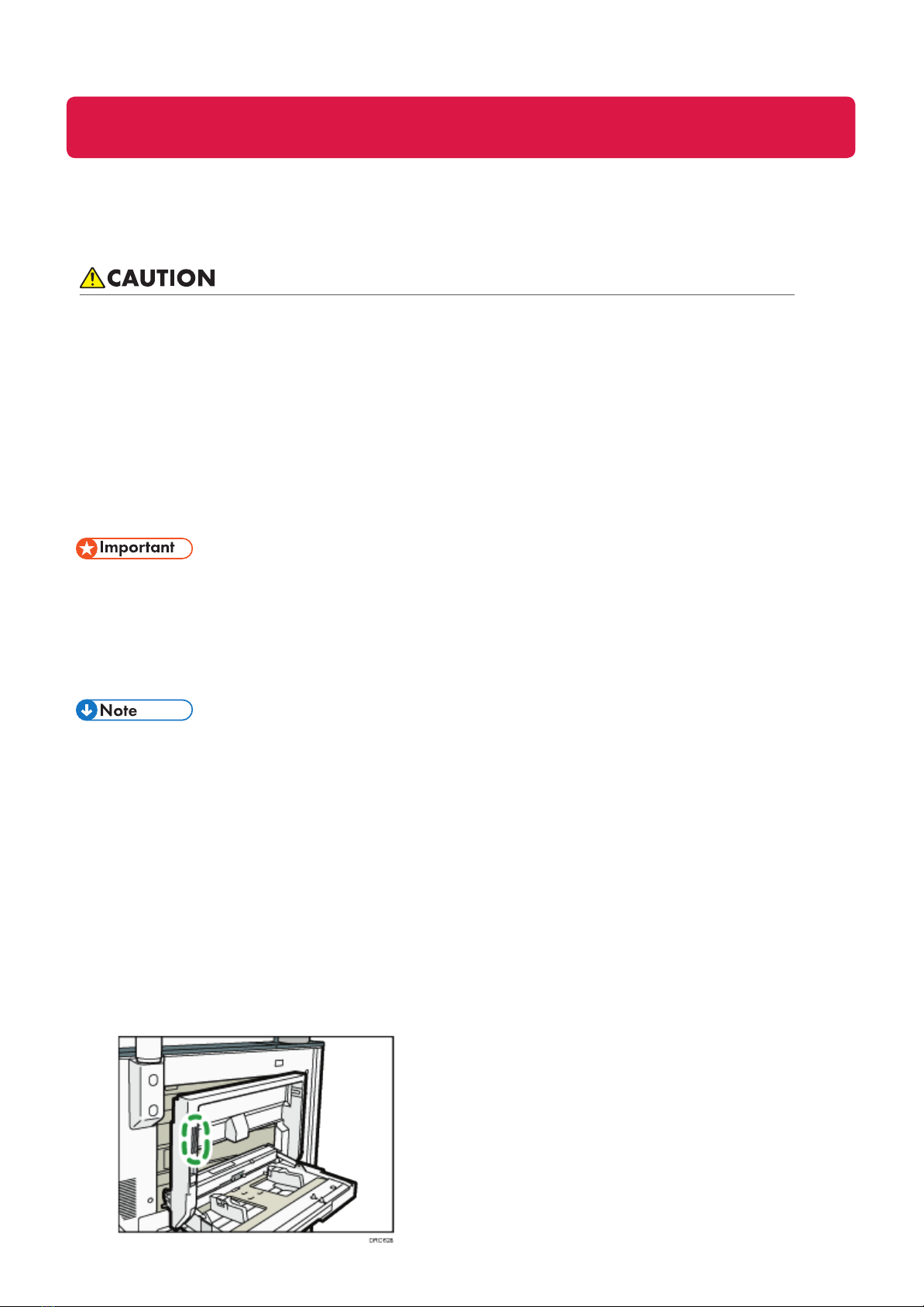

Clearing Paper Misfeeds.

Throughput

CIP Training Pro C5200 series

The inside of the machine could be very hot. Do not touch the parts with a label indicating the

"hot surface." Otherwise, an injury might occur.

Some of this machine's internal components get very hot. For this reason, take care when

removing misfed paper. Not doing so could result in burns.

Keep your hands clear of the booklet ﬁnisher tray when removing misfed paper, pulling out or

pushing in the ﬁnisher's staple unit. You can trap and injure your ﬁngers if you do not.

When removing jammed paper, make sure not to trap or injure your ﬁngers.

• When removing paper misfeeds, do not turn off the power. If you do, the

conﬁgured functions and values will be lost.

• To prevent paper misfeeds, do not leave any torn scraps of paper inside

the machine.

If a detailed removal instruction appears on the right of the screen, follow it.

You can also use the procedure indicated in the [Check Status] screen to remove jammed paper.

When a misfeed occurs inside the machine, the lamp on the center of the drawer ﬂashes and

the drawer opens automatically. Remove the jammed paper by following the procedures

indicated in the animation that appears on the screen.

If coated paper frequently becomes jammed and causes "U" to appear, contact your service

representative.

When you close the upper right cover of the machine while the bypass tray is closed, be sure to

push the mark on the bypass tray, not the upper right cover.
