Ricoh Aficio SG 3110DN Manuel utilisateur
DO NOT INSTALL THE RICOH (OEM) INKS THAT WERE PROVIDED WITH THE PRINTER.
DO NOT POWER ON THE PRINTER BEFORE INSTALLING SAWGRASS CHROMABLAST-R INK CARTRIDGES.
DURING DOWNTIME, IT IS HIGHLY RECOMMENDED TO LEAVE THE PRINTER POWERED ON TO ALLOW
THE RICOH AUTOMATIC MAINTENANCE UTILITIES TO KEEP THE PRINT HEAD NOZZLES CLEAR.
CAUTION
Ricoh SG 3110DN
INSTALLATION GUIDE
MacProle
MAC OS X
v20120509
SECTIONS:
Macintosh Operating System Verication (1 page)
Ricoh (OEM) Driver Download & Installation (7 pages)
MacProle Installation & Registration (8 pages)
Note: If you experience any communication errors, a powered USB hub may be required.
During downtime, it is HIGHLY RECOMMENDED to leave the printer powered ON to allow the Ricoh Automatic
Maintenance Utilities to keep the print head nozzles clear. The Ricoh GELJET has been engineered to perform
automatic maintenance at various times in an effort to keep the print head nozzles in top condition. If this mainte-
nance cannot be automatically performed, it is possible that the nozzles may suffer permanent effects. As a result,
head cleanings may be unable to restore the print head to optimal operation.
CAUTION
PAGE 1 of 1 >>
Ricoh SG 3110DN – Installation Guide
Macintosh OS Verication
1.) To check the version of your Mac OS, rst click the Apple icon in the top left corner of your desktop.
Then scroll down and click About This Mac. The following screen containing the version number should
appear (see FIGURE 1). The below example is running Version 10.6.4. Please note your version number
and remember to only download those utilities which correspond with your version of Mac OS.
FIGURE 1
1
3
2
Before you begin, you will need to verify your version of Mac OS. This is important when deciding
which driver to download.You should only download drivers which are compatible with your version
of Mac OS.
Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 1 of 7 >>
The following instructions will demonstrate how to install the Ricoh (OEM) printer driver on computers
running Macintosh OS.
FIGURE 1
FIGURE 2
1.) Before installing the ChromaBlast-R SG 3110DN MacProle, you will need to install the Ricoh (OEM)
printer driver. First, access the Ricoh website by entering www.ricoh.co.uk in the address eld of your
web browser. Once there, click the Downloads tab (see FIGURE 1).
2
1
2.) Select Office Products Downloads (see FIGURE 2).
ChromaBlast-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 2 of 7>>
FIGURE 3
FIGURE 4
3.) Select Acio SG 3110DN from the Printers drop down box and click GO (see FIGURE 3).
2
1
4.) Select the link to Download le from external website (see FIGURE 4).
ChromaBlast-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 3 of 7>>
FIGURE 5
6.) Locate the RPCS Raster Driver for your Operating System and click the Download Icon
(see FIGURE 6).
FIGURE 6
5.) Locate and click the link for your Operating System (see FIGURE 5).
ChromaBlast-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 4 of 7>>
FIGURE 9
8.) Click Continue to allow the program to determine if the software can be installed (see FIGURE 9).
FIGURE 8FIGURE 7
1
3
7.) Once the driver download has completed, click the download icon in the bottom right corner of your
desktop (see FIGURE 7 > 1). Next, double-click the r53405L4.dmg le (see FIGURE 7 > 2). The
Ricoh_AcioSG3110DN window should now appear (see FIGURE 8). Finally, double-click the Ricoh_
AcioSG3110DN icon to begin the Ricoh (OEM) printer driver installation process (see FIGURE 8 > 3).
2
ChromaBlast-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 5 of 7>>
FIGURE 11
10.) In the License window, read the terms of the Software License Agreement and click Continue when
nished (see FIGURE 11).
FIGURE 10
9.) In the Introduction window, click Continue (see FIGURE 10).
ChromaBlast-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
PAGE 6 of 7>>
FIGURE 13
12.) In the Destination window, select the hard drive on which the printer driver will be installed and click
Continue (see FIGURE 13).
FIGURE 12
11.) If you agree with the terms of the Software License Agreement, click Agree (see FIGURE 12).
1
2
PAGE 7 of 7 >>
ChromaBlast-R: Ricoh SG 3110DN – Installation Guide
Ricoh (OEM) Driver Download & Installation
FIGURE 15
Congratulations! The Ricoh (OEM) printer driver has successfully been installed. Please proceed to the
ChromaBlast-R Ricoh SG 3110DN MacProle Installation section.

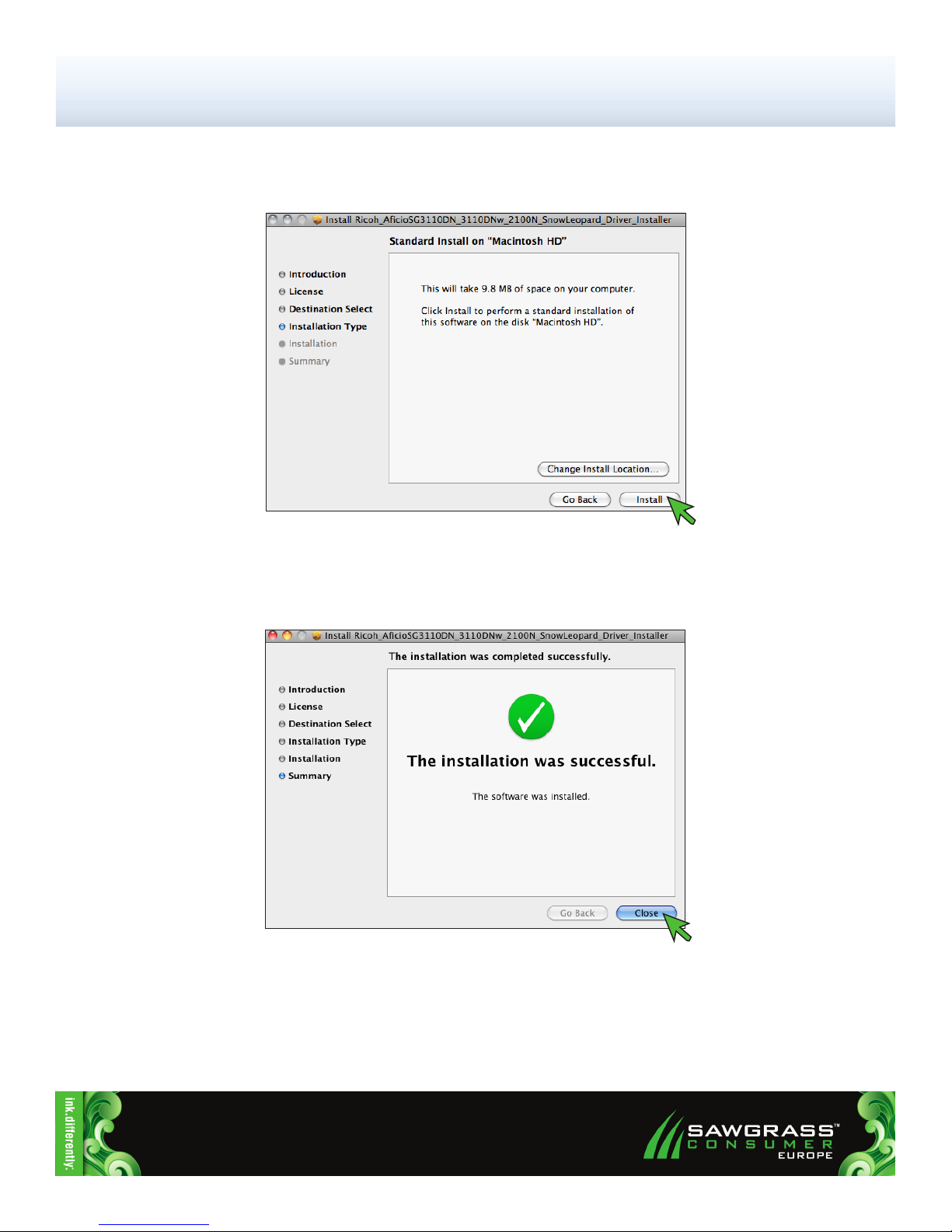

14.) Once installation has completed successfully, click Close to nish installing the software (see
FIGURE 15).
FIGURE 14
13.) Ensure you have a sufficient amount of disk space free to install the printer driver and click Install
(see FIGURE 14).
