Cover Interposer Tray CI5040

Machine Code: D3GA

Field Service Manual

Ver 1.0

Latest Release: March, 2019

Initial Release: March, 2019

Symbols, Abbreviations

This manual uses several symbols and abbreviations. The meaning of those symbols and abbreviations

are as follows:

Symbol What it means

Clip ring

Screw

Connector

Clamp

E-ring

Flat Flexible Cable

Timing Belt

SEF Short Edge Feed

LEF Long Edge Feed

K Black

C Cyan

M Magenta

Y Yellow

B/W, BW Black and White

FC Full color

[A] Short Edge Feed (SEF)

[B] Long Edge Feed (LEF)

Table of Contents

1. Overview and Configuration ............................................................................................................... 2

Basic Specifications................................................................................................................................ 2

Electrical Component Layout ................................................................................................................. 3

Driving Layout......................................................................................................................................... 5

Rollers..................................................................................................................................................... 7

Paper Paths............................................................................................................................................ 8

2. Replacement and Adjustment ............................................................................................................ 9

Pick-Up Roller, Feed Roller, and Reverse Roller................................................................................... 9

Horizontal Registration Adjustment for Tray ........................................................................................ 12

1.Overview and Configuration

1. Overview and Configuration

Basic Specifications

Items Specification Notes

Peripherals on which this cover

interposer tray can be installed

Booklet Finisher SR5120

Finisher SR5110

Multi-Folding Unit FD5020

Type Inserter

Separation Method FRR separation and air assist

Transport Method Roller Transport

Paper Size A5/HLT - 13" (330.2mm) x 19.2"

(487.7mm)

Paper Thickness Standard Paper: 52.3 to 350g/m2

Coated Paper: 105.1 to 350g/m2

If paper thickness is 300.1 to 350g/m2,

the paper brand of SP-C is

designated.

Acceptable Curl Amount H: within±15 mm, R: 40 or more

Paper Capacity 220 sheets (paper pressure: 0.1 mm) x

2 trays

Paper Detection Available

Power Source Direct current+5V

Direct current+24V

Each power sorce is

provided from the main

machine.

Power Consumption 95W or less

Dimensions (W×D×H) 740×730×1,350 mm

Weight 60kg or less

1.Overview and Configuration

Electrical Component Layout

No. Name No. Name

1 1st Paper Near End Sensor 2 8 2nd Paper End Sensor

2 1st Lift Motor 9 2nd Paper Width Sensor

3 1st Paper Near End Sensor 1 10 2nd Paper Length Sensor

4 1st Lower Limit Sensor 11 2nd Paper Near End Sensor 2

5 1st Paper Length Sensor 12 2nd Lift Motor

6 1st Paper End Sensor 13 2nd Paper Near End Sensor 1

7 1st Paper Width Sensor 14 2nd Lower Limit Sensor

1.Overview and Configuration

No. Name No. Name

1 1st Blower Fan 6 2nd Blower Fan

2 1st Pickup Solenoid 7 2nd Pickup Solenoid

3 1st Upper Limit Sensor 8 2nd Upper Limit Sensor

4 1st Transport Sensor 9 2nd Transport Sensor

5 1st Paper Feed Sensor 10 2nd Paper Feed Sensor

1.Overview and Configuration

Driving Layout

No. Name No. Name

1 1st Paper Feed Motor 4 2nd Paper Feed Motor

2 1st Transport Motor 5 2nd Transport Motor

3 1st Vertical Transport Motor 6 2nd Vertical Transport Motor

1.Overview and Configuration

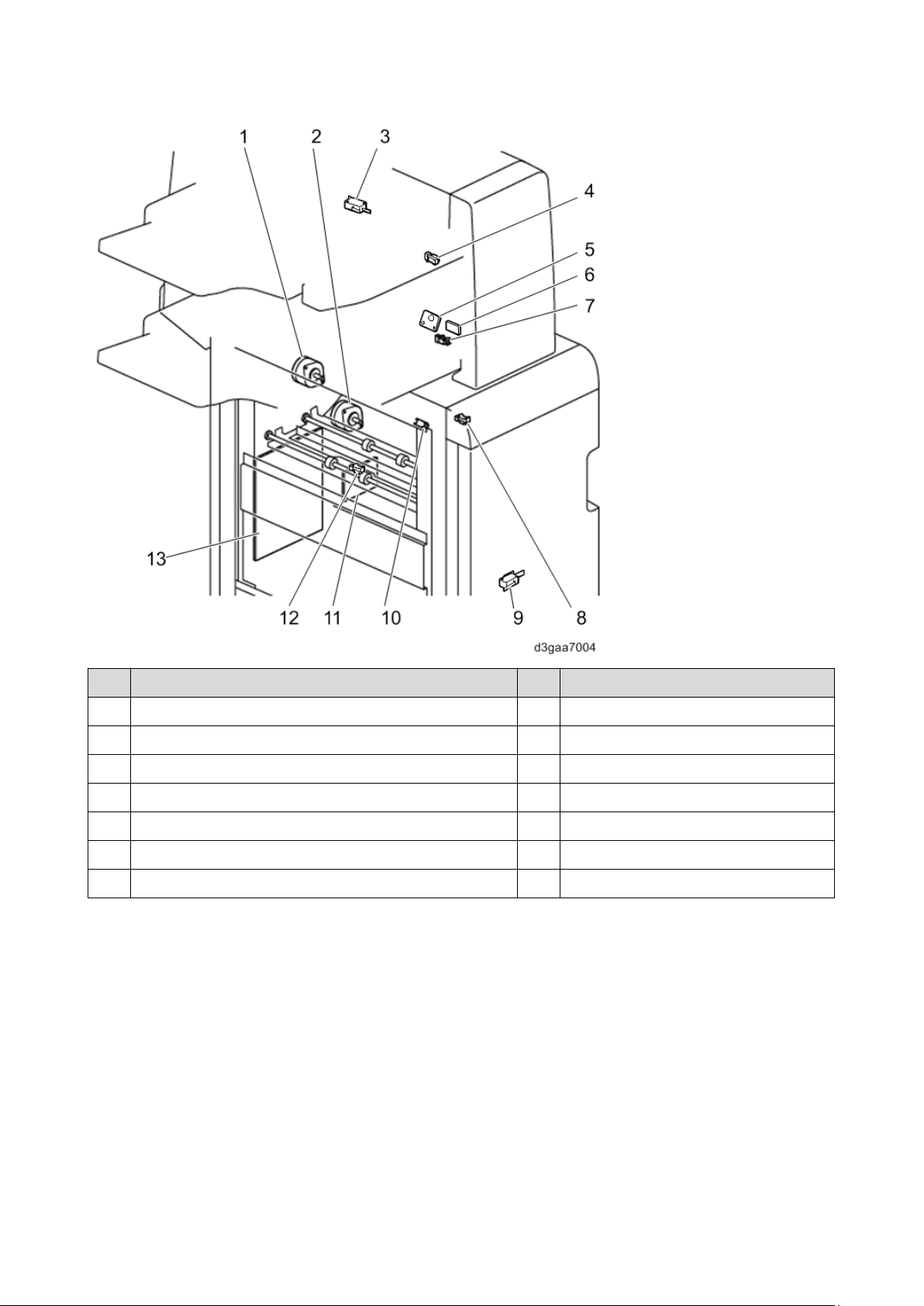

No. Name No. Name

1 3rd Vertical Transport Motor 8 Entrance Sensor

2 Horizontal Transport Motor 9 Front Door Open Switch

3 Vertical Transport Cover Switch 10 3rd Vertical Transport Sensor

4 1st Vertical Transport Sensor 11 URB (Double Feed Detect) (option)

5 Double Feed Detect Sensor (Transmitting) (option) 12 Exit Sensor

6 Double Feed Detect Sensor (Receiving) (option) 13 Main Controller Board

7 2nd Vertical Transport Sensor - -
