Ricoh A028 Guide d'installation

RICOH FT9101

SERVICE TRAINING MANUAL

LARGE CAPACITY TRAY RT32

FINISHER SR500

PRINTER CONNECTOR UNIT PCU10

KEY COUNTER/PRINTER

CONNECTOR BRACKET KP10

RICOH COMPANY, LTD.

Read This First

A few simple symbols and notations are used to help you read faster and find the information you

need. Before you use this guide, glance over this list of special notations and be sure you

understand what they mean.

NOTE

Information under this heading describes helpful hints, restric-

tions, and how to avoid difficulties.

CAUTION

Failure to pay attention to CAUTION notices can

result in damage to the equipment.

WARNING

Warnings are for your safety. Failure to pay atten -

tion to WARNING information can be dangerous

to you and others.

SECTION 1

OVERALL MACHINE INFORMATION

1. OVERALL MACHINE INFORMATION

1.1 Specifications

1.1.1 Copier

Main body

Configuration: Console

Copy Process: Dry Electrostatic Transfer System

Originals: Sheet/Book

Original Size: Maximum:11" x 17", A3

Minimum: B5

Copy Paper Size: Maximum: 11" x 17", A3

Minimum: B5

Copy Paper Weight: Standard Copying: 16 lb ∼43 lb, 60 ∼163 g/m2

Duplex copying: 17 ∼ 32 lb, 70 ∼120 g/m2

Warm Up Time: Within 7.0 minutes ( room temp. 23°C)

First Copy Time: 6.7 seconds (81/2" x 11", A4, feed from 3rd tray)

Copying Speed: 101 copies/minute ±2% (A4, B5, 81/2" x 11", 81/2" x 14", 81/2" x 13")

81 copies/minute ±2% (B4)

61 copies/minute ±2% (A3, 11" x 17")

Optional Equipment: Finisher

Large Capacity Tray

Reproduction Ratios: See the following table:

LT/DLT version A4/A3 version

Enlargement 129% 141%

121% 122%

115% 115%

Full Size 100% 100%

Reduction

93% 93%

77% 82%

74% 71%

65% 65%

* Desired reproduction ratio(s) can be selected from 3 enlargements and 4 reductions.

Zoom: 64 ∼142% (1%/step)

Copy Tray Capacity: 300 sheets (80 g/m2paper, in continuous copying mode)

Duplex Tray Capacity: 40 sheets (A3, 11" x 17")

80 sheets (Others)

Toner Replenishment: Cartridge exchange

Paper Feed: 1st tray: 500 sheets (80 g/m2paper, not exceeding load limit decal)

2nd tray: 1,000 sheets (80 g/m2paper, not exceeding load limit decal)

3rd tray: 1,000 sheets (80 g/m2paper, not exceeding load limit decal)

Oil Tank Capacity: 3,000 cc

Power Source: 240 volts, 20A

Maximum Power 4.0 kw (Full system)

Consumption: 3.7 kw (Copier with RDH)

Weight: 482 kg (including RDH)

Environmental Conditions: Temperature: 10 ~ 30°C

Humidity: 15 ~ 90%

Standard Condition: 23°C, 65%

1 July 1994 Specifications

1-1

Recirculating document handler

Original Size: Maximum: 11" x 17", A3

Minimum: B5

Original Weight:

RDH mode SADF mode

Maximum 32 lb, 120 g/m243 lb, 160 g/m2

Minimum 17 lb, 64 g/m212 lb, 40 g/m2

Original Set Capacity: 40 sheets (A3, or 11" x 17", 80 g/m2 paper, not exceeding upper limit decal)

80 sheets (Other sizes, 80 g/m2 paper, not exceeding upper limit decal)

Original Set: Face down

Original Feed Speed: Same as copier (in single side copying)

Power Source: 100 V, 50/60Hz, (from copier)

Maximum Power 120 W

Consumption:

Weight: 25.5 kg

1.1.2 Large capacity tray

Copy Paper Size: Legal (81/2" x 14"), Letter (81/2" x 11"),

B4 (257 mm x 364 mm), A4 (210 mm x 297 mm),

B5 (182 mm x 210 mm)

Copy Paper Weight: Same as copier

Tray Capacity: Approximately 3,000 sheets (80 g/m2paper, not exceeding upper limit decal)

Power Source: 100 V, 50/60Hz, (from copier)

Maximum Power 150 W

Consumption:

Weight: 75 kg

Specifications 1 July 1994

1-2

1.1.3 Finisher

Paper Size: Maximum: 11" x 17"/A3

Minimum: B5 sideways

Paper Weight: Standard copying

60 ∼163 g/m2

Staple mode

64 ∼80 g/m2

Paper Capacity: Standard copying

2,000 sheets:

81/2" x 11"/A4 or smaller size (20 lb/80 g/m2)

1,000 sheets:

Other sizes (20 lb/80 g/m2)

Staple mode

See the following table:

Size

Number

of Originals 81/2" x 11"/A4

or smaller size 81/2 x14"/B4 11" x 17"/A3

2 ∼10 sheets 100 sets* 100sets 100sets

11 ∼20 sheets 100 sets 50 set 50 sets

21 ∼ 30 sheets 67 sets 34 sets 34sets

31 ∼40 sheets 50 sets 25 sets 25 sets

41 ∼50 sheets 40 sets 20 sets --

*: Up to 100 stapled copy sets can be stacked because the stapled copy

set makes an uneven stack on the tray.

Stapling Capacity: 11" x 17"/A3 (20 lb/80 g/m2):

from 2 to 30 sheets

Other sizes (20 lb/80 g/m2):

from 2 to 50 sheets

Staple Replenishment: Cartridge exchange

(5,000 pieces/cartridge)

Power Source: AC 100 V (from the copier)

Mean Power Consumption: 110W

Weight 77kg

Stapling Position:

a a

a = 0.2" ± 0.08" (5 ± 2 mm)

b = 0.2" ± 0.1" (5 ± 2.5 mm) a = 0.2" ± 0.08" (5 ± 2 mm)

b = 5.20" ± 0.08" (132 ± 2 mm)

(81/2" x 11"/A4 or smaller size)

b = 10.5" ± 0.08" (265 ± 2 mm)

(81/2" x 14"/B4 or larger size)

(1 staple) (2 staples)

1 July 1994 Specifications

1-3

1.2 Noise

During warm-up: 64 dB

During standby: 54 dB

One side copying Copier only: 65 dB

Copier + ADF 70 dB

Full system 71 dB

Duplex copying Copier only: 67 dB

Copier + ADF: 71 dB

Full system: 71 dB

1.3 Power Consumption

Mean Power Consumption

Copier Copier + LCT Copier + LCT + Finisher

During copying 3.43 kW 3.44 kW 3.65 kW

During warm-up 2.61 kW 2.62 kW 2.55 kW

During standby

(Fusing lamp OFF) 0.25 k W 0.26 kW 0.30 kW

Main switch OFF

(During first 30 min.) 0.13 kW 0.13 kW 0.13 kW

Main switch OFF

(After 30 min.) 0.07 kW 0.07 kW 0.07 kW

Noise 1 July 1994

1-4

1.4 Machine Dimensions

1.4.1 Copier

1.4.2 LCT

150

680

1,430 1,685

830

1,110

775

550

400 675

975

1 July 1994 Machine Dimensions

1-5

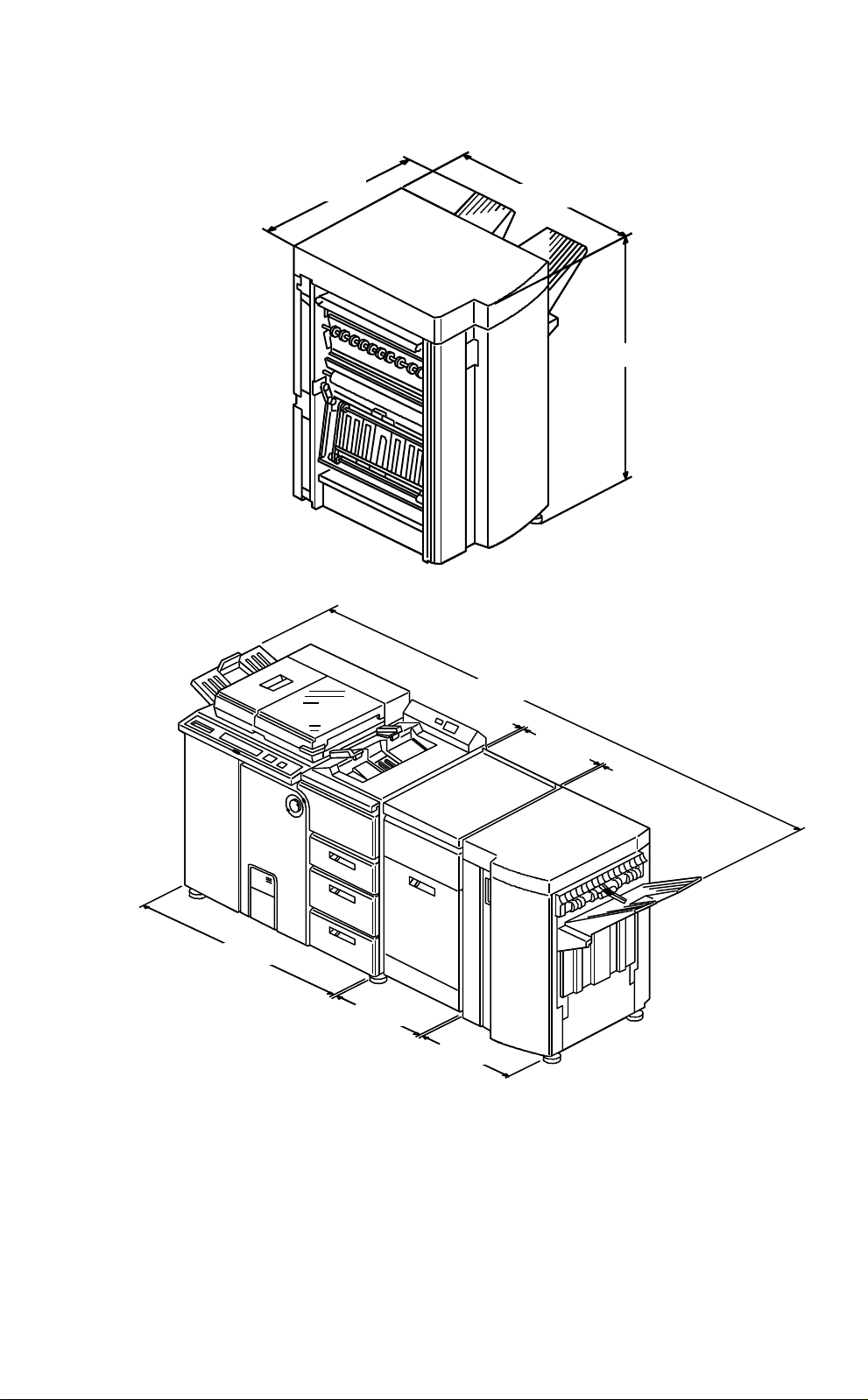

1.4.3 Finisher

1.4.4 Full system

750

975

701

2,610

470

400

1,240

Machine Dimensions 1 July 1994

1-6

1.5 Outline of Mechanism

1.5.1 Main unit layout diagram

Exposure unit

A xenon lamp is used for flash

exposure. A stepper motor

moves mirrors and lens for the

desired magnification:

0.64 to 1.42

RDH

The air knife separates the leading edges of

the originals. The lowest original is held

against the transport belts by the suction of

the vacuum fan and fed by the belts. Even

in one-to-one copying, this high-speed ADF

can meet 101 CPM. Automatic duplex

copying is also available.

Fusing unit

Heat and pressure roller

system is used with silicon oil.

Paper feed tray

The upper tray stacks

up to 500 sheets. The

middle and lower

trays stack up to

1,000 sheets. FRR

system is used as the

paper feed

mechanism.

Duplex unit

The air knife separates the leading edge of

the copies. The lowest copy is held against

the transport belts by the suction of the

vacuum fan and fed by the belts.

Horizontal transport unit

Transports paper from the

LCT.

Transfer and

separation unit

A high voltage

negative corona

transfers positively

charged toner to

paper. A high voltage

ac corona breaks the

attraction between the

paper and OPC.

Cleaning unit

Magnetic brush system for

cleaning. Scavenging

roller collects toner from

the magnetic brush. (--) dc

bias voltage is applied to

the cleaning roller and

scavenging roller. (+) dc is

applied to the PCC to

increase cleaning

efficiency.

Development unit

Employs a magnetic brush

system using 3 magnetic rollers.

For toner density control, toner

density and ID sensors are

used. Toner is replenished from

a cartridge.

Photoconductor

An OPC belt is used as the

photoconductor. Its image

producing area is equally divided

into 5 A4/B5 segments, 4 B4

segments, or 3 A3 segments,

according to the copy paper size.

OPC cleaning brush

Removes filming material from

the OPC surface and refreshes

OPC surface.

Eraser unit

Erase system

employs LEDs.

Charge corona unit

Scorotron system is employed

to give a uniform and constant

electric charge on the OPC.

(--) dc high voltage is applied

to a tungsten wire, and the

OPC is charged negatively by

corona discharge.

1 July 1994 Outline of Mechanism

1-7
