Renesas M32C/8x StarterKit Plus Manuel utilisateur
onlinecomponents.com
Analog
Adjust (R16)
Power
LED
Reset
Switch
User
Switches
Thermistor
8 Characters x 2 Lines LCD
LCD
Contrast
User LEDs
M32C/8x
ICD LED Status:
Red – Target Stopped
Green – Target Running
Status – ICD Status
Red – ICD Power
RTA-FoUSB-MON
In-Circuit Debugger
(ICD)
Target/Bus
Power Mode
Selector
M32C/8x StarterKit Plus QuickStart Guide, rev. 2.0 Page 1 of 5

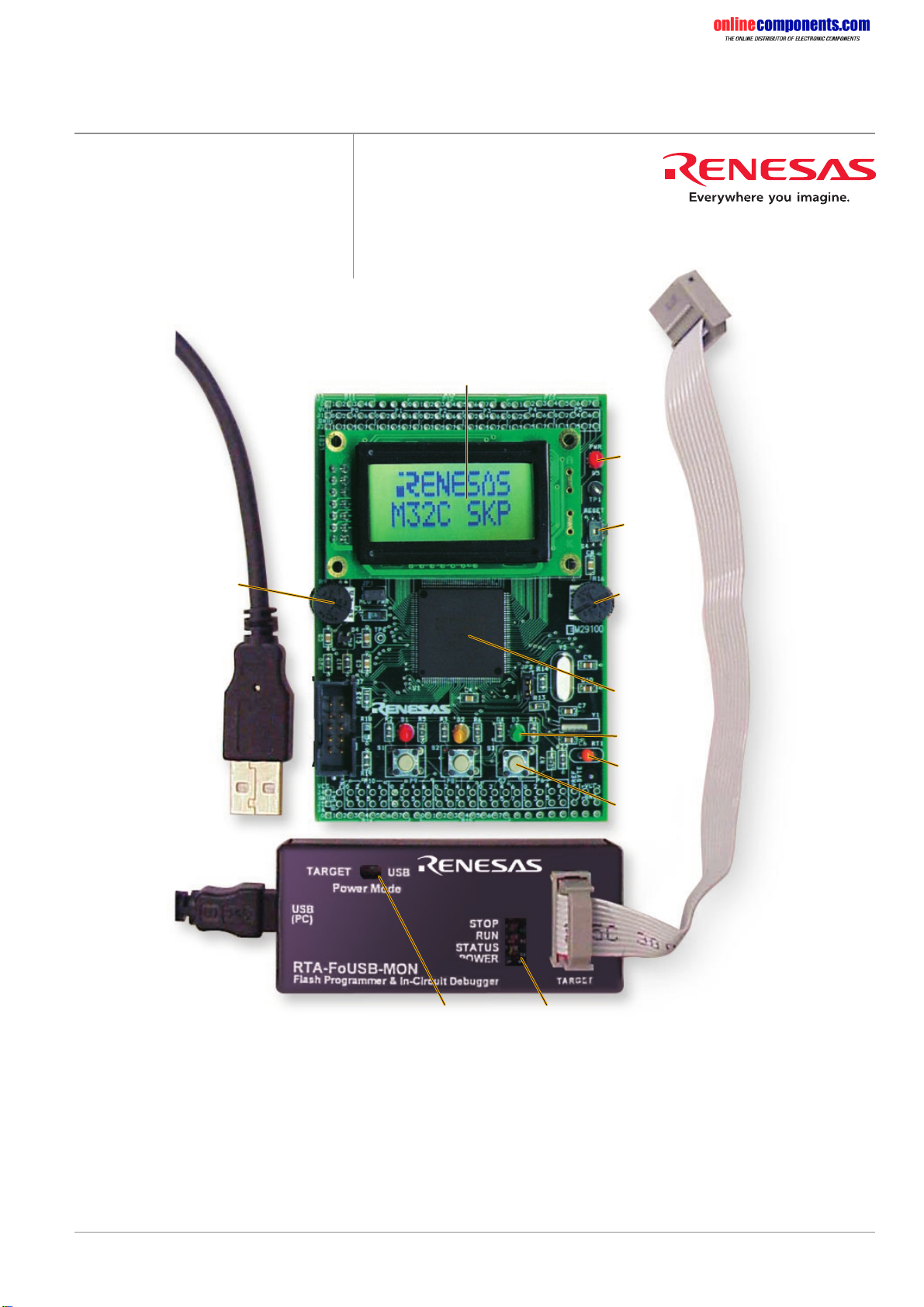

Figure 1. M32C/8x SKP
QuickStart Guide M32C/8x
StarterKit Plus
SKP32C83, SKP32C84
SKP32C85
onlinecomponents.com
1. M32C/8x SKP StarterKit Plus Software Install
a) Please insert the enclosed CD into your computer’s CD-ROM drive. The CD should auto-start, displaying the SKP Picker
Install Screen. Follow the directions in the installation windows to install the Renesas tools.
i) If the installation screen does not appear, please browse the CD root folder and double-click on “SKP-Installer.exe”.
– Do not plug the In-Circuit Debugger into your USB port until instructed to in Section 2, USB Driver Installation.
– The installation process requires a valid SKP serial number. Locate the label on the PC board or on the
side of your box.
– During the installation process, you may be prompted to restart your computer. Do not restart until the SKP installer
has completed installation of all of the software items.
– During the SKP install, dialog boxes will appear asking if you would like to install the development tools or not.
The development tools will allow you to evaluate the different features of the M32C MCU and the software
development environment (debugger, compiler, linker, etc…).
2. USB Driver Installation
You need to install the driver for the RTA-FoUSB-MON In-Circuit Debugger (ICD) before you can use it. First, verify that the
Target/Bus Power Mode switch is in the USB position.
Next, connect one end of the mini USB cable into the ICD and the other end into your PC’s USB port. The red “Power” LED
on the ICD will light up and the yellow “Status” LED will blink about 2-3 times per second.
If you are running Windows 98, ME or 2000, no intervention by the user is needed. When the ICD is plugged in, Windows
automatically attaches the correct driver for your device and it is ready to use.
If you are running Windows XP, the first time a FoUSB device is plugged into a different USB port on the PC,
the Windows XP “Found New Hardware Wizard” window will appear. Select the default option “Install the software
automatically (recommended)”.
Windows will then begin installing the USB driver. Another screen may appear stating that this driver has not been XP
certified by Microsoft because we did not participate in Microsoft XP driver certification. Click the “Continue Anyway” button.
Your driver is now installed. Click Finish to close the wizard.
The driver files (.sys and .inf) are always located under the FoUSB install directory (For example: C:\MTOOL\FoUSB\USB
Drivers\) in case you are have trouble with the automatic driver installer.
NOTE: If you have problems installing the drivers or your PC will not recognize the ICD, please see the "Troubleshooting"
section of the RTA-FoUSB-MON user’s manual for details.
Figure 2. M32C/8x SKP System Connectivity
M32C/8x StarterKit Plus QuickStart Guide, rev. 2.0 Page 2 of 5
M32C/8x SKP
10-pin
Target
Cable
PC with Windows®98SE,
2000, Me, or XP
ICD
Mini USB
Cable
onlinecomponents.com
3. Demo Program
The following instructions are specific for the SKP32C85 kit. Substitute 83 or 84 in place of 85 for the SKP32C83 or SKP32C84
kit respectively. The kit ships with a demo program that runs on the board when connected to the ICD (RTA-FoUSB-MON).
a) If not already done in step 2a), plug one end of the USB cable into the RTA-FoUSB-MON and the other into a USB socket
on your PC.
b) Connect the RTA-FoUSB-MON to the SKP board using the supplied ribbon cable. The power light of the board should
come on. If the power light on the SKP board does not come on, check the Power Mode switch on the RTA-FoUSB-MON
and verify that it is set to the “USB” position.
c) Press the reset switch to run the demo program.
– The LCD on the board will display a welcome message (adjust LCD contrast as needed). After a few seconds,
“RT1: xxxx, AN0: xxxx” will be displayed on the LCD.
– The LED’s will blink sequentially (back and forth).
– The LED flash rate is controlled by the Analog Adjust (R16) potentiometer (which is connected to the ADC’s AN0 input).
The 10-bit ADC value is also shown on the LCD as AN0.
d) Turn the Analog Adjust clockwise or counter-clockwise. This alters the flash rate of the LEDs, and increases or decreases
the AN0 value shown on the LCD.
e) Press the pushbutton switches S1, S2, or S3. This will stop the sequential blinking of the LEDs. The LED associated with
the pushbutton switch (i.e., S1 – Red LED, S2 – Yellow LED, and S3 – Green LED) will light up.
4. HEW (IDE) Quick-Start
HEW integrates various tools such as the compiler, assembler, debugger, and editor into a common Graphical User Interface.
To learn more on how to use HEW, open the HEW manual navigator on your computer (Start > (All) Programs > Renesas
High-performance Embedded Workshop > Manual Navigator).
a) Launch HEW from the Start menu (Start > (All) Programs > Renesas High-performance Embedded Workshop >
High-performance Embedded Workshop).
b) In the “Welcome!” dialog box:
i) Verify “Create a new project workspace” is selected.
ii) Click <OK>.
c) In the “New Project Workspace” Dialog box:
i) Verify the “CPU family” is set to “M32C”.
ii) Select “M32C/85 StarterKit Plus” (Figure 3).
iii) Enter “skptest85” for the Workspace Name (the Project
Name will auto fill to “skptest85”).
iv) Click <OK>.
d) On the “StarterKit Plus - Step 1” Window:
i) Click <Next>.
e) On the “StarterKit Plus - Step 2” Window:
i) Select “SKP Operational Test”.
ii) Click <Finish>.
f) In the “Project generator information” Window:
i) Click <OK>.
g) Click the “Build” icon, , to compile, assemble and
link the project. HEW will look similar to Figure 4.
h) After ensuring there are no errors, proceed to section 5, KD3083 Debugger Quick-Start.
M32C/8x StarterKit Plus QuickStart Guide, rev. 2.0 Page 3 of 5
Figure 3. New Project Workspace in HEW
Figure 4. HEW with the skptest85
project compiled
onlinecomponents.com
5. KD3083 (Debugger) Quick-Start
a) Connect the SKP to the PC as shown in Figure 2 (described in
detail in steps 3a) and 3b) above).
b) Click on the debugger button to launch the KD3083
debugger from HEW. The “Init” dialog box should open (Figure 5).
c) The first time you run KD3083, you will have to define the target:
i) Click <Refer…>.
ii) Select MCU as follows using Table 1.
– Select the group corresponding to the SKP MCU.
– Select the MCU in the group.
iii) Select “USB” and click <OK>.
– If you get an error,
check connectivity.
– If the message “We should download new firmware”
is displayed, click <OK>.
d) After initialization, the KD3083 Program Window will appear and
our program, “skptest85.x30”, is automatically downloaded.
The KD3083 Program Window should look like Figure 6.
e) Click the “Go” icon to start the program. This program
is similar to the Demo program, but the LEDs do not blink.
The LED’s are off unless any of the user switches are pressed.
f) Click the “Stop” icon to halt the program. If you now
click the “Go” icon, the program will resume
execution from the point it stopped.
g) Exit KD3083 by selecting “File > Exit” from the pull-down
menu in KD3083.
h) Exit HEW by selecting “File > Exit” from the pull-down menu in HEW.
6. Downloading (re-loading) the Demo Program using the Flash-over-USB™
Programmer
When we ran KD3083, the original demo program was erased and the SKP board was programmed with a different program.
You can use the Flash-over-USB™ Programmer to restore the original demo program.
a) Connect the SKP to the PC. (Described in detail in steps 3a) and 3b) above.)
b) Start the Flash-over-USB™ Programmer (Start > (All) Programs > RENESAS-TOOLS > Flash-over-USB Ver. x.xx > FoUSB
Programmer) or double-click on the “FoUSB” icon on your desktop).
c) The first time the FoUSB Programmer is run on your computer:
i) Click on “Select MCU” button.
ii) Select M32C/80 series.
iii) Then select the appropriate group and part number as shown in Table 1.
iv) Click <OK>.
v) Click <OK> as requested until you are returned to the Flash-over-USB main menu.
d) Each subsequent time the FoUSB Programmer is run:
– If the “Unlocked” window appears, click <OK>.
e) Click <Open> when the Flash-Over-USB main menu appears.
M32C/8x StarterKit Plus QuickStart Guide, rev. 2.0 Page 4 of 5
Figure 5. KD3083 Init Window
Figure 6. KD3083 Program Window after
download of skptest85
Table 1.
SKP32C83 – M30835FJ
SKP32C84 – M30845FJ
SKP32C85 – M30855FH
onlinecomponents.com
f) Browse to the “C:\MTOOL\SKP32C85\Sample_Code\SKP\
SKPDemo\Release” folder.
g) Select “SKPDemo.mot” and click <Open>.
i) When the ID Code dialog box appears, click <OK>.
h) Click <Program> to open the Program Flash window.
i) Click <Program> to download the demo program.
j) When the FoUSB dialog box “Program completed
Successfully” appears, click <OK> (Figure 7).
k) Click <Exit> to close Flash-over-USB Programmer
and the demo program should start.
For more information on how to use the Flash-over-USB™
Programmer, click on the “Help” button.
7. What’s the next step?
After you have completed this quick-start procedure, please review the tutorials that came with the kit. The tutorials will help
you understand and jumpstart the software development process using Renesas’ development tools.
You can access the tutorials from the Start Menu (Start > (All) Programs > RENESAS-TOOLS > SKP32C85 > Tutorial 1 –
Development Process or Tutorial 2 – Creating a New Project) or from (Start > (All) Programs > RENESAS-TOOLS >
SKP32C85 > Document Description), which also lists other documents that come with the SKP. To check for any updates
to the StarterKit Plus, use the (Start > (All) Programs > RENESAS-TOOLS > SKP32C85 > Check for Kit Updates) shortcut.
This will take you to a kit-specific page on the Renesas website which provides links to any available update downloads.
8. HEW3/C-Compiler
The High-performance Embedded Workshop User Manual will show you how HEW3 integrates various tools such as the
compiler, assembler, debugger and editor into a common Graphical User Interface. To access the manual on your computer,
go to the HEW menu (Start > (All) Programs > Renesas High-performance Embedded Workshop > Manual Navigator).
The NC308WA v.5.20 Entry version of the C-compiler included in the SKP has no time expiration, but has the following limits:
1. Assembly optimization and debug options are not available.
2. The tool to analyze the inspector or variable is not available.
3. Some advanced tool functions, such as the map viewer, are not available.
4. The software comes without support or warranty.
5. See NC308WA v.5.20 User’s Manual for further details.
If your development needs exceed the above limitations, please go to the following web site, http://download.renesas.com/
eng/mpumcu/evaluation_software/compilers_and_assemblers/m3t_nc308wa/index.html and download the full version
(4 calendar month trial).
M32C/8x StarterKit Plus QuickStart Guide, rev. 2.0 Page 5 of 5
© 2004 Renesas Technology America, Inc. Renesas Technology America, Inc. is a wholly owned
subsidiary of Renesas Technology Corporation. All trademarks are the property of their respective
owners. The information supplied by Renesas Technology America, Inc. is believed to be accurate
and reliable, but in no event shall Renesas Technology America, Inc. be liable for any damages
whatsoever arising out of the use or inability to use the information or any errors that may appear in
this publication. The information is provided as is without any warranties of any kind, either express
or implied. Renesas Technology America, Inc. reserves the right, without notice, to make changes
to the information or to the design and specifications of its hardware and/or software products.
Products subject to availability. Printed in U.S.A.
Renesas Technology America, Inc.
450 Holger Way
San Jose, CA 95134-1368
Phone: 408-382-7500
Fax: 408-382-7501
www.renesas.com
Figure 7. Flash-over-USB™ Programmer
Main Menu after loading the Demo Code
If you require additional information or assistance, please send an
Ce manuel convient aux modèles suivants
3
Table des matières
Autres manuels Renesas Microcontrôleur
Renesas
Renesas DK-S124 Manuel utilisateur
Renesas
Renesas RA6M5 Manuel utilisateur
Renesas
Renesas RZ/T1 Series Manuel utilisateur
Renesas
Renesas RA2E2 Series Manuel utilisateur
Renesas
Renesas FG4-768K Series Manuel utilisateur
Renesas
Renesas RX23W Series Instructions d'installation et d'utilisation
Renesas
Renesas Synergy SK-S7G2 Manuel utilisateur
Renesas
Renesas RA6 Series Manuel utilisateur
Renesas
Renesas RL78/G11 Manuel utilisateur
Renesas
Renesas CK-RX65N Manuel utilisateur
Renesas
Renesas V850/SA1 Manuel utilisateur
Renesas
Renesas RL78/I1C Manuel utilisateur
Renesas
Renesas RH850/E2 Series Manuel utilisateur
Renesas
Renesas 78K0R/KF3 Manuel utilisateur
Renesas
Renesas Synergy DK-S3A7 Manuel utilisateur
Renesas
Renesas DA14706 PRO Manuel utilisateur
Renesas
Renesas RH850/C1M-A2 Manuel utilisateur
Renesas
Renesas RX700 Series Manuel utilisateur
Renesas
Renesas RX72M Renesas Starter Kit Manuel utilisateur
Renesas
Renesas Synergy DK-S7G2 Manuel utilisateur
Manuels Microcontrôleur populaires d'autres marques
AMS
AMS AS7261 Demo Kit Manuel utilisateur
Novatek
Novatek NT6861 Manuel utilisateur
Espressif Systems
Espressif Systems ESP8266 SDK Guide de configuration
Nuvoton
Nuvoton ISD61S00 ChipCorder Mode d’emploi
STMicrolectronics
STMicrolectronics ST7 Assembler Linker Manuel utilisateur
Texas Instruments
Texas Instruments Chipcon CC2420DK Manuel utilisateur
Lantronix
Lantronix Intrinsyc Open-Q 865XR SOM Manuel utilisateur
NEC
NEC 78GK0S/K 1+ Series Instructions d'installation et d'utilisation
Mikroe
Mikroe SEMITECH N-PLC Click Instructions d'installation et d'utilisation
Intel
Intel Agilex Manuel utilisateur
Cypress
Cypress CY4607 HX2VL Manuel utilisateur
DIGITAL-LOGIC
DIGITAL-LOGIC MICROSPACE Manuel utilisateur
Texas Instruments
Texas Instruments TMS320F2837 D Series Manuel utilisateur
CYPRES
CYPRES CY14NVSRAMKIT-001 Manuel utilisateur
Texas Instruments
Texas Instruments INA-DUAL-2AMP-EVM Manuel utilisateur
Espressif Systems
Espressif Systems ESP8266EX Mode d'emploi
Abov
Abov AC33M8128L Manuel utilisateur
Laird
Laird BL654PA Manuel utilisateur
