H8/3937R, H8/3937 Series TFP-100G

User System Interface Cable

(HS3937ECN61H)

for E6000 Emulator

User’s Manual

HS3937ECN61HE(B)

Cautions

1. Renesas neither warrants nor grants licenses of any rights of Renesas’s or any third party’s

patent, copyright, trademark, or other intellectual property rights for information contained in

this document. Renesas bears no responsibility for problems that may arise with third party’s

rights, including intellectual propertyrights, in connection with use of the information contained

in this document.

2. Products and product specifications may be subject to change without notice. Confirm that you

have received the latest product standards or specifications before final design, purchase or use.

3. Renesas makes every attempt to ensure that its products are of high quality and reliability.

However, contact Renesas’s sales office before using the product in an application that demands

especially high quality and reliability or where its failure or malfunction may directly threaten

human life or cause risk of bodily injury, such as aerospace, aeronautics, nuclear power,

combustion control, transportation, traffic, safety equipment or medical equipment for life

support.

4. Design your application so that the product is used within the ranges guaranteed by Renesas

particularly for maximum rating, operating supply voltage range, heat radiation characteristics,

installation conditions and other characteristics. Renesas bears no responsibility for failure or

damage when used beyond the guaranteed ranges. Even within the guaranteed ranges, consider

normally foreseeable failure rates or failure modes in semiconductor devices and employ

systemic measures such as fail-safes, so that the equipment incorporating Renesas product does

not cause bodily injury, fire or other consequential damage due to operation of the Renesas

product.

5. This product is not designed to be radiation resistant.

6. No one is permitted to reproduce or duplicate, in any form, the whole or part of this document

without written approval from Renesas.

7. Contact Renesas’s sales office for any questions regarding this document or Renesas

semiconductor products.

Preface

Thank you for purchasing this user system interface cable (HS3937ECN61H) for the Renesas’s

original microcomputer H8/3937R, H8/3937 series.

The HS3937ECN61H is a user system interface cable that connects an H8/300L series E6000

emulator (HS388REPI60H; hereinafter referred to as the emulator) through the expansion board to

the IC socket for a TFP-100G package for the H8/3937R, H8/3937 series MCU on the user system.

Contents

Section 1 Configuration....................................................................................1

Section 2 Connection Procedures......................................................................3

2.1 Connecting User System Interface Cable to Expansion Board.........................................3

2.2 Connecting User System Interface Cable to User System................................................5

2.2.1 Installing IC Socket .............................................................................................6

2.2.2 Soldering IC Socket.............................................................................................6

2.2.3 Inserting Cable Head ...........................................................................................7

2.2.4 Fastening Cable Head..........................................................................................7

2.2.5 Fastening Cable Body..........................................................................................9

2.3 Recommended Dimensions for User System Mount Pad.................................................10

2.4 Dimensions for User System Interface Cable Head..........................................................11

2.5 Resulting Dimensions after Connecting User System Interface Cable.............................12

Section 3 Installing the MCU to the User System.............................................13

Section 4 Verifying Operation...........................................................................15

Section 5 Notice ................................................................................................17

Section 1 Configuration

CAUTION

Use an NQPACK100SE socket (manufactured by

Tokyo Eletech Corporation) for the TFP-100G package

IC socket on the user system.

Figure 1 shows the configuration of the HS3937ECN61H user system interface cable for the

TFP-100G package.

Figure 1 HS3937ECN61H User System Interface Cable

Table 1 lists the HS3937ECN61H components. Please make sure you have all of these components

when unpacking.

Table 1 HS3937ECN61H Components

No. Component Quantity Remarks

1 Cable body 1 Flat cable

2 Cable head 1

3 IC socket 1 For the TFP-100G package

4 Socket cover 1 For installing an TFP-100G packaged MCU

5 Screws (M2.0 x 10 mm) 4 For fastening cable head

6 Screws (M2.0 x 6 mm) 4 For installing an TFP-100G packaged MCU

7 Guide pins (φ1 mm) 3 For determining the IC socket location

8 Screwdriver 1 For tightening screws

9 Documentation 1 User’s manual for HS3937ECN61H (this manual)

Section 2 Connection Procedures

2.1 Connecting User System Interface Cable to Expansion Board

WARNING

Observe the precautions listed below. Failure to do so

will result in a FIRE HAZARD and will damage the user

system and the emulator product or will result in

PERSONAL INJURY. The USER PROGRAM will be

LOST.

1. Always switch OFF the user system and the emulator

product before the USER SYSTEM INTERFACE CABLE

is connected to or removed from any part. Before

connecting, make sure that pin 1 on both sides are

correctly aligned.

2. The user system interface cable dedicated to the

emulator must be used.

To connect the cable body to the emulator station, follow the instructions below.

1. Make sure the user system and emulator station are turned off.

CAUTION

When connecting or removing the user system interface

cable, apply force only in the direction suitable for

connection or removal, while making sure not to bend or

twist the cable or connectors. Otherwise, the connectors

will be damaged. The user system interface cable must be

connected to an H8/300L Series E6000 emulator through the

H8/3937R, 3937 Series expansion board. Do not connect the

user system interface cable directly to the E6000

emulator.

2. [1] After making sure the direction of the expansion board connector labeled E6000

EMULATOR is correct, firmly insert the expansion board connector into the emulator

station connector ([1] in figure 2).

[2] Connect the expansion board labeled USER INTERFACE CABLE and the user system

interface cable body.

6000

USERI

ERFACECABLE

E6000 EMULATOR

E6000

[2]

160kHz

Emulator station

Expansion board

[1]

Subclock selection

Cable body connector

User system interface cable

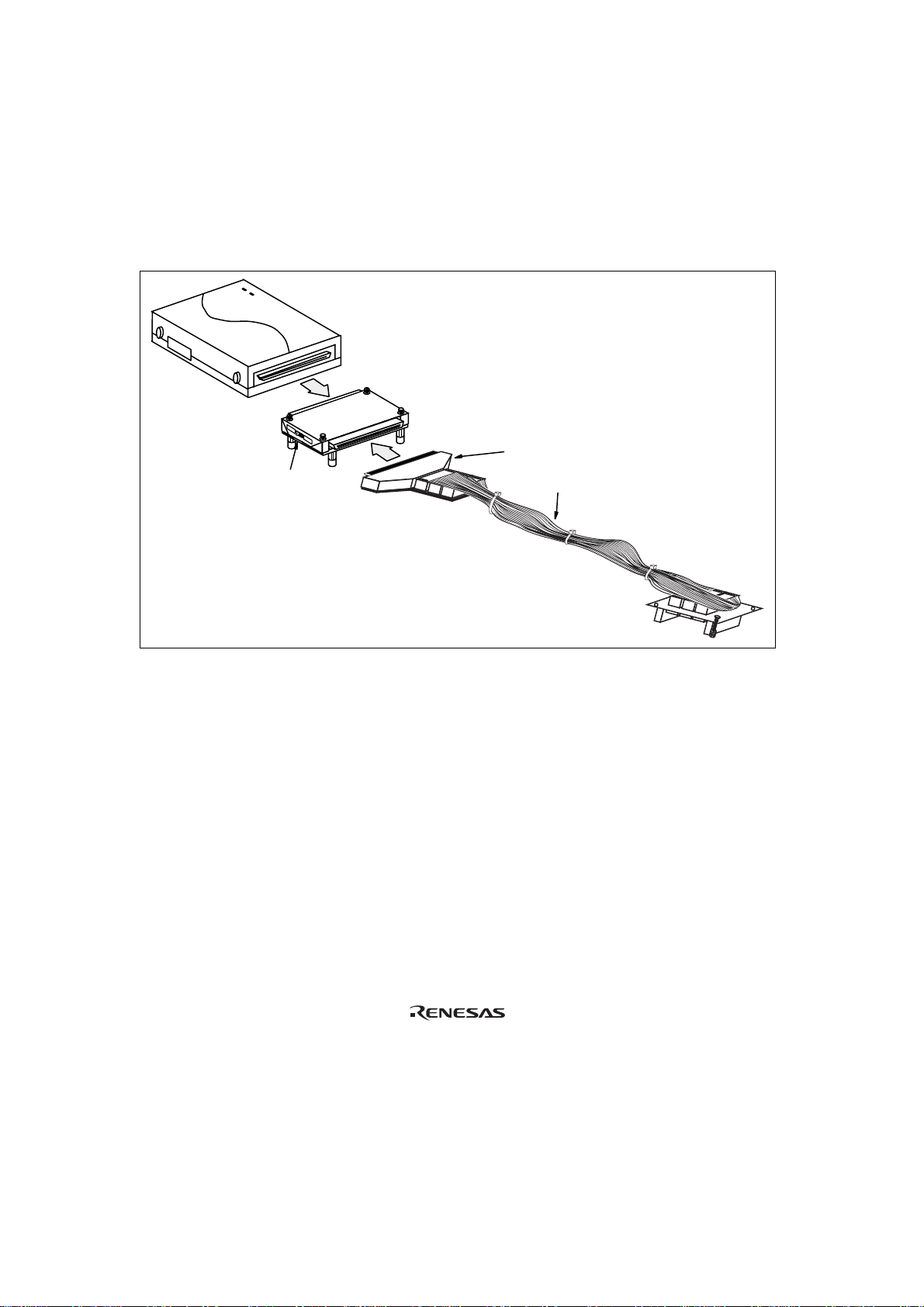

Figure 2 Connecting User System Interface Cable to Expansion Board

2.2 Connecting User System Interface Cable to User System

WARNING

Always switch OFF the user system and the emulator

product before the USER SYSTEM INTERFACE CABLE

is connected to or removed from any part. Before

connecting, make sure that pin 1 on both sides are correctly

aligned. Failure to do so will result in a FIRE HAZARD and

will damage the user system, the emulator product, and the

expansion board or will result in PERSONAL

INJURY. The USER PROGRAM will be LOST.

To connect the cable head to the user system, follow the instructions below.

2.2.1 Installing IC Socket

After checking the location of pin 1 on the IC socket, determine where to install the IC socket by

using the guide pins provided as shown in figure 3. Apply epoxy resin adhesive to the end of the

four projections at the bottom of the IC socket, and fasten it to the user system before soldering.

User system

IC socket

(NQPACK100SE

manufactured by

Tokyo Eletech Corporation)

Guide pins

4 projections to apply

epoxy resin adhesive to

Bottom view of IC socket

Pin 1

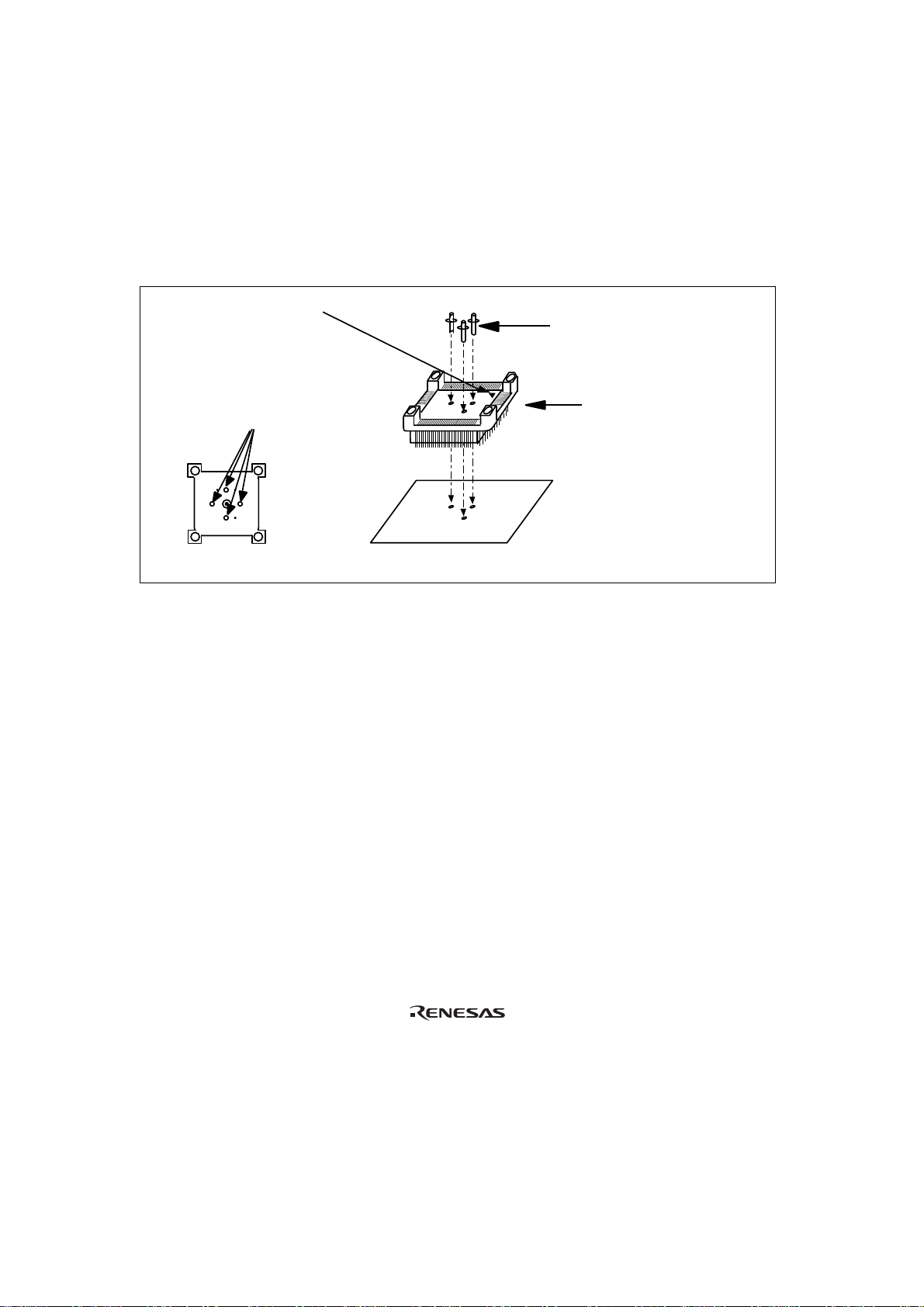

Figure 3 Location Setting of IC Socket

2.2.2 Soldering IC Socket

After fastening, solder the IC socket for an TFP-100G package to the user system. Be sure to

completely solder the leads so that the solder slops gently over the leads and forms solder fillets.

(Use slightly more solder than the MCU.)
