Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

Bulletin 909 February 2020

Model N25 (SIN RA0912)

K25.2 (360 metric)

Early Suppression

Fast Response Sprinkler

Product Description

The Reliable Model N25 Early Suppression Fast

Response (ESFR) Sprinkler is intended for use against

severe fire challenges. The sprinkler is designed to

respond quickly to a growing fire and deliver a heavy

discharge of water to suppress the fire. The Model N25

is FM Approved as a quick response storage sprinkler.

The Model N25 ESFR Sprinkler utilizes a levered

fusible alloy solder link in either a 165°F (74°C) or 212°F

(100°C) temperature rating. The sprinkler has a nominal

K Factor of 25.2 (metric 360), and is available with 1”

NPT or ISO 7-1R1 threads, or with the Victaulic® IGS™

Style V9 Sprinkler Coupling*.

The small deflector and frame provide a broad,

symmetrical, hemispherical pattern capable of

suppressing fires between sprinklers in high-piled

storage areas. At the same time, a high momentum

central core discharge penetrates and suppresses fires

occurring directly beneath the sprinkler in lower height

storage areas.

The N25 ESFR sprinkler is less susceptible to damage

due to the smaller deflector and frame design, and the

N25 ESFR has passed rough use and abuse testing

required for approval without the need for plastic

protectors.

Application and Installation

The Model N25 is an ESFR sprinkler intended for

installation in accordance with NFPA 13 and as a QR

Storage Sprinkler for use in accordance with FM Global

Loss Prevention Data Sheets. See Table B for further

design criteria information.

Listings and Approvals

1. FM Approved as a quick response storage sprinkler.

2. CNBOP-PIB Technical Approval.

Model N25 ESFR Sprinkler

Sprinkler Guard or Water Shield Listings and

Approvals

N25 ESFR

Pendent

Model S-5 Water Shield FM

Model 25 Guard FM

Optional Guards and Water Shields

Notes:

1. Guards and shields are approved for threaded

sprinklers only.

2. Water shield is listed for use only when the sprinkler

is installed within racks (IRAS) or under open grating (or

similar) areas as required by NFPA or FM standards.

3. Guard is listed for use only when the sprinkler is

installed within racks (IRAS).

*Note: Victaulic® and IGS™ are trademarks of Victaulic Company.

Technical Data:

Classification

Sprinkler

Temperature Link

Color

Frame

Color

Maximum Ceiling

Temperature

Sprinkler Identification

Number

(SIN)

°F °C °F °C

Ordinary

Intermediate

165

212

100

Black

White

Uncolored

White

100

150

66 RA0912

Material Data:

Frame Deflector Load Screw Lever Strut Link

Assembly Cap Washer Kick Spring

Brass Bronze Stainless

Steel

Stainless

Steel

Stainless

Steel

Beryllium Nickel,

Soldered Brass Beryllium

Nickel

Stainless

Steel

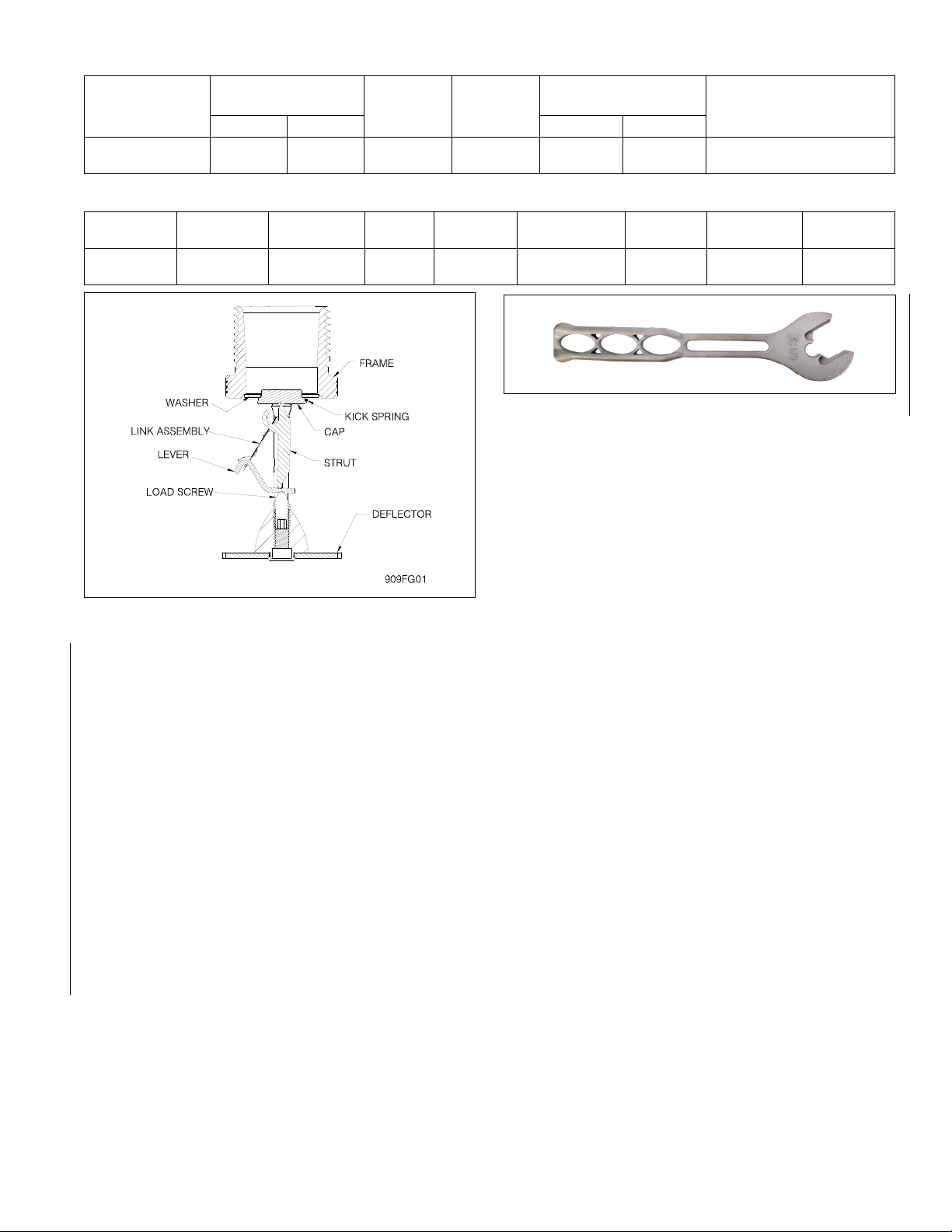

Fig. 1

Maintenance

The Model N25 ESFR Sprinkler should be inspected and

the sprinkler system maintained in accordance with NFPA

25. Do not clean sprinkler with soap and water, ammonia

or any other cleaning fluid. Remove any sprinkler that has

been painted (other than factory applied) or damaged in

any way. A stock of spare sprinklers should be maintained

to allow quick replacement of damaged or operated

sprinklers. Prior to installation, sprinklers should be

maintained in the original cartons and packaging until

used, to minimize the potential for damage to sprinklers

that would cause improper operation or non-operation.

Once operated, automatic sprinklers cannot be

reassembled and reused. New sprinklers of the same size,

type and temperature rating must be installed. A cabinet

of replacement sprinklers should be provided for this

purpose.

Model N25 ESFR Sprinkler Specification

Sprinklers shall be Early Suppression Fast Response

(ESFR) pendent suppression mode sprinklers specifically

tested and [FM Approved] for commodity storage

applications. Sprinkler frame and deflector to be of

bronze construction. Fusible link assembly shall utilize the

strut and lever principle of operation with approved fast

response black-painted or white-painted beryllium-nickel

thermal element. Water seal shall consist of a PTFE-

coated Bellville spring washer and brass cap assembly

containing no plastic parts. ESFR sprinklers shall have a

nominal K-factor of 25.2 with [1” NPT threaded] [ISO 7 1R1

threaded] [Victaulic® IGS™ grooved] end connections.

Sprinkler temperature rating shall be [Ordinary 165°F

(74°C)] [Intermediate 212°F (100°C)].

Installation

For threaded sprinklers, use only the Model W5

sprinkler wrench. Any other type of wrench may damage

the sprinkler. Sprinklers should be tightened between 22

- 30 ft-lbs (30- 41 Nm) torque. Sprinklers not tightened to

recommended torque or tightened past recommended

torque may cause leakage or impairment of the sprinkler.

Damaged sprinklers must be replaced immediately.

For grooved sprinklers, push the IGS™ Style V9

Sprinkler Coupling onto the grooved outlet until contact

with the center leg of the gasket occurs. Align the

sprinkler frame arms and the pads of the coupling with

the sprinkler piping and tighten the coupling until the

pads of the coupling meet. For additional information,

please reference Victaulic®technical bulletin I-V9.

Fig. 2 - Model W5 Wrench (for threaded sprinklers only)

Caution: When handling sprinklers, hold sprinklers only

by the frame arms and do not apply any force on the link

assembly.

ITEM DESCRIPTION

Sprinkler Identification Number (SIN) RA0912

K Factor us (Metric) 25.2 (360)

End Connection 1” NPT or ISO 7-1R1 threads, IGS™ Style V9 Sprinkler Coupling

Sprinkler Orientation Pendent

Maximum Working Pressure, PSI (bar) 175 PSI (12 bar)

Model N25 Technical Data Table A

Shown with optional Model 25 Guard (ordered separately;

available for threaded sprinklers only)

Fig. 3

Fig. 4

Reliable Automatic Sprinkler Co., Inc.

(800) 431-1588 Sales Offices

(800) 848-6051 Sales Fax

(914) 829-2042 Corporate Offices

www.reliablesprinkler.com Internet Address

Manufactured by

Recycled

Paper

Revision lines indicate updated or new data.

EG. Printed in U.S.A. 02/20 P/N 9999970454

The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, FM

Global, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable.

Products manufactured and distributed by Reliable have been protecting life and property for more than 100 years.

Storage Type NFPA FM GLOBAL

Sprinkler Type ESFR Storage

Response Type ESFR QR

System Type Wet Wet

Temperature Rating F (C) 165, 212 (74, 100) 165, 212 (74, 100)

Roof Construction See NFPA 13 See FM Global 2-0

Ceiling Slope See NFPA 13 See FM Global 2-0

Maximum Coverage Area See NFPA 13 See FM Global 2-0

Minimum Coverage Area See NFPA 13 See FM Global 2-0

Maximum Spacing See NFPA 13 See FM Global 2-0

Minimum Spacing See NFPA 13 See FM Global 2-0

Minimum Clearance to Commodity See NFPA 13 See FM Global 2-0

Sprinkler Distance to Ceiling See NFPA 13 See FM Global 2-0

Open Frame, Single, Double,

Multiple Row, or Portable

Rack Storage of Class I - IV,

Cartoned Unexp Plastics

See NFPA 13 See FM 2-0 and 8-9

Solid Pile or Palletized

Storage of Class I - IV and

Cartoned Unexp Plastics

See NFPA 13 See FM 2-0 and 8-9

Idle Pallet Storage See NFPA 13 See FM 2-0,8-9 and 8-24

Rubber Tire Storage See NFPA 13 See FM 2-0 and 8-3

Rolled Paper Storage See NFPA 13 See FM 8-21

Flammable Liquid Storage See NFPA 30 See FM 7-29

Aerosol Storage See NFPA 30B See FM 7-31

Auto Components in Portable Racks N/A N/A

Model N25 Commodity Selection and Design Criteria Overview Table B

Ordering Information

Specify:

1. Model N25 ESFR

2. Temperature Rating

- 165F (74C)

- 212F (100C)

3. End Connection

- 1” NPT thread

- ISO 7 R-1 thread

- Victaulic® IGS™ Style V9 Sprinkler Coupling

Note: 1” S/142 Victaulic® IGS™

grooved welded outlets are also

available from Reliable.
