Reliable JL-17 Manuel utilisateur

Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

Bulletin 019 September 2018

Model JL-17 (SIN RA1914)

K16.8 (240 metric)

Early Suppression

Fast Response Sprinkler

Features:

1. cULus, VdS, and LPCB listed as a nominal

K16.8 (240 metric) ESFR sprinkler.

2. FM Approved as a quick-response, storage

and non-storage, sprinkler.

3. Fusible link operating element.

4. Compact design allows piping to be in-

stalled farther from the ceiling and obstruc-

tions compared with larger sprinklers.

Listings and Approvals

1. Listed by Underwriters Laboratories Inc. and UL certified

for Canada (cULus) - Category Code VNWH.

2. FM Approved as a quick-response, storage and non-

storage, sprinkler.

3. VdS Schadenverhütung GmbH (VdS).

4. Loss Prevention Certification Board (LPCB).

5. CNBOP Technical Approval.

Product Description

The Reliable Model JL-17 Early Suppression Fast

Response (ESFR) Sprinkler with a nominal k-factor of

16.8 (240 metric). This sprinkler is designed to respond

quickly to growing fires and will deliver a heavy water

discharge to “suppress” rather than “control” fires. FM

Global classifies the Model JL-17 as a quick-response

sprinkler, storage and non-storage, when the sprinkler is

used in accordance with FM Global Property Loss Pre-

vention Data Sheets.

The Model JL-17 ESFR sprinkler utilizes a levered fus-

ible alloy solder link in either a 165°F (74°C) or a 212°F

(100°C) rating. Model JL-17 sprinklers are cULus Listed

for compliance with UL/ULC 1767, including the high

clearance test for rack storage.

The Model JL-17 ESFR sprinkler was designed to be

shorter and more compact than other ESFR sprinklers.

The shorter sprinkler allows piping to be installed farther

from the ceiling and obstructions. The JL-17 ESFR sprin-

kler is also less susceptible to damage due to smaller

deflector and frame design. The lighter JL-17 ESFR

passed rough use and abuse listing tests without plastic

protectors.

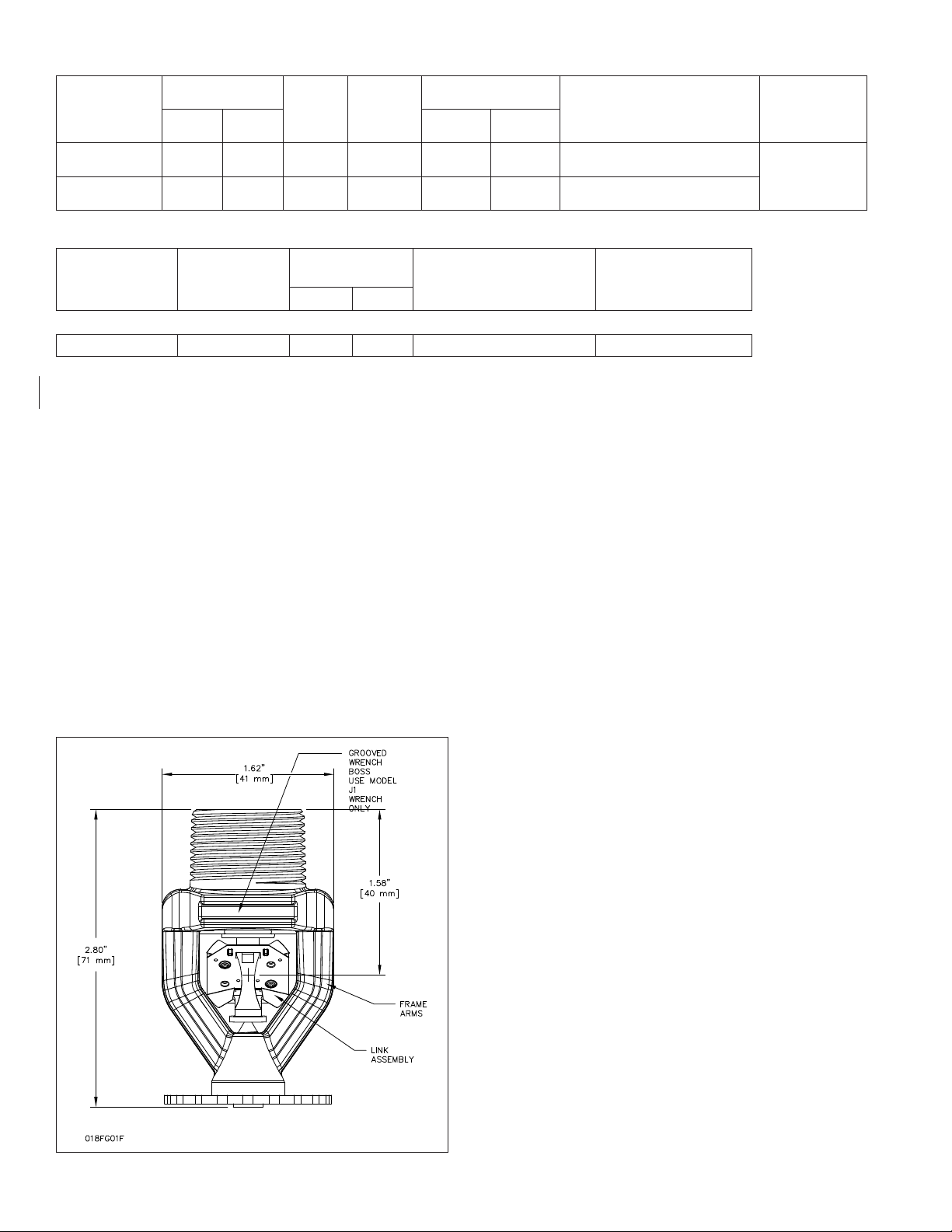

Model JL-17 ESFR Sprinkler

Application and Installation

The Model JL-17 ESFR sprinkler is intended for instal-

lation in accordance with NFPA 13 and FM Loss Pre-

vention Data Sheets 2-0 and 8-9, as well as the require-

ments of any Authorities Having Jurisdiction. See Table

B for information on NFPA and FM Global design criteria

for the Model JL-17 sprinkler.

Use only the Model J1 sprinkler wrench for removal

and installation. Any other type of wrench may damage

the sprinkler. A grooved wrench boss is provided on

the sprinkler to limit the potential for the wrench to slip

during installation.

Model J1

Sprinkler Wrench

Sprinklers not tightened to recommended torque may

cause leakage or impairment of the sprinkler. Damage

sprinklers must be replaced immediately.

When handling sprin-

klers, hold sprinklers

only on frame arms and

do not apply any force on

the link assembly. Sprin-

klers should be tight-

ened between 14 - 40 ft-

lbs (19 - 54 N-m) torque.

Temperature Ratings and Approvals

Temperature

Classification

Temperature

Rating Link

Color

Frame

Color

Maximum Ambient

Temperature Approvals

Sprinkler

Identification

Number

(SIN)

°F °C °F °C

Ordinary 165 74 Black Uncolored 100 38 cULus, FM, VdS, LPCB, CNBOP

RA1914

Intermediate 212 100 White White 150 66 cULus, FM, VdS, LPCB, CNBOP

Installation Data

Sprinkler Type Thread Size

Nominal K-

Factor Maximum

Working Pressure

Finish

US Metric

Pendent ¾” (R¾) 16.8 240 175 psi (12.1 bar) Bronze

Installation Criteria

See Table B on page 3 of this document.

Maintenance

The Model JL-17 ESFR Sprinkler should be inspected

and the sprinkler system maintained in accordance with

NFPA 25. Do not clean sprinkler with soap and water,

ammonia or any other cleaning fluid. Replace any sprin-

kler that has been painted (other than factory applied) or

damaged in any way. A stock of spare sprinklers should

be maintained to allow quick replacement of damaged or

operated sprinklers. Prior to installation, sprinklers should

be maintained in the original cartons and packaging until

used, to minimize the potential for damage to sprinklers

that would cause improper operation or non-operation.

Once operated, automatic sprinklers cannot be reassem-

bled and reused. New sprinklers of the same size, type

and temperature rating must be installed. A cabinet of re-

placement sprinklers should be provided for this purpose.

Model JL-17 ESFR Sprinkler Specification

Sprinklers shall be Early Suppression Fast Response

(ESFR) pendent sprinklers specifically tested and [cULus

Listed] [FM Approved] [VdS Approved] [LPCB Approved]

for commodity storage applications. Sprinkler frame and

deflector to be of bronze construction. Fusible link assem-

bly shall utilize the strut and lever principle of operation with

approved fast response black-painted or white-painted

beryllium-nickel thermal element. Water seal shall consist

of a PTFE coated Bellville spring washer and brass cap as-

sembly containing no plastic parts. ESFR sprinklers shall

have a nominal K-factor of 16.8 (240 metric) with [¾” NPT]

[ISO 7-R¾] threaded end connections. Sprinkler tempera-

ture rating shall be [Ordinary 165°F (74°C)] [Intermediate

212°F (100°C)]. ESFR pendent sprinklers shall be Reliable

Model JL-17 (Bulletin 019).

Ordering Information

Specify:

1. Sprinkler: Model JL-17

2. Temperature rating: [Ordinary 165°F (74°C)]

[Intermediate 212°F (100°C)]

3. Thread type: [3/4” NPT] [ISO 7-R3/4]

ITEM DESCRIPTION

Sprinkler Identification Number (SIN) RA1914

K Factor US (Metric) 16.8 (240)

Thread Size 3/4" (R3/4)

Sprinkler Orientation Pendent

Maximum Working Pressure, PSI (bar) 175 PSI (12 bar)

Model JL-17 Technical Data Table A

Storage Type NFPA FM GLOBAL

Sprinkler Type ESFR Storage

Response Type ESFR QR

System Type Wet Wet

Temperature Rating F (C) 165F, 212 (74, 100) 165F, 212 (74, 100)

Roof Construction See NFPA 13 See FM Global 2-0

Ceiling Slope See NFPA 13 See FM Global 2-0

Maximum Coverage Area See NFPA 13 See FM Global 2-0

Minimum Coverage Area See NFPA 13 See FM Global 2-0

Maximum Spacing See NFPA 13 See FM Global 2-0

Minimum Spacing See NFPA 13 See FM Global 2-0

Minimum Clearance to Commodity See NFPA 13 See FM Global 2-0

Sprinkler Distance to Ceiling See NFPA 13 See FM Global 2-0

Open Frame, Single, Double, Multi-

ple Row, or Portable Rack Storage of

Class I - IV, Cartoned Unexp Plastics

See NFPA 13 See FM 2-0 & 8-9

Solid Pile or Palletized Storage of

Class I - IV, Cartoned Unexp Plastics See NFPA 13 See FM 2-0 & 8-9

Idle Pallet Storage See NFPA 13 See FM 2-0,8-9 & 8-24

Rubber Tire Storage See NFPA 13 See FM 2-0 & 8-3

Rolled Paper Storage See NFPA 13 See FM 8-21

Flammable Liquid Storage See NFPA 30 See FM 7-29

Aerosol Storage See NFPA 30B See FM 7-31

Auto Components in Portable Racks N/A N/A

Model JL-17 Commodity Selection and Design Criteria Overview Table B

Reliable Automatic Sprinkler Co., Inc.

(800) 431-1588 Sales Offices

(800) 848-6051 Sales Fax

(914) 829-2042 Corporate Offices

www.reliablesprinkler.com Internet Address

Manufactured by

Recycled

Paper

Revision lines indicate updated or new data.

EG. Printed in U.S.A. 09/18 P/N 9999970379

The equipment presented in this bulletin is to be installed in accordance with the latest published Standards of the National Fire Protection Association, Factory

Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable.

Products manufactured and distributed by Reliable have been protecting life and property for almost 100 years.
