F1FR42 Series Sprinklers Summary

Sprinkler

Model

K-Factor gpm/psi1/2

(lpm/bar1/2)Orientation Listings & Approvals Max. Working Pressure

psi (bar)

Sprinkler

Identication

Number (SIN)

F1FR42 4.2 (60)

Upright

cULus

175 (12) RA1423

Pendent 175 (12) RA1413

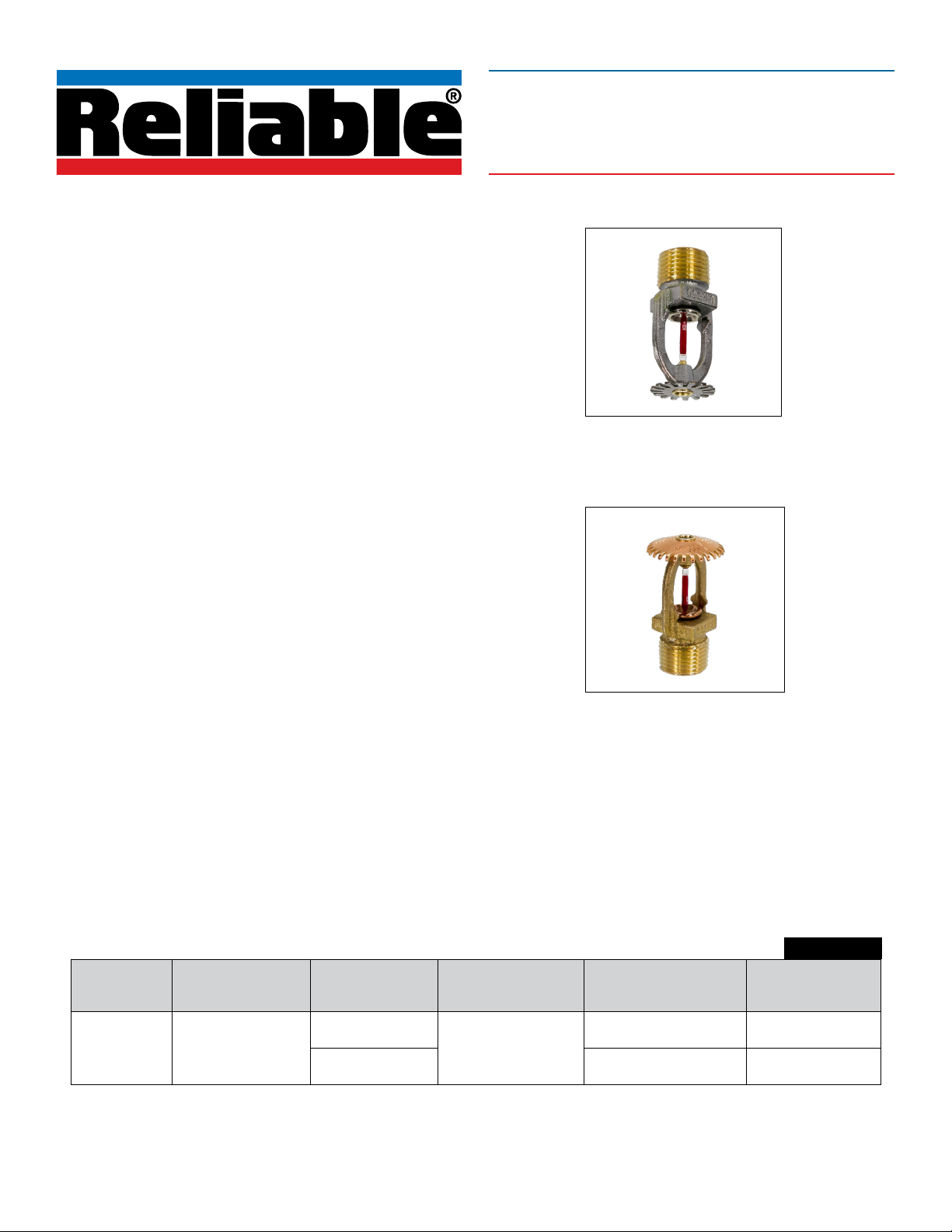

Table A

Model F1FR42 Pendent

Model F1FR42 Upright

Note: Not all versions of the product are shown.

Features

• Standard coverage quick-response sprinklers

• Upright and pendent deflectors

• Low prole, compact design

• Available in a wide variety of nishes

Product Description

Reliable Model F1FR series sprinklers are quick-response

standard spray automatic re sprinklers utilizing a sensitive 3.0 mm

glass bulb thermal element.

Pendent and horizontal sidewall sprinklers may be installed

exposed or surface mounted using escutcheons such as the

Reliable Models B, C, or HB (reference Technical Bulletin 204).

When installed recessed, the Model F1FR42 series sprinklers

are specically listed with and may only be installed with listed

Reliable escutcheons. Refer to the technical information on the

following pages for specic listings for recessed installations and

refer to Figure 3 for dimensional information.

When tted with an approved water shield, these sprinklers may

considered intermediate sprinklers for use in racks, below grated

walkways, and other areas where intermediate level sprinklers are

required.

Table A provides a summary of the approvals and availability of

specic Model F1FR series sprinkler congurations. Additional

technical information for each sprinkler model is provided on the

following pages.

Note: This bulletin may contain information on New and Legacy

sprinklers that reflects a dimensional change only. Sprinkler

Identication Number (SIN), application, performance, and

listings/approval are not otherwise affected. Sprinklers with new

frames can be identied by a rotoclip indent on one side of the

wrench boss and in some cases an installed rotoclip. Sprinklers

with new frames will include the sufx “N” in the order. For

reference only, legacy version of this sprinkler can be found on

Technical Bulletin 014.

www.reliablesprinkler.com

K-factor 4.2 (60)

F1FR42 Series

Quick-Response Sprinklers

Bulletin 073 October 2022

Model F1FR42 Upright Sprinkler SIN RA1423

Technical Specications

Style: Upright

Threads: 1/2” NPT or ISO 7-R1/2

Nominal K-Factor: 4.2 (60)

Max. Working Pressure: 175 psi (12 bar)

Material Specications

Thermal Sensor: 3 mm Glass Bulb

Sprinkler Frame: Brass Alloy

Cap: Bronze Alloy

Sealing Washer: Nickel with PTFE

Load Screw: Copper Alloy

Deflector: Brass Alloy

Sprinkler Finishes

(See Table B)

Sensitivity

Quick Response

Temperature Ratings

135°F (57°C)

155°F (68°C)

175°F (79°C)

200°F (93°C)

286°F (141°C)

Guards & Shields (New Frames)

F-1 Guard Kit

F-3 Guard/Shield Kit

Guards & Shields (Legacy Frames)

D-1 Guard

Sprinkler Wrenches

Model W2

Model J (New frame with guard installed)

Model JD (Legacy frame with guard installed)

Listings and Approvals

cULus

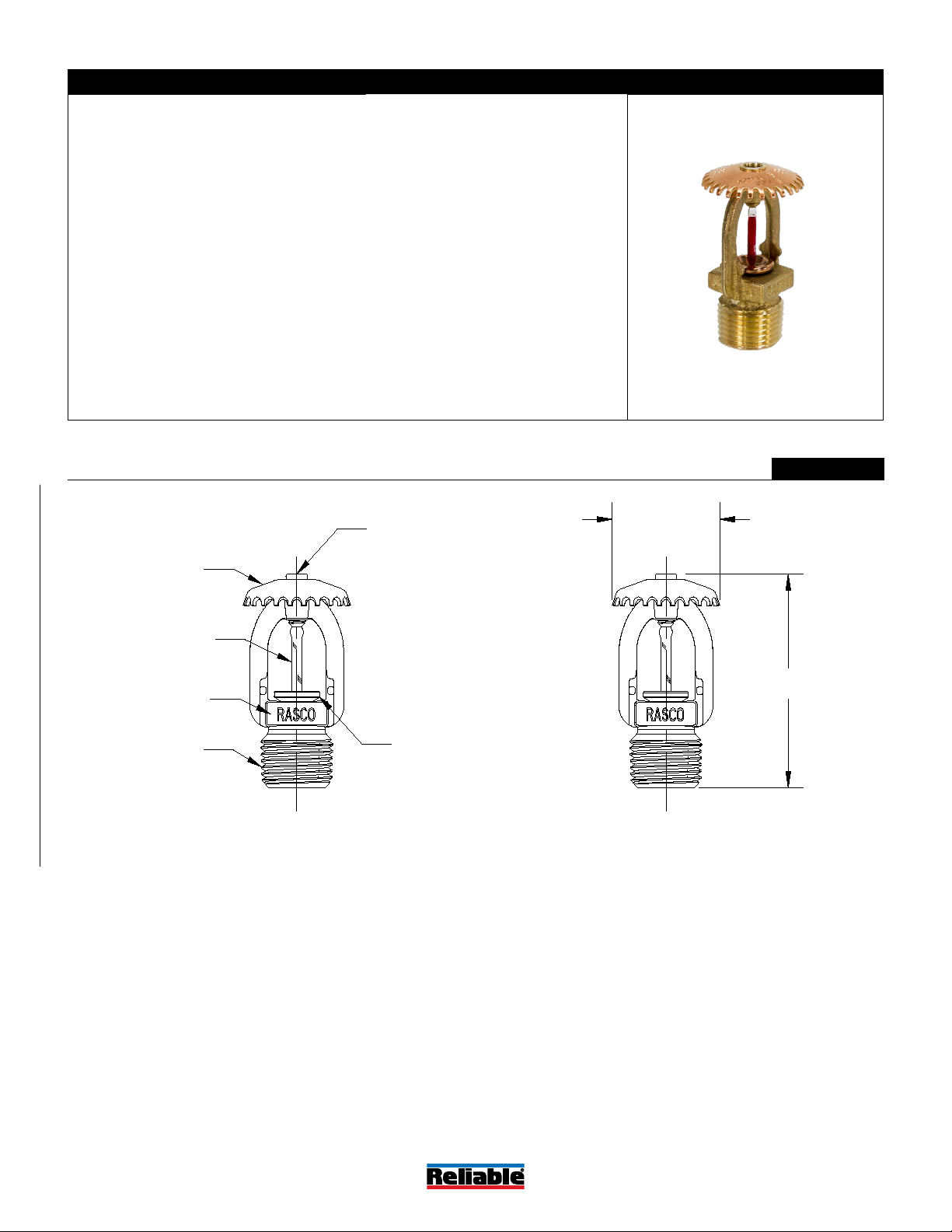

Model F1FR42 Upright Sprinkler Components and Dimensions Figure 1

Bulletin 073

October 2022

Page 2 of 6

www.reliablesprinkler.com

Deflector

Glass Bulb

(3 mm)

Wrench Flat

Threads

1 3/8" [33mm]

Cap/Seal Assembly

Load Screw

2 3/8" [60mm]

F1_HALF_UPR

Model F1FR42 Pendent Sprinkler SIN RA1413

Technical Specications

Style:

Pendent

Recessed Pendent

Threads: 1/2” NPT or ISO 7-R1/2

Nominal K-Factor: 4.2 (60)

Max. Working Pressure: 175 psi (12 bar)

Material Specications

Thermal Sensor: 3 mm Glass Bulb

Sprinkler Frame: Brass Alloy

Cap: Bronze Alloy

Sealing Washer: Nickel with PTFE

Load Screw: Copper Alloy

Deflector: Brass Alloy

Sprinkler Finishes

(See Table B)

Sensitivity

Quick Response

Temperature Ratings(1)

135°F (57°C)

155°F (68°C)

175°F (79°C)

200°F (93°C)

286°F (141°C)

Recessed Escutcheons

Model F1

Model F2

Model FP

Guards & Shields (New Frames)(2)

F-7 Guard Kit

F-8 Guard/Shield Kit

Guards & Shields (Legacy Frames)(2)

D-1 Guard

Sprinkler Wrenches

Model W2 (pendent)

Model W4 (recessed)

Model J (New frame with guard installed)

Model JD (Legacy frame with guard installed)

Listings and Approvals

cULus

Notes:

1. 286°F (141°C) and higher temperature rated sprinklers not listed for recessed use.

2. Not suitable for recessed pendent installations.

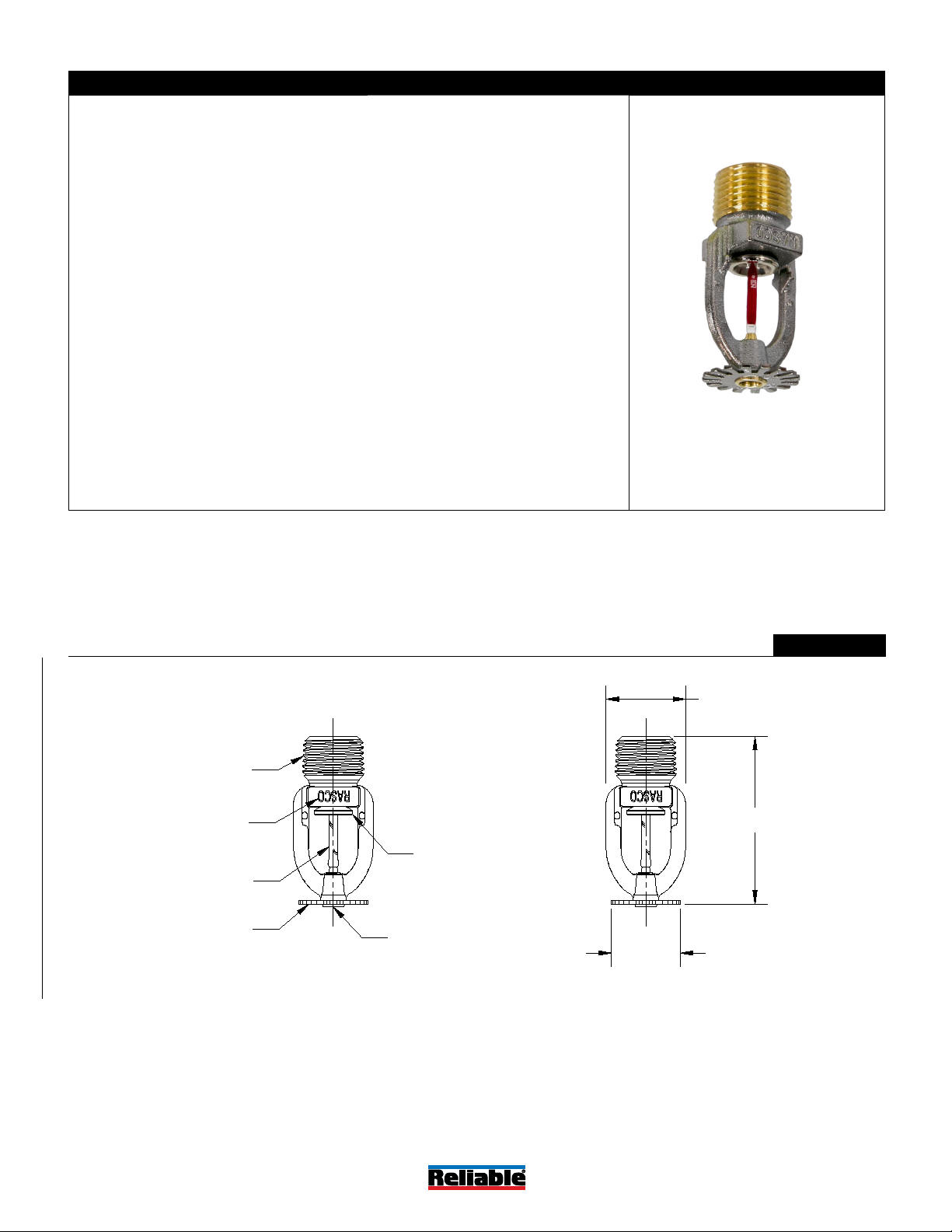

Model F1FR42 Pendent Sprinkler Components and Dimensions Figure 2

Bulletin 073

October 2022

Page 3 of 6

www.reliablesprinkler.com

Note: Please refer to Figure 3 for recessed installation.

F1FR_HALF_PEND

Deflector

Glass Bulb

(3 mm)

Wrench Flat

Threads

1 1/8" [29mm]

2 1/4" [57mm]

1" [25mm]

Load Screw

Cap/Seal

Assembly

Models F1 & F1FR Pendent Sprinkler

with Model F1 Recessed Escutcheon

3/4" (19mm) Nominal Adjustment

2-7/8" (72 mm) Dia.

1-3/4"

(44 mm)

2-1/4"

(57 mm) Dia.

Hole in Ceiling

1-15/16"

(49 mm) Dia.

Minimum

Recess

Maximum

Recess

(25 mm)

Face of Fitting

to Face of Ceiling

1-1/8" (29 mm) at

Max. Recess

3/8" (10 mm) at

Min. Recess

Models F1 & F1FR Pendent Sprinkler

with Model FP Recessed Escutcheon

1/2" (13mm) Nominal Adjustment

(25 mm)

2-5/16"

(59 mm) Dia.

Minimum

Recess Maximum

Recess

1/2"

(12 mm)

3-3/16" (78 mm) Dia.

Face of Fitting

to Face of Ceiling

1-1/2" (38 mm) at

Max. Recess

1" (25 mm) at

Min. Recess

2-7/8" (72 mm) Dia.

1-3/4"

(44 mm)

Minimum

Recess

Maximum

Recess

1-1/4"

(32 mm)

Face of Fitting

to Face of Ceiling

7/8" (22 mm) at

Max. Recess

3/8" (10 mm) at

Min. Recess

2-1/4"

(57 mm) Dia.

Hole in Ceiling

1-15/16"

(49 mm) Dia.

2-1/2"

(64 mm) Dia.

Hole in Ceiling

Models F1 & F1FR Pendent Sprinkler

with Model F2 Recessed Escutcheon

1/2" (13mm) Nominal Adjustment

F1_REC_PEND

Reducing

Fitting

Reducing

Fitting

Reducing

Fitting

Note: Model FP recessed assemblies may not be used where the

pressure in the space above the ceiling is positive with respect to

the protected area. Ensure that the openings in the Model FP cup

are unobstructed following installation.

Vented Cup

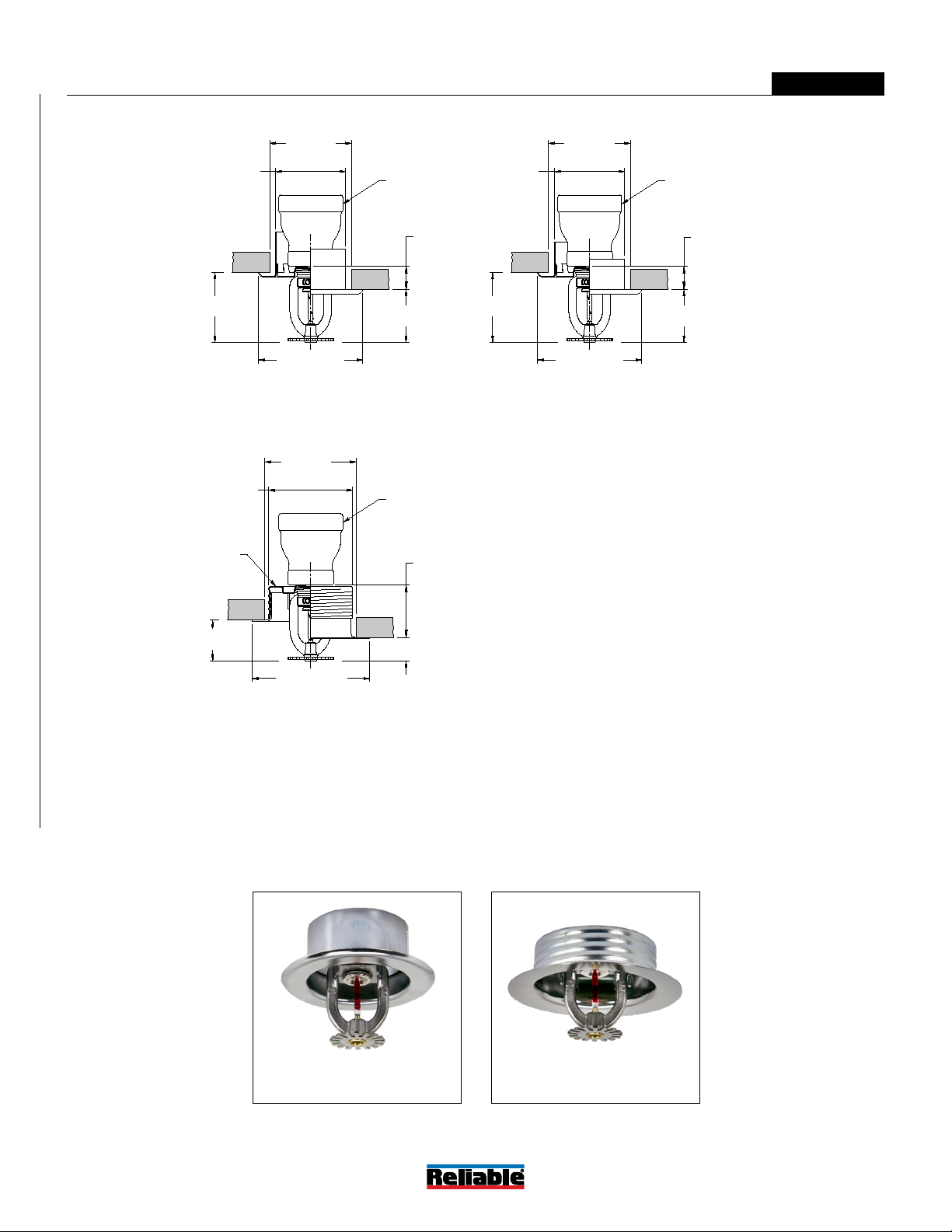

Recessed Installation: Pendent Sprinklers Figure 3

FP Escutcheon

F1 Escutcheon

(F2 similar)

Bulletin 073

October 2022

Page 4 of 6

www.reliablesprinkler.com

Installation

Model F1FR Series sprinklers must be installed in accordance with

NFPA13 and the requirements of all applicable authorities having

jurisdiction. Model F1FR Series sprinklers must be installed with

the Reliable sprinkler installation wrench identied in this Bulletin.

Any other wrench may damage the sprinkler. A leak tight sprinkler

joint can be obtained with a torque of 6 to 18 lb-ft (11 to 24

N.m). Do not tighten sprinklers over the maximum recommended

installation torque. Exceeding the maximum recommended

installation torque may cause leakage or impairment of the

sprinkler.

Glass bulb sprinklers have orange bulb protectors or protective

caps to minimize bulb damage during shipping, handling and

installation. Reliable sprinkler installation wrenches are designed

to install sprinklers with bulb protectors in place. Remove the bulb

protector at the time when the sprinkler system is placed in service

for re protection. Removal of the bulb protector before this time

may leave the bulb vulnerable to damage. Remove bulb protectors

by undoing the clasp by hand. Do not use tools to remove bulb

protectors.

Standard Finishes Special Application Finishes

Sprinkler F1, F2 and FP(2)

Escutcheons Sprinkler F1, F2 and FP(2)

Escutcheons

Bronze Brass Electroless Nickel PTFE(3) Bright Brass

Chrome Plated Chrome Plated Bright Brass(4) Satin Chrome

White Polyester(3) White Polyester Satin Chrome Custom Color Polyester

Custom Color Polyester(3)

Notes:

1. Paint or any other coating applied over the factory nish will void all approvals and warranties.

2. Model FP escutcheons utilize a galvanized steel cup with a nished trim ring.

3. cULus Listed as corrosion resistant.

4. For 200°F (93°C) maximum temperature rated sprinklers only.

Finishes(1) Table B

Maintenance

Reliable Model F1FR series sprinklers should be inspected and

the sprinkler system maintained in accordance with NFPA 25, as

well as the requirements of any Authorities Having Jurisdiction.

Prior to installation, sprinklers should remain in the original

cartons and packaging until used. This will minimize the potential

for damage to sprinklers that could cause improper operation or

non-operation.

Do not clean sprinklers with soap and water, ammonia liquid or

any other cleaning fluids. Remove dust by gentle vacuuming

without touching the sprinkler.

Replace any sprinkler which has been painted (other than factory

applied). A stock of spare sprinklers should be maintained to

allow quick replacement of damaged or operated sprinklers.

Failure to properly maintain sprinklers may result in inadvertent

operation or non-operation during a re event.

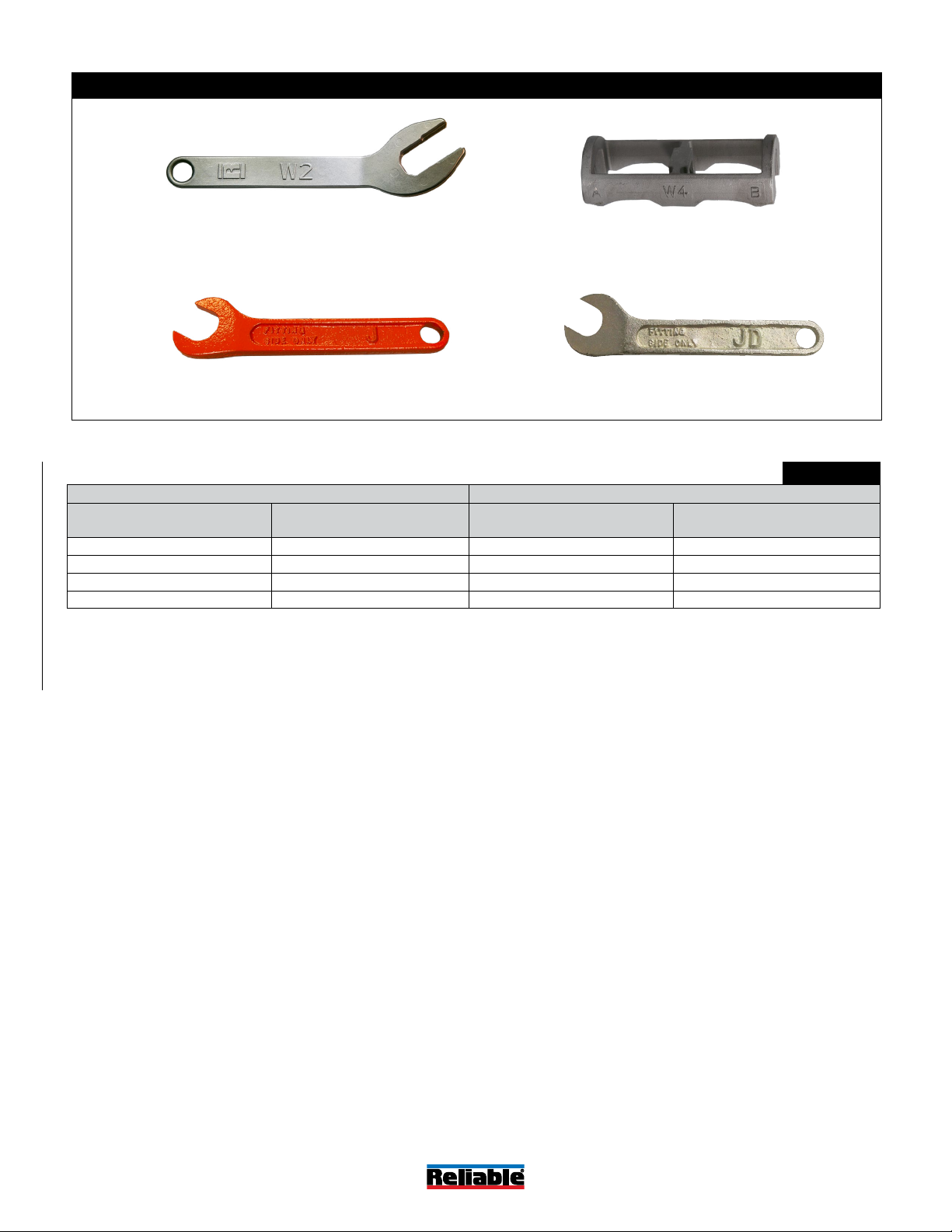

Wrenches

Model W2 (upright, pendent)

Model J (New frame with guard installed)

Model W4 (recessed pendent)

Model JD (Legacy frame with guard installed)

Bulletin 073

October 2022

Page 5 of 6

www.reliablesprinkler.com

Bulletin 073

October 2022

Page 6 of 6

www.reliablesprinkler.com

Guarantee

For the guarantee, terms, and conditions, visit www.

reliablesprinkler.com.

Ordering Information

Specify the following when ordering:

Model

• F1FR42

Deflector/Orientation

• Upright

• Pendent

Temperature Rating

• See sprinkler technical specications

Sprinkler Finish

• See Table B

Recessed Escutcheon*

• F1

• F2

• FP

Escutcheon Finish

• See Table B

Sprinkler Wrench

• Model W2 (upright and pendent)

• Model W4 (recessed)

• Model J (New frame with guard installed)

• Model JD (Legacy frame with guard installed)

*Notes: 286°F (141°C) sprinklers are not listed to be used recessed.

P/N 9999970622

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Reliable Système d'irrigation

Reliable

Reliable F3QR80 Series Manuel utilisateur

Reliable

Reliable N25 Manuel utilisateur

Reliable

Reliable GFR Manuel utilisateur

Reliable

Reliable Pantman F1 Manuel utilisateur

Reliable

Reliable F1-28 Series Manuel utilisateur

Reliable

Reliable XL Series Manuel utilisateur

Reliable

Reliable A4 Manuel utilisateur

Reliable

Reliable RFC30 Manuel utilisateur

Reliable

Reliable Pantman F1 Manuel utilisateur

Reliable

Reliable F3QR80 Series Manuel utilisateur

Reliable

Reliable JL-17 Manuel utilisateur

Reliable

Reliable JL-17 Manuel utilisateur

Reliable

Reliable Pantman F1 Manuel utilisateur

Reliable

Reliable F1FR-FS Series Manuel utilisateur

Reliable

Reliable SWC Manuel

Reliable

Reliable DDX PrePaK Manuel d'entretien

Reliable

Reliable Non-Ferrous Concealer Manuel utilisateur

Reliable

Reliable F1 LO Manuel

Reliable

Reliable Concealer G4A Manuel utilisateur

Reliable

Reliable F156 Series Manuel

Reliable

Reliable DH56 HSW-PL Manuel utilisateur

Reliable

Reliable DH80 Manuel

Reliable

Reliable N252 EC Manuel utilisateur

Reliable

Reliable J112 Pendent Manuel

Manuels Système d'irrigation populaires d'autres marques

Hunter

Hunter Institutional Series Manuel utilisateur

Cellfast

Cellfast 52-305 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL A Manuel utilisateur

Oral Care Technologies

Oral Care Technologies Hydro Floss Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F892 Manuel utilisateur

Netafim

Netafim NETBEAT Manuel utilisateur

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Manuel utilisateur

Tyco

Tyco CC3 Manuel utilisateur

OpenSprinkler

OpenSprinkler OSPi Manuel utilisateur

EINHELL

EINHELL GE-WW 5537 E Manuel utilisateur

Valley

Valley Bender160 Manuel utilisateur

Toro

Toro 730 Series Guide rapide

Eden

Eden 97063-EDAMZ Manuel utilisateur

Tyco

Tyco TY-L Series Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Manuel utilisateur

Johnson Controls

Johnson Controls tyco ESFR-17 Manuel utilisateur

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Manuel utilisateur
