X33-Scan

User’s Manual

Preface

Thank you for purchasing this product! Please read this instruction manual

carefully before using this product.

Attention and maintenance

Do not attempt to disassemble or modify any part of the machine.

After the product has been dropped or other damage occurred, do not touch

the inside of the scanner to avoid injury. If the product emits smoke, odour or

other abnormalities, stop using it immediately.

Do not use organic solvents such as alcohol, benzene or thinner to clean the

equipment.

Do not work in wet or dusty areas.

Please use film strips and mounted slides that meets the standard sizes.

Please confirm the cleanliness of the machine before use.

When the product is not in use for a long time, remove the power supply.

Check the contents of the package

Please check if your scanner package contains the following items:

Scanner holder for film strips holder for mounted slides

USB cable power adapter cleaning brush

Product diagram

1. LCD Monitor

2. Power button

3. Left button / mirror

4. SCAN button

5. Right button / flip

6. Enter button

7. Home button (will always bring you

back to the main interface)

8.Mini USB port

9.SD card socket

Loading mounted slides

Open the slide holder at the marked spot on

the top.

With the slide holder laid open place the slide

into recessed area in the holder- the slide

should fit perfectly.

Close the slide holder and press the edges

so that it locks in place.

It is recommended to blow off dust by using

compressed air.

Insert the slide holder into the slot on the

right side of the scanner.

Loading film strips

Open the film strip holder at the marked

spot on the top.

With the film strip holder laid open place

the film strip into holder so the notches

line up with the notches on the holder.

Make sure that the film strip’s shiny side

is facing upwards.

Note: Handle film strips with care. Any dust,

scratches or fingerprints will show up on your

saved images. If possible use cotton gloves

when handling film strip.

Close the slide holder and press the edges

so that it locks in place.

Insert the slide holder into the slot on the

right side of the scanner.

OPERATION GUIDE

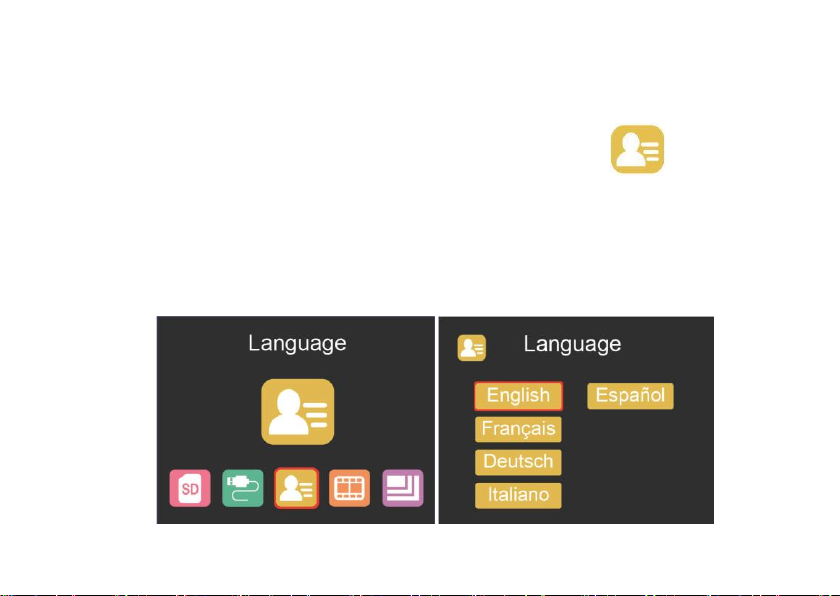

Language selection

Press <or >button in the main menu mode to select

Press “OK” then use <or >buttons to choose your preferred language

between English, French, German, Italian or Spanish.

Confirm by pressing “OK”.

Image resolution setting

Press <or >button in the main menu mode to select

Press “OK” then use <or >buttons to choose between 14MP and 22MP.

When film type 126 was selected, resolution will be automatically set to 16MP.

Main menu settings

1 2 3 4 5

1. Film selection

2. Resolution setting

3. Scan mode

4. Play mode

5. SD card formatting

Film selection

Press <or >button in the main menu mode to select

Choose between

SLIDE (color positive)

COLOR NEGATIVE

BLACK & WHITE (negative)

Type 135 film will be pre-selected by default (standard 35mm film with

24 x 36 mm image area).

For scanning ‘Instamatic’ type film (28 x 28mm) use setting “126”.
