Reflecta Imagebox LCD 9 Manuel utilisateur

ENGLISH

Imagebox LCD 9 User’s GuidePACKAGE CONTENT

Scanner Unit

Printed Quick Installation Guide

Slide Holders – 1 for film strip, 1- for mounted slides

(Additional holders available for purchase

PARTS OF THE SCANNER

1. Front of unit

2. Rear of unit

DC Power

USB 2.0 Port

A/V TV Port

3. Power Status LED

4. Photo/Film Switch

5. Film/Slide Holder

Insertion slot

6. Film Scanner

Internal screen cover

3720093-多國manual.indd 1 2010/11/4 下午 7:14

ENGLISH

Unpacking the unit

Please be sure to remove any tape that could be used to hold items in place for shipping

Brands of Memory Cards tested and found to be compatible:

SDHC Card

SanDisk

2GB

4GB

8GB

16GB

Transcend

2GB

4GB

16GB

ADATA

4GB

16GB

Kingston 4GB

Setting up the device:

Connect the AC adapter to an electrical outlet, then connect it to the back of the unit

Insert SD media card (NOTE: The menu will not available until card is inserted)

3720093-多國manual.indd 2 2010/11/4 下午 7:14

ENGLISH

Unpacking the unit

Please be sure to remove any tape that could be used to hold items in place for shipping

Brands of Memory Cards tested and found to be compatible:

SDHC Card

SanDisk

2GB

4GB

8GB

16GB

Transcend

2GB

4GB

16GB

ADATA

4GB

16GB

Kingston 4GB

Setting up the device:

Connect the AC adapter to an electrical outlet, then connect it to the back of the unit

Insert SD media card (NOTE: The menu will not available until card is inserted)

Once p

Scan

for sca

Previe

for vie

setting

wered on, the unit wi

Preview mode optio

ning options, choices

ing images on the SD

etc.

Scan - Switch b

Preview - Switch

l display the menu mo

will vary depending o

card, Film Type, Magi

tween scanning and

between scanning an

de (on the upper left s

position of the switch

c Touch (for film/slide

reviewing images on

previewing images

de of the screen)

(Film/Photo)

), Photo size

he card mode

n the card mode

3720093-多國manual.indd 3 2010/11/4 下午 7:14

ENGLISH

4



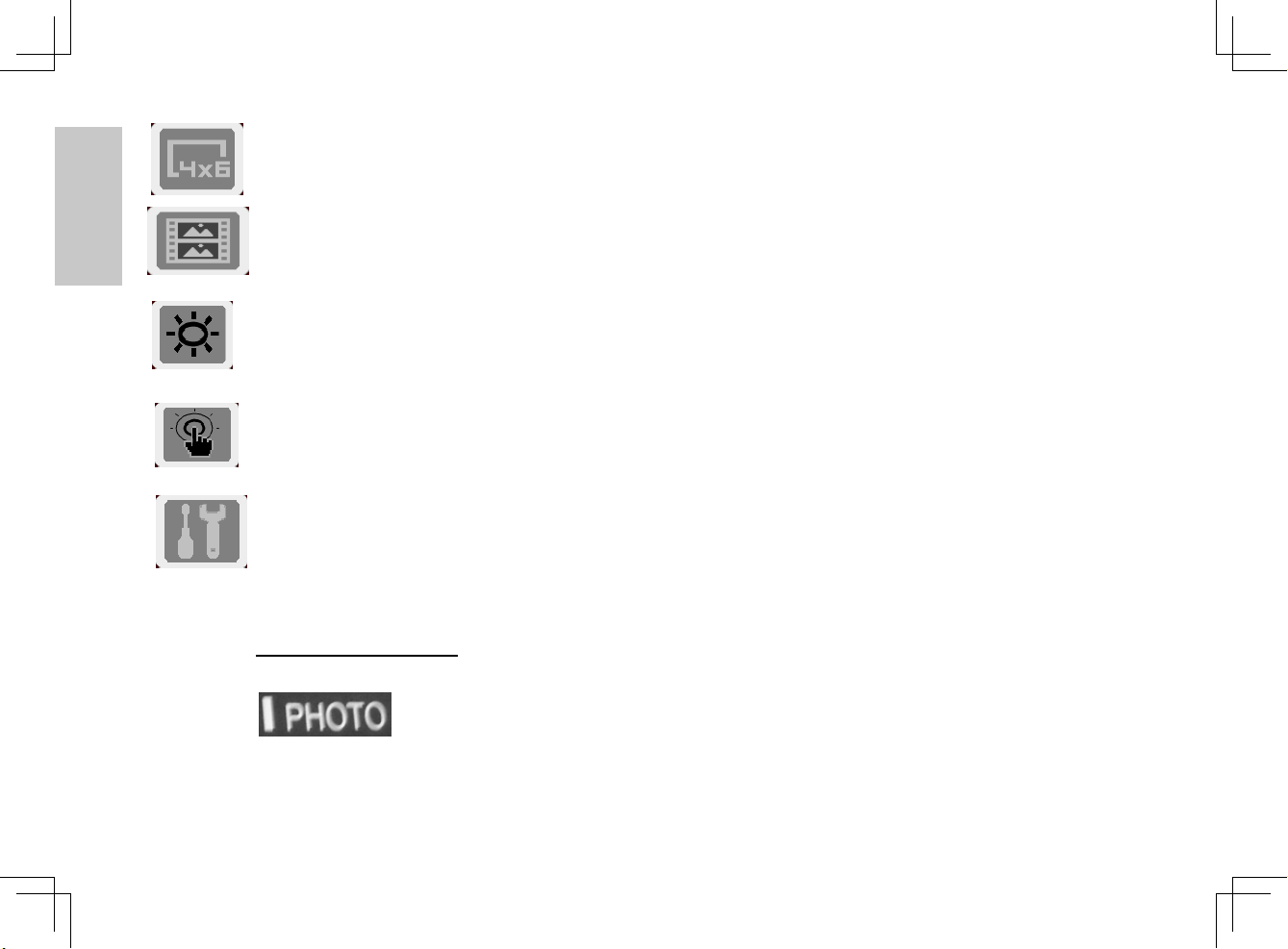

4x6 – Select photo size information, 4x6, 3x5 etc.

Film Type – Select Positive (for slides) Negative for film strips, and B&W for

black & white film strips

Brightness – Allows for some adjustment prior to scanning

Magic Touch – Removes Dust & scratch from Film & slides only, on/off,

normal and high options (available in Film Mode only)

Setup – Allows you to adjust hardware settings:

LCD display, TV settings (NTSC = USA, PAL = Foreign countries)

Quality, Size, Quick View, Interval, Slide Show Effect, Power Save

Scanning Photos:

Slide the switch on the front of the unit to Photo

To scan photos first select the size of the photos you wish to scan from the menu tools.

3720093-多國manual.indd 4 2010/11/4 下午 7:14

ENGLISH

5



Press OK then pressing the right arrow one time will advance you to the Photo size options

available, inches or

centimeters using the down arrow below the OK button select your photo size, then press

OK to set the size, the viewing window will show the selected size chosen (4x6 will only

show full screen image)

Insert your photo into the unit, lift the lid and place the photo with the top of the image at the

front of right corner of the scanner where the arrow indicates, lower the lid.

To scan pres the scan button on the front of the unit, the display will indicate “capturing”

when this message disappears the scan is complete, your photo has been scanned to the

SD Card.

Scanning Film/Slides:

You must first move the switch to Film mode, then lifting the lid of the scanner

remove the film scanner cover from inside, by pressing down on the 2 tabs to release the

cover, remove and keep this in a safe place.

3720093-多國manual.indd 5 2010/11/4 下午 7:14

ENGLISH

6



Once the film cover has been removed lower the lid of the scanning unit, now you may

select between film types you wish to scan, Pressing the Menu tool, then press the right

arrow once to get to the film type selection tool using the down arrow select

from: Positive (slides), Negative (color film strips) or B&W (black & white negatives) Highlight

your selection and press OK.

Tab Tab

Please remove white plate

3720093-多國manual.indd 6 2010/11/4 下午 7:14

ENGLISH

6



Once the film cover has been removed lower the lid of the scanning unit, now you may

select between film types you wish to scan, Pressing the Menu tool, then press the right

arrow once to get to the film type selection tool using the down arrow select

from: Positive (slides), Negative (color film strips) or B&W (black & white negatives) Highlight

your selection and press OK.

7



If you wish to apply the Magic Touch feature for dust & scratches do so now from the menu,

press the OK button and using the right arrow move to the Magic Touch icon

select on to enable dust removal functionality by using the down arrow, once

your selection is highlighted press OK

Scanning Slides:

NOTE: Make certain if you had scanned Photograph’s previously that the film scanner cover

inside the unit has been replaced, otherwise you will only see the center portion of your films.

Loading slides into the slide holder, the slides need to be inserted horizontally; backwards

(any writing in the physical image should be backward and upside down)

3720093-多國manual.indd 7 2010/11/4 下午 7:14

ENGLISH

8



Insert slide holder into the unit, with the arrows facing up, your image will appear on the

screen, center the image, press the Scan button to save the image.

Scanning Negatives:

Inserting the negative into the holder, open the holder facing you, the arrows will be on top

Insert the negative into the holder with the top of the image at

the bottom, insert film upside down, with the

numbering/lettering on the film appearing backwards carefully

line up the negative frame lines with the lines on the holder,

close the holder by bringing the top towards you, this is then

inserted into the unit with the white arrows facing up, your

image will appear on the screen, center the image, press the

Scan button to save the image.

3720093-多國manual.indd 8 2010/11/4 下午 7:14

ENGLISH

8



Insert slide holder into the unit, with the arrows facing up, your image will appear on the

screen, center the image, press the Scan button to save the image.

Scanning Negatives:

Inserting the negative into the holder, open the holder facing you, the arrows will be on top

Insert the negative into the holder with the top of the image at

the bottom, insert film upside down, with the

numbering/lettering on the film appearing backwards carefully

line up the negative frame lines with the lines on the holder,

close the holder by bringing the top towards you, this is then

inserted into the unit with the white arrows facing up, your

image will appear on the screen, center the image, press the

Scan button to save the image.

9



Previewing Scanned images:

Once the images have been scanned they can be viewed either on the Device or thru the

video port of a television

Select the Film menu icon pressing it 2 times to view the images

on the card, to view them one by one press the right arrow key, pressing the preview icon

again provide more viewing options

The second option will play a slide show of the images on the card.

Pressing the right arrow again reveals the Edit function, for rotating or deleting

images, the last icon allow you to adjust the preview image size, when selected you will be

provided with a thumbnail panel of the images on the card 1x1 is one image per screen, 2x2

is 2 images across, and 3x3 will display 3 images across.

3720093-多國manual.indd 9 2010/11/4 下午 7:14

ENGLISH

10



Connecting to a TV Video port:

Set your television to AV in mode, you may need to consult your Television’s user manual to

find out how to go about doing this, each television is different

Connect the included AV cable to the video in port on your TV, connect the other end to the

back of the scanner into the port labeled TV, the scanner menu controls may now be viewed

on your television screen, allowing you to use the same menus and buttons to advance the

images or run a slide show from the scanner’s media card directly on your TV.

Viewing with a Computer:

Connect the USB cable to the back of the scanner, connect the other end to your

Computer’s USB port, the operating system will install the device as removable media, you

can then access the images stored on the inserted SD card for importing to your favorite

image editing program etc.
