Reed Instruments R4700SD Manuel utilisateur
Data Logging
Environmental
Meter
Instruction
Manual
R4700SD
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
2
Table of Contents
Introduction ................................................................................................ 3
Product Quality........................................................................................... 4
Safety ......................................................................................................... 4
Features...................................................................................................... 4
Included...................................................................................................... 4
Specications..........................................................................................5-6
Instrument Description............................................................................... 7
Display Description .................................................................................... 8
Operating Instructions...........................................................................9-13
Power ON/OFF ...................................................................................... 9
Selecting Measurement Modes ............................................................. 9
Air Velocity/Temperature Measurement ................................................. 9
Humidity/Temperature Mode (rH/tA).................................................... 10
Changing the Air Velocity Unit of Measure .......................................... 10
Type K/J Thermocouple Measurement Mode...................................... 10
Light Measurement .............................................................................. 11
Changing the Light Meter unit of Measure .......................................... 11
Zero Adjustment .................................................................................. 11
Sound Level Measurement
(Requires optional R4700SD-SOUND probe) ...................................... 12
Data Hold ............................................................................................. 12
Recording Maximum and Minimum Readings..................................... 13
Backlight .............................................................................................. 13
Setup Mode.........................................................................................14-17
Setting the Time and Date (dAtE)......................................................... 14
Setting Data Decimal Format (dEC) ..................................................... 15
Enabling/Disabling Auto Power Off (PoFF) .......................................... 15
Enabling/Disabling the Beeper (bEEP)................................................. 15
continued...
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
3
Selecting Thermocouple Type (tYPE) ................................................. 16
Setting the Data Logging Sampling Rate (SP-t) ................................. 16
Formatting the SD Card (Sd F) ......................................................16-17
Verify Set Time and Date .................................................................... 17
Verify Sampling Rate .......................................................................... 17
Data Logging.......................................................................................17-21
Data Recording Modes....................................................................... 17
Manual Data Logging Mode ..........................................................17-18
Automatic Data Logging Mode .......................................................... 18
Transferring Data from the SD Memory Card to a Computer........19-21
Data Stream Output ................................................................................. 22
3.5mm Terminal to RS-232 Serial Connection ................................... 22
System Reset ........................................................................................... 23
Battery Replacement................................................................................ 23
Applications.............................................................................................. 23
Accessories and Replacement Parts ..................................................23-24
Frequently Asked Questions (FAQ's)........................................................ 24
Product Care ............................................................................................ 25
Product Warranty ..................................................................................... 25
Product Disposal and Recycling .............................................................. 26
Product Support....................................................................................... 26
Introduction
Thank you for purchasing your REED R4700SD Data Logging
Environmental Meter. Please read the following instructions carefully
before using your instrument. By following the steps outlined in this
manual your meter will provide years of reliable service.
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
4
Product Quality
This product has been manufactured in an ISO9001 facility and has been
calibrated during the manufacturing process to meet the stated product
specications. If a certicate of calibration is required please contact the
nearest authorized REED distributor or authorized Service Center. Please
note an additional fee for this service will apply.
Safety
Never attempt to repair or modify your instrument. Dismantling your
product, other than for the purpose of replacing batteries, may cause
damage that will not be covered under the manufacturer's warranty.
Servicing should only be provided by an authorized service center.
Features
• Measuresairvelocity/temperature,ambienttemperature,relative
humidity, light, and contact temperature
• Measuressoundlevel(dB)withR4700SD-SOUND(soldseperately)
• Airvelocityismeasuredinm/s,ft/min,km/h,mphorknots
• Lightlevelsaremeasuredinfoot-candlesorlux
• Temperatureismeasuredin°Cor°F
• DataholdandMax/Minfunctions
• Real-timedataloggerwithintegratedSDmemorycard
• Userselectablesamplingratefrom1to3600seconds
• Easy-to-readbacklitLCDdisplay
• Tripodmountforlong-termmonitoring
• Lowbatteryindicatorandautoshutoff
Included
• Multi-FunctionProbe
• HardCarryingCase
• Batteries
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
5
Specifications
Air Velocity
MeasuringRanges: m/s:0.4to30.0
km/h:1.4to108
mph: 0.9 to 67.1
fpm: 79 to 5906
knots: 0.8 to 58.3
Accuracy: ±2%+0.2m/s
(0.8km/h;0.4mph;40fpm;0.4knot)
Resolution: 0.1m/s,km/h,mph,knot
1 fpm
Temperature
MeasuringRanges AirTemperature:32to122.0°F
(0to50°C)
Contact Temperature:
TypeKTemperature:-148to2372°F
(-100to1300°C)
TypeJTemperature:-148to2192°F
(-100to1200°C)
Accuracy: AirTemperature:±0.8°C(±1.5°F)
Contact Temperature:
≥-58°F(-50°C)
±(0.4%+1.5°F(0.8°C))
≤-58°F(-50°C)±(0.4%+1.8°F(1°C))
Resolution: 0.1°F/°C
Humidity
MeasuringRange: 5to95%RH
Accuracy: >70%RH:±(3%rdg+1%RH)
<70%RH:±3%RH
Resolution: 0.1%RH
Light
MeasuringRanges: 0to20,000Lux(0to1,860Ft-cd)
Accuracy: ±(5% rdg ± 8 dgt)
Resolution: 1Lux/0.1Ft-cd
Sound (Optional, R4700SD-SOUND Adapter Sold Separately)
Measuring Ranges: 30 to 80dB
50 to 100dB
80 to 130dB continued...
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
6
Accuracy: Basic Accuracy of ±3.5dB
Resolution: 1 dB
General Specifications
Response Time: 1 second
Display: 4-digit dual LCD
Backlit Display: Yes
DataHold: Yes
Min: Yes
Max: Yes
Zero Adjustment: Yes (for Light)
Datalogging Capabilities: Yes
Real-Time Clock
and Date Stamp: Yes
Selectable Sampling Rate: Yes (1, 2, 5, 10, 30, 60, 120, 300,
600, 1800, 3600 seconds)
ExternalMemory: Yes,expandableupto16GBwith
SD card (optional)
AutoShut-off: Yes(after10minutes/off)
Kick Stand: Yes
Tripod Mountable: Yes
Low Battery Indicator: Yes
PowerSupply: 6xAAbatteriesorACAdapter(optional)
Data Output: Yes (RS-232)
Product Certications: CE
OperatingTemperature: 0to122°F(0to50°C)
StorageTemperature: 14to140°F(-10to60°C)
OperatingHumidityRange: 10to85%
Dimensions: Instrument:5.3x2.4x1.3"
(135x60x33mm)
Probe:4.1x1.8x1.1"(105x46x29mm)
Weight: 1.1lb (515g)
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
7
Instrument Description
POWER
ESC
FUNC.
HOLD
NEXT
REC
ENTER
SET
TIME
CHECK SAMPLING
CHECK
LOG
Environmental Meter
Temperature/Humidity/
Light/Air Velocity
SD Series Data Logger
R4700SD
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1.
POWER/Backlight/ESCButton
2.
SET/Down/TIME
CHECKButton
3. SD Card Slot
4. LCD Display
5. HOLD/FUNCTION/
NEXT Button
6. REC/ENTERButton
7.
LOG/Up/SAMPLING
CHECKButton
8. RS-232 Output Jack
9. Reset Pin
10. Power Adapter Input
11. Tripod Mounting Screw
12. Battery Cover
13. Kickstand
14.TypeK/JThermocouple
Input Jack
15. Anemometer Vane
16.Humidity/TemperatureSensor
17.EnvironmentalProbeHead
18. Light Sensor
19. Environmental Probe Plug
20. Probe Input Socket
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
8
Display Description
6
3
Km/h %RH
mph
K
Ft-cd
LUX
J
Knot
dB
FPMm/S
m/V
F
10
11
12
LUX
1. LightUnitofMeasure
2. Thermocouple Type Indicator
3. Date/TimeStamp
4.
Date&TimeValues/
Temperature Measurement
Reading
5. TemperatureUnitofMeasure
6. UnitsofMeasure
7. Measurement Reading
Indicator
8. SoundUnitofMeasure
9. MaximumandMinimum
Indicators
10. Record Mode Indicator
11.DataHoldIndicator
12. Low Battery Indicator
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
9
Operating Instructions
Power ON/OFF
Turn the meter on by pressing the POWER button. To turn the meter off,
press and hold the POWER button for 2 seconds.
Note: Thismetercanbepoweredbyeithersix(6)"AA"batteriesorAC
adapter (sold separately).
Selecting Measurement Modes
The R4700SD offers 4 types of measurement modes:
• AirVelocity/Temperature
• Humidity/Temperature
• TypeK/JThermocoupleTemperature
• LightMeter
1.
Whenthemeterison,pressandholdtheFUNCTIONbuttontoscroll
throughthemeasuringmodes.Thedisplaywillash"An"(forair
velocity/temperaturemeasurements),"rH"(forhumidity/
temperaturemeasurements),"tP"(fortypeK/J
thermocouple
temperaturemeasurements),"LIgHT"(forlightmeasurements).
2. ReleasetheFUNCTIONbuttontoconrmselection.
Air Velocity/Temperature Measurement
1. Plug the environmental probe into the
probe input socket while the meter
is off.
2. Once the meter is powered up,
select"An"function(seeSelecting
Measurement Modes for details).

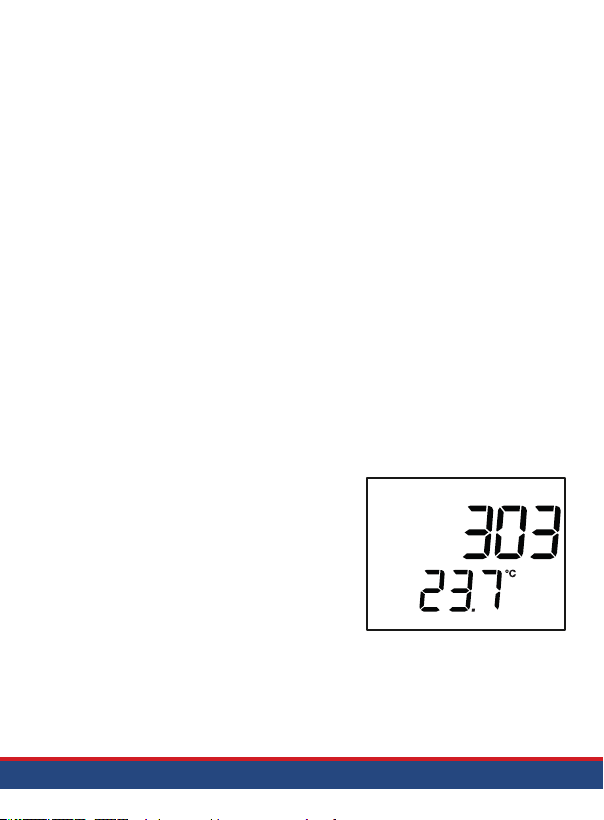

3. Holdtheprobehandleandface
the anemometer head towards the
direction of the airow. The top part
of the display will indicate the air velocity, and the lower part of the
display will indicate the air temperature value as shown above.
continued...
FPM
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
10
Humidity/Temperature Mode (rH/tA)
1.
Plug the environmental probe into the
probe input socket while the meter is off.
2. Selectthe"rH"function(seeSelecting
Measurement Modes for details).
3. The top part of the display will indicate
the humidity value while the lower
part of the display will indicate the air
temperature value as shown.
Changing the Air Velocity Unit of Measure
Tochangetheairvelocityunitofmeasure,pressandholdtheUNIT
button.Thedisplaywillscrollthrougheachunit(m/S,Km/h,mph,Knot,&
FPM).ReleasetheUNITbuttontoselectthedisplayedunit.Theselected
unit will be saved as the new default unit of measure.
Type K/J Thermocouple Measurement Mode
1. Selectthe"tP"function(seeSelecting
Measurement Modes for details).
2. Plug the optional Type K or J
Thermocouple Probe into the Type
K/Jthermocoupleinputjack.
Note: Make sure to remove the
environmental probe before inserting the
thermocouple probe.
3. Thescreenwilldisplaya"K",conrming
that it is congured by default to a Type K thermocouple probe. The
measured temperature will now be displayed on the LCD screen.
Note: If using a type J thermocouple probe, see Selecting Thermocouple
Type for details.
continued...
%RH
F
K
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Table des matières
Autres manuels Reed Instruments Instrument de mesure
Reed Instruments
Reed Instruments Smart Series Manuel utilisateur
Reed Instruments
Reed Instruments R9920 Manuel utilisateur
Reed Instruments
Reed Instruments R9260 Manuel utilisateur
Reed Instruments
Reed Instruments R9510 Manuel utilisateur
Reed Instruments
Reed Instruments SL-417 Manuel utilisateur
Reed Instruments
Reed Instruments R7900 Manuel utilisateur
Reed Instruments
Reed Instruments R8050 Manuel utilisateur
Reed Instruments
Reed Instruments R6000 Manuel utilisateur
Reed Instruments
Reed Instruments R7700 Manuel utilisateur
Reed Instruments
Reed Instruments SMART Series Manuel utilisateur
Reed Instruments
Reed Instruments LM-81LX Manuel utilisateur
Reed Instruments
Reed Instruments R7050 Manuel utilisateur
Reed Instruments
Reed Instruments R3530 Manuel utilisateur
Reed Instruments
Reed Instruments R9905 Manuel utilisateur
Reed Instruments
Reed Instruments R8140 Manuel utilisateur
Reed Instruments
Reed Instruments R5090 Manuel utilisateur
Reed Instruments
Reed Instruments R8070SD Manuel utilisateur
Reed Instruments
Reed Instruments LM-81HT Manuel utilisateur
Reed Instruments
Reed Instruments HT-6510A Manuel utilisateur
Reed Instruments
Reed Instruments R3000SD Manuel utilisateur
Manuels Instrument de mesure populaires d'autres marques
Endress+Hauser
Endress+Hauser Proline Promag 50 Caractéristiques techniques
Siemens
Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces
KLINGER
KLINGER CMF V Series Manuel utilisateur
EXFO
EXFO FTB-2 Manuel d'exploitation et d'entretien
Keysight
Keysight M8290A Manuel utilisateur
ADTEK
ADTEK MW-5 Manuel utilisateur
