RCA RCR2702 Manuel utilisateur

Important Safeguards

IMPORTANT SAFETY INSTRUCTIONS

1. Read all the safety and operating instructions before the television is operated.

2. Retain the safety and operating instructions for future reference.

3. Adhere to all warnings on the television and in the operating instructions.

4. Follow all operating and use instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves,

or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. Agrounding type

plug has two blades and a third grounding prong. The wide blade or the third

prong is provided for your safety. If the provided plug does not fit into your

outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

This symbol indicates “danger-

ous voltage” inside the product

that presents a risk of electric

shock or personal injury.

This symbol indicates impor-

tant instructions accompanying

the product.

WARNING

To reduce the risk of fire or electric shock, do not expose this product to rain or

moisture.

The apparatus must not be exposed to dripping or splashing. Objects filled with

liquids, such vases or drinking glasses, must never be placed on the apparatus.

CACA

CAUTIONUTION

UTIONUTION

UTION

RISKOFELECTRICSHOCK

DONOTOPEN

This symbol indicates that this product incor-

porates double insulation between hazardous

mains voltage and user accessible parts. When

servicing use only identical replacement parts.

Caution: To reduce the risk of electric shock, do not remove cover (or back). No

user serviceable parts inside. Refer servicing to qualified service

personnel.

2ii

Important Safeguards

12. Use only with the cart, stand, tripod, bracket, or table

specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid in-

jury from tip-over.

13. Unplug this apparatus during lightning storms or

when unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such

as power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped.

15. If an outside antenna or cable system is connected to the product, be sure the

antenna or cable system is grounded so as to provide some protection against

voltage surges and built-up static charges. Section 810 of the National Electrical

Code, ANSI/NFPA No. 70-1984 (Section 54 of Canadian Electrical Code, Part 1)

provides information with respect to proper grounding of the mast and support-

ing structure, grounding of the lead-in wire to an antenna-discharge unit, size of

grounding conductors, location of antenna-discharge unit, connection to ground-

ing electrode. See following example.

16. Mains plug is used as the disconnect device. It shall remain readily operable

and should not be obstructed during intended use.

ELECTRIC

SERVICE

EQUIPMENT

NEC-NATIONAL ELECTRICALCODE

POWERSERVICE GROUNDING

ELECTRODE SYSTEM

(NEC ART 250 PART H)

GROUND CLAMPS

GROUNDING CONDUCTOR

(NEC SECTION 810-21)

ANTENNA

DISCHARGE UNINT

(NEC SECTION 810-21)

ANTENNA

LEAD IN

WIRE

Contents

Overview 4

External connection 6

Remote control 8

Basic operation 10

Menu Basic operation 12

Using the PICTURE menu 12

Using the SOUND menu 13

Using the TUNING menu 14

Using the FUNCTION menu 15

Picture defects and countermeasures (AIR reception) 18

Troubleshooting 19

Appendix

Color TV receiving systems table 20

Color TV Functions table 21

Color TV Specifications table 22

Color TV Dimensions and Weights table 23

Color TV Accessories table 24

Remote Control 24

You are welcome to use RCA color TV

Thank you for your purchasing RCA color TV product which adopts English display, we hope

RCA TV brings you new pleasure in your audio and visual entertainment. To enjoy the various

functions offered by the unit, please read this manual thoroughly before using the unit.

Overview of the function keys

Dear customer, please observe the function keys on the TV and refer to the following

diagram to learn every function key.

Overview

TV/AV MENU VOL PROG

POWER SWITCH POWER INDICATOR

IR RECEIVER WINDOW

TV/AV Button

Menu Button

Volume Down Button

Program Up Butto

Volume Up Button

VIDEO INPUT

AUDIO INPUT

HEADPHONE OUTPUT JACK

Overview

Overview of the back AV jacks

Please observe the AV jacks on the back of TV, and refer to the following diagram

to learn the function of everyAV jack.

Side AV and Headphone jacks

Please sure whether your TV has side AV and headphone jacks, if it has, please

refer to the following diagram to learn the function of every side jack.

Antenna Jack

Video

Input Jack

Audio

Input Jack C

Input Jack

SVHS

Input Jack

Audio

Output Jack

Video

Output Jac

Input Jack

Y Input Jac

AV1

AV2

Antenna connection

The antenna input impedance used in this model is 75ohm, just connect 75ohm co-

axial cable of VHF/UHF antenna to the antenna jack on the back of TV directely. If you

use 300 flat feeder, you need connect it with one 300 /75ohm converter first, then

connect the converter into the antenna jack.

Note: It is recommended to use 75ohm coaxial cable to eliminate interference and

noise caused by radio wave.

Do not bind the antenna cable and power cord together.

Connect to Audio equipment

Connect this unit with the audio input terminal (pinhole) of a stereo system, then you

may enjoy quality sound at the same time of enjoying quality picture.

External connection

(White) (Red)

（

White) (Red)

VIDEO OUTPUT

L AUDIO OUTPUT

R AUDIO OUTPUT

To external equipment input

Stereo System

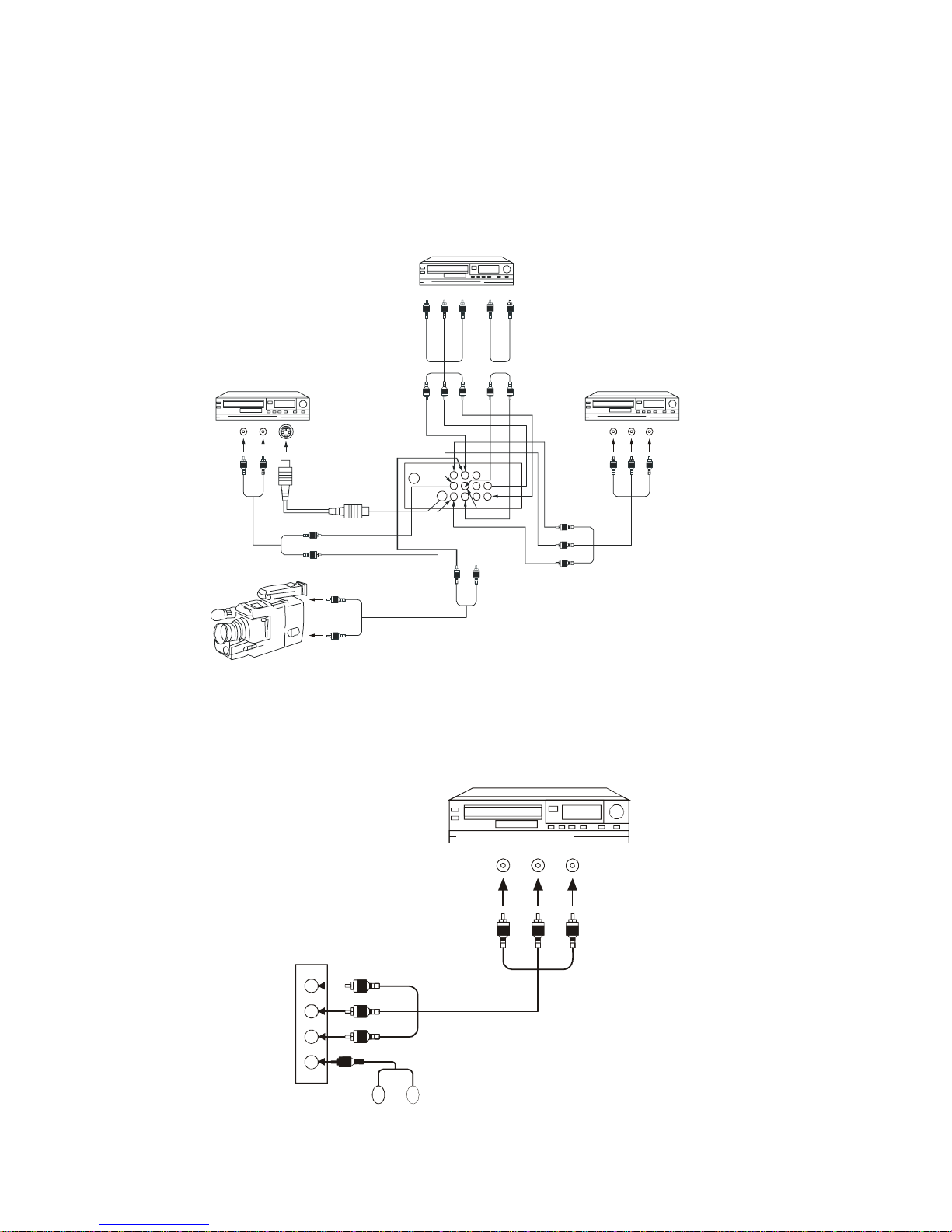

If your model has side AV jacks or headphone jack, please connect as the follow-

ing figure shown:

(

)

(

)

(

)

VTR without S-VIDEO

(Red)

(White)

(Yellow)

Headphone

Connect to video equipment (VCD, DVD) and headphone jack

Connect back AV jacks as the following figure shown:

S-terminal has the same AUDIO IN jack as AV1, but you can not input AV signal from

these two terminals at the same time. YUV has the same AUDIO IN jack as AV2,

but you can not input AV signal from these two terminals at the same time.

VTR with Y Cb Cr terminal

、、

VTR with S-VIDEO terminal

(yellow) To Video output

To Video output (yellow)

To Audio output(red)

(yellow)

(white)

(red)

(white) To Audio output

(yellow)

(white)

To S-VIDEO output

To Audio output(red)

(white)

(red)

TO SVHS socket

VTR without S-VIDEO terminal

(Green) To Y output

(blue) To Cb output

(red) To Cr output

To Audio output (red)

(Green)

(blue)

(red)

(white) (white)

Remote control

Mute button Lowers the volume to its minimum level.Press again to

restore volume.

ON/OFF Turns the TV on and off.

0-9(Number buttons) Enter channel numbers and time settings directly through

the remote control.

DISPLAY Displays channel information.

PRE.CH Returns you to the previous channel. If the user is in the

menu system, PRE.CH will take the user to the previous

menu screen.

Mute Power on/standb

Previous channel


TV/AV

Stereo

Game

Main menu

Volume u

/menu value u

Pro

ram down/menu select

Sleep

Browse

Clear

Sound

Ccd

Volume down/menu

Value down

Program up/Menu select

Digital, letter

Input buttons

Calendar

Display

Remote control

BROWSE “Browse” feature. Pressing the button twice will begin chan-

nel scan, again will stop at current channel.

SLEEP Set the sleep timer.

PICTURE Steps through picture presets MEMORY,STANDARD,DY-

NAMIC and MILD.

CLEAR Removes any menu or display from the screen and re-

turns you to TV reviewing. For menu with digit inputs, press-

ing CLEAR button will clear all number entered.

TV/AV Toggles the set between available AV inputs and RF input.

MENU Displays the TV’s main menu.

VOL (left and right)buttons Decrease or increase the TV’s volume, or move through

the on-screen menu system.

PROG.(up and down)buttons Scan up or down through the current channel list.

Press once to change the channel up or down; press and

hold to continue changing channels,or move through the

on-screen menu system.

SOUND Four preset audio settings for you to select (MEMORY/STAN-

DARD/NEWS/MUSIC).

STEREO Four available audio modes (AUTO/MONO/STEREO/SAP)

CCD Turns on or turns off the closed caption.

Loading batteries: Remove the lid of the battery compartment, insert 2 size

AAA batteries with the polarities as indicated inside the compartment then replace

the lid.

Note:

1. One loading of batteries will last 1 year under normal use.

2. If you do not intend to use the remote control for a long period of time,remove

them to avoid damage due to leakage.

Basic operation

Overview

Connect to the mains

Insert the mains wire plug of the unit into mains outlet.

Power on/off

Press the ON/OFF switch button to enter standby status or turn on TV.

Note: The power indicator will turn into red when TV is under standby state.

The power indicator will die when TV is under turn on state.

Non-signal power-off in 5 minutes

In case the unit under blue screen or non-signal screen saver state, TV will be

standby state automatically 5 minutes later, to turn it on, please press power button

on TV.

Change channels

You can change channels by using the PROG /button in front of the TV(or the CH

/button on the remote control).

Volume UP/DOWN

You can adjust the sound by using VOL /button in front of the TV (or the VOL /

button on the remote control).

Sleep function

1. Press down SLEEP button on the remote control to display the preset time 120

minutes, 90 minutes, 60 minutes, 30 minutes, the unit will be automatically

turned off when the set time has elapsed.

2. To cancel the time-off function, press the SLEEP button consecutively until dis-

play changes to SLEEP OFF state.

Picture modes

Press PICTURE button on the remote control to select picture modes (MEMORY—

STANDARD—DYNAMIC—MILD), MEMORY status is the picture mode you have

adjusted.

Table des matières

Autres manuels RCA TV

RCA

RCA RNSMU5036-B Manuel utilisateur

RCA

RCA DRD222RD Manuel utilisateur

RCA

RCA P46729 Manuel utilisateur

RCA

RCA P60921 Manuel utilisateur

RCA

RCA RT2412-C Manuel utilisateur

RCA

RCA F20640BC Manuel utilisateur

RCA

RCA F27700 Manuel utilisateur

RCA

RCA RLED2431A-B Manuel utilisateur

RCA

RCA G27648YX1 Manuel utilisateur

RCA

RCA 27GT530YX1AY1 Manuel utilisateur

RCA

RCA P52810 Manuel utilisateur

RCA

RCA F27700 Manuel utilisateur

RCA

RCA RLDED3955A Manuel utilisateur

RCA

RCA E13309 Manuel utilisateur

RCA

RCA 27F520T - 27" TruFlat Picture Tube TV Guide de démarrage rapide

RCA

RCA P52820BLLG2 Manuel utilisateur

RCA

RCA F32669YX51 Manuel utilisateur

RCA

RCA F25653 Manuel utilisateur

RCA

RCA RTRU5028-D-CA Manuel utilisateur

RCA

RCA TOCOM 1634765A Manuel utilisateur

RCA

RCA G27648 Manuel utilisateur

RCA

RCA 27F500T Manuel utilisateur

RCA

RCA G32710 Manuel utilisateur

RCA

RCA 32V430TYX1GYN Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur
