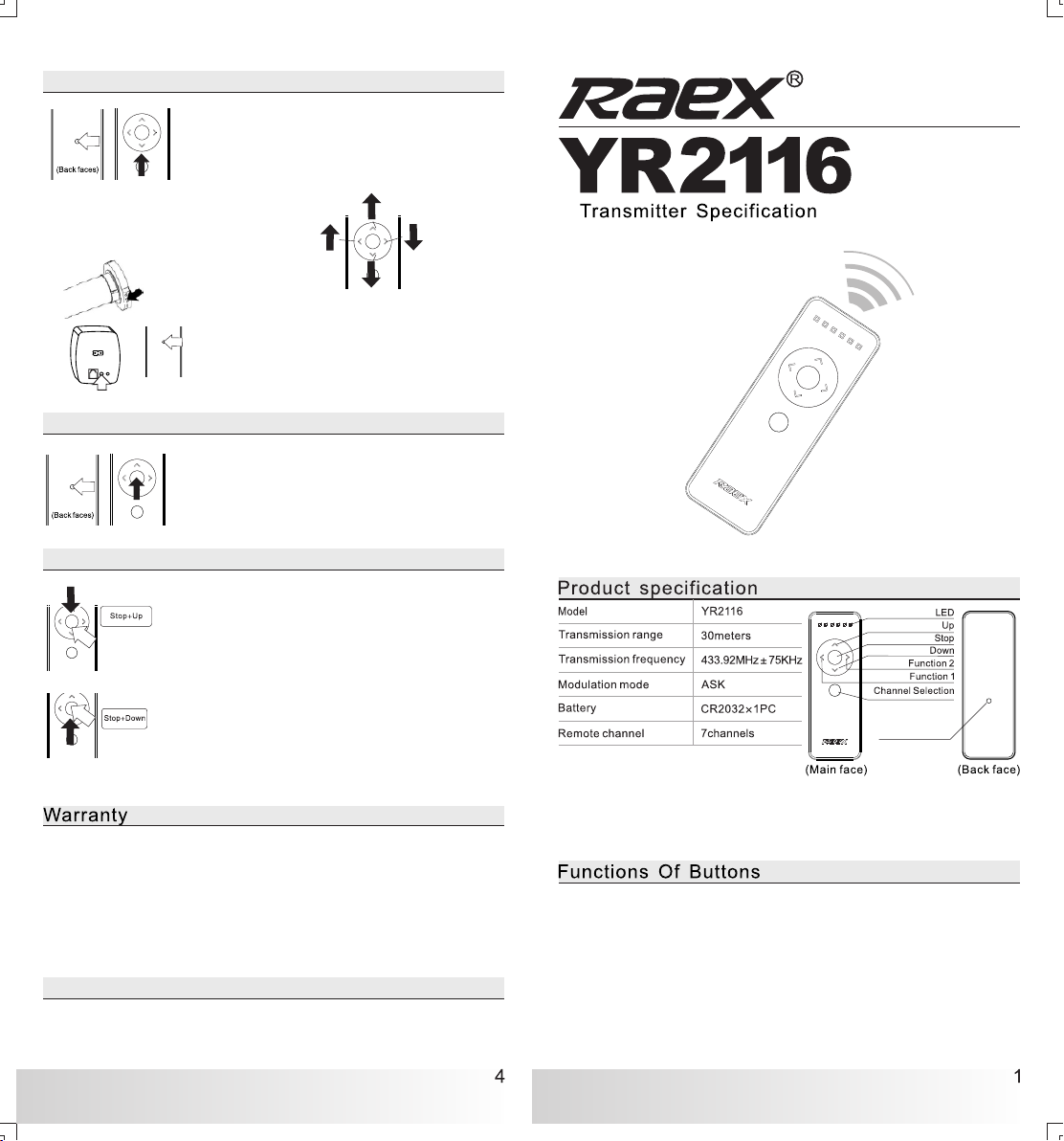

Raex YE2116 Manuel utilisateur
[Up] [Stop] [Down] respectively transmits the command to open, stop &
close for the selected channel.
[Channel Selection] is used to scroll through and select channels
[Programming Button] is used to programme transmitter to motor and for
setting limits. Please refer to <Remote Control Setting>
[Function 1] & [Function 2] are used as intermediate stop functions for
opening and closing curtains, venetian blind tilting and for other systems
with the partial open / close functionality. Please refer to product
instructions for available functionality.
Programming
Button
This product carries a one year warranty from date of invoice. Damage caused
by misuse or disassembly will be excluded from any warranty.
Limit Switch Deleting
Touch Control On / Off - Curtains Only
After Sales Support
Press the programming button and the Stop button
simultaneously. The LED on the motor will briefly illuminate
and the motor will shunt to acknowledge all limits have been
deleted
To turn On the touch control facility press the Stop and Up button
simultaneously.
To turn Off the touch control facility press the Stop and Down button
simultaneously.
Close Limit Setting
Press the programming button and the Down button
simultaneously. The Down button should be pressed
gently. The LED on the motor will illuminate
and the motor will shunt to acknowledge.
Press the programming
button on the rear of the
transmitter or the setting
button on the motor to
store limit
Select the desired position, pressing the Up
and Down buttons gently. Function 1 & 2
buttons will “inch” the motor
Up
Down
Inch
Down
Inch
Up
RAEX UK Ltd.
Europa House, Wharf Road, Burton on Trent, Staffs. DE14 1PZ.
Tel: 01283 536700 Fax: 01283 536777
www.raexmotors.co.uk email: [email protected]
The YR2116 Transmitter is a 7 channel transmitter.
Channel Selection Button
Channel
Indication
LED’s
The channels are selected by the Channel Selection button.
Each press of the button advances to the next channel and the
relevant LED illuminates to indicate the number.
Channel 7 is indicated by all 6 LED’s on the transmitter being
illuminated and is often used as a group channel by linking
multiple motors to it.
For example
Motors 1 to 6 are assigned to channels 1 to 6 respectively and then all 6 are
additionally assigned to channel 7. In this scenario the motors can be individually
controlled via their respective channels or as a group on channel 7
Press the setting button
on the motor. The LED
will illuminate
Press the setting button
on the motor. The LED
will illuminate
Press the setting button
again for 7 seconds
until the LED goes out.
All transmitters / channels
have now been deleted
from the motor
Press programming
button on the back of
the transmitter until
the LED on the motor
flashes
Press the setting
button on the motor
head again. The LED
will go out.
The channel is now
set
Select the desired
channel with
the Channel
button
Before using the remote control, the user must first link the transmitter to the
device to be controlled.
If you make a mistake you can delete a remote channel by following the
instructions outlined.
If required the running direction of the motor can be altered <Reverse Motor
Direction>
Linking the transmitter to the device
Deleting transmitters from the device
Put the device in setting mode
Put the device in setting mode Delete transmitters
Choose Channel
Confirm Channel Storing Channel
Reverse Motor Direction
Channel Selection
Open Limit Setting
Press the setting button on the motor. The LED will illuminate
Press the programming button and the Up button
simultaneously. The Up button should be pressed
gently. The LED on the motor will illuminate
and the motor will shunt to acknowledge.
Press the programming
button on the rear of the
transmitter or the setting
button on the motor to
store limit
Select the desired position, pressing the Up
and Down buttons gently. Function 1 & 2
buttons will “inch” the motor
The LED will now flash to acknowledge the request.
Press the setting button on the motor again and the LED will go out
Press Channel Selection & Stop button Simultaneously
to transmit the reversing signal
Up
Down
Inch
Down
Inch
Up
1. Combination buttons are effective on receivers with corresponding functions.
2. Ensure the transmitter is on the required channel
3. The settings may differ between each controlled device. Please refer to
individual motor instructions for functionality.
Note:
Hollow arrow symbol means long press
Solid arrow symbol means short / gentle press
