Racelogic VBOX Mini Manuel utilisateur

V OX Mini User Manual

•01 - V OX Mini Introduction

•02 - V OX Mini asic Operation

•03 - V OX Mini Connections

•04 - V OX Mini Data Logging

•05 - V OX Mini Speed Display Mode

•06 - V OX Mini Input Module Mode

•07 - V OX Mini Drift Mode

•08 - V OX Mini Performance Mode

•09 - V OX Mini Laptiming Mode

•10 - V OX Mini Predictive Mode

•11 - V OX Mini Setup Menu

•12 - V OX Mini Laptime Telemetry

•13 - V OX Mini Connecting to external devices

•14 - V OX Mini Upgrade Firmware

•15 - V OX Mini Troubleshooting

•16 - V OX Mini Technical Specification

•17 - V OX Mini Optional Accessories / Replacement Parts

01 - V OX Mini Introduction

Registration

An unregistered V OXMini will have very limited functionality. To activate features including data logging, lap timing and

performance mode, you need to register your unit with Racelogic

Go to the VBOX Automotive website and select 'Customer Area > Register your product'.

Complete the registration form with your personal contact details - you will also be asked to input the serial number of

the unit.

The serial number is displayed when you first switch on, or alternatively you can note it from the underside of

the hardware itself.

Once you have submitted the form an activation code will appear. This code must be entered into the V OXMini to

complete the registration process.

Activation

1. Switch on the V OXMini

2. Press MENU and select ‘SETUP’

3. Select ‘UPGRADE’

4. Use ▼▲ to move the alphanumerical list across the screen and then press O to enter each character of your

activation code. The centre character on the screen becomes larger and surrounded by a box to indicate that it is

ready for selection.

5. Highlight and click on the symbol á if you need to delete a character.

https://racelogic.support/01V OX_Automotive/01V OX_data_loggers/V OX_Mini/

4. Then when you have entered all the characters of the activation code highlight the symbol 8and press O to

enter the activation code.

5. A confirmation screen will display ‘Code OK’ and then the screen will go back to SETUP MENU.

6. Disconnect and reconnect the power to complete the process.

The full functionality of your VBOX Mini will now be available.

Mounting

1. Connect the cigar lighter adaptor power cable to the power socket on the back of your unit.

2. Slide the V OXMini into the windscreen mounting bracket.

3. Using the suction cups of the windscreen mounting bracket, fix the assembly to a suitable place low down in the

centre of the vehicle's windscreen.

4. V OXMini units have an internal GPS antenna, so mount the unit where it will have the largest possible view of the

sky.

5. Park your vehicle outside in an open area away from obstacles such as tall buildings and trees.

6. Insert the power cable into the vehicle cigar lighter socket. If power is not permanently available at this socket, turn

on the ignition to ensure power at the socket.

7. The first time V OXMini is used it will need to be left for 10-15 minutes to acquire fully the latest satellite

constellation information.

8. After this initial period, the unit will then only take 1-2 minutes to lock onto satellites when you use it next time.

9. Wait for the satellite image to disappear which means lock has been obtained.

https://racelogic.support/01V OX_Automotive/01V OX_data_loggers/V OX_Mini/

02 - V OX Mini asic Operation

Keypad

Used to show next screen,

or to navigate menu. Changes Mode.

Select the menu item that

is highlighted on the

screen and used to show

Score Code.

Accesses the relevant

menu, or will exit from

current menu.

https://racelogic.support/01V OX_Automotive/01V OX_data_loggers/V OX_Mini/

Used to show previous

screen, or to navigate

menu.

Resets totals, averages

and peaks if held for 1.5s.

Hold for 5s for global

Reset.

Changing Modes

Press the MODE button to swap between the display modes.

PERFORMANCE LAPTIMIING SPEED DISPLAY

PREDICTIVE DRIFT INPUT

Changing the Units of Measurement

1. Press the MENU button from any of the Display Modes.

2. Highlight UNITS and press O .

3. Highlight SPEED and press O .

4. Highlight KMH or MPH and then press O to tick that selection.

5. Highlight EXIT and press O .

To change the Distance units from metres to feet, follow the same procedure but highlight DISTANCE and press O .

Satellite Reception

All logged data is calculated from the information received from GPS satellites, so relies on being able to get a good lock

https://racelogic.support/01V OX_Automotive/01V OX_data_loggers/V OX_Mini/

to produce this data. So, it is imperative that V OX Mini (or optional external antenna) is placed in the best possible

position for a clear view of the sky.

If you are using an external antenna, ensure that it is connected before you power up your unit.

The location that you drive in can also affect data quality, if you drive in a built up area or an area with overhanging

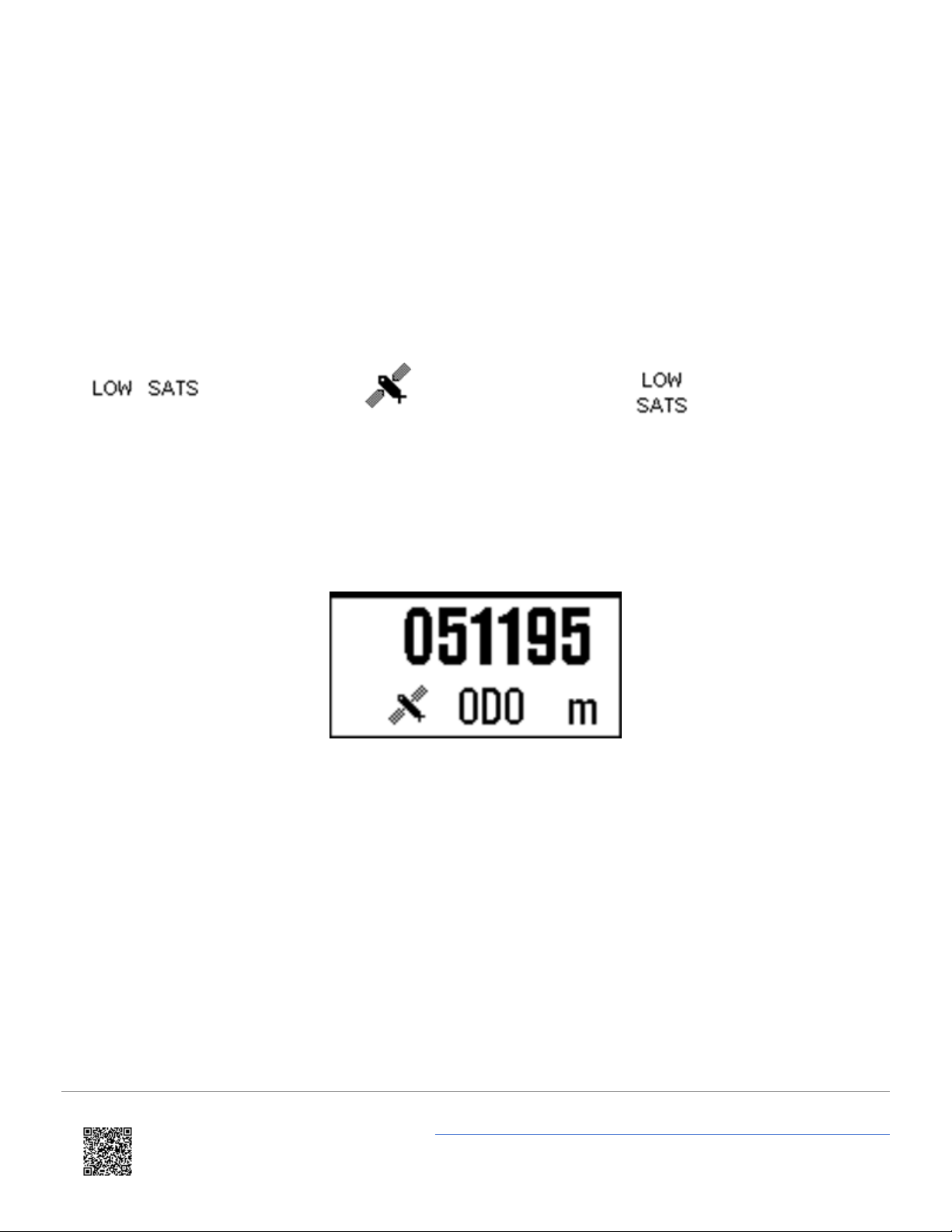

trees, then the signal quality can degrade. If the satellite reception does drop out in use, you will see either of the

following symbols:

Searching for satellites after power up

Whilst the V OXMini is acquiring satellites, it will flash the image of a satellite, the location of the flashing image

depends on the screen you are in.

https://racelogic.support/01V OX_Automotive/01V OX_data_loggers/V OX_Mini/

03 - V OX Mini Connections

https://racelogic.support/01V OX_Automotive/01V OX_data_loggers/V OX_Mini/

Connector 1 - GPS (MCX Female)

PIN In/Out Description

Centre - RF Signal / Power for active

antenna

Chassis - Ground

Connector 2 - US (Setup/Data/Upgrade - US )

PIN In/Out Description

1 - -

2 I/O US –

3 I/O US +

4 - Ground

Connector 3 - AUX (Serial Coms - 6-pin Mini Din (PS/2))

PIN In/Out Description Range

1 - Vraw As power supply

2 - Ground 0 V

3 O RS232 Tx (NMEA*/ GPS

engine) ±12 v

4 O

RS232 Tx (Telemetry /

Processor / Lap-Timing

Pulse)

±12 V

5 I RS232 Rx (NMEA* / GPS

engine) ±12 V

6 I RS232 Rx (Telemetry/

Processor) ±12 V

Chassis - Ground 0v

https://racelogic.support/01V OX_Automotive/01V OX_data_loggers/V OX_Mini/

Connector 4 - Power (2.1 mm x 9 mm Socket)

PIN In/Out Description Range

Centre - +V Power 6 – 28 V

Chassis - Ground 0v

https://racelogic.support/01V OX_Automotive/01V OX_data_loggers/V OX_Mini/

04 - V OX Mini Data Logging

Providing that you have registered your VBOX Mini then it will be capable of logging data to an SD card.

Using the SD card

The V OX Mini will only work with SD and SDHC hardware, which must be formatted in FAT (less than 2G ) or FAT32

(over 2G ).

NOTE : Only firmware version 3.0.56 and above supports FAT32 format cards. Please ensure that the VBOX Mini

is running this version (or higher) if SD cards over 2 GB in size are to be used. Versions older than this will not

detect or log data to FAT32 SD cards.

Files logged by V OX Mini units are named ‘V OX_001.dbn’ where 001 increments when a new file is created. A new

file is created every time the unit is powered up, or when the card is re-inserted. If you wish to log data to the SD card

then simply insert the card into the slot in the front of the unit. The V OX Mini will log vehicle position, speed and

acceleration into a binary ‘.dbn’ file which can be opened in V OX Tools software for analysis. This data is logged when

velocity is above 0.5 km/h.

The V OX Mini has two logging modes, selectable through the SETUP menu available from any screen.

•ONLY WHEN MOVING: In this mode data is only logged to an SD card (.D N file) whilst the Speed is greater than

0.5km/h.

Only ever remove the SD card when you are stationary, otherwise you will risk losing data or corrupting the

card (which would require a re-format).

•CONTINUOUS: In this mode data is logged to the SD card (.D N file) regardless of Speed or satellite reception

Before removing the SD card, the data-logging process must be stopped by pressing the MENU button,

which ends the writing of data to the card and closes the current file.

https://racelogic.support/01V OX_Automotive/01V OX_data_loggers/V OX_Mini/
