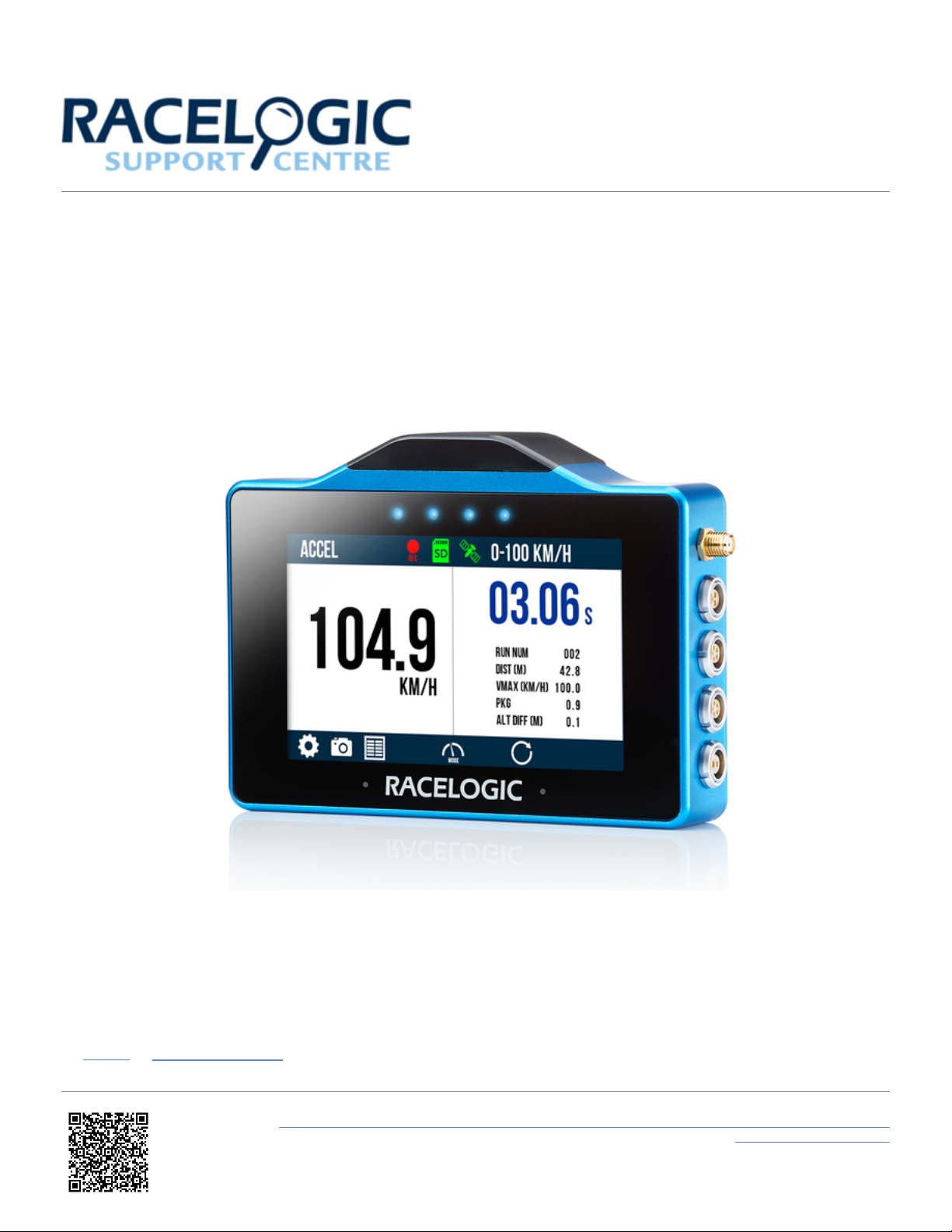

Racelogic VBOX Touch Manuel utilisateur
VBOX Touch User Manual
•01 - VBOX Touch Introduction
•02 - VBOX Touch Getting Started
•03 - VBOX Touch Screen Layout
•04 - VBOX Touch Display Modes
•VBOX Touch - Accel Mode
•VBOX Touch - Decel Mode
•VBOX Touch - Lap Timing Mode
•VBOX Touch - Speed Display Mode
•05 - VBOX Touch Settings
•06 - VBOX Touch RTK
•07 - VBOX Touch Data Analysis Software
•08 - VBOX Touch Technical Properties
•VBOX Touch - C Declaration of Conformity
•VBOX Touch - PIN OUTS
•VBOX Touch - Technical Specification
•VBOX Touch - Installing/Updating an App
•VBOX Touch - Updating the Firmware
•VBOX Touch - Updating the Track Database
1
01 - VBOX Touch Introduction
The VBOX Touch features a 10 Hz GNSS receiver, responsive colour touchscreen and the ability to run multiple
applications on the same hardware. Built on a platform that allows functionality to be expanded through future software
and firmware upgrades, the VBOX Touch is an extremely versatile data logger.
Applications are written in Python script enabling you to create your own, including custom CAN Based applications to
solve specific testing needs. New applications can be loaded by inserting an SD card containing the new script and it is
just as quick to revert to the standard functionality of the VBOX Touch by inserting the SD card containing the original
data.
VBOX Touch is also available with RTK, providing centimetre-level positional accuracy when used with
an NTRIP or RTK Base Station solution. Other features include the ability to connect to capture screenshots and see
live test results.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_User_Guide/01_-
_VBOX_Touch_Introduction
2
Features
• 4.3" TFT daylight readable capacitive touch screen
• 4 x high brightness L D Indicators
• Built-in applications such as performance testing,
lap timing and speedometer
• Python-based applications, ideal for solving user-
specific testing needs
• Removable protective rubber cover included
• 10 Hz GNSS receiver with internal patch antenna
• SMA connector for external GNSS antenna
(overrides the internal antenna when connected)
• Available in an RTK variant for receiving RTK
correctional signals for centimetre-level positional
accuracy
Connectors
More detailed connector information can be found on the PIN OUTS page.
Left Side
SD Card
VBOX Touch logs data via an SD card. Dependent on the Logging Strategy selected within the General
Settings area, the unit will either log continuously or when movement is detected (default). More information on this is
available here.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_User_Guide/01_-
_VBOX_Touch_Introduction
3
Right Side
Antenna
VBOX Touch has an internal patch antenna, meaning that in many circumstances where the unit has a clear view of the
sky without any interference, an additional antenna is not required. However, if you are struggling to maintain a stable
satellite lock, the supplied external antenna (RLACS262) can be connected to the antenna socket. The external antenna
should also be used when conducting a Brake Trigger Test. More information on the external antenna is available
here.
D IN/PPS
The Digital In and PPS port can be used for connection to the VBOX Brake Pedal Trigger to provide brake trigger
deceleration tests. More information on this is available here.
The port can also be used to connect a Hand Held Start/Stop Logging Switch (RLVBACS010) to control the logging of
the unit. More information on this is available here.
CAN/Serial (Top)
The top CAN/Serial port can be used to output serial information, allowing you to either connect VBOX Touch to VBOX
Test Suite via an RLCAB001 and conduct live testing, or output lap timing parameters. Serial Output settings
information is available here.
CAN/Serial (Bottom)
The bottom CAN/Serial port can be used by VBOX Touch RTK units to receive RTK corrections via an NTRIP Modem
or a Telemetry Radio Module with a Static Base Station. RTK input settings information is available here.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_User_Guide/01_-
_VBOX_Touch_Introduction
4
Power
The VBOX Touch unit is either powered by the supplied RLCAB010L cable (RLVBTOUCH) which is inserted in to a
vehicle's 12 V cigar power socket, or by the RLCAB014L cable (RLVBTOUCH-M) which is unterminated for making a
bare wire connection to a power supply. More information on this is available here.
Standard Inventory
VBOX Touch (RLVBTOUC )
Product Code Quantity Description
VBTOUC -V1 1VBOX Touch 10 Hz Unit Including
Rubber Cover
RLCAB010LE / RLCAB014LE 1
Cigar Plug Power Supply
(RLVBTOUCH, 2 m)
or Unterminated Power Supply
(RLVBTOUCH-M, 2 m)
RLACS313 18 GB SD Ultima Pro UHS-1 Memory
Card
RLACS262 1 GNSS Antenna (3 m)
RLACS277 1 Swivel Neck Richter Suction Mount
RLACS281 1
Plastic Carry Case for VBOX Touch
(not supplied with RLVBTOUC -
M)
VBOX Touch RTK (RLVBTOUC R)
Product Code Quantity Description
VBTOUC R-V1 1VBOX Touch RTK 10 Hz Unit
Including Rubber Cover
RLCAB010LE 1Cigar Plug Power Supply
(RLVBTOUCH, 2 m)
RLACS313 18 GB SD Ultima Pro UHS-1 Memory
Card
RLACS308 1 GNSS Antenna (3 m)
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_User_Guide/01_-
_VBOX_Touch_Introduction
5
Product Code Quantity Description
RLACS277 1 Swivel Neck Richter Suction Mount
RLACS281 1 Plastic Carry Case for VBOX Touch
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_User_Guide/01_-
_VBOX_Touch_Introduction
6
Optional Accessories
Product Code Description
RLVBACS004 Brake Pedal Trigger
RLVBACS010 Hand Held Start/Stop Logging Switch
RLCAB001 VBOX PC Serial Cable
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_User_Guide/01_-
_VBOX_Touch_Introduction
7
02 - VBOX Touch Getting Started
Registration
So that Racelogic can continue to provide you with notification of the latest software releases, firmware upgrades and to
offer technical support, please register your VBOX Touch.
Register your unit here.
Power
The VBOX Touch unit is either powered by the supplied RLCAB010L cable (RLVBTOUCH) which is inserted in to a
vehicle's 12 V cigar power socket, or by the RLCAB014L cable (RLVBTOUCH-M) which is unterminated for making a
bare wire connection to a power supply. Both cables terminate in a 2-way connector which mates with the Power socket
on VBOX Touch.
On boot up, the VBOX Touch will display a splash screen and automatically look for satellites and media.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_User_Guide/02_-
_VBOX_Touch_Getting_Started
8
Mounting
VBOX Touch is supplied with a Swivel Neck Richter Suction Mount (RLACS277) for mounting on to a vehicle
windscreen. It can also be secured using the ¼ 20 TPI UNC screw thread on the back of the unit.
Satellite Reception
VBOX Touch has an internal patch antenna, meaning that in many circumstances, where the unit has a clear view of the
sky without any interference, an additional antenna is not required. However, if you are struggling to maintain a stable
satellite lock (indicated by a flashing red satellite icon
), an external antenna (RLACS262) is also supplied with the unit which can be used.
IMPORTANT
•If you are conducting Brake Trigger Deceleration Tests, the external antenna should be used.
•If you are intending on receiving RTK corrections with a VBOX Touch RTK unit, the external antenna should
be used.
•The first time that the unit is used, it may take up to 10–15 minutes to fully acquire satellites. After this, it
will usually take 1–2 minutes to acquire satellites.
External Antenna (If Required)
Placement of the GNSS antenna is crucial to the quality of the data recorded by VBOX Touch. Any metal close to a
GNSS antenna can disturb the signal in an unpredictable way due to interference from reflections of weak
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_User_Guide/02_-
_VBOX_Touch_Getting_Started
