VBOX Touch Speed Mode - Quick Start Guide
VBOX Touch features a 10 z GNSS receiver and a responsive colour touchscreen. The Speed Mode allows you to
view live speed data, selectable via 3 screens; Speed,VMAX and Average Speed.
Registration
Please register your VBOX Touch so that Racelogic can
continue to provide you with notifications about the latest
software releases and firmware upgrades for your
Racelogic product, and offer technical support.
Register your device here.
What is in the box?
When you purchase a VBOX Touch Motorsport V1 (RLVBTOUC -M), you will find the following items when you open
the box:
Product Code Quantity Description
VBTOUCH-V1 1 VBOX Touch Unit
MECH0298SD 1 Rubber Overmould - Black
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V1/
Quick_Start_Guides_%E2%80%93_VBOX_Touch_V1/VBOX_Touch_Speed_Mode_-_Quick_Start_Guide
1
Product Code Quantity Description
RLCAB014LE 1Lemo 2-way plug - 2-wire
unterminated - 2m cable
RLACS313 18 GB SD Ultima Pro U S-1 Memory
Card
RLACS262 1 GNSS Antenna (3 m)
ACS318MOUNT 1 Suction Cup Windscreen Mount
Optional Accessories
Product Code Description
RLVBACS004 Brake Pedal Trigger
RLVBACS010 and eld Start/Stop Logging Switch
RLCAB001 VBOX PC Serial Cable
SD Card
VBOX Touch logs data to an SD card. Depending on the Logging Strategy that is set in the General Settings area, the
unit will either log continuously or when movement is detected (default).
SD Card Format
VBOX Touch is supplied with an 8 GB SD C card in a FAT32 file format, which is the only file format supported.
If you are looking to purchase a new SD card, it is recommended that any card used has a write speed of above 7 MB/s
(4 MB/s absolute minimum) and a speed class of 10 (4 absolute minimum). Racelogic recommends SD cards from
quality brands such as Transcend, SanDisk, Kingston or Lexar to ensure the best results.
IMPORTANT
If an SD card is formatted in the exFAT or NTFS file formats, it will need to be reformatted into a FAT32 file
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V1/
Quick_Start_Guides_%E2%80%93_VBOX_Touch_V1/VBOX_Touch_Speed_Mode_-_Quick_Start_Guide
2
system before it will work with a VBOX Touch unit.
SDHC cards (2 GB to 32 GB)
Supplied or purchased SD C cards are formatted in the FAT32 file format. This format is supported by VBOX Touch.
SDXC cards (64 GB and above)
Purchased SDXC cards will be formatted in exFAT or NTFS file formats; these formats are not supported by VBOX
Touch (please reformat as per instructions below).
SD Card Reformatting
• FAT32 reformatting for media with sizes up to 32 GB can be done directly within Windows by right-clicking on the
media and selecting 'Format'.
• If you would like to format media with sizes above 32 GB into a FAT32 file system, this isn't something that can be
done directly within Windows as it is not the standard formatting for the file. owever, many third-party software
programs can be used to reformat media to allow them to work correctly with our products - we can recommend
This Tool as a free option from the SD card organisation.
Power
The VBOX Touch unit is powered by a power cable that is unterminated so that you can make a bare-wire connection to
a power supply. The cable terminates in a 2-way connector that mates with the Power socket on VBOX Touch.
On boot-up, the VBOX Touch will display a splash screen and automatically look for satellites and media.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V1/
Quick_Start_Guides_%E2%80%93_VBOX_Touch_V1/VBOX_Touch_Speed_Mode_-_Quick_Start_Guide
3
The first time that the unit is booted up, the Display Mode screen will be presented. Every time after this, the last used
display mode will be opened.
Logging
VBOX Touch logs data via an SD card inserted into the side of the unit. Depending on the Logging Strategy selected
within the General Settings area, the unit will either log continuously or when movement is detected (default).
Tapping on the SD Card Icon when green will manually start or stop logging data, overriding the Configured Logging
Strategy.
The Record Icon will show when the unit is logging data to the SD card.
If you have come to a stop, but the Record Icon is still on, press the SD Card Icon to stop the logging before removing
the card.
Sometimes, due to poor satellite visibility in a garage or close to a building, the box may start recording, even if the car is
stationary. Always check the Record Icon before ejecting the card.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V1/
Quick_Start_Guides_%E2%80%93_VBOX_Touch_V1/VBOX_Touch_Speed_Mode_-_Quick_Start_Guide
4
IMPORTANT
Do not remove the SD card when the Record Icon is on as you may lose data.
Note: If for some reason the SD card is removed while the unit is still recording, it may need to be repaired using a PC
before it can be reused.
Logging Switch
You can also control the logging by using an RLVBACS010 hand-held latching trigger switch (unlatched for logging/
latched for not logging). Continuous Logging Mode should be selected when using the switch. It is connected to the
3-pin Digital In and PPS Connector on the side of the VBOX Touch.
When the trigger switch is connected and latched, it is not possible to use the SD Card Icon to manually start or stop
logging data.
Logged Channels
VBOX Touch logs channels to an inserted SD card within a .vbo file, channel information is available below:
•Satellites: This is the number of satellites in use.
•Time: This is UTC since midnight in the form MMSS.SS.
•Latitude: Latitude in minutes MMMM.MMMMMMMM +ve = North e.g. 3169.30644410M = 52D, 49M, 18.4S.
•Longitude: Longitude in minutes MMMMM.MMMMMMMM +ve = West e.g. 00040.18164742M = 00D, 40M, 10.9S.
•Velocity: Velocity in km/h.
•Heading: eading in degrees concerning North.
•Height: eight above sea level in meters based on the model of the earth used by VBOX GNSS engines.
•Vertical velocity: Vertical velocity in km/h. +ve velocity uphill, -ve velocity downhill.
•Long accel: Longitudinal acceleration in g, +ve for forward acceleration.
•Lat accel: Lateral acceleration in g, +ve for acceleration to the left.
•Solution type: Indicator for what the unit is currently using to derive position: 0 = No sats; 1 = Standalone
using GNSS only; 2 = DGNSS.
•Event 1 time: This is the digital input oversample timer used to interpolate the trigger event time between captured
samples.
You can find more information about the VBO file format here
Connectors
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V1/
Quick_Start_Guides_%E2%80%93_VBOX_Touch_V1/VBOX_Touch_Speed_Mode_-_Quick_Start_Guide
5
Antenna
If you are struggling to maintain a stable satellite lock,
you can connect the supplied external antenna
(RLACS262) to the antenna socket. You should also use
the external antenna when you are doing Brake Trigger
Tests. You can find more information about the external
antenna further down on the page.
Left Side
D IN/PPS
The Digital In and PPS port can be used for connection
to the VBOX Brake Pedal Trigger to provide brake
trigger deceleration tests. More information on this is
available here.
The port can also be used to connect a and eld Start/
Stop Logging Switch (RLVBACS010) to control the
logging of the unit. More information on this is available
here.
CAN/Serial
The top CAN/Serial port can be used to output serial
information, allowing you to either connect VBOX Touch
to VBOX Test Suite via an RLCAB001 and conduct live
testing, or output lap timing parameters. You can find
more information about the Serial Output settings here.
Right Side
You can find more detailed connector information on the
PIN OUTS page.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V1/
Quick_Start_Guides_%E2%80%93_VBOX_Touch_V1/VBOX_Touch_Speed_Mode_-_Quick_Start_Guide
6
Mounting

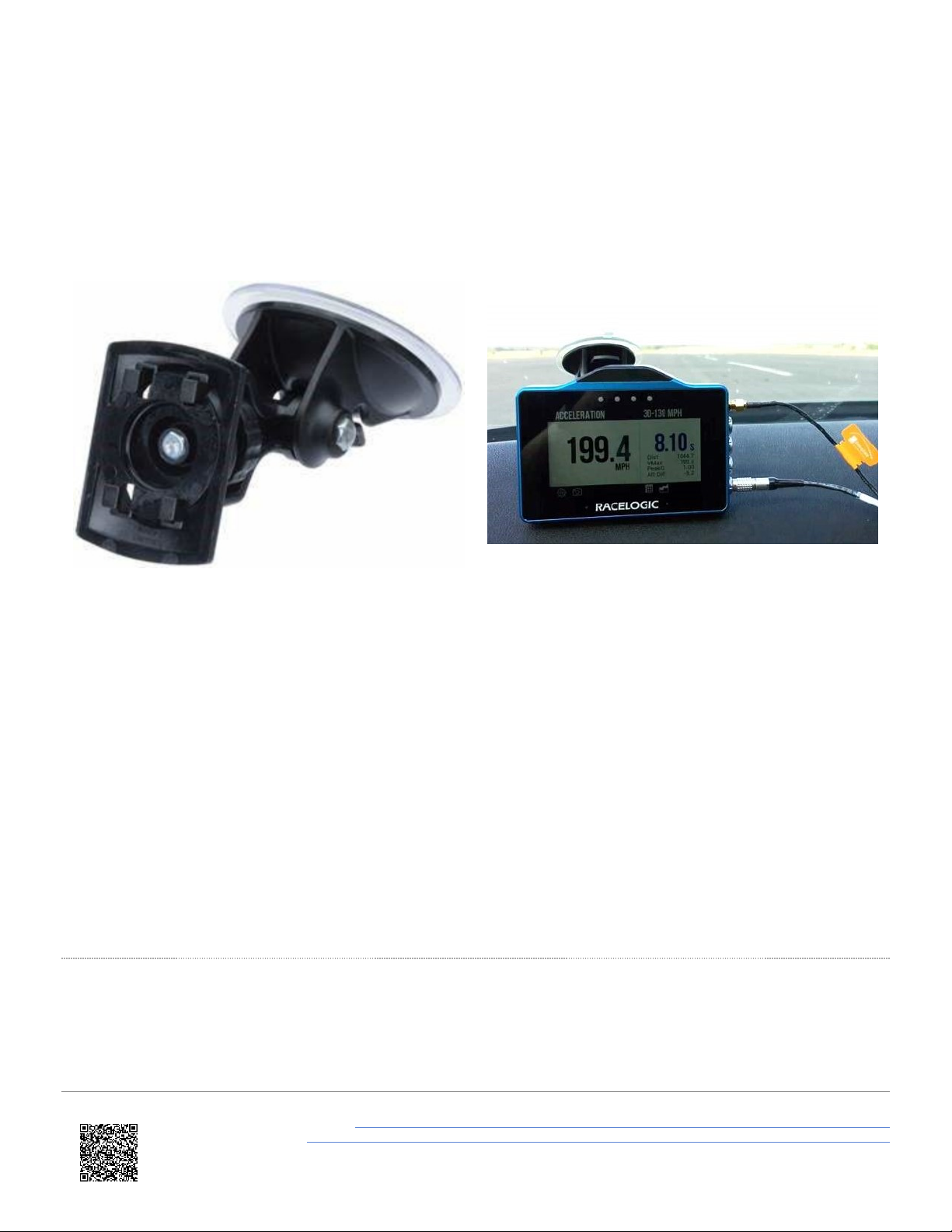

VBOX Touch is supplied with a Swivel Neck Richter Suction Mount (RLACS277) for mounting onto a vehicle
windscreen. It can also be secured using the ¼ 20 TPI UNC screw thread on the back of the unit.
Satellite Reception
VBOX Touch has an internal patch antenna. This means that in most circumstances where the unit has a clear view of
the sky and no interference, you do not need an additional external antenna. owever, if you are struggling to maintain a
stable satellite lock (indicated by a flashing red satellite icon), you can use the external antenna (RLACS262) supplied
with the unit.
IMPORTANT
•If you are conducting Brake Trigger Deceleration Tests, you should use the external antenna.
•The first time that the unit is used, it may take up to 10–15 minutes to fully acquire satellites. After this, it
will usually take 1–2 minutes to acquire satellites.
External Antenna (If Required)
The placement of the GNSS antenna is crucial to the quality of the data recorded by VBOX Touch. Any metal close to a
GNSS antenna can unpredictably disturb the signal due to interference from reflections of weak GNSS signals.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V1/
Quick_Start_Guides_%E2%80%93_VBOX_Touch_V1/VBOX_Touch_Speed_Mode_-_Quick_Start_Guide
7
For the best results, use the antenna in the centre of a metal roof at least 5 cm away from any roof bars or radio
antennas. Do not mount the antenna close to the edge of the roof as reflections from the ground may interfere with the
signals. Avoid the edges as reflections from the A-pillars will cause problems.
Mount the antenna as high up as possible and keep it above any roll bars. Pieces of metal close to and above an
antenna will badly disrupt the GNSS signal.
If the vehicle being used does not have a metal roof, then place the GNSS antenna on a flat piece of metal at least 10
cm in diameter. If this is not possible, copper or aluminium foil can be used to create a shaped ground plane underneath
the antenna. For example, on a fibreglass roof, mount the antenna on top of the roof, and place some adhesive-backed
metal foil underneath, on the inside of the roof.
Acquiring Satellite Lock
Tall buildings or trees can block GNSS signals, causing a reduction in the number and quality of satellites being tracked,
leading to inaccurate position measurements and a noisy velocity signal.
GNSS works best in open areas/ Avoid tree-lined roads
Media, iframe, embed and object tags are not supported inside of a PDF.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V1/
Quick_Start_Guides_%E2%80%93_VBOX_Touch_V1/VBOX_Touch_Speed_Mode_-_Quick_Start_Guide
8
GPS Coldstart
If VBOX Touch is struggling to acquire a satellite lock, a GPS coldstart may be required. This may be necessary when
the unit hasn’t been used for several days or has dramatically moved location since its last use.
To perform a coldstart, press the COLDSTART button within the Diagnostics Settings menu.
When the button has been pressed, the unit will make an audible sound and a ‘PLEASE WAIT’ message will be
displayed on the screen which will count down from 3. The number of satellites will then be displayed as '00' and GPS
status will show ‘SEARCHING FOR SATELLITES’ until the satellite lock has been acquired. It will take approximately
25 to 30 seconds for the unit to reacquire the satellite lock.
The 4 LEDs at the top of the unit provide visual feedback dependent on what process is being performed:
Function Behaviour Colour
Accel/Decel Mode
If Alert at End is enabled, the LEDs
will flash green for 0.5 s once the
test end criteria are met.
Lap Timing Mode The LEDs provide a live reference
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V1/
Quick_Start_Guides_%E2%80%93_VBOX_Touch_V1/VBOX_Touch_Speed_Mode_-_Quick_Start_Guide
9
Function Behaviour Colour
lap speed comparison (Delta-V).
The current lap is > 5 km/h
quicker than the reference lap
The current lap is 2.5 km/h
quicker than the reference lap
The current lap is the same speed
as the reference lap
The current lap is 2.5 km/h
slower than the reference lap
The current lap is > 5 km/h
slower than the reference lap
The LEDs will illuminate blue during
the process of creating a Reference
Lap.
When loading a Track Database
file, the progress of the track
database update is displayed via the
LEDs; each lit LED will represent
25% of the process with all LEDs
extinguishing when the process is
complete.
When a Track Layout is changed,
the LEDs will briefly
flash green twice.
When a Finish Line is cleared,
the LEDs will briefly
flash green twice.
https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Touch/VBOX_Touch_V1/
Quick_Start_Guides_%E2%80%93_VBOX_Touch_V1/VBOX_Touch_Speed_Mode_-_Quick_Start_Guide
10
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Racelogic Enregistreur de données
Racelogic
Racelogic VBOX Touch Manuel utilisateur
Racelogic
Racelogic VBOX Touch Manuel utilisateur
Racelogic
Racelogic VBOX 3iSL Manuel utilisateur
Racelogic
Racelogic Performance Box Touch V1 Manuel utilisateur
Racelogic
Racelogic VBOX Micro Manuel utilisateur
Racelogic
Racelogic PROLITE Manuel utilisateur
Racelogic
Racelogic VB2SX Manuel utilisateur
Racelogic
Racelogic Performance Box Touch V2 Manuel utilisateur
Racelogic
Racelogic VBOX II Manuel utilisateur
Racelogic
Racelogic VBOX IISX Manuel utilisateur
Racelogic
Racelogic VBOX Touch Manuel utilisateur
Racelogic
Racelogic VBOX II Manuel utilisateur
Racelogic
Racelogic VBOX 3i Manuel utilisateur
Racelogic
Racelogic PerformanceBox Manuel utilisateur
Racelogic
Racelogic VBOX Touch Manuel utilisateur
Racelogic
Racelogic VBOX Micro Manuel utilisateur
Racelogic
Racelogic Performance Box Touch V1 Manuel utilisateur
Racelogic
Racelogic VBOX HD Lite Manuel utilisateur
Racelogic
Racelogic VBOX Micro RLVBMIC01 Manuel utilisateur
Racelogic
Racelogic VBOX Touch Manuel utilisateur
