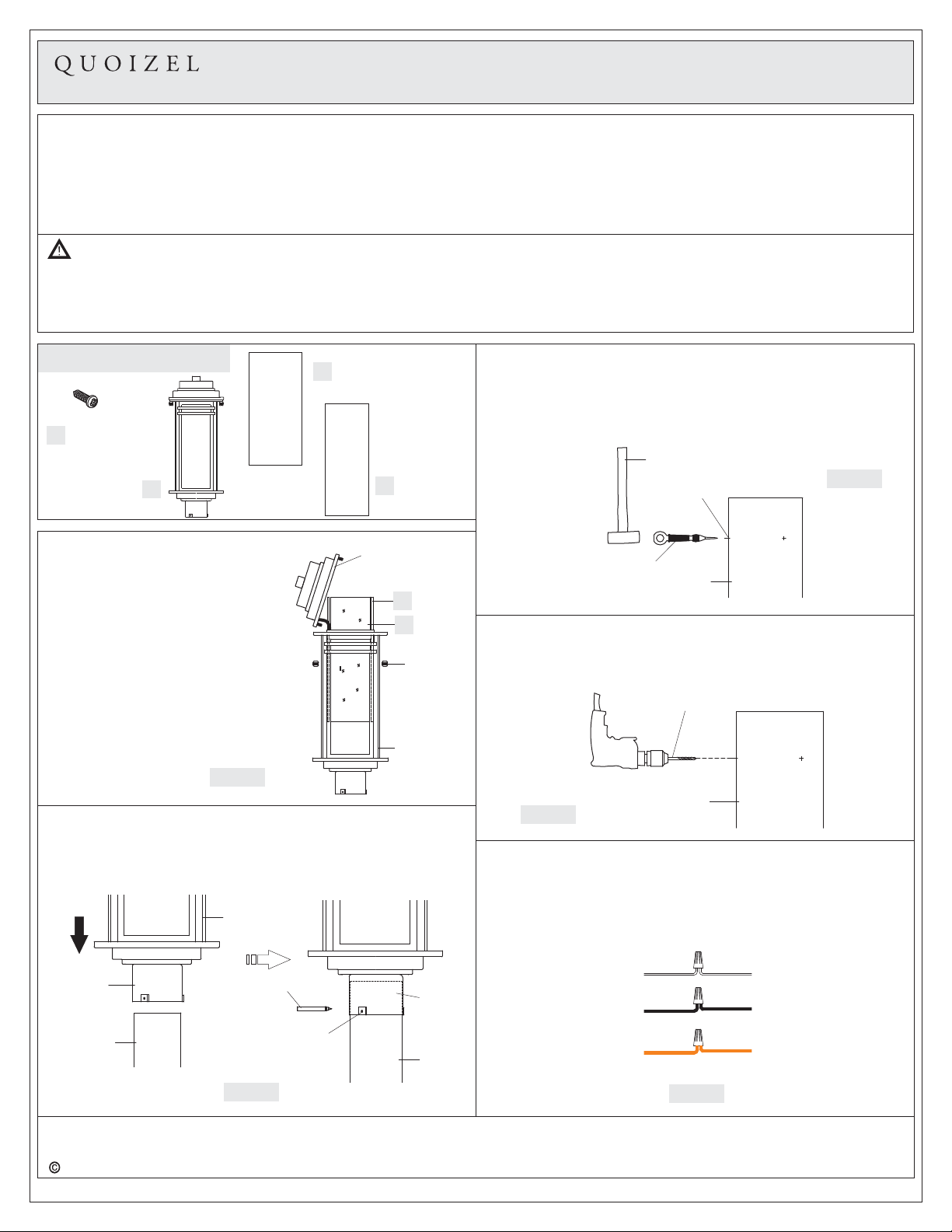

Quoizel BEC9009SBK Instructions de montage

1of2

6 CORPORATE PARKWAY

GOOSE CREEK SC 29445

www quoizel com

2017 QuoizelInc.

Assembly Instruction Sheet #IS-BEC9009SBK_R2

For Style BEC9009SBK

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

RevisedDate:2017-05-08

Pleasegoto forproductcleaningtips.Gotothe selection.www.quoizel.com Care + Maintenance

ToolsRequired:

LightSource:

Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.

Integrated14WLED

20-30minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare

present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement

parts.

EstimatedAssemblyTime:

Preparation:

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Package Contents

Mounting

Screw

Fixture

Body

Fxture

Hood

STEP 1 Install Glass-

A. Unscrew the Mounting Screw,

remove the i from

the Fixture Body (B).

B. Insert Glass Panels (D/C) into

slots in the bottom edge of the

Cage. Fold Tabs on the top edge

of the Cage to secure Glass

Panels.

C. Attach the Cage with Glass

Panels back onto fixture hood

and secure by threading the

Mounting Ball onto the Bolts.

Hand tighten until snug.

F xture Hood

Cage

Front/Back

Glass Panel

Side Glass

Panel

Mounting

Ball

Figure 1

STEP 2 -Mark the Location for the 3 Mounting Holes

A. Place the light fixture onto the post and mark the location of the 3

mounting holes on the fixture fitter onto the post with the marking

pen.

Fixture

Fitter Marking Pen

Mounting

Hole

Post

Lighting

Post

Fixture

Fitter

Figure 2

STEP 3 M C E M H-arking the enter of ach ounting ole

A. Remove the light fixture. Using the center punch and hammer

marking the center of each mounting hole location that is marked

with the marking pen.

Center Punch

Hammer

Marking

STEP 4 Drill Holes-

A. Using the 1/16” bit and drill, drill a pilot hole completely through the

post at each (3) locations marked in step 5 above.

1/16” bit and drill

STEP 5 - Wire Connections

A. Use standard wire connectors (not included) to make all wire

connections. Twist connectors until wires are tightly joined together.

Wrap each connection with approved electrical tape and carefully

stuff all the connected wires into the Outlet Box.

White wire

from outlet box White wire

from fixture

Black wire from

outlet box (or Red)

Black wire

from fixture

Bare, or Green

Ground wire

from outlet box

Ground wire

from fixture

Post

Figure 3

Figure 4

Figure 5

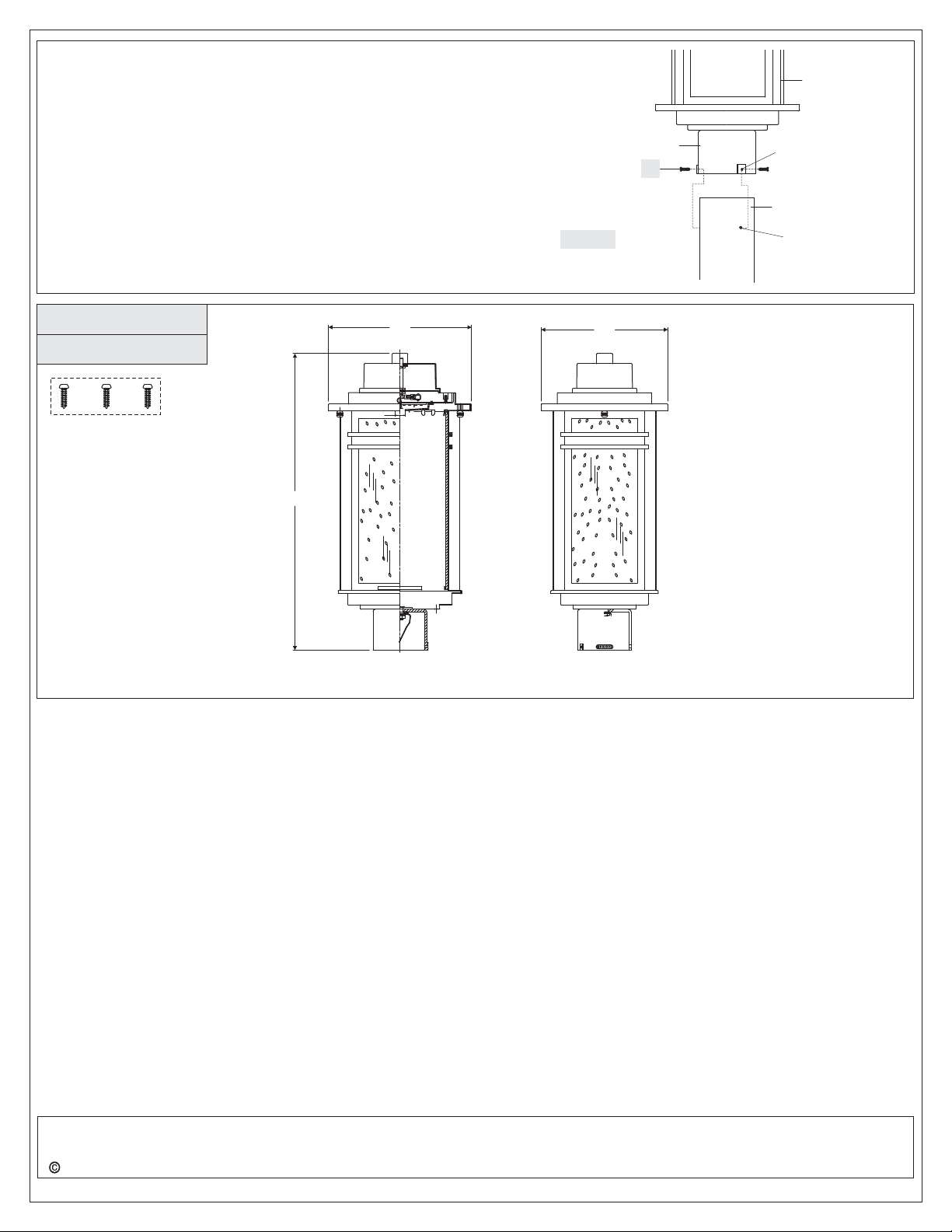

2of2

2017 QuoizelInc. RevisedDate:2017-05-08

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

STEP 6 Attach the fixture to the Post Mount-

A. Place the fixture on the post lining up the mounting holes on the

fixture fitter with the holes on the post. Use the Mounting Screws (A)

to attach the fixture to the post.

Your fixture is now assembled and ready to use.

Enjoy!

Post

Hole

Fixture Fitter Mounting

Hole

Post

Lighting

Figure 6

BEC9009SBK

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"

FINISH: STONE BLACK

?16

8”

9”

18.5”
