Quadra-Fire MT VERNON-AE Manuel de programmation
1445 N. Highway
Colville, Wa 99114
www.quadrare.com
www.quaddealer.com
#7020-057D January 18, 2010
MT VERNON-AE
TROUBLE SHOOTING MANUAL
(THIS MANUAL IS INTENDED FOR TRAINED & QUALIFIED DEALER USE ONLY)
MT VERNON-AE TROUBLE SHOOTING MANUAL
7020-057D9-30-2010
TABLE OF CONTENTS
SECTION PAGE
OPERATION.................................................................................................
BATTERY BACK-UP SYSTEM.....................................................................
CONTROL BOARD SPECS.........................................................................
CONVECTION BLOWER TROUBLE-SHOOTING.......................................
EXHAUST BLOWER TROUBLE-SHOOTING..............................................
FEED MOTOR TROUBLE-SHOOTING........................................................
FIRE POT, AUTOCLEAN, THERMOCOUPLE TROUBLE-SHOOTING.
IGNITER TROUBLE-SHOOTING.................................................................
POWER SUPPLY TROUBLE-SHOOTING...................................................
DOOR/HOPPER/FUEL LEVEL SENSOR TESTING....................................
WALL CONTROL TROUBLE-SHOOTING....................................................
USB CORD OPERATION.............................................................................
CLEANING & MAINTENANCE.....................................................................
PARTS LIST..................................................................................................
EXPLODED VIEW........................................................................................
3-5
6
7
10
11
13
14-18
19
20
21
22
23
24-26
27
28
PAGE 2
ERROR CODES...........................................................................................
OPERATIONAL SYMPTOMS.......................................................................
8
9
FIREBOX VACUUM TESTING..................................................................... 12
MT VERNON-AE TROUBLE SHOOTING MANUAL
7020-057D9-30-2010
OPERATION CHART
PAGE 3
1: SELECT AUTO OR
MANUAL OPERATION MODE.
MAKE SURE YOU PUSH THE
“DONE” BUTTON AFTER YOU
SELECT THE MODE.
2: AFTER YOU SET THE
ROOM TEMPERATURE, THE
WALL CONTROL WILL STATE
“STARTUP” IN THE TOP LEFT
CORNER. (“set at” temp must
be 2 degrees above room temp)
4: EXHAUST BLOWER
SPEEDS UP AND STARTS TO
CREATE A VACUUM IN THE
FIREBOX. Estimated vacuum
is between .04 to .05 inches of
water during preheat.
3: IGNITER TURNS ON FOR
90 SECONDS BEFORE FEED
CHARGE STARTS.
5: VACUUM SWITCH
CLOSES AND ALLOWS THE
FEED MOTOR TO TURN ON.
6: FEED MOTOR TURNS ON
AND START UP FUEL CHARGE
FEEDS INTO THE FIREPOT.
7: A FIRE STARTS IN THE
FIREPOT.
MT VERNON-AE TROUBLE SHOOTING MANUAL
7020-057D9-30-2010
8: THE FIREPOT THERMO-
COUPLE STARTS READING
THE TEMPERATURE RISE
AND THE UNIT WILL GO INTO
“SOFT-START LOW”.
OPERATION CHART
PAGE 4
12: THE DROP TUBE
THERMOCOUPLE WILL
BEGIN READING TEMPERA-
TURE. 105 DEGREES WILL
BE NEEDED TO TURN THE
CONVECTION BLOWER ON.
13: AS THE TEMPERATURE
RISES, THE CONVECTION
BLOWER WILL INCREASE IN
SPEED.
11: SOFT-START MEDIUM
WILL DISPLAY AFTER SOFT
START LOW HAS EXPIRED.
THE LENGTH OF THIS MODE
WILL VARY DEPENDING ON
THE FUEL SELECTED.
9: SOFT-START LOW IS A
TIMED MODE AND WILL VARY
IN LENGTH DEPENDING ON
THE FUEL TABLE SELECTED.
SOFT-START LOW TIMES: (REV 3)___________(REV 4)
SOFTWOOD......................4 MINUTES...............4 MINUTES
HARDWOOD.....................4 MINUTES...............4 MINUTES
UTILITY..............................4 MINUTES...............4 MINUTES
CORN................................12 MINUTES.............10 MINUTES
WHEAT...............................9 MINUTES..............9 MINUTES
SUNFLOWER SEEDS.......4 MINUTES...............4 MINUTES
10: THE IGNITER WILL SHUT
OFF AFTER SS LOW EXPIRES
FOR FUEL TABLE REV 2 & 3. REV
4 WILL SHUT OFF AFTER START-
UP EXPIRES. (PELLET ONLY)
SOFT-START MEDIUM TIMES: (REV 3) (REV 4)
SOFTWOOD......................5 MINUTES.............5 MINUTES
HARDWOOD.....................5 MINUTES..............5 MINUTES
UTILITY..............................5 MINUTES..............5 MINUTES
CORN................................12 MINUTES............10 MINUTES
WHEAT...............................8 MINUTES..............8 MINUTES
SUNFLOWER SEEDS.......5 MINUTES..............5 MINUTES
NORMAL SETTING:
135 DEGREES TO REACH MAX SPEED.
QUIET SETTING:
165 DEGREES TO REACH MAX SPEED
MT VERNON-AE TROUBLE SHOOTING MANUAL
7020-057D9-30-2010

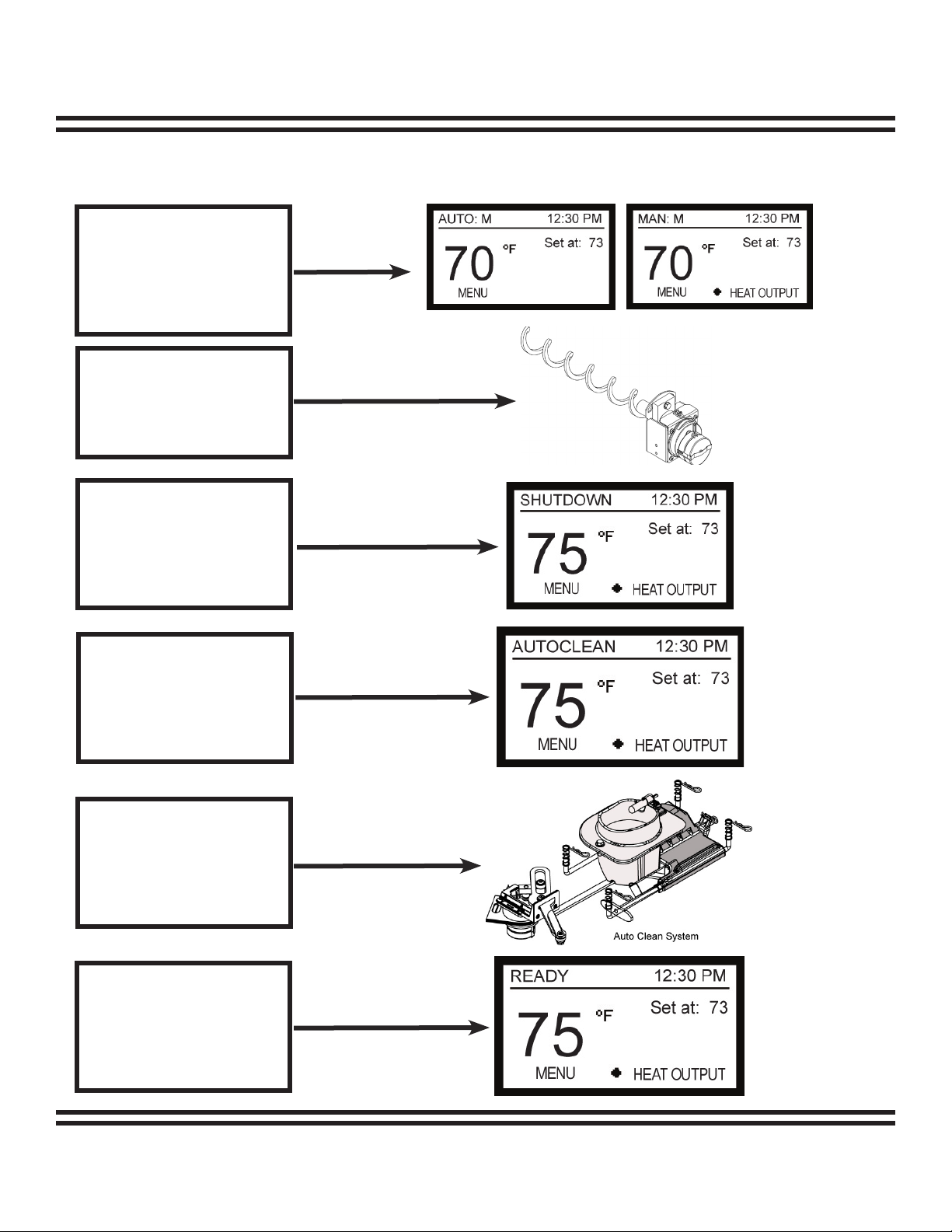

14: THE WALL CONTROL
WILL NOW DISPLAY THE HEAT
OUTPUT SETTING IN THE
MANUAL OR AUTO MODE.
AUTO: (L,ML,M,MH,H)
MAN: (L,ML,M,MH,H)
15: ONCE THE THERMO-
STAT IS SATISFIED OR THE
BURN CYCLE HAS TIMED OUT
FOR AN AUTO-CLEAN CYCLE,
THE FEED MOTOR WILL SHUT
OFF.
16: THE UNIT WILL GO INTO
“SHUTDOWN” MODE. THIS MODE
WILL LAST FOR 10 MINUTES.
THE DROP TUBE T-COUPLE WILL
ALSO COOL DOWN AND REDUCE
THE SPEED OF THE CONVEC-
TION BLOWER.
17: THE UNIT WILL DISPLAY
“AUTOCLEAN” IN THE UPPER
LEFT HAND CORNER.
18: THE THERMOCOUPLE
HAS TO READ 550 DEGREES
OR LESS BEFORE THE AUTO-
CLEAN CYCLE BEGINS.
19: AFTER THE AUTO-
CLEAN IS COMPLETE, THE
EXHAUST BLOWER WILL RUN
FOR 20 MINS AND SHUT OFF.
UNIT IS READY TO START
ANOTHER BURN CYCLE.
OPERATION CHART
PAGE 5
MT VERNON-AE TROUBLE SHOOTING MANUAL
7020-057D9-30-2010
BATTERY BACK-UP SYSTEM
PAGE 6
12 VOLT DEEP CYCLE BATTERY AND THE BATTERY
CORD (#12VCORD-AE) IS NEEDED TO POWER THE
SYSTEM.
A/C POWER MUST BE SHUT OFF OR THE POWER
CORD DISCONNECTED FOR THE BATTERY BACK UP
MODE TO ENGAGE. THE WALL CONTROL WILL WALK
YOU THROUGH THE LIGHT-UP PROCEDURES.
(Note: Igniter will not work during battery operation)
CONTROL BOARD
12 volt battery
(Estimated amp draw
is between 3 & 6 amps
during operation)
MAINT BURN WILL DISPLAY
WHEN THE THERMOSTAT HAS
REACHED THE SET ROOM
TEMPERATURE AND WILL RUN
ON LOW UNTIL IT REACHES ITS
AUTOCLEAN CYCLE TIME.
PN# 12VCORD-AE
(72 inches long)
BATTERY WILL NEED TO BE CHANGED OR
CHARGED WHEN VOLTAGE DROPS BELOW 10.
MT VERNON-AE TROUBLE SHOOTING MANUAL
7020-057D9-30-2010
CONTROL BOARD
SRV7000-456 Rev C
CONTROL BOARD SPECS 7.6 CODE: (Rev 3 fuel tables)
FUEL UFTI SS LOW SS MED MAX IGNITER TIME A/C CYCLE TIME SHUTDOWN TIME
CORN: 0 12 MIN 12 MIN START+15 MIN 2.9 HRS* 6 MIN
UTILITY PELLET: 1 4 MIN 5 MIN START+2 MIN 1.2 HRS* 10 MIN
SOFTWOOD: 2 4 MIN 5 MIN START+2 MIN 2.7 HRS* 10 MIN
SUNFLOWER SEEDS: 3 4 MIN 5 MIN START+4 MIN 2.4 HRS* 10 MIN
WHEAT: 4 9 MIN 8 MIN START+13 MIN 2.6 HRS* 10 MIN
HARDWOOD PELLET: 5 4 MIN 5 MIN START+2 MIN 2.2 HRS* 10 MIN
*NOTE: AUTOCLEAN CYCLES TIMES ARE ESTIMATED WHEN THE UNIT IS RUN AT THE “HIGH” OUTPUT SETTING.
UPDATES:
SRV7000-323
ECO 56401 --- CHANGED FROM 6.9 TO 6.10A CODE. INSTALLED POWER STROKE CODE FOR AUTOCLEAN AND
CHANGED TO THE “QUIET” CONVECTION BLOWER CURVE. REV 2 FUEL TABLES ALSO INSTALLED. (1-11-07)
SRV7000-330
ECO 56476 -- RELEASED WITH THE 7.2 CODE. HIGH ELEVATION FUEL TABLES INSTALLED. 2 CONVECTION BLOWER
SPEED OPTIONS INSTALLED, 135 & 165 DEGREES TO GET TO THE HIGH BLOWER SPEED & EXHAUST BLOWER STAYS
ON DURING THE AUTO-CLEAN CYCLE AND 20 MINUTES AFTER AUTO-CLEAN IS COMPLETED. (8-2-07 // SN 0072232364
INSERT /// SN 0072279399 FS)
SRV7000-456
ECO 58315 -- RELEASED WITH THE 7.3 CODE. MADE SOME UPDATES TO THE EURO FUEL TABLES. (They can be
accessed by turning the rotary switch to position 1)
REV B --- RELEASED WITH THE 7.4 CODE. ADDRESSED PREVIOUS AUTO-CLEAN PROBLEMS. SN 00700200343
REV C --- RELEASED WITH THE 7.5 CODE. ADDRESSED LOGIC PROBLEM WITH VAC SWITCH & AUGER JAM.
REV C ---RELEASED WITH 7.6 CODE. INSTALLED REV 3 FUEL TABLES. 4-6-09 ECO 60611.
REV (pending) ---RELEASED WITH 8.0 CODE. INSTALLED REV 4 FUEL TABLES. (still testing)
PAGE 7
CONTROL BOARD SPECS 8.0 CODE: (Rev 4 fuel tables)
FUEL UFTI SS LOW SS MED MAX IGNITER TIME A/C CYCLE TIME SHUTDOWN TIME
CORN: 0 10 MIN 10 MIN START+10 MIN 2.9 HRS* 6 MIN
UTILITY PELLET: 1 4 MIN 5 MIN START-UP ONLY 1.2 HRS* 10 MIN
SOFTWOOD: 2 4 MIN 5 MIN START-UP ONLY 2.7 HRS* 10 MIN
SUNFLOWER SEEDS: 3 4 MIN 5 MIN START+4 MIN 2.4 HRS* 10 MIN
WHEAT: 4 9 MIN 8 MIN START+10 MIN 2.6 HRS* 10 MIN
HARDWOOD PELLET: 5 4 MIN 5 MIN START-UP ONLY 2.2 HRS* 10 MIN
*NOTE: AUTOCLEAN CYCLES TIMES ARE ESTIMATED WHEN THE UNIT IS RUN AT THE “HIGH” OUTPUT SETTING.
MT VERNON-AE TROUBLE SHOOTING MANUAL
7020-057D9-30-2010
ERROR CODES
AUGER JAMMED: SEE PAGE 13 (FEED MOTOR TROUBLE-SHOOTING)
BAD TC DROP TUBE: SEE PAGE 10 (CONVECTION BLOWER TROUBLE-SHOOTING)
BAD TC FIRE POT: SEE PAGE 16 (FIREPOT, AUTOCLEAN & T-Couple TROUBLE-SHOOTING)
CHECK ASH PAN: SEE PAGE 14 (FIREPOT, AUTOCLEAN & T-Couple TROUBLE-SHOOTING)
COMB BLOWER JAMMED: SEE PAGE 11 (EXHAUST BLOWER TROUBLE-SHOOTING)
CONV BLOWER JAMMED: SEE PAGE 10 (CONVECTION BLOWER TROUBLE-SHOOTING)
MIN FP TEMP: UNIT IS OUT OF FUEL OR CHECK FOR PROPER FUEL SETTINGS. THIS CODE
WOULD DISPLAY ANYTIME THE FIRE GOT UNDER 500 DEGREES DURING ITS NORMAL RUN MODE.
MISSED IGNITION: UNIT IS OUT OF FUEL OR CHECK FOR PROPER FUEL SETTINGS. SEE
PAGE 19 (IGNITER TROUBLE-SHOOTING) THIS CODE WOULD DISPLAY IF THE FUEL DID NOT
LIGHT OR THE FIRE DID NOT GET HOT ENOUGH DURING START-UP AFTER 3 TRIES.
VACUUM SW ERROR: SEE PAGE 12 (FIREBOX VACUUM TESTING)
PAGE 8
MT VERNON-AE TROUBLE SHOOTING MANUAL
7020-057D9-30-2010
OPERATIONAL SYMPTOMS
UNIT HAS NO POWER OR LOSES POWER AFTER 15 TO 20 MINUTES: SEE PAGE 20 (POWER
SUPPLY TROUBLE-SHOOTING)
UNIT IS MAKING A RUMBLING NOISE DURING START-UP: CHECK THE FUEL SETTINGS AND
MAKE SURE THE UNIT IS CLEAN. SEE PAGE 12 (FIREBOX VACUUM TESTING)
UNIT IS BUILDING UP BLACK SOOT ON THE GLASS: CHECK THE FUEL SETTINGS AND
MAKE SURE THE UNIT IS CLEAN. SEE PAGE 12 (FIREBOX VACUUM TESTING)
IGNITER IS NOT GETTING HOT: SEE PAGE 19 (IGNITER TROUBLE-SHOOTING). ENSURE THE
IGNITER CHAMBER UPDATE HAS BEEN DONE. REFERENCE THE SEPT. 18, 2007 FIELD COM-
MUNICATION.
UNIT LIGHTS AND GOES OUT DURING START-UP: SEE PAGE 16 (FIREPOT THERMOCOUPLE
TROUBLE-SHOOTING)
UNIT WILL NOT LIGHT & BURN CORN CONSISTENTLY: CHECK FUEL SETTINGS. CORN
MUST BE SCREENED. SEE PAGE 14 (FIREPOT & AUTOCLEAN TROUBLE-SHOOTING)
WALL CONTROL SCREEN IS SHUTTING OFF: SEE PAGE 22 (WALL CONTROL TESTING)
PAGE 9
MT VERNON-AE TROUBLE SHOOTING MANUAL
7020-057D9-30-2010
CONVECTION BLOWER TROUBLE-SHOOTING
Items to check:
Check blower for obstructions:
*Clean fan blades & check fan bearing.
Check blower wire harness:
*Color of wires, Connector pins, test for broken wires
Check over heat snap disc (#230-1290)
*This is located on the pellet drop chute. Is it tripped?
Check drop tube thermocouple:
*This has to produce millivolts to turn the blower on.
Replace convection blower:
*If all previous checks are good, replace the blower.
Replace the control board (SRV7000-456):
*If replacing the blower did not x, replace the board.
Convection Blower:
#SRV7000-260 (pin latch style)
#SRV7034-058 (trigger latch style)
Pin Latch: 7000-376
Trigger Latch: 7034-066
**rst unit -- sn 00700201367
sn 00700103644
Convection Harness: #7034-219
Wall Control Error Code
PAGE 10
DROP TUBE
THERMOCOUPLE.
(#SRV7000-381)
(180 CFM)
Table des matières
Autres manuels Quadra-Fire Poêle
Quadra-Fire
Quadra-Fire TREKKER-CSB Manuel utilisateur
Quadra-Fire
Quadra-Fire GRAND BAY 40 Manuel utilisateur
Quadra-Fire
Quadra-Fire OUTFITTER-II Manuel utilisateur
Quadra-Fire
Quadra-Fire GarnetE SERIES Manuel
Quadra-Fire
Quadra-Fire CAB50-C Manuel utilisateur
Quadra-Fire
Quadra-Fire GARN-DMBK-IPI-B Manuel utilisateur
Quadra-Fire
Quadra-Fire MT. VERNON AE Manuel de programmation
Quadra-Fire
Quadra-Fire Pioneer-II-C Manuel utilisateur
Quadra-Fire
Quadra-Fire GRAND BAY 40 GB40FS Manuel utilisateur
Quadra-Fire
Quadra-Fire Discovery I Wood Appliance Manuel utilisateur
Quadra-Fire
Quadra-Fire 18000 FreeStanding Manuel utilisateur
Quadra-Fire
Quadra-Fire GARN-MBK-IPI Manuel utilisateur
Quadra-Fire
Quadra-Fire Explorer II series Manuel utilisateur
Quadra-Fire
Quadra-Fire Garnet Manuel
Quadra-Fire
Quadra-Fire DV-40 Manuel utilisateur
Quadra-Fire
Quadra-Fire QFI30FB-IFT Manuel utilisateur
Quadra-Fire
Quadra-Fire DISCOVERY-III Manuel utilisateur
Quadra-Fire
Quadra-Fire SAPPHIRE Sapphire Cast Iron Manuel utilisateur
Quadra-Fire
Quadra-Fire CASTILE-B Manuel utilisateur
Quadra-Fire
Quadra-Fire TOPAZ-MBK-IPI Manuel utilisateur
Manuels Poêle populaires d'autres marques
Vermont Castings
Vermont Castings Intrepid 2 Manuel utilisateur
Italiana Camini
Italiana Camini CLASSICA Guide de démarrage rapide
Avalon
Avalon Vashon Avanti DVS FS Manuel utilisateur
Spartherm
Spartherm ambiente a1 Manuel utilisateur
Dimplex
Dimplex MCFSTV12AU Manuel utilisateur
Warmlite
Warmlite WL46040 Manuel utilisateur
