Periodic Maintenance
1) Lubricate the packing (5) on the FC100 valve every 200 hrs by placing a few
drops of mineral oil or other light oil inside the packing nut.
*Note: PVA offers a 2.5cc mineral oil lubrication kit; Part#: B62-0752
2) The packing nut (6) will require occasional tightening, as wear occurs in order to
prevent leaks through the packing.
Routine Cleaning and Disassembly
Cleaning and rebuilding the valve will be required from time to time. A spare
parts kit, part # FC1-SP is available with all the normal wear parts included.
1) Begin disassembly by removing air and fluid pressure from the valve.

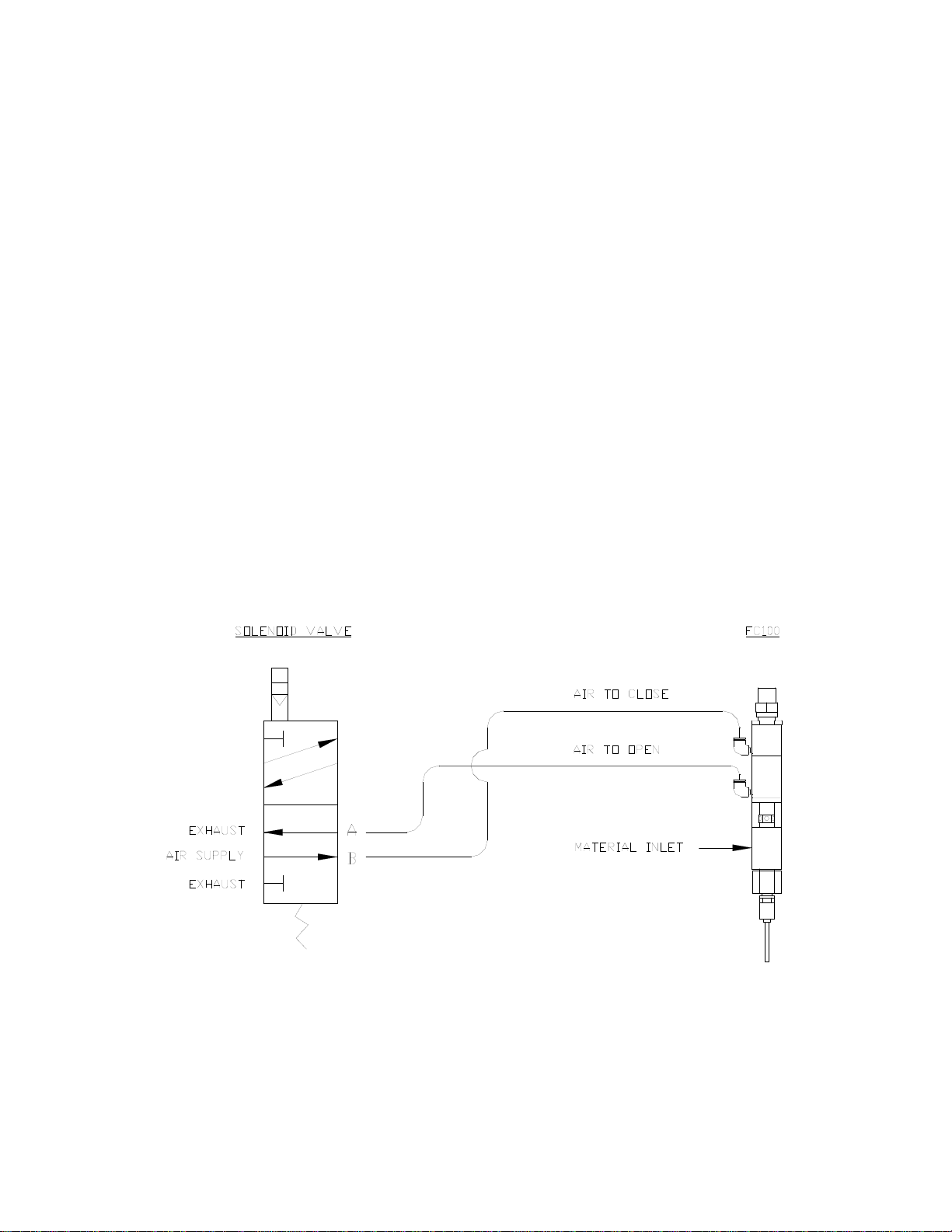

2) Remove all pneumatic tubing and fluid delivery fittings, hoses, etc. from the
valve.
3) Using the tip of a 3/32” Allen key, loosen the packing nut (6).
4) Using the same 3/32” Allen key, evenly remove the two machine screws (14) that
are located on the same corners as the fluid section standoffs (4). Note during
removal that there is a spring (17) forcing the air section away from the fluid
section.
5) Pull the air section (red anodized portion) away from the fluid section (stainless
steel portion).
6) Clean off the tip of the stainless steel needle (3).
7) From the fluid section of the valve, unthread and remove the packing nut (6), and
the packing (5).
8) Unthread and remove the luer adapter (19) and washer (21).
9) Unthread and remove the needle adapter (1) from the fluid section (4).
10)Using pliers pull the seat (2) out of the fluid section (4) and remove the 006
Kalrez o-ring (15) from the seat. Note: If stuck, the seat can be pushed through
from the opposite side of the fluid section.
11)Clean all of the wetted parts thoroughly with an appropriate solvent.
12)On the air section, use a standard 3/32” Allen Key to evenly remove the final two
machine screws (13) that thread into the end cap (7). Note: During removal that
the spring (17) will force the air section apart.
13)Separate the upper air body (11) from the lower air body (8) to remove the spring
(17) then slide the end cap(7) off of the needle (3).
14)Holding the lower air body (8) in one hand, grab the needle (3) and push the
needle and piston (10) assembly out of the lower air body.
15)Remove the 004 Buna o-ring (16) from the lower air body (8).
16)Hold the piston (10) with an adjustable wrench then use a 5/64” Allen key to
unthread and remove the set screw (18) to remove the needle(3) then remove the
014 Buna o-ring (9) from the piston (10).
