LAN-Cell Gateway Series

Secure Cellular Data Gateway

Quick Start Guide

Model 1xMG-401

November 2004

I. Introducing the LAN-Cell

The LAN-Cell is the ideal gateway for all data passing between cellular carrier’s data networks

and LAN-attached devices. By integrating NAT, firewall and VPN capability, Proxicast’s LAN-

Cell is a complete security solution that protects your intranet, efficiently manages data on your

network, and intelligently controls the use of cellular data network access. The embedded web

configurator is easy to operate and totally independent of the operating system platform you use.

II. Hardware Installation

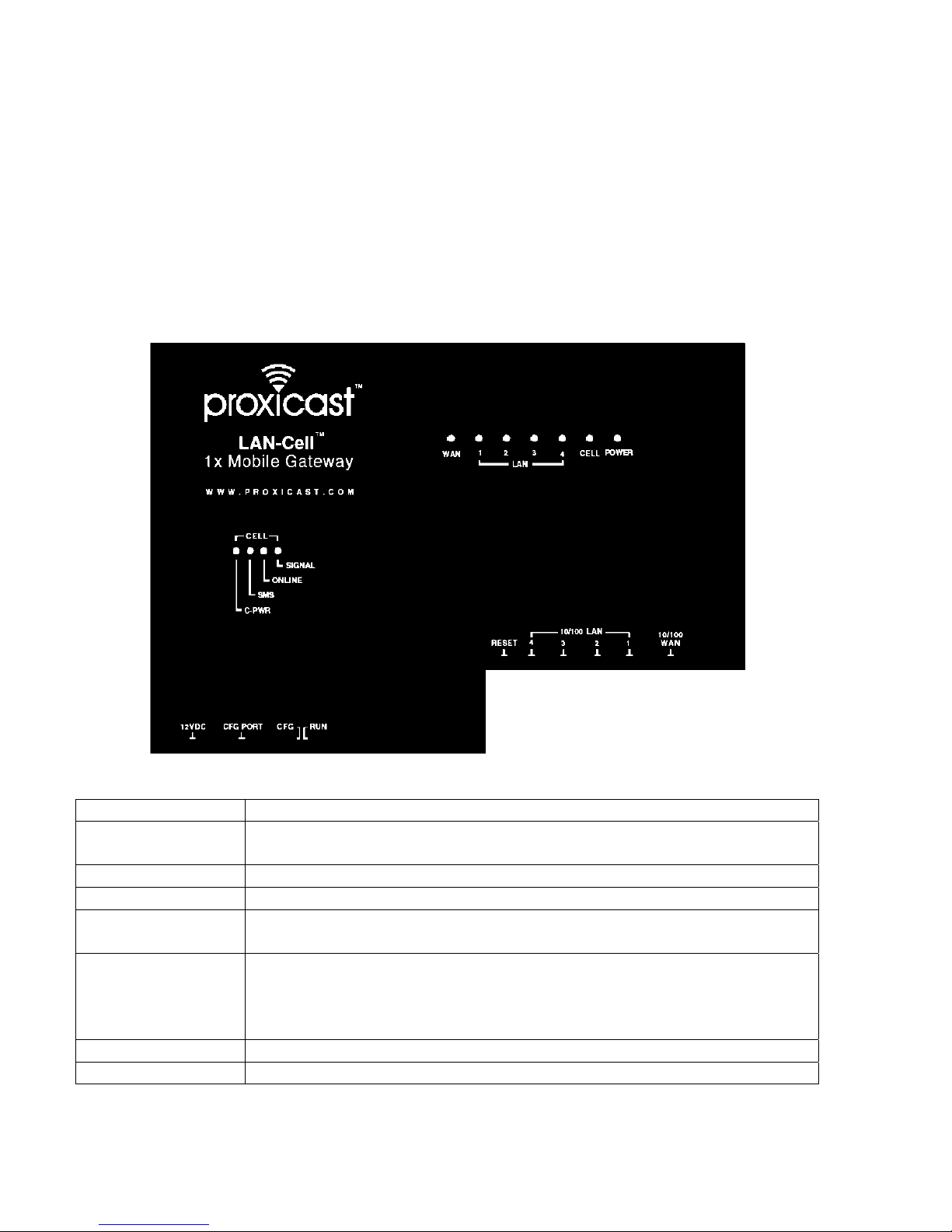

Front Panel LEDs

LABEL DESCRIPTION

Power Indicates that power is supplied to the LAN-Cell. The Power LED blinks

while performing system testing and stays on if the testing is successful.

Cell Indicates activity between the router and its embedded cellular modem.

WAN & LAN 1 - 4 Turn on when equipment is connected to the corresponding ports.

Cell Signal Indicates that the embedded cellular modem has detected the presence of a

signal from the carrier for which it is configured.

Cell Online Turns on when the cellular modem has made a successful data connection

to the carrier. Minute and/or data charges may be incurred when this LED

is ON. Consult your cellular service provider for details regarding your

cellular data service plan.

Cell SMS Indicates that the LAN-Cell has received an SMS message.

Cell C-PWR Indicates that power is being supplied to the embedded cellular modem.

Front Panel Connections

LABEL DESCRIPTION

12VDC Connect the included power adapter (use only this adapter) to this power

socket.

CFG Port This DB9 connection is used to access the embedded cellular modem for

configuration, if necessary (see Activating the Cellular Modem).

The CFG Port communication parameters are 115200 bps, no parity, 8

data bits, 1 stop bit and hardware flow control. Use the supplied

DB9/DB25 serial cable.

CFG/RUN Switch Set this switch to CFG to access the modem configuration via the CFG

Port. Otherwise, set the switch to RUN. Note: moving the switch from

RUN to CFG will disconnect any active cellular modem connection.

Reset You only need to use this button if you’ve forgotten the LAN-Cell’s

password. It returns the LAN-Cell to the factory defaults (password is

1234, LAN IP 192.168.1.1). See your User’s Guide for details.

10/100 LAN 1 – 4 Connect computer equipment to these ports with Ethernet cable. These

ports are auto-negotiating (can connect at 10 or 100 Mbps) and auto-

sensing (automatically adjusts to the type of Ethernet cable you use,

straight-through or crossover).

10/100 WAN Connect a cable/DSL modem or other Ethernet-based WAN equipment to

this port.

Antenna Attach the supplied antenna to the SMA connector located on the side of

the LAN-Cell, near the Proxicast logo. Use only the antenna supplied

with your unit. Be sure to tighten the antenna connector fully to ensure a

reliable cellular connection.

III. LAN-Cell Default Connection Parameters

The factory default settings for the LAN-Cell’s key interfaces are:

LAN-Cell’s IP Address 192.168.1.1

LAN DHCP Server ON

LAN DHCP Settings 192.168.1.33 to .64 subnet 255.255.255.0

WAN DHCP Client ON

Management Access Password 1234

CFG Port 115200 bps, no parity, 8 data bits, 1 stop bit and

hardware flow control.

IV. Configuring the LAN-Cell

Activating the Cellular Modem

The embedded cellular modem in the LAN-Cell must be “activated” with the designated cellular

service provider before it can establish a cellular data connection. You must subscribe to a

carrier’s cellular data plan before activating the LAN-Cell. The LAN-Cell’s cellular modem is

pre-configured for a specific cellular service provider at the time of manufacture.

Your LAN-Cell may have been activated at the factory or by your reseller. If so, the LAN-Cell’s

cellular telephone number (Mobile Identification Number or MIN) will be indicated on the label

on the bottom of the unit. If this is the case, your LAN-Cell is ready to use. Otherwise, follow

these steps to activate the cellular modem:

For Verizon Wireless USA Users

Step 1:Record the Electronic Serial Number (ESN) from the LAN-Cell’s label.

Step 2:Contact Verizon Wireless and subscribe to a cellular data service plan. Provide them

with the LAN-Cell’s ESN. They will provide you with the Mobile Identification Number

(MIN) and a Mobile Directory Number (MDN).

Step 3: Slide the CFG/RUN switch to the CFG position.

Step 4: Connect a terminal (or terminal emulation program such as HyperTerminal) to the CFG

Port. Use the supplied serial cable. Settings are 115200, N81, Hardware Flow Control.

Step 5: Type AT and press return. The modem will respond with OK.

Step 6:Type: AT+SPC=”000000” (type the double quotes) and press return. The modem will

respond with OK.

Type: AT+WMDN=”0123456789” (type the double quotes) and press return, where

0123456789 is your Mobile Directory Number (MDN)

Type: AT+WMDN? and press return. The modem will respond with the programmed

MDN value.

Wait 5 seconds then type: AT+SPC=”000000” (type the double quotes) and press

return. The modem will respond with OK.

Type: AT+WMIN=”1234567890” (type the double quotes) where 1234567890 is the

MIN provided to you by the carrier, and press return. The modem will respond with OK.

Note: Your MDN and MIN may differ, especially if you ported your phone number from

another carrier. Ask your activation agent to confirm the values of both your MIN and

MDN. Use your MDN value as your login name for the 1X service (e.g.

[email protected])

Step 7: Wait 5 seconds, then type: AT+MIN? and press return. The modem will respond with

the programmed MIN.

Step 8: Disconnect the serial cable and return the switch to the RUN position.

Your LAN-Cell is now ready to be configured for your specific application. Please see the

User’s Guide for additional information.

For All Other CDMA Carriers:

Step 1:Record the Electronic Serial Number (ESN) from the LAN-Cell’s label.

Step 2:Contact the cellular carrier indicated and subscribe to a cellular data service plan.

Provide the carrier with the LAN-Cell’s ESN. They will provide you with the Mobile

Identification Number (MIN).

Step 3: Slide the CFG/RUN switch to the CFG position.

Step 4: Connect a terminal (or terminal emulation program such as HyperTerminal) to the CFG

Port. Use the supplied serial cable. Settings are 115200, N81, Hardware Flow Control.

Step 5: Type: AT and press return. The modem will respond with OK.

Step 6: Type: AT+SPC=”000000” (type the double quotes) and press return. The modem will

respond with OK.

Step 7: Type: AT+WMIN=”1234567890” (type the double quotes) where 1234567890 is the

MIN provided to you by the carrier, and press return. The modem will respond with OK.

Step 8: Wait 5 seconds, then type: AT+MIN? and press return. The modem will respond with

the programmed MIN.

Step 9: Disconnect the serial cable and return the switch to the RUN position.

Your LAN-Cell is now ready to be configured for your specific application. Please see the

User’s Guide for additional information.

Accessing your LAN-Cell Via Web Configurator

NOTE: You can use either the embedded web configurator or the System

Management Terminal (SMT) to access and configure the LAN-Cell. This Quick

Start Guide shows you how to use the web configurator only. See your User’s

Guide for more information on all of the LAN-Cell’s features and configuration

options. Click the web configurator online help for screen-specific assistance.

Step 1:Launch your web browser. Enter http://192.168.1.1 as the web site address.

Step 2:The default password (“1234”) is already in the password field (in non-readable format).

Click Login to proceed to a screen asking you to change your password.

Step 3:It is highly recommended that you change the default password! Enter a new password,

retype it to confirm and click Apply; alternatively, click Ignore to proceed if you do not

want to change the password now.

Step 4:You should now see the web configurator Main Menu screen.

Consult your User’s Guide for more information on how to configure the LAN-Cell’s features.

Some common items you may wish to review immediately include:

LAN Use the screens in this area to change the LAN-Cell’s IP address and its

DHCP server settings.

WAN The screens in this area enable you to configure your Wired and Cellular

WAN settings. Refer to any documentation from your service provider

regarding their requirements.

Cellular

Modem If your LAN-Cell was purchased directly from Proxicast along with an

unlimited cellular data plan, then the LAN-Cell’s cellular modem is

ENABLED and configured as NAILED UP (always on) and the unit is ready

for use. Otherwise, the LAN-Cell’s embedded cellular modem is NOT

ENABLED by default. After you have activated the modem with your

cellular carrier and configured the modem’s MIN/MDN values via the CFG

port, the cellular modem also must be configured and enabled in the

WAN/Cellular Modem Screen. See the User’s Guide or contact your carrier

or Proxicast for carrier/application specific information on these settings.

For Verizon Wireless, you must enter your login information as

“[email protected]”, password “vzw” and set the access phone number to

“#777”. You may also wish to change the WAN port priority to make the

Cellular Modem the preferred communications port.

Firewall The LAN-Cell’s integrated firewall is ENABLED by default. You may need

to change the default firewall rules to suit your specific application. See the

User’s Guide for more information and examples of configuring the firewall.

V. Troubleshooting

PROBLEM CORRECTIVE ACTION

None of the LEDs

turn on

Make sure that you have the correct power adapter connected to the LAN-

Cell and have plugged it into an appropriate power source. Check all

cable connections.

If the LEDs still do not turn on, you may have a hardware problem. In

this case, you should contact your vendor.

Cannot access the

LAN-Cell from the

LAN

Check the cable connection between your computer (or hub) and the

LAN-Cell. Check that the corresponding LAN port LED is ON (indicates

Link Status).

Try to ping the LAN-Cell’s LAN IP address from a LAN computer.

Cannot ping any

computer on the

LAN

If the LAN LEDs are off, check the cable connections.

Verify that the IP address and subnet of the LAN-Cell is in the same range

as the computers on the LAN.

Cannot get a WAN

IP address from the

ISP

The WAN IP is provided after the ISP verifies the MAC address, host

name or User ID.

Find out the verification method used by your ISP and configure the

corresponding fields.

For Cellular Modem WAN connections, this problem is usually related to

either a misconfigured MIN between the modem and the carrier or is the

result of an incorrect username/password entered in the Cellular Modem

screen. Use the AT+MIN? command via the CFG Port to verify your

MIN.

Cannot access the

Internet via the

WAN port

Check the LAN-Cell’s connection to the wired WAN (cable/DSL

modem). Check whether your Ethernet WAN connection requires a

crossover or straight cable.

Check your settings in the WAN screens, especially the routing priority.

Cell Signal LED

does not come on

Check that the proper antenna is securely attached to the LAN-Cell.

Connect a terminal to the CFG Port and put the switch in the CFG

position. Enter AT+CSQ? and press return. The modem will respond

with a signal strength indicator between 0 and 31 (higher indicates a

stronger signal; 99 indicates no signal detected).

Move the LAN-Cell to a location when the carrier’s signal can be

detected.

PROBLEM CORRECTIVE ACTION

Cell Online LED

goes ON then OFF

This problem is usually due to an incorrect username/password entered in

the Cellular Modem screen. It may also be caused if other Cellular

Modem parameters do not match those required by the carrier. Contact

your cellular service provider or Proxicast for more information on carrier

specific settings.

Unable to perform

Over-the-Air

(OTA) activation

(AT+CDV*22899)

You must have the LAN-Cell in a location with cellular service.

Confirm that the correct LAN-Cell ESN is registered with your cellular

carrier.

Confirm with your carrier that your cellular data account is configured for

OTA support. If not, use the manual MIN/MDN programming method.

Cannot make a

cellular data

connection even

when cellular signal

is present.

Check the position of the CFG slide switch. It must be in the RUN (right)

position in order to make a cellular data connection.

Confirm that the LAN-Cell’s ESN has been activated by your carrier.

Check that the antenna is tightly secured to the antenna port.

Use the AT+CSQ? command via the CFG port to determine the signal

strength. In general, CSQ must be 5+ in order to make a reliable

connection.

Autres manuels pour 1xMG-401

Table des matières

Autres manuels Proxicast Porte

Proxicast

Proxicast 1xMG-401 Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
