Prorack K927 Manuel utilisateur

K927

Fitting Kit

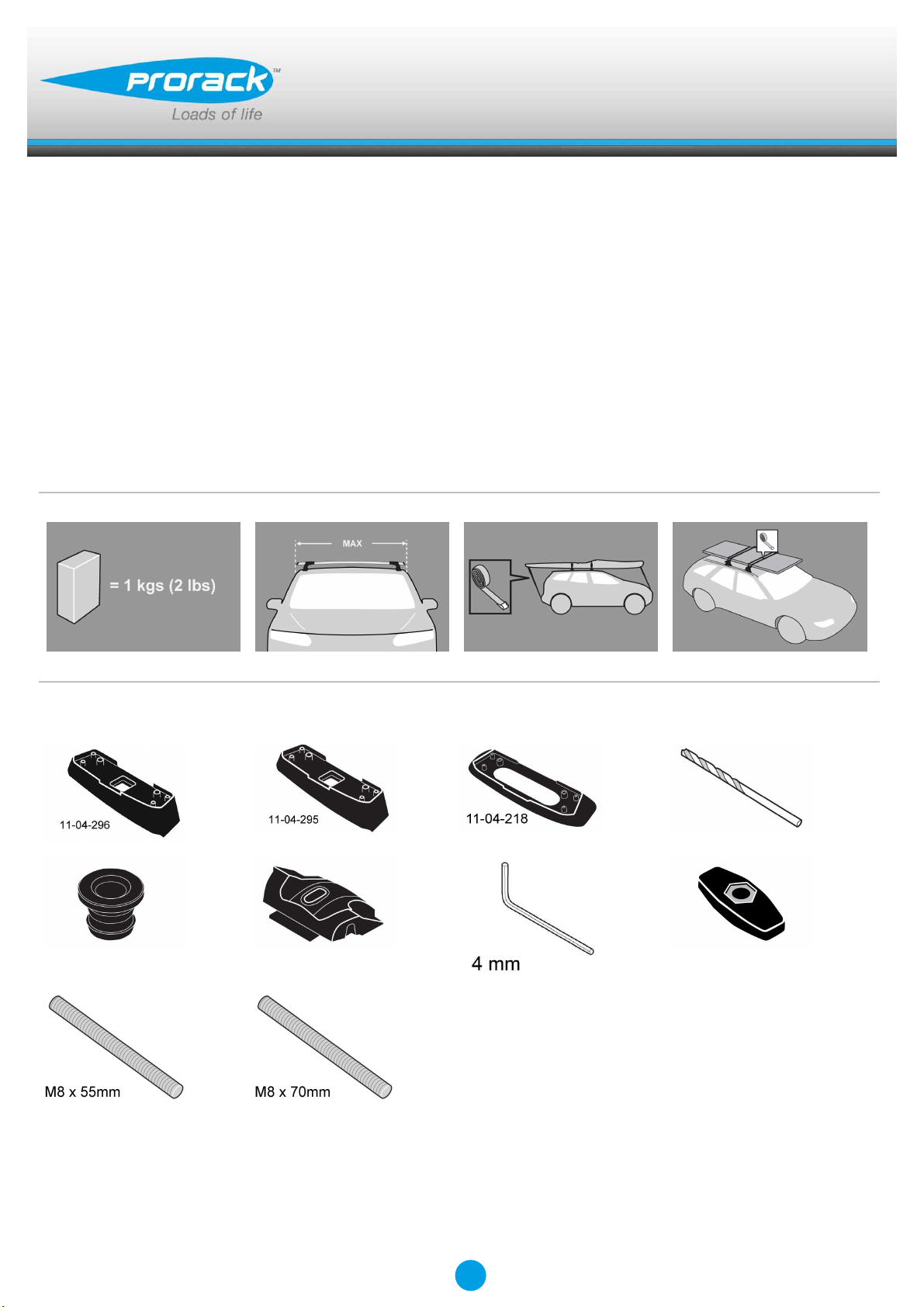

EN Fitting Instructions for Basic Carrier

x 1 x 1 x 2 x 1

x 4 x 4 x 1 x 4

x 2 x 2

Revision No: 2B 1

Fitting Kit K927

MAX kgs (lbs)

W/P WHD

Mitsubishi

Triton Club Cab, 4dr Ute Apr 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Triton Club Cab, 4dr Ute Apr 15-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Triton Double Cab, 4dr Ute Apr 15-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Triton Double Cab, 4dr Ute Apr 15-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Fitting Kit K927

A B C 1 2 3

Triton Club Cab, 4dr Ute Apr 15-+ (AU) -240mm 300mm - 877mm 818mm -

-9 -7/16ths" 11 13/16ths" - 34 1/2ths" 32 3/16ths" -

Triton Club Cab, 4dr Ute Apr 15-+ (NZ) -240mm 300mm - 877mm 818mm -

-9 -7/16ths" 11 13/16ths" - 34 1/2ths" 32 3/16ths" -

Triton Double Cab, 4dr Ute Apr 15-+ (AU) -275mm 525mm - 877mm 795mm -

-10 -13/16ths" 20 11/16ths" - 34 1/2ths" 31 5/16ths" -

Triton Double Cab, 4dr Ute Apr 15-+ (NZ) -275mm 525mm - 877mm 795mm -

-10 -13/16ths" 20 11/16ths" - 34 1/2ths" 31 5/16ths" -

Fitting Kit EN

K927

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K927

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Attaches to factory-fitted mounting points

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

Fitting Kit EN

K927

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K927

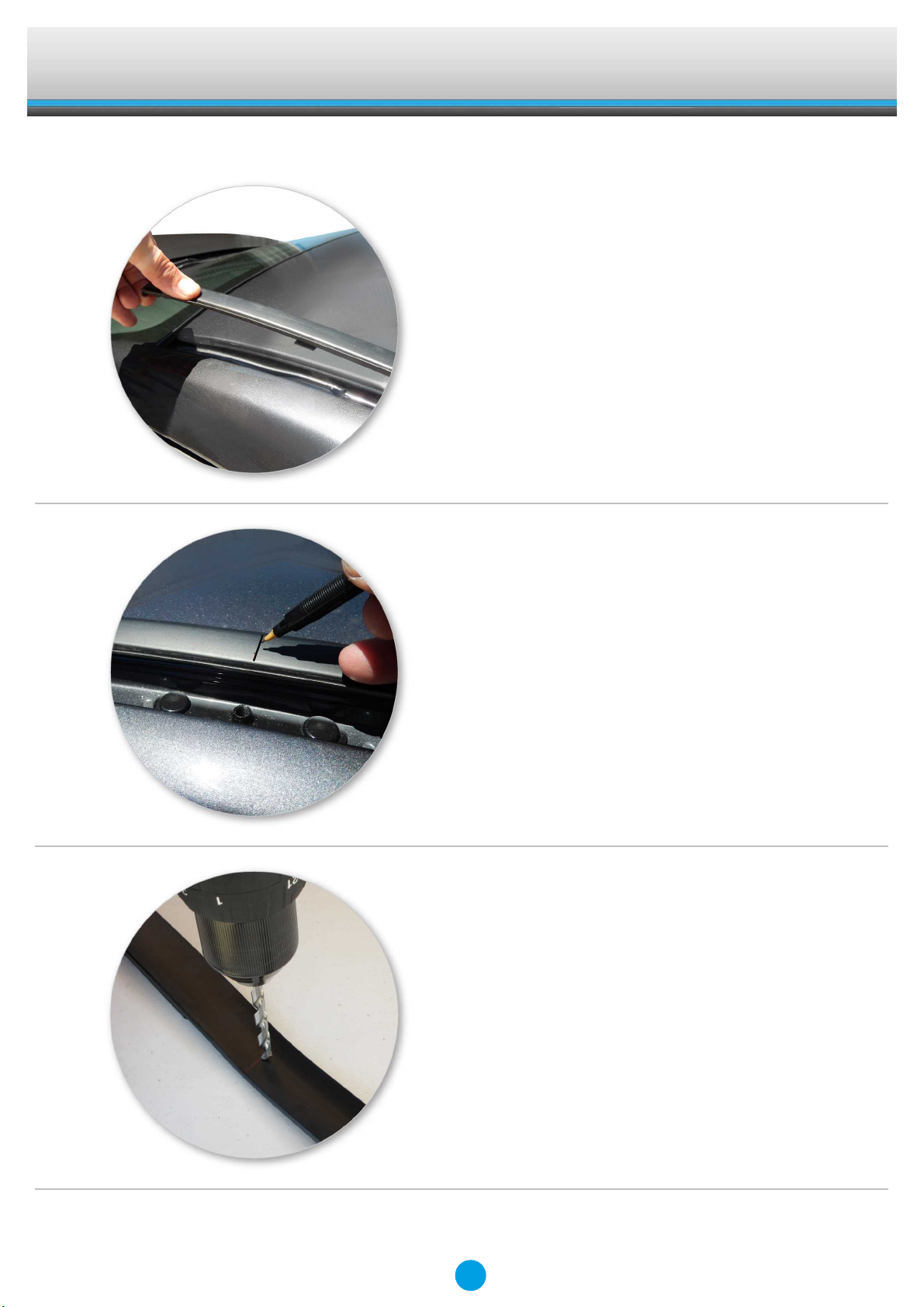

Fitment

●Lift and pull ditch moulding back towards

you and remove from the vehicle.

●Mark a reference point for the front and

rear mounting points with a pen as shown.

●Use drill bit supplied, to drill holes in

marked positions.

Fitting Kit EN

K927

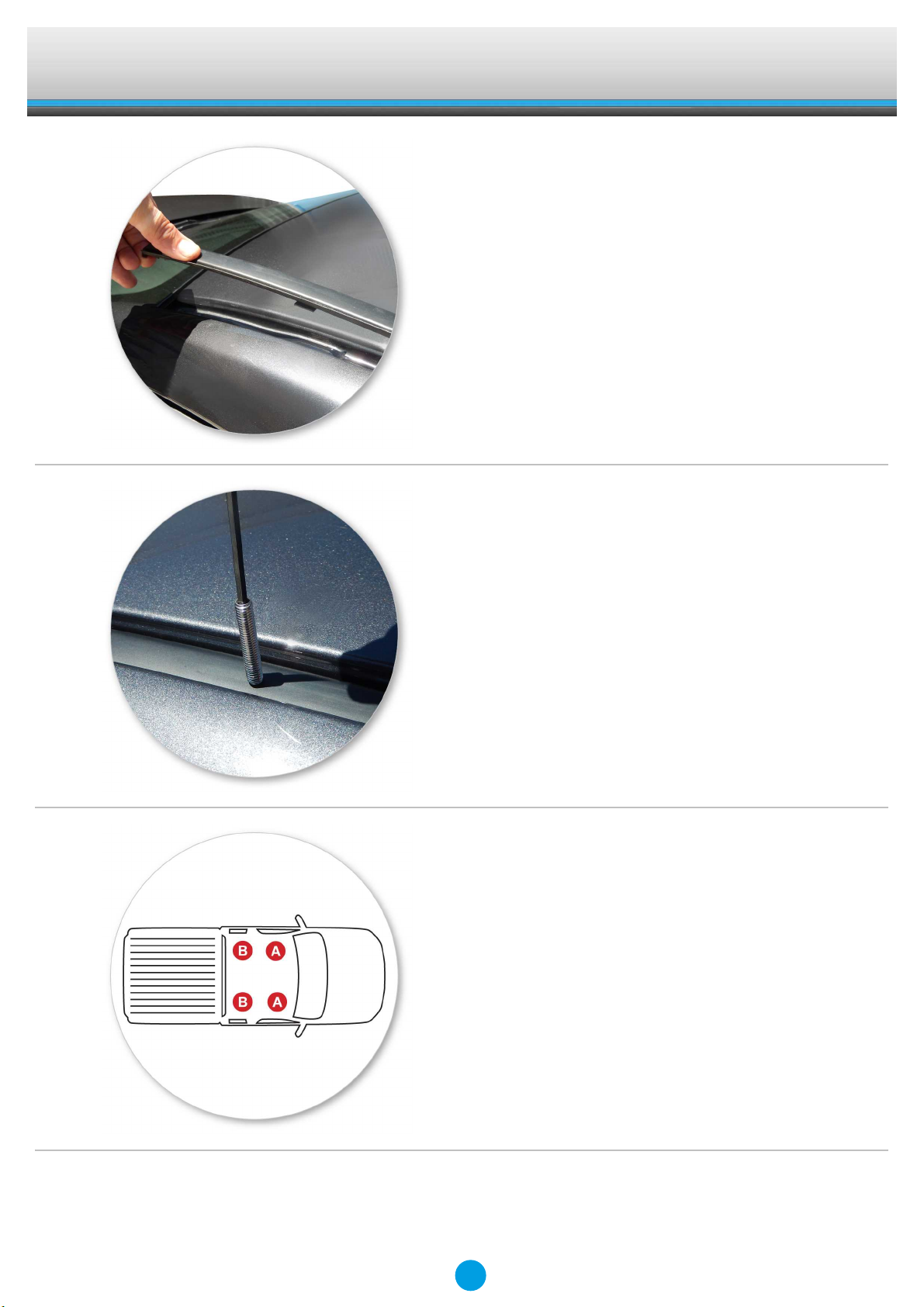

●Re-install rubber ditch mould back into roof

channel and click into place.

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

●Use the following grubscrew lengths:

A = 70mm (2 3/4")

B = 55mm (2 1/8")

Fitting Kit EN

K927

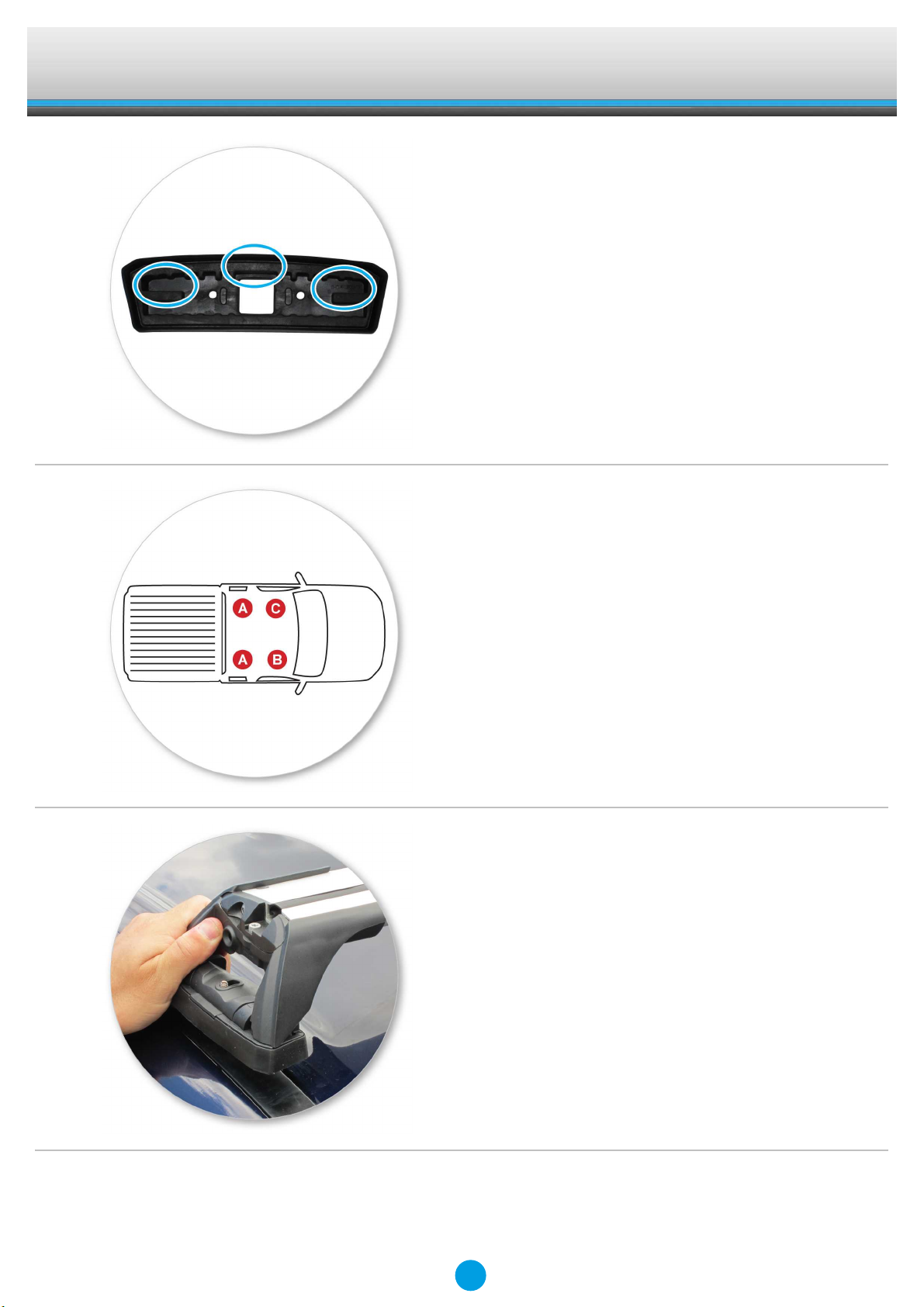

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 218A

B = 295A

C = 296A

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew passes through the hole in

the foot.

●Repeat for all four positions.

Fitting Kit EN

K927

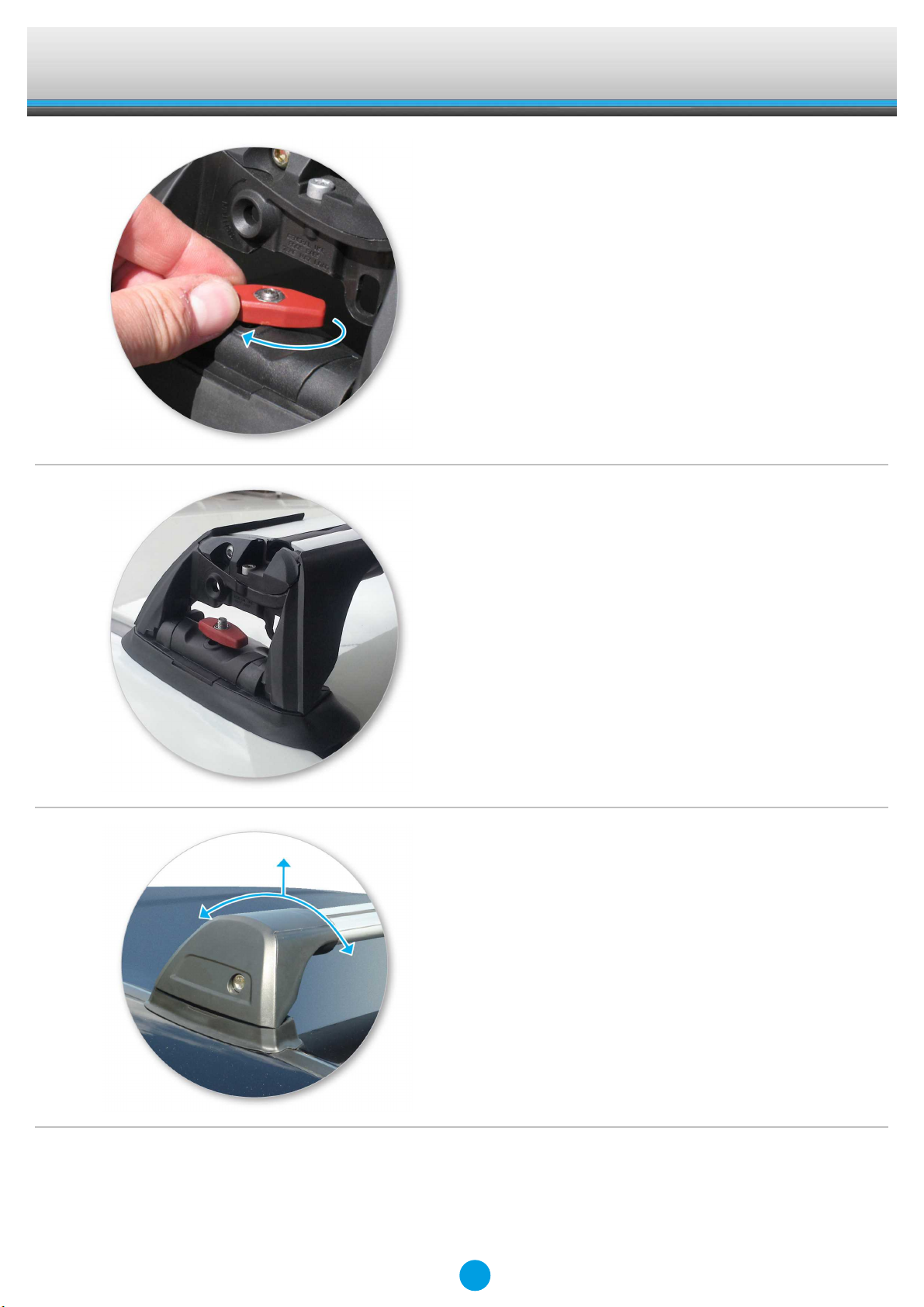

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers
