K567

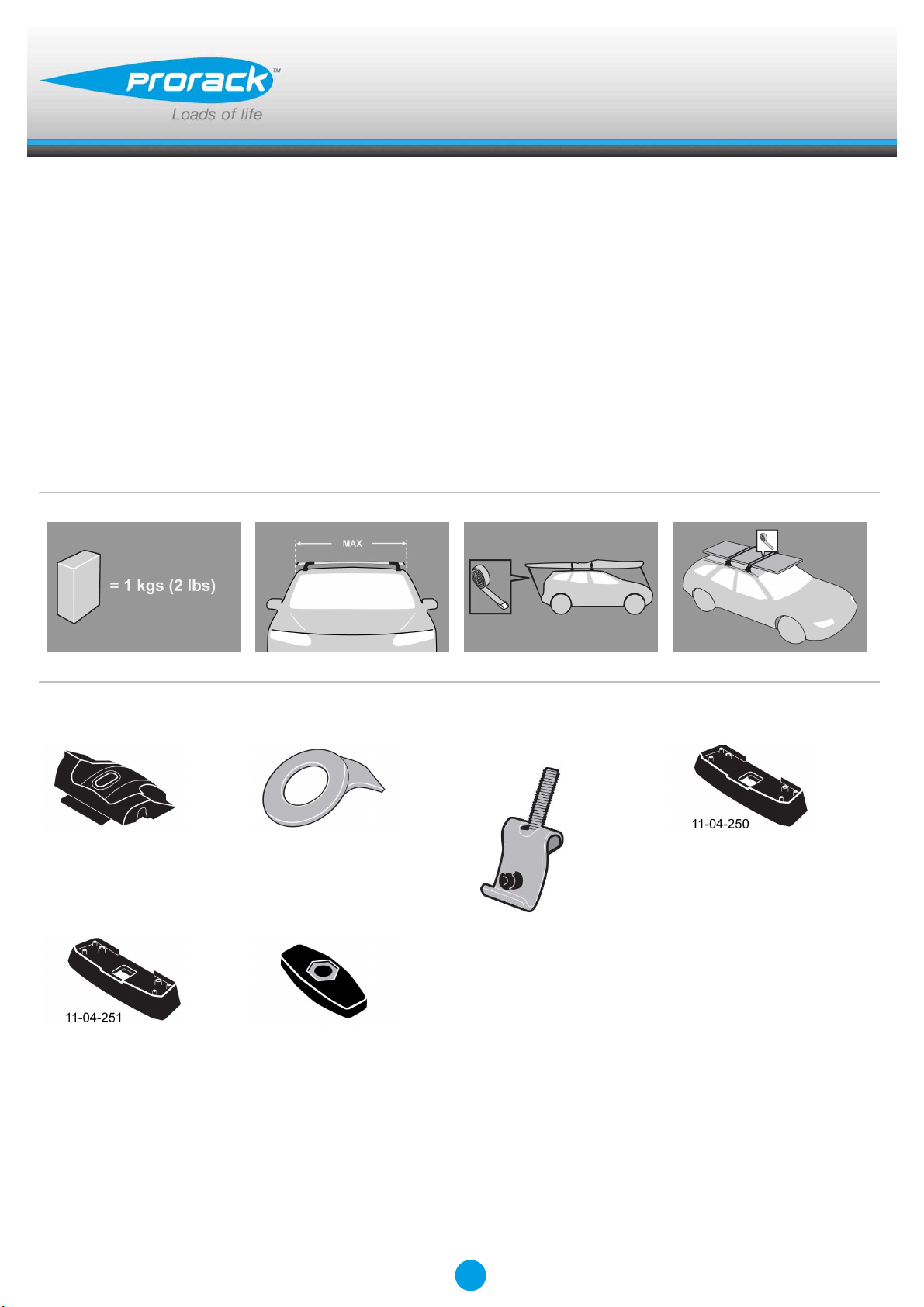

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 2

x 2 x 4

Revision No: 6F 1

Fitting Kit K567

MAX kgs (lbs)

W/P WHD

Suzuki

Swift, 3dr Hatch 10-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Swift, 3dr Hatch 10-+ CN 50 kgs (110 lbs) 50 kgs (110 lbs)

Swift, 3dr Hatch 10-+ ZA 50 kgs (110 lbs) 50 kgs (110 lbs)

Swift, 5dr Hatch 11-+ ZA 50 kgs (110 lbs) 50 kgs (110 lbs)

Swift, 5dr Hatch 11-+ US 50 kgs (110 lbs) 50 kgs (110 lbs)

Swift, 5dr Hatch Feb 11-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Swift, 5dr Hatch Feb 11-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)

Swift, 5dr Hatch Sep 10-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)

Swift, 5dr Hatch Sep 10-+ CN 50 kgs (110 lbs) 50 kgs (110 lbs)

2

Fitting Kit K567

X

A B C 1 2 3

Swift, 3dr Hatch 10-+ (EU) -460mm 200mm - 810mm 760mm -

-18 -1/8ths" 7 7/8ths" - 31 7/8ths" 29 15/16ths" -

Swift, 3dr Hatch 10-+ (CN) -460mm 200mm - 810mm 760mm -

-18 -1/8ths" 7 7/8ths" - 31 7/8ths" 29 15/16ths" -

Swift, 3dr Hatch 10-+ (ZA) -460mm 200mm - 810mm 760mm -

-18 -1/8ths" 7 7/8ths" - 31 7/8ths" 29 15/16ths" -

Swift, 5dr Hatch 11-+ (ZA) -320mm 340mm - 817mm 763mm -

-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -

Swift, 5dr Hatch 11-+ (US) -320mm 340mm - 817mm 763mm -

-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -

Swift, 5dr Hatch Feb 11-+ (NZ) -320mm 340mm - 817mm 763mm -

-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -

Swift, 5dr Hatch Feb 11-+ (AU) -320mm 340mm - 817mm 763mm -

-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -

Swift, 5dr Hatch Sep 10-+ (EU) -320mm 340mm - 817mm 763mm -

-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -

Swift, 5dr Hatch Sep 10-+ (CN) -320mm 340mm - 817mm 763mm -

-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -

3

Fitting Kit EN

K567

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K567

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Ensure that the crossbar is adjusted evenly

at both ends.

5

Fitting Kit EN

K567

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

6

Fitting Kit EN

K567

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-250

B = 11-04-251

●Fit rubber pad (supplied with crossbar) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

●Repeat for all legs.

7

Fitting Kit EN

K567

Fitment

●Open or remove fixed-point covers.

●Fixed point may vary to those pictured.

●Hook clamps into the fixed points on the

vehicle.

●Ensure internal clamp sits upright.

●Repeat for all four positions.

8

Fitting Kit EN

K567

●Mount crossbars over clamps.

●Place washer over clamp thread as shown.

●Ensure that tab is inserted into clamp

block.

9

Fitting Kit EN

K567

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Repeat for all legs.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

10
