Prorack K564 Manuel utilisateur

K564

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 1 x 1 x 1 x 1

x 8 x 4 x 4 x 1

Revision No: 5E 1

Fitting Kit K564

x 4 x 2 x 2 x 6

x 2 x 6

Fitting Kit K564

MAX kgs (lbs)

W/P WHD

Citroen

Berlingo L1, 5dr Van 15-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Berlingo L1, 5dr Van 15-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Berlingo L1, 5dr Van 15-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Berlingo L2, 5dr Van 15-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Berlingo L2, 5dr Van 15-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Berlingo L2, 5dr Van 15-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Berlingo LWB, 5dr Van 08-15 AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Berlingo LWB, 5dr Van 08-15 EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Berlingo LWB, 5dr Van 08-15 NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Peugeot

Partner LWB, 5dr Van 08-+ US 75 kgs (165 lbs) 100 kgs (220 lbs)

Partner LWB, 5dr Van 08-15 EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Partner LWB, 5dr Van 08-15 ZA 75 kgs (165 lbs) 100 kgs (220 lbs)

Partner LWB, 5dr Van 08-15 NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Partner LWB, 5dr Van 08-15 AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Partner, 5dr Van 15-18 NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Partner, 5dr Van 15-18 EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Partner, 5dr Van 15-18 ZA 75 kgs (165 lbs) 100 kgs (220 lbs)

Fitting Kit K564

A B C 1 2 3

Berlingo L1, 5dr Van 15-+ (AU) -185mm 665mm - 980mm 936mm 920mm

-7 -1/4ths" 26 3/16ths" - 38 9/16ths" 36 7/8ths" 36 1/4ths"

Berlingo L1, 5dr Van 15-+ (NZ) -185mm 665mm - 980mm 936mm 920mm

-7 -1/4ths" 26 3/16ths" - 38 9/16ths" 36 7/8ths" 36 1/4ths"

Berlingo L1, 5dr Van 15-+ (EU) -185mm 665mm - 980mm 936mm 920mm

-7 -1/4ths" 26 3/16ths" - 38 9/16ths" 36 7/8ths" 36 1/4ths"

Berlingo L2, 5dr Van 15-+ (AU) -185mm 665mm - 980mm 936mm 920mm

-7 -1/4ths" 26 3/16ths" - 38 9/16ths" 36 7/8ths" 36 1/4ths"

Berlingo L2, 5dr Van 15-+ (NZ) -185mm 665mm - 980mm 936mm 920mm

-7 -1/4ths" 26 3/16ths" - 38 9/16ths" 36 7/8ths" 36 1/4ths"

Berlingo L2, 5dr Van 15-+ (EU) -185mm 665mm - 980mm 936mm 920mm

-7 -1/4ths" 26 3/16ths" - 38 9/16ths" 36 7/8ths" 36 1/4ths"

Berlingo LWB, 5dr Van 08-15 (AU) -180mm 670mm - 985mm 945mm 915mm

-7 -1/16ths" 26 3/8ths" - 38 3/4ths" 37 3/16ths" 36"

Berlingo LWB, 5dr Van 08-15 (EU) -180mm 670mm - 985mm 945mm 915mm

-7 -1/16ths" 26 3/8ths" - 38 3/4ths" 37 3/16ths" 36"

Berlingo LWB, 5dr Van 08-15 (NZ) -180mm 670mm - 985mm 945mm 915mm

-7 -1/16ths" 26 3/8ths" - 38 3/4ths" 37 3/16ths" 36"

Partner LWB, 5dr Van 08-+ (US) -180mm 670mm - 985mm 945mm 915mm

-7 -1/16ths" 26 3/8ths" - 38 3/4ths" 37 3/16ths" 36"

Partner LWB, 5dr Van 08-15 (EU) -180mm 670mm - 985mm 945mm 915mm

-7 -1/16ths" 26 3/8ths" - 38 3/4ths" 37 3/16ths" 36"

Partner LWB, 5dr Van 08-15 (ZA) -180mm 670mm - 985mm 945mm 915mm

-7 -1/16ths" 26 3/8ths" - 38 3/4ths" 37 3/16ths" 36"

Partner LWB, 5dr Van 08-15 (NZ) -180mm 670mm - 985mm 945mm 915mm

-7 -1/16ths" 26 3/8ths" - 38 3/4ths" 37 3/16ths" 36"

Partner LWB, 5dr Van 08-15 (AU) -180mm 670mm - 985mm 945mm 915mm

-7 -1/16ths" 26 3/8ths" - 38 3/4ths" 37 3/16ths" 36"

Partner, 5dr Van 15-18 (NZ) -185mm 665mm - 980mm 936mm 920mm

-7 -1/4ths" 26 3/16ths" - 38 9/16ths" 36 7/8ths" 36 1/4ths"

Fitting Kit K564

Partner, 5dr Van 15-18 (EU) -185mm 665mm - 980mm 936mm 920mm

-7 -1/4ths" 26 3/16ths" - 38 9/16ths" 36 7/8ths" 36 1/4ths"

Partner, 5dr Van 15-18 (ZA) -185mm 665mm - 980mm 936mm 920mm

-7 -1/4ths" 26 3/16ths" - 38 9/16ths" 36 7/8ths" 36 1/4ths"

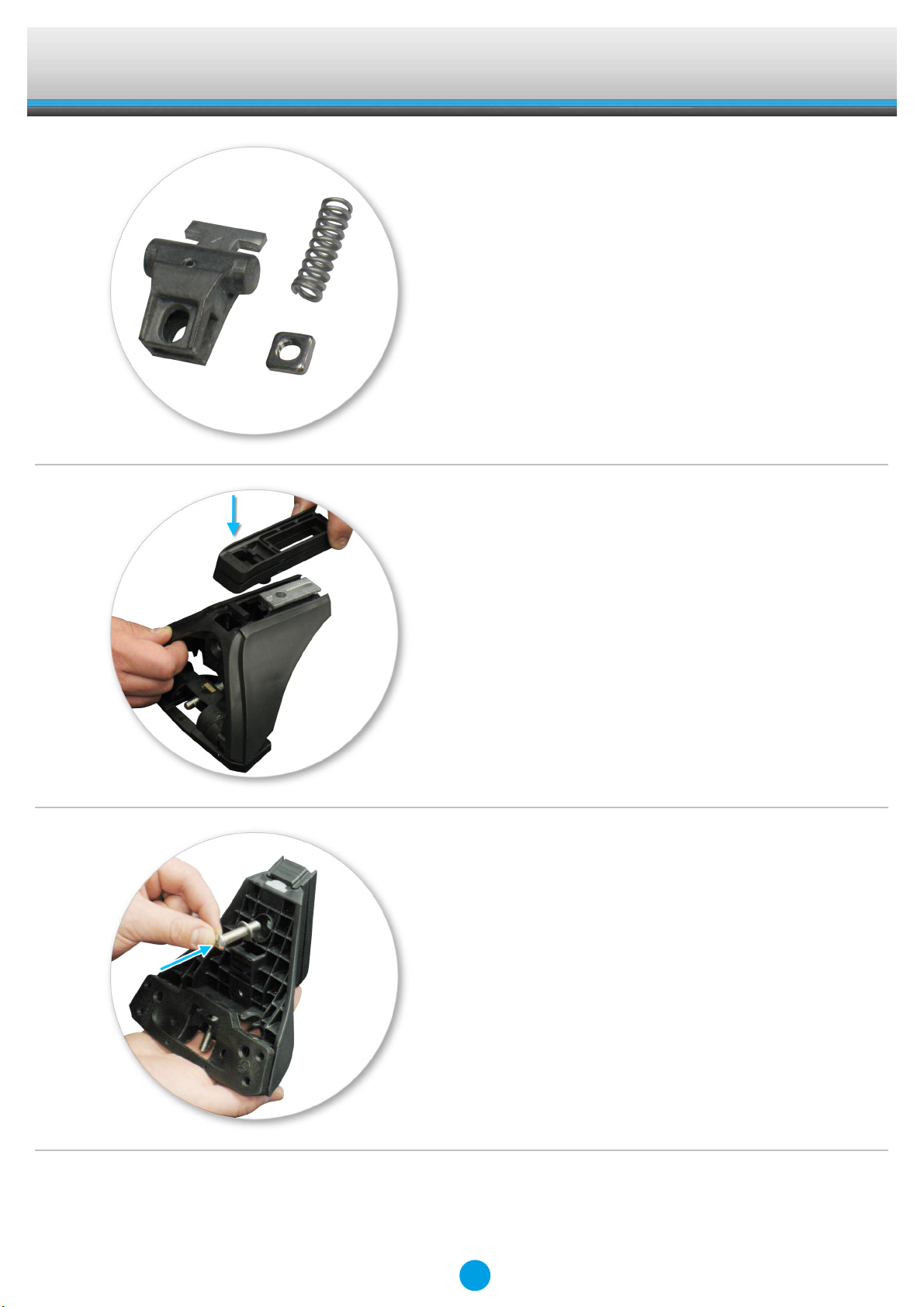

Fitting Kit EN

K564

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type D only.

●Use keys to remove covers.

Fitting Kit EN

K564

●Remove Hex Key from right hand cover.

Front and rear crossbars only:

●Use the Hex Key to remove the endcap

screw.

●Remove the endcap by pulling on the

endcap pin and pushing on the top of the

endcap. Use a side to side motion to assist.

●Repeat on other crossbar.

Fitting Kit EN

K564

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and slide the leg

completely off the crossbar.

●Use the Hex Key to fully undo the adjusting

screw.

Fitting Kit EN

K564

●Remove the adjusting screw and store in a

safe place.

●Repeat on both leg assemblies.

●Use the Hex Key to lift the toggle

assembly.

●Remove the complete toggle assembly.

Fitting Kit EN

K564

●Store items away in a safe place.

●Place two packers on each leg.

●Repeat on both leg assemblies.

●Insert the capscrew and washer together

through the back of the leg.
