K389
Fitting Kit

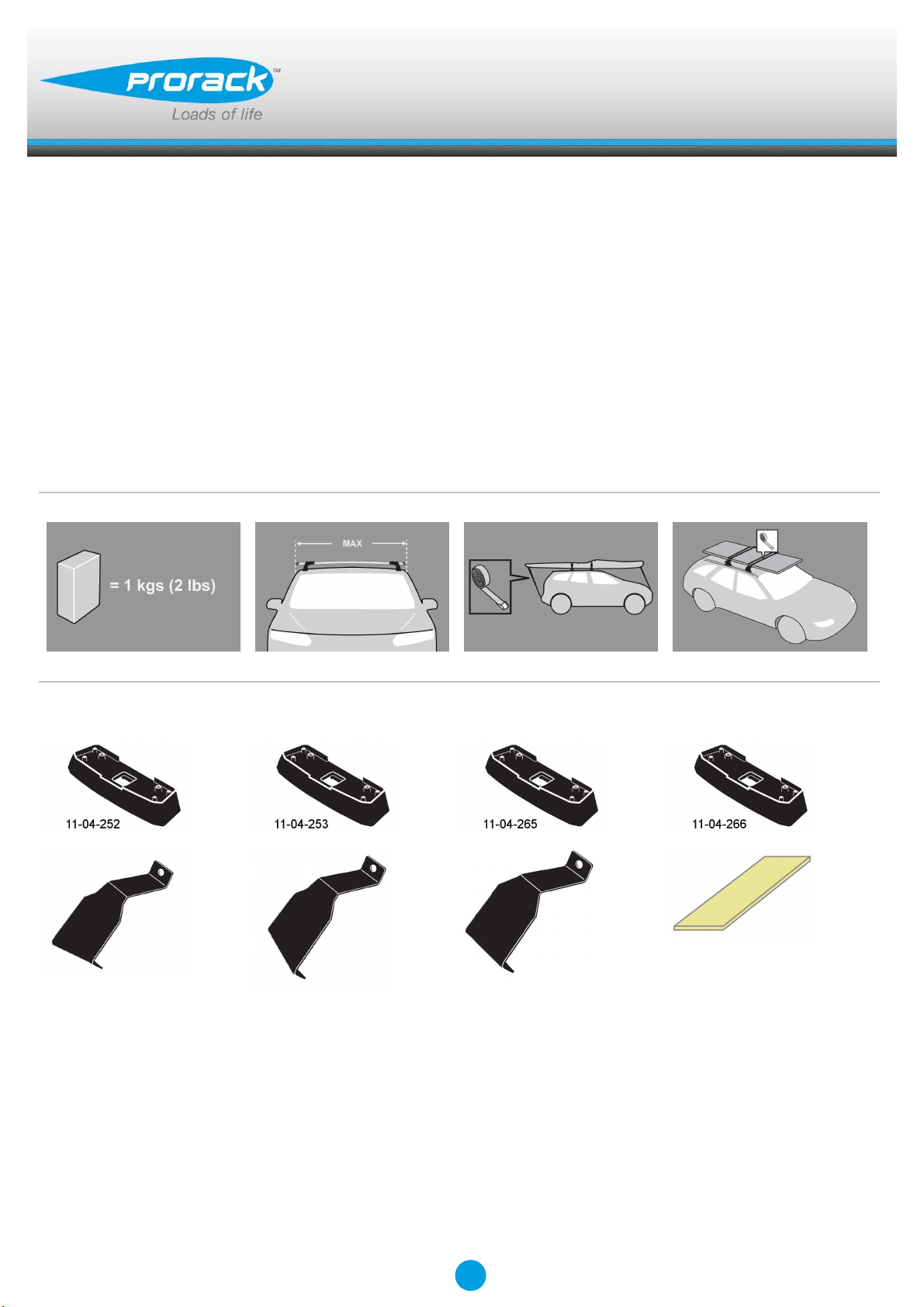

EN Fitting Instructions for Basic Carrier
x 1 x 1 x 1 x 1
x 1 x 1 x 2 x 4
Revision No: 6C 1
Fitting Kit K389
MAX kgs (lbs)
W/P WHD
Hyundai
Accent, 4dr Sedan 06-Dec 11 US 50 kgs (110 lbs) 50 kgs (110 lbs)
Accent, 4dr Sedan 06-Dec 11 ZA 50 kgs (110 lbs) 50 kgs (110 lbs)
Accent, 4dr Sedan 06-Jan 11 EU 50 kgs (110 lbs) 50 kgs (110 lbs)
Accent, 4dr Sedan 06-Jan 11 CN 50 kgs (110 lbs) 50 kgs (110 lbs)
Accent, 4dr Sedan May 06-Dec 11 AU 50 kgs (110 lbs) 50 kgs (110 lbs)
Accent, 4dr Sedan May 06-Dec 11 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
Toyota
Avensis Verso, 5dr MPV 01-06 EU 60 kgs (132 lbs) 60 kgs (132 lbs)
Avensis Verso, 5dr MPV 01-06 CN 60 kgs (132 lbs) 60 kgs (132 lbs)
Ipsum, 5dr MPV 01-06 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)
Ipsum, 5dr MPV 01-06 AU 60 kgs (132 lbs) 60 kgs (132 lbs)
2
Fitting Kit K389
X
A B C 1 2 3
Accent, 4dr Sedan 06-Dec 11 (US) -320mm 330mm - 824mm 814mm -
-12 -5/8ths" 13" - 32 7/16ths" 32 1/16ths" -
Accent, 4dr Sedan 06-Dec 11 (ZA) -320mm 330mm - 824mm 814mm -
-12 -5/8ths" 13" - 32 7/16ths" 32 1/16ths" -
Accent, 4dr Sedan 06-Jan 11 (EU) -320mm 330mm - 824mm 814mm -
-12 -5/8ths" 13" - 32 7/16ths" 32 1/16ths" -
Accent, 4dr Sedan 06-Jan 11 (CN) -320mm 330mm - 824mm 814mm -
-12 -5/8ths" 13" - 32 7/16ths" 32 1/16ths" -
Accent, 4dr Sedan May 06-Dec 11 (AU) -320mm 330mm - 824mm 814mm -
-12 -5/8ths" 13" - 32 7/16ths" 32 1/16ths" -
Accent, 4dr Sedan May 06-Dec 11 (NZ) -320mm 330mm - 824mm 814mm -
-12 -5/8ths" 13" - 32 7/16ths" 32 1/16ths" -
Avensis Verso, 5dr MPV 01-06 (EU) - 600mm - 870mm 860mm -
- 23 5/8ths" - 34 1/4ths" 33 7/8ths" -
Avensis Verso, 5dr MPV 01-06 (CN) - 600mm - 870mm 860mm -
- 23 5/8ths" - 34 1/4ths" 33 7/8ths" -
Ipsum, 5dr MPV 01-06 (NZ) - 600mm - 870mm 860mm -
- 23 5/8ths" - 34 1/4ths" 33 7/8ths" -
Ipsum, 5dr MPV 01-06 (AU) - 600mm - 870mm 860mm -
- 23 5/8ths" - 34 1/4ths" 33 7/8ths" -
3
Fitting Kit EN
K389
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K389
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K389
●Remove locking screw.
●Apply protective strip as shown.
Trim if required.

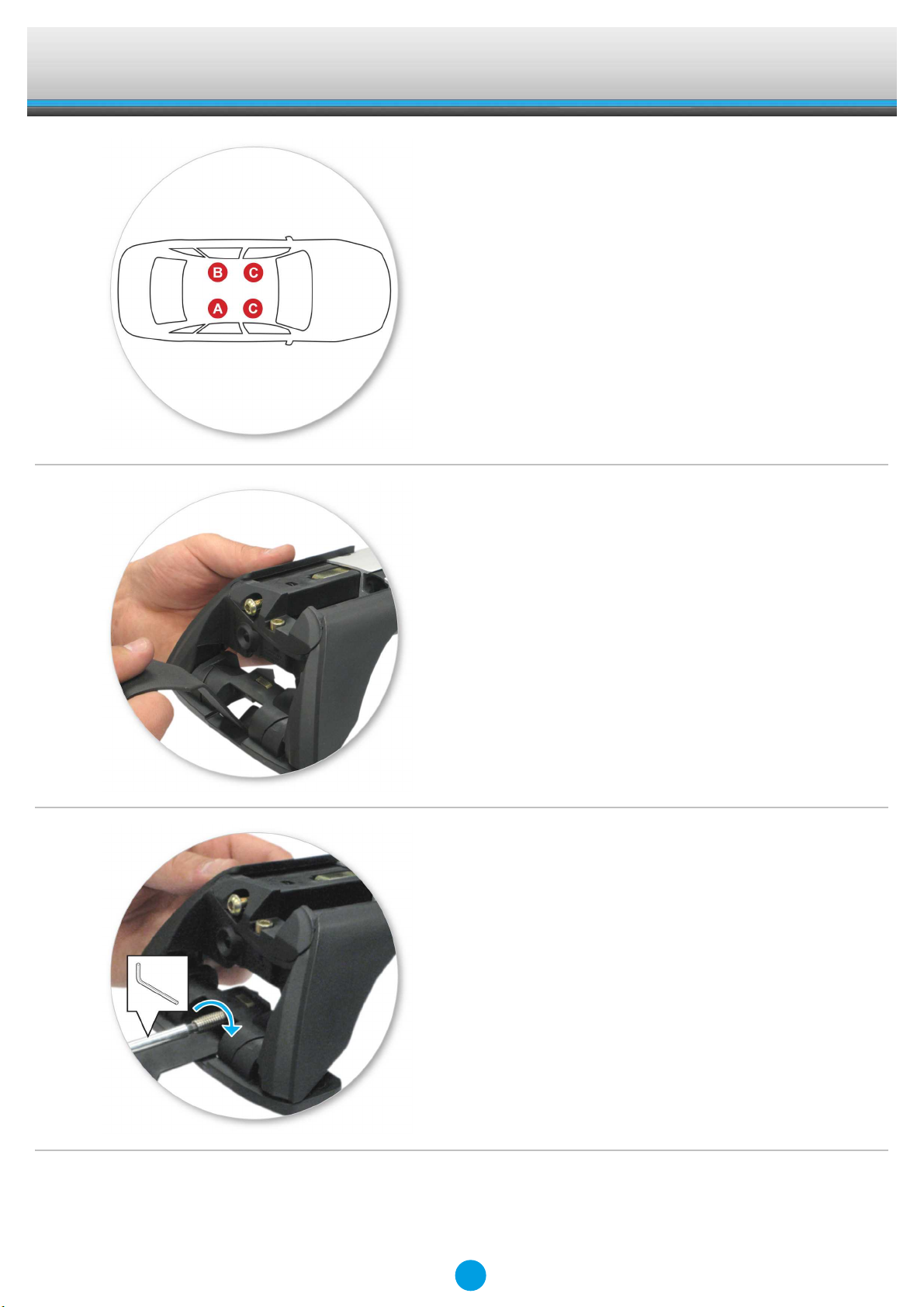

●Hyundai Accent
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 525A
B = 526A
C = 527A
●It is important to put the clamps in the
correct position on the vehicle.
6
Fitting Kit EN
K389
●Toyota Ipsum / Avensis Verso
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 525A
B = 526A
C = 527A
●It is important to put the clamps in the
correct position on the vehicle.
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
7
Fitting Kit EN
K389
●Hyundai Accent
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
●Toyota Ipsum / Avensis Verso
●Fit rubber pad (supplied with crossbar) to
foot.
●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Hyundai Accent
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-265
B = 11-04-266
C = 11-04-253
D = 11-04-252
8
Fitting Kit EN
K389
●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
9
Fitting Kit EN
K389

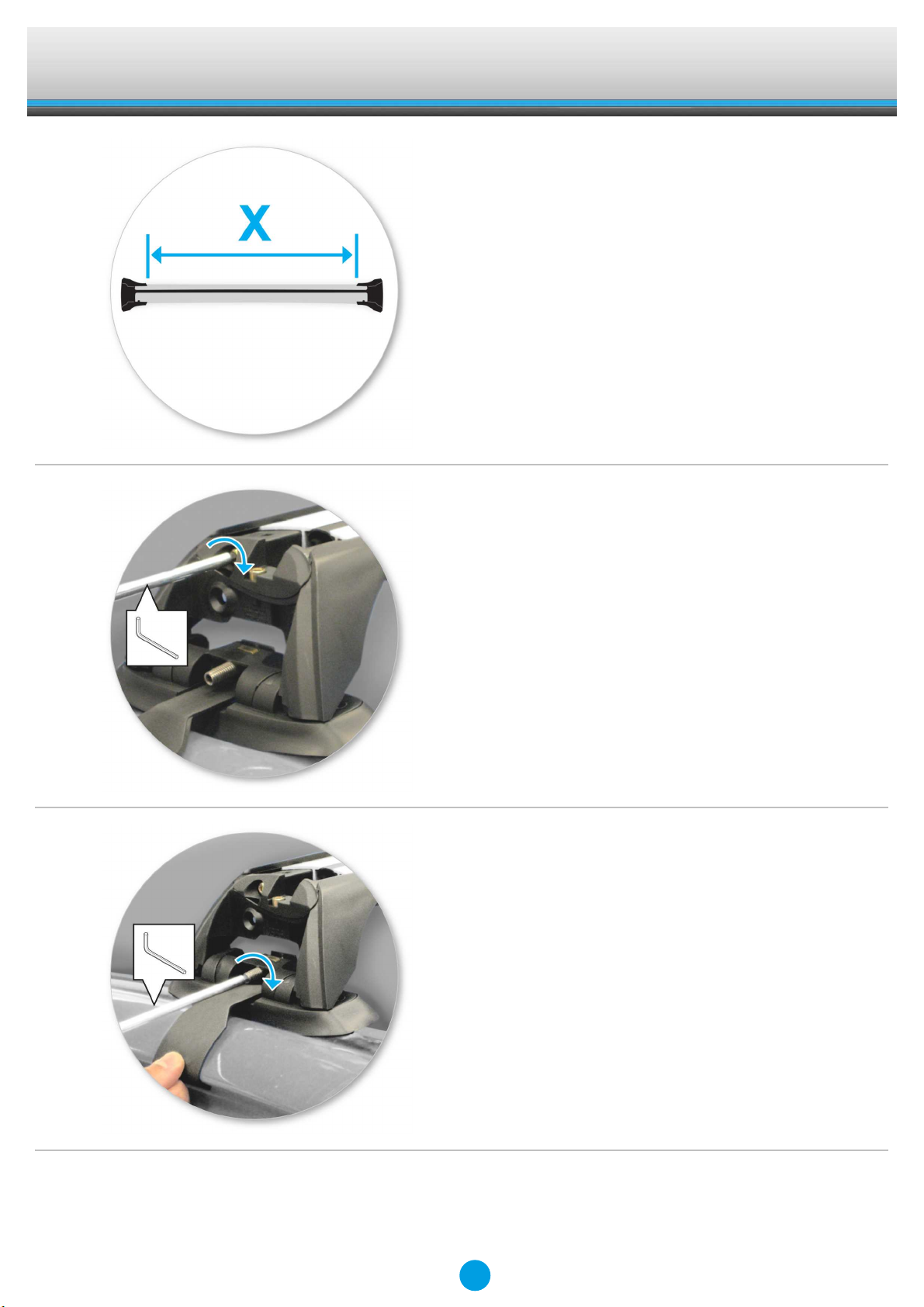

●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Tighten locking screw on both legs evenly.
