PROAIM Quad Plus Manuel utilisateur

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

Proaim Quad Plus Film Camera Doorway Dolly (P-QUAD-PL)

Assembly Manua l

Proaim Quad Plus Professional Dolly

Bowl-Camera Riser

Steering Push/ Pull

Bar

Proaim Telescopic Bazooka &

Proaim Euro Adapter

Washer

Allen Bolt Lock Nut

 Insert the bolt matching the hole of the dolly

and secure it with the help of a washer then

posion the steering push/pull bar to the

center of the dolly.

 Secure the allen bolt and washer with a allen

key as shown in the image.

 Connect the push/pull bar using an allen bolt

with washer and locknut.

Quad Plus Setup

Assemble Push/Pull Bar

Note: You can adjust the lt of the steering

push/pull bar up to 270°

Assemble Euro Adapter

 Mount the Euro adapter on the Dolly plaorm

aligning the Euro thread holes with dolly

holes.

 Insert the washer matching the Euro mount

hole and then secure the Euro with bolts as

shown.

 Now Secure your Euro Adapter, ghten the

bolts with the help of Allen key.

 Mount the Bazooka onto the euro adapter, as

shown in the image.

 Aer Mounted the bazooka, Lock the inner

knob to secure the bazooka. The knob rotate

an-clockwise. (Do not over ghten the knob).

Lock the lever for more security.

Note: The Quick-Lock Lever ensures a secure

bazooka lock-o when mounted on a dolly

system.

 Now ghten the ratchet knob of the riser then

ghten the bazooka ratchet knob to x the

riser perfectly onto the bazooka.

 Riser is properly secure shown in the image.

 Mount the bowl camera riser onto the

bazooka adapter, as shown in the image.

Assemble Riser

Bazooka Setup

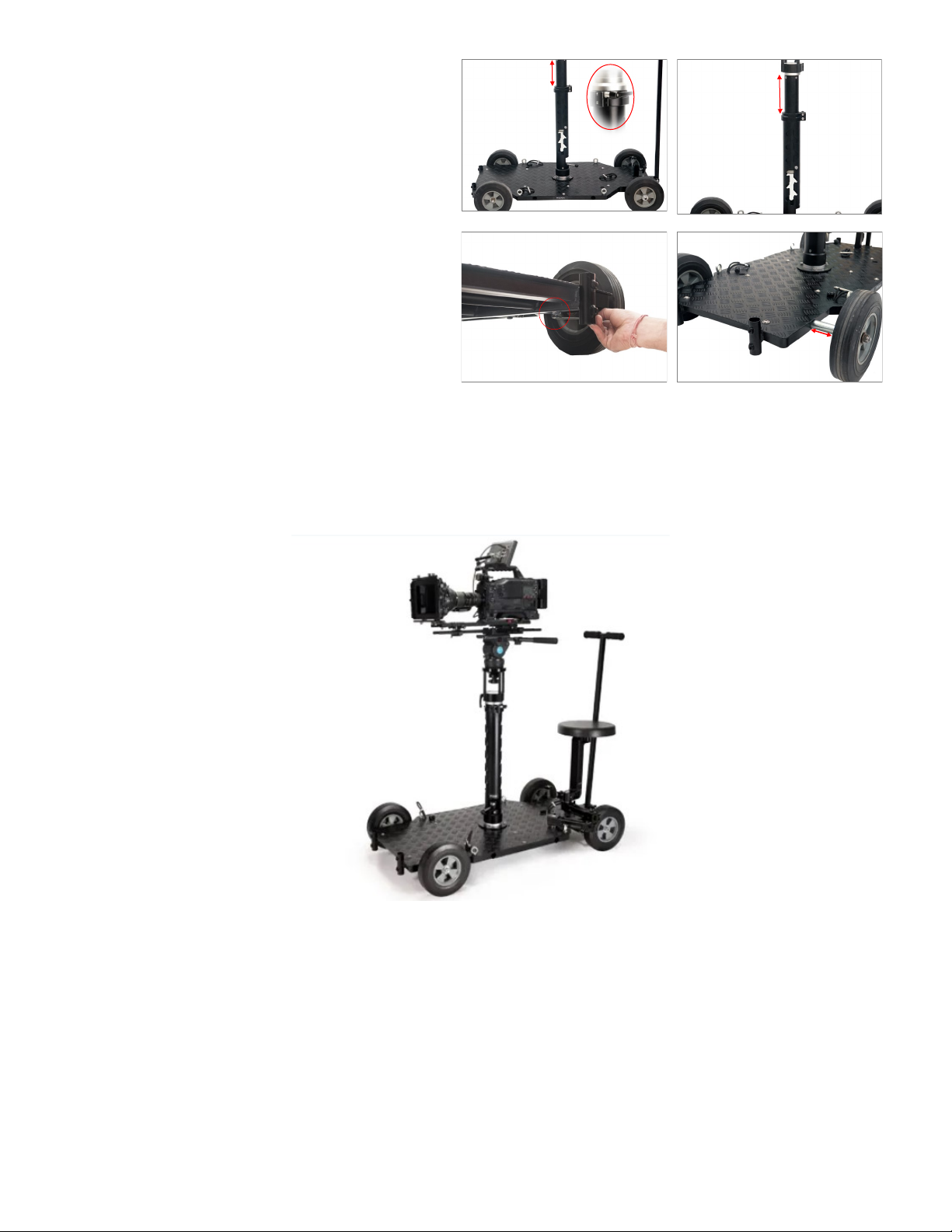

YOUR PROAIM QUAD PLUS FILM CAMERA DOORWAY DOLLY

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

 You can adjust the bazooka height using the

provided bazooka ratchet knob.

Note. The width of the re can be Increased/

decreased via telescopic rear axle.

Ratchet knob

 To increase or decrease the length of the

re, rst loosen the bolt with the help of a

wrench.

Warranty: We oer one year warranty for our products from date of purchase. Within this period of

me, we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor

does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to

inspecon and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling

in transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our

company.

utmost support and care unl you use our product.
